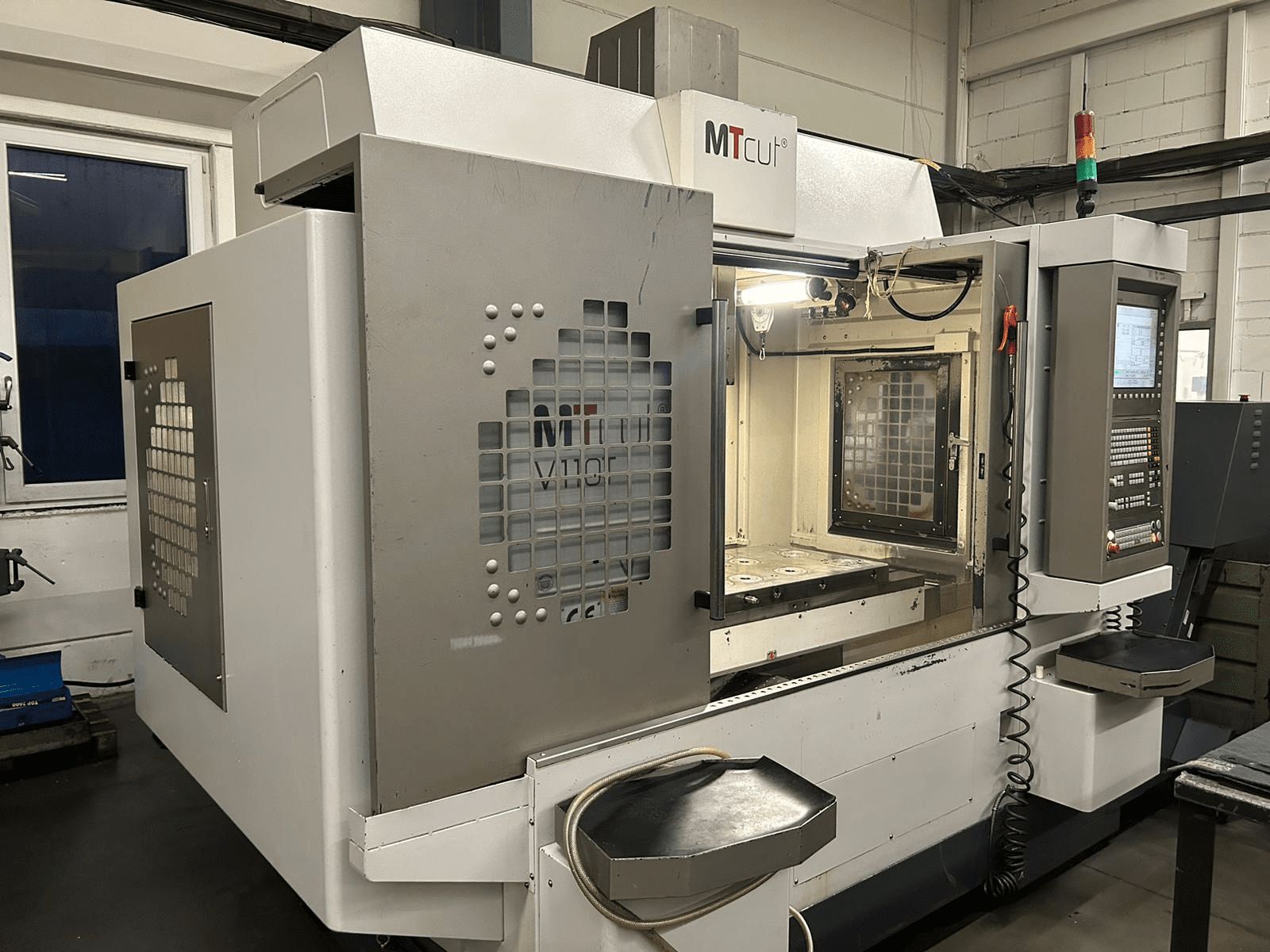

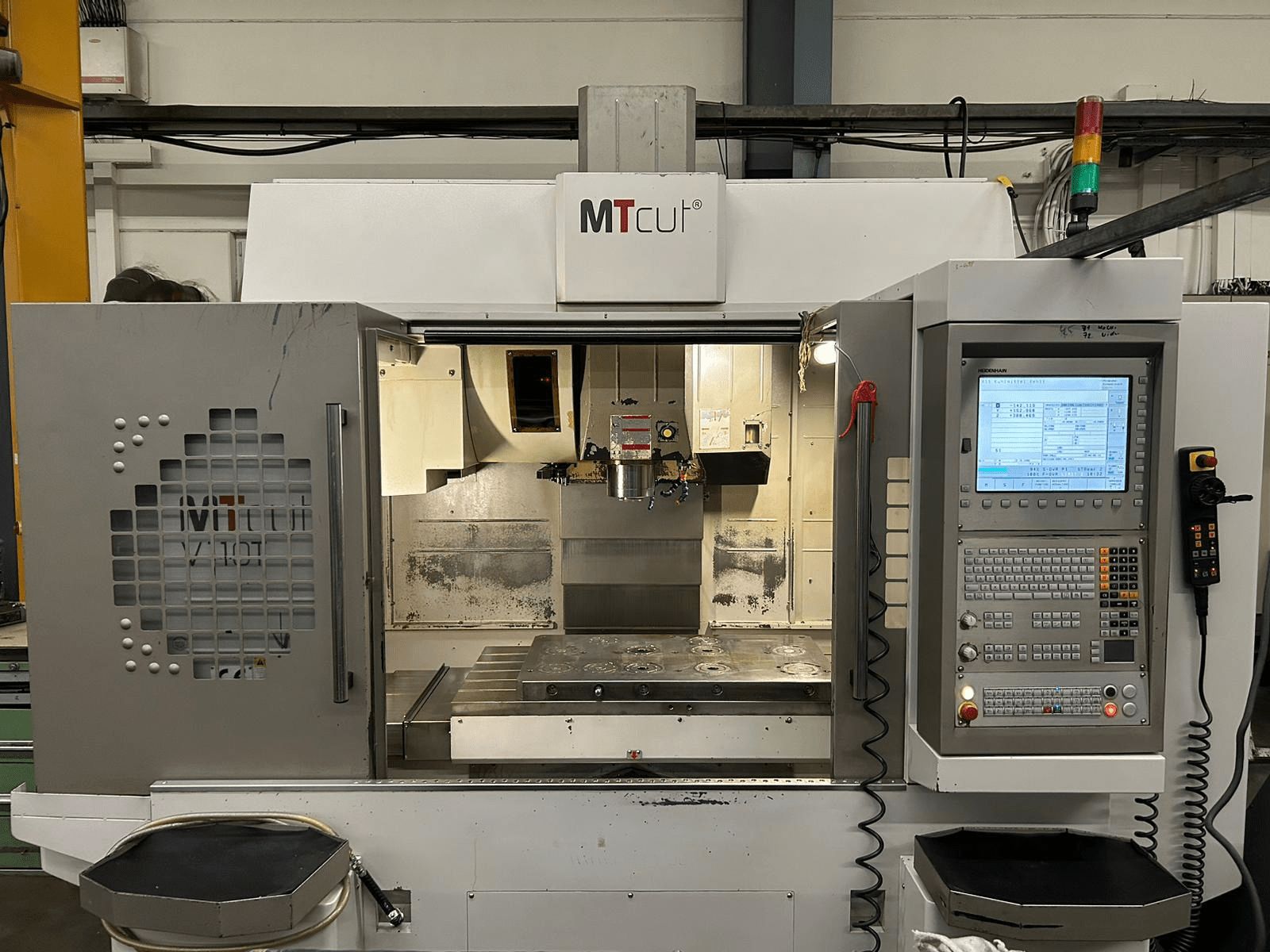

Milling machine MTcut V110 T

Vertical machining center

MTcut V110 T 01
MTRent Logo
MTcut V110 T 02
MTcut V110 T 03
MTcut V110 T 04
MTcut V110 T 05
MTcut V110 T 06
MTcut V110 T 07
MTcut V110 T 08
MTcut V110 T 09
MTcut V110 T 10
MTcut V110 T 11
MTcut V110 T 12
MTcut V110 T 13

Request price for MTcut V110 T:

How would you like to receive the offer? *

Used MTcut V110 T

Request price
Vertical machining center
Machine type:MTcut V110 T

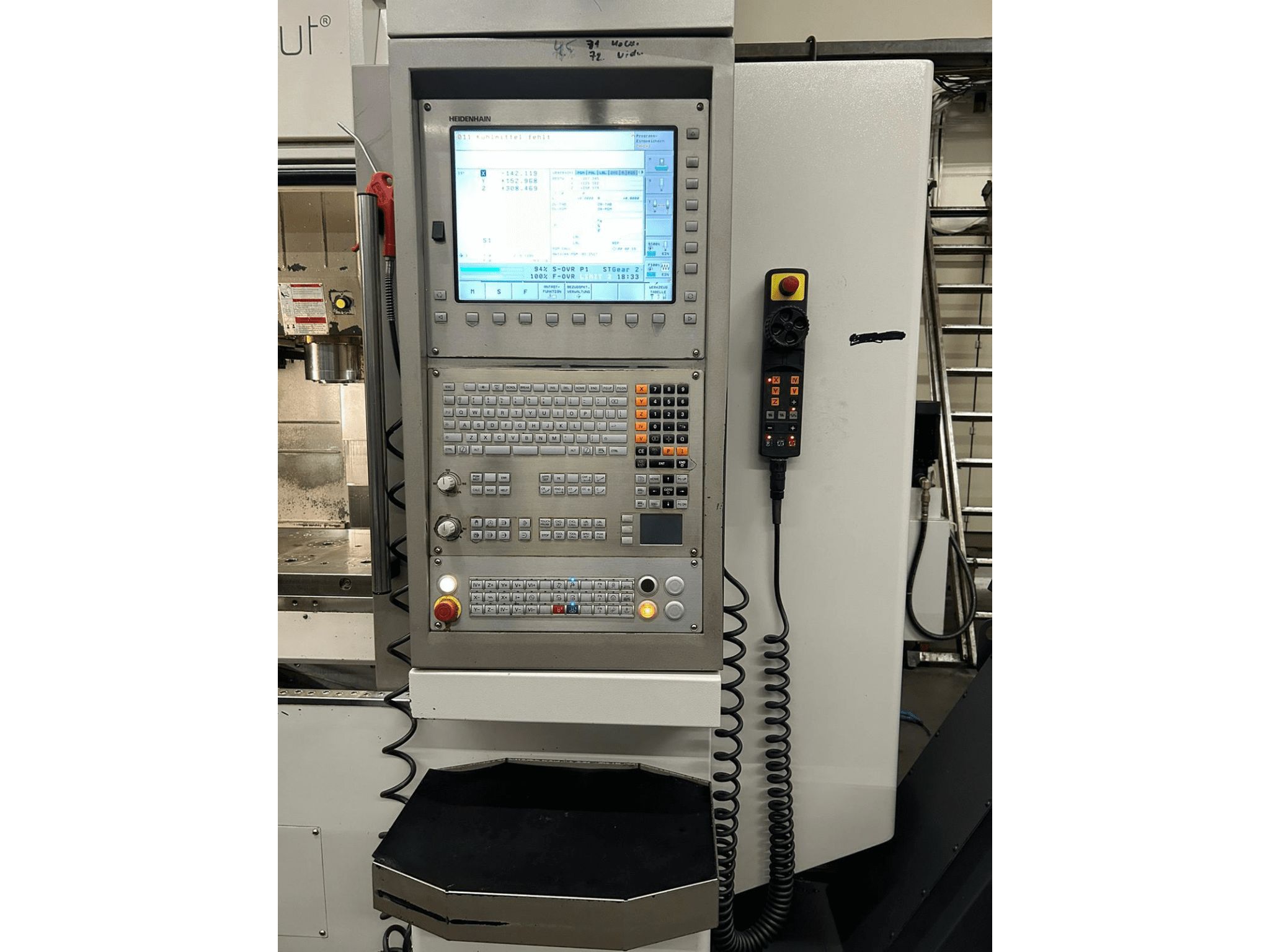

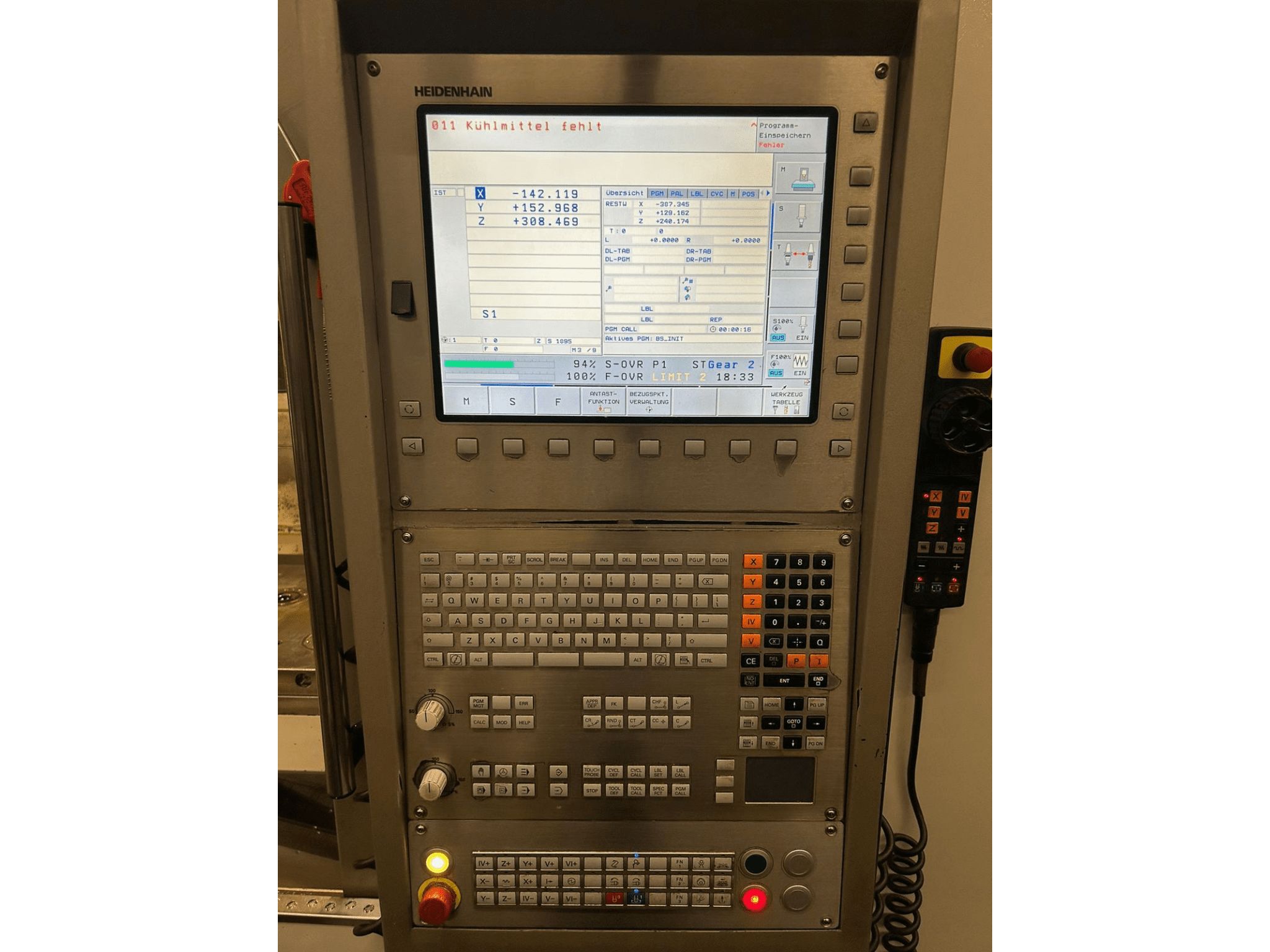

Control:Heidenhain iTNC 530
Year:2013
Installation:2014

SPECIFICATIONS:
Travel:
X-Axis: [mm]1.100
Y-Axis: [mm]610
Z-Axis: [mm]610
Rapid motion: (X/Y/Z) [m/min.]32
Feed: (X/Y/Z) [m/min.]12
Distance table surface - spindle nose: [mm]120 - 730

Max. revolution: [rpm]10.000
Torque: [Nm]332
Spindle power: [kW]13
Tool:SK 40
Tool capacity:30

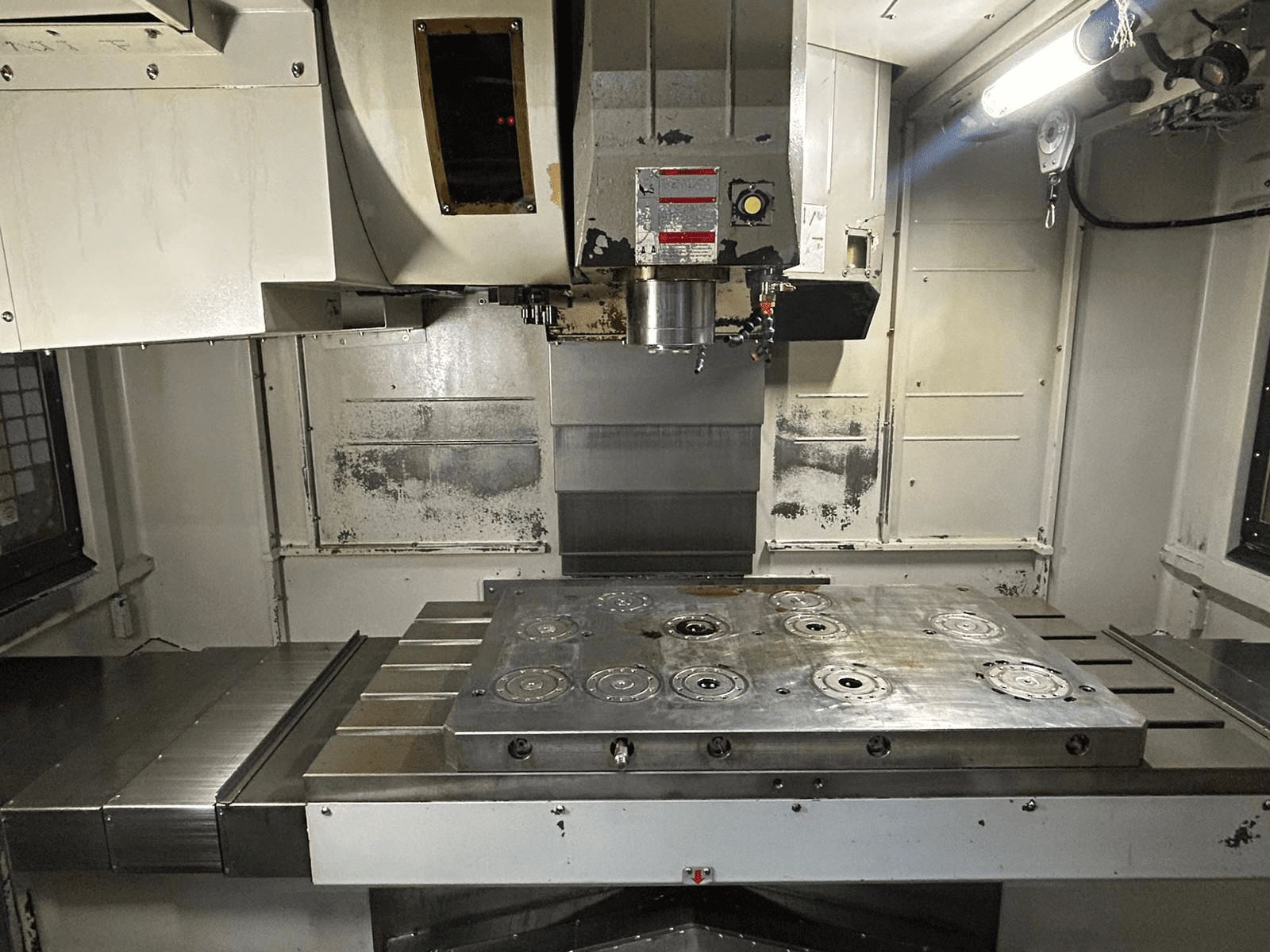

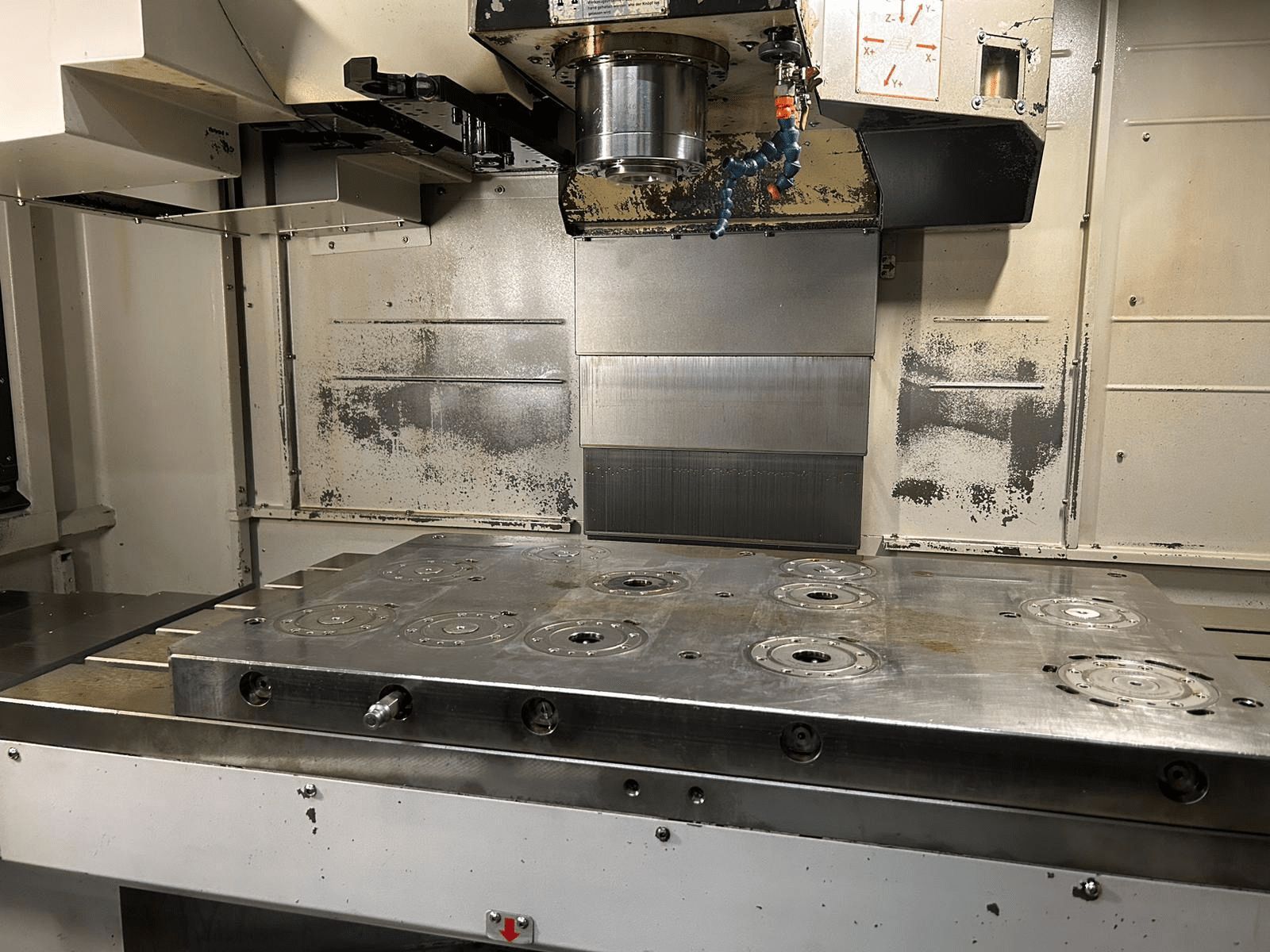

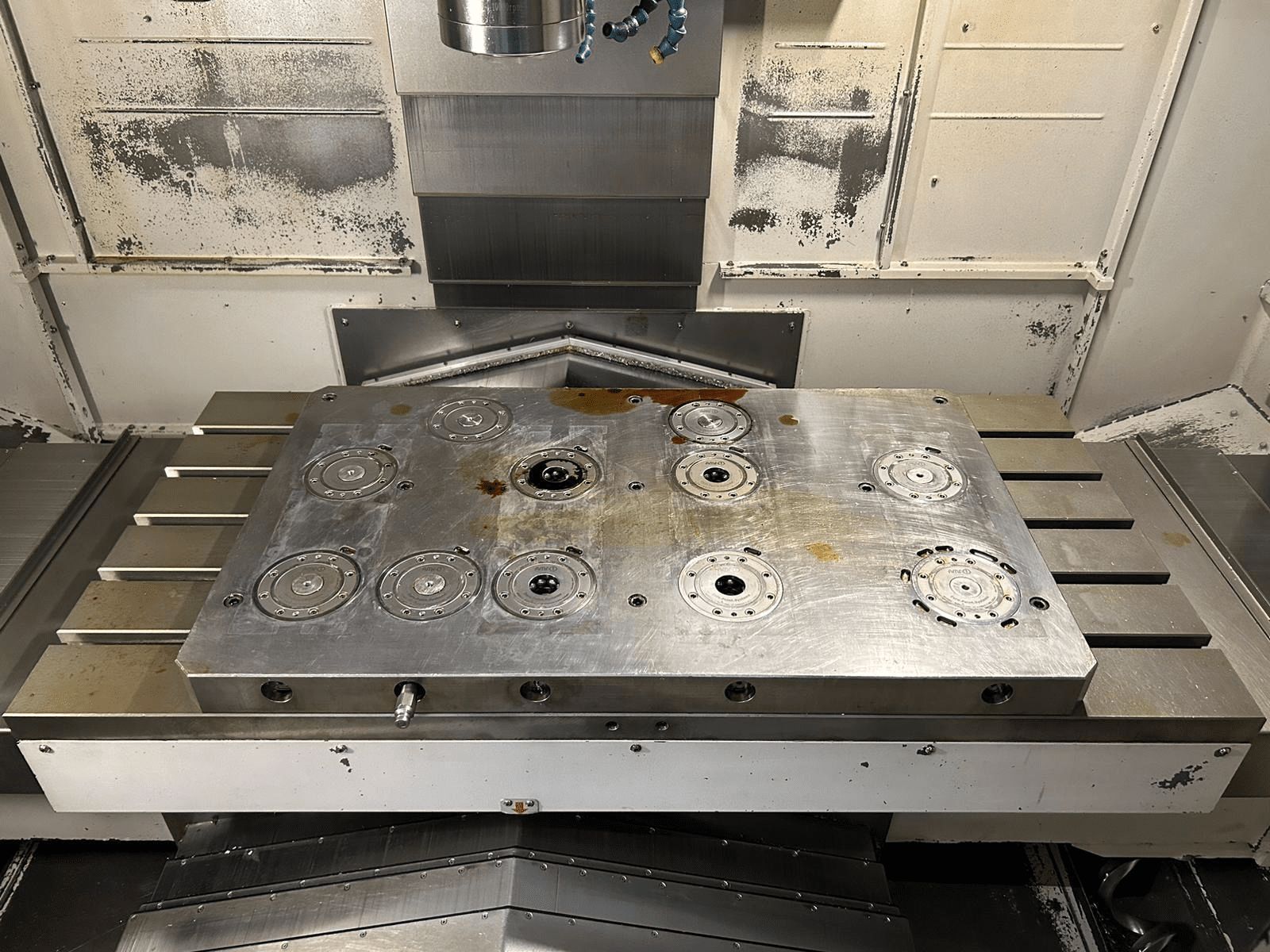

Table size: [mm]1.250 x 610
Max. Table Load: [kg]900

Power consumption: [KW]35
Machine weight: [kg]7.500

Equipment:

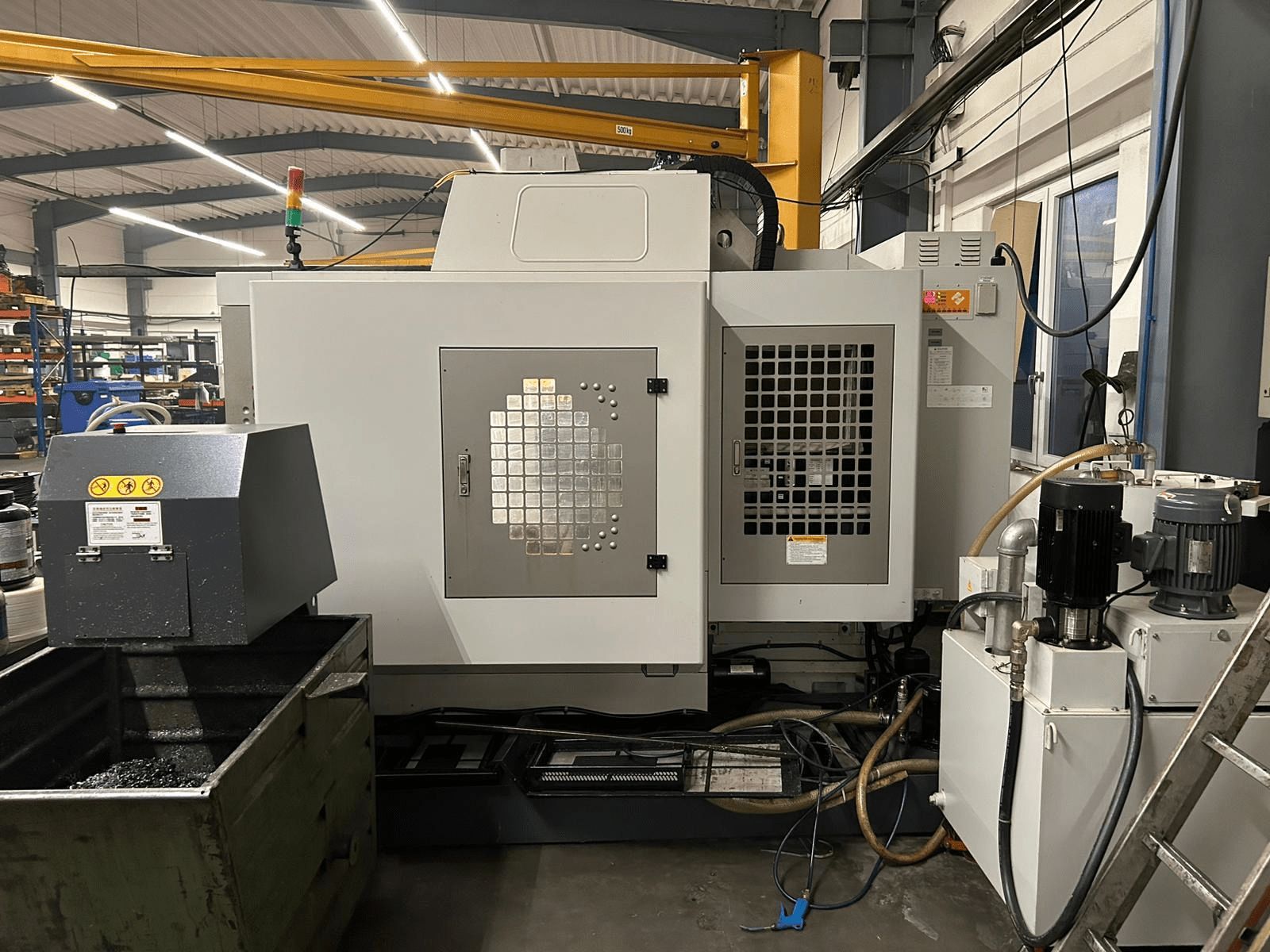

Chip conveyor

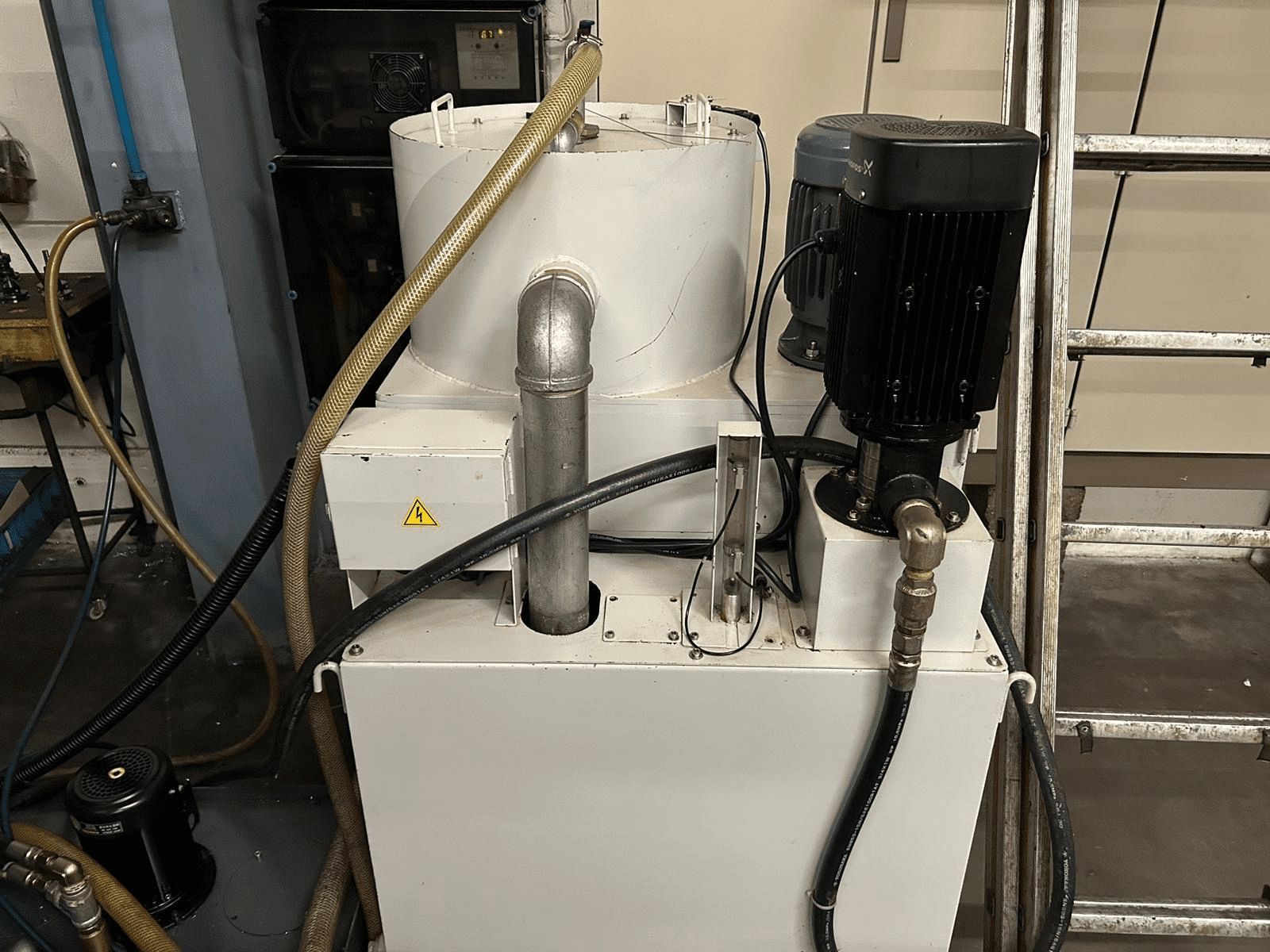

Internal cooling: [bar]22
Cooling tank: [l]250
Air blow
Electronical handwheel
CaliperTS640

Optinal gegen Aufpreis
Rotary tableLehmann EA520 Planscheibe 350
Gegenlager
Heidenhain CC422 Zusatzachse
