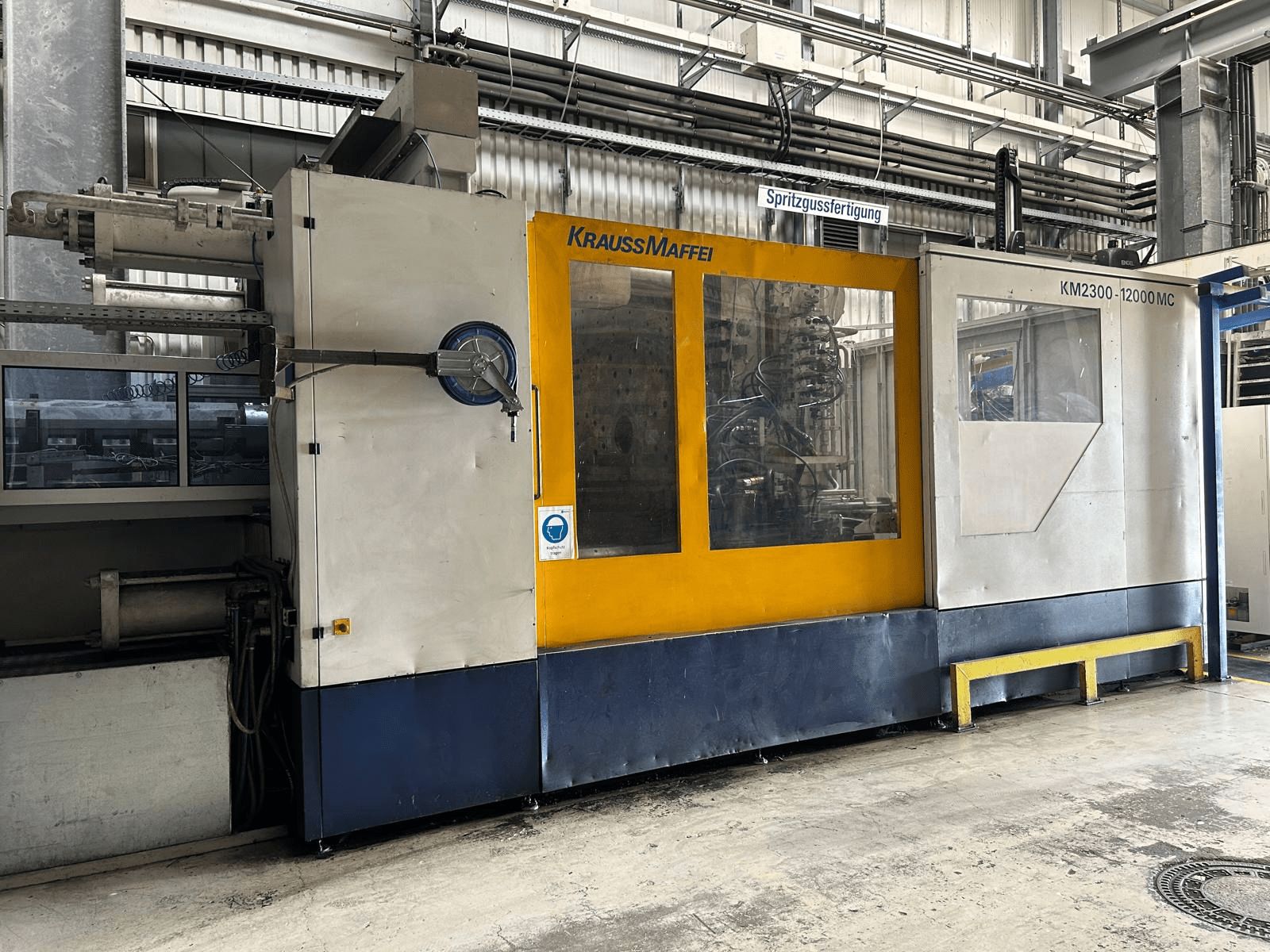

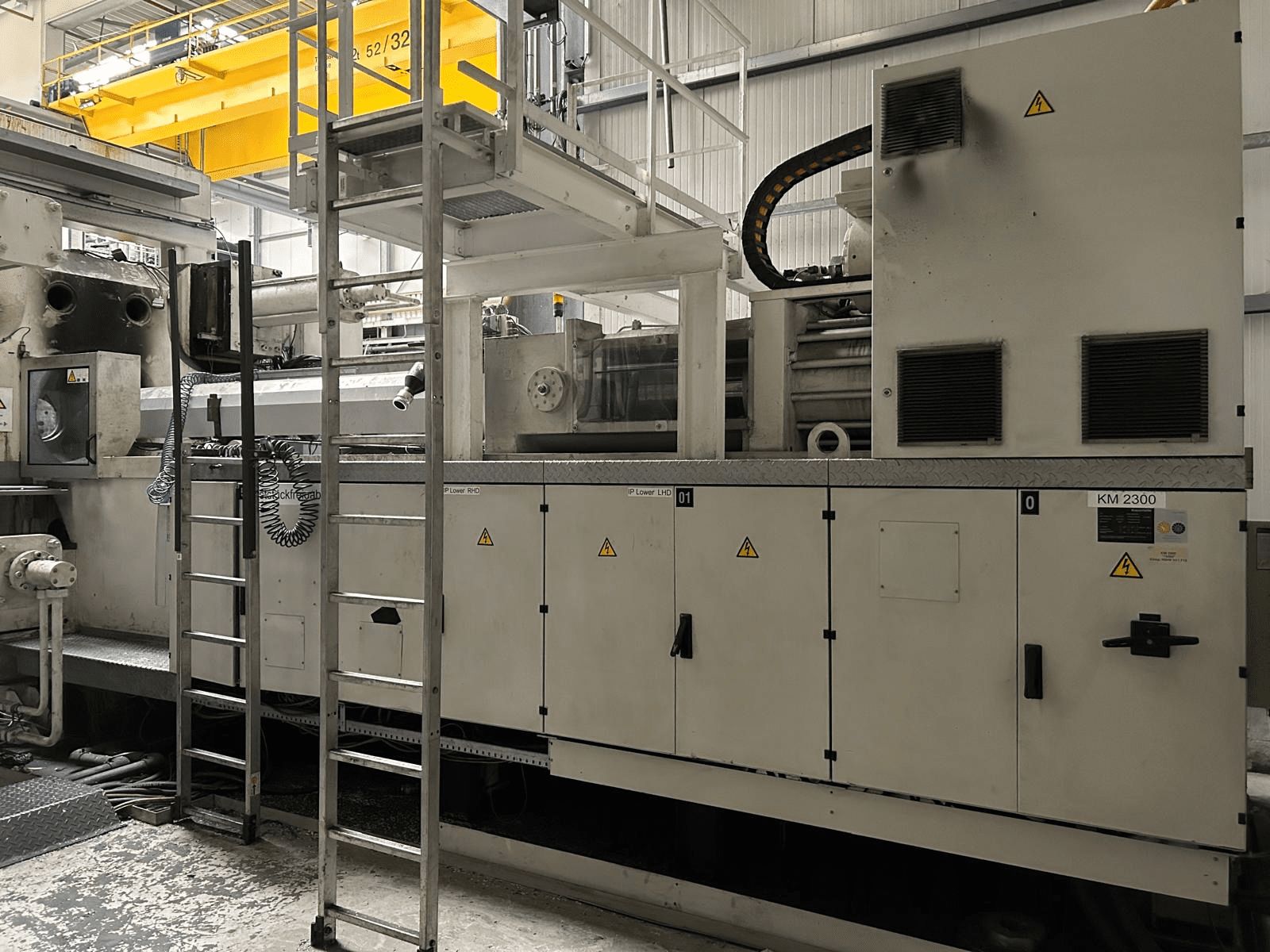

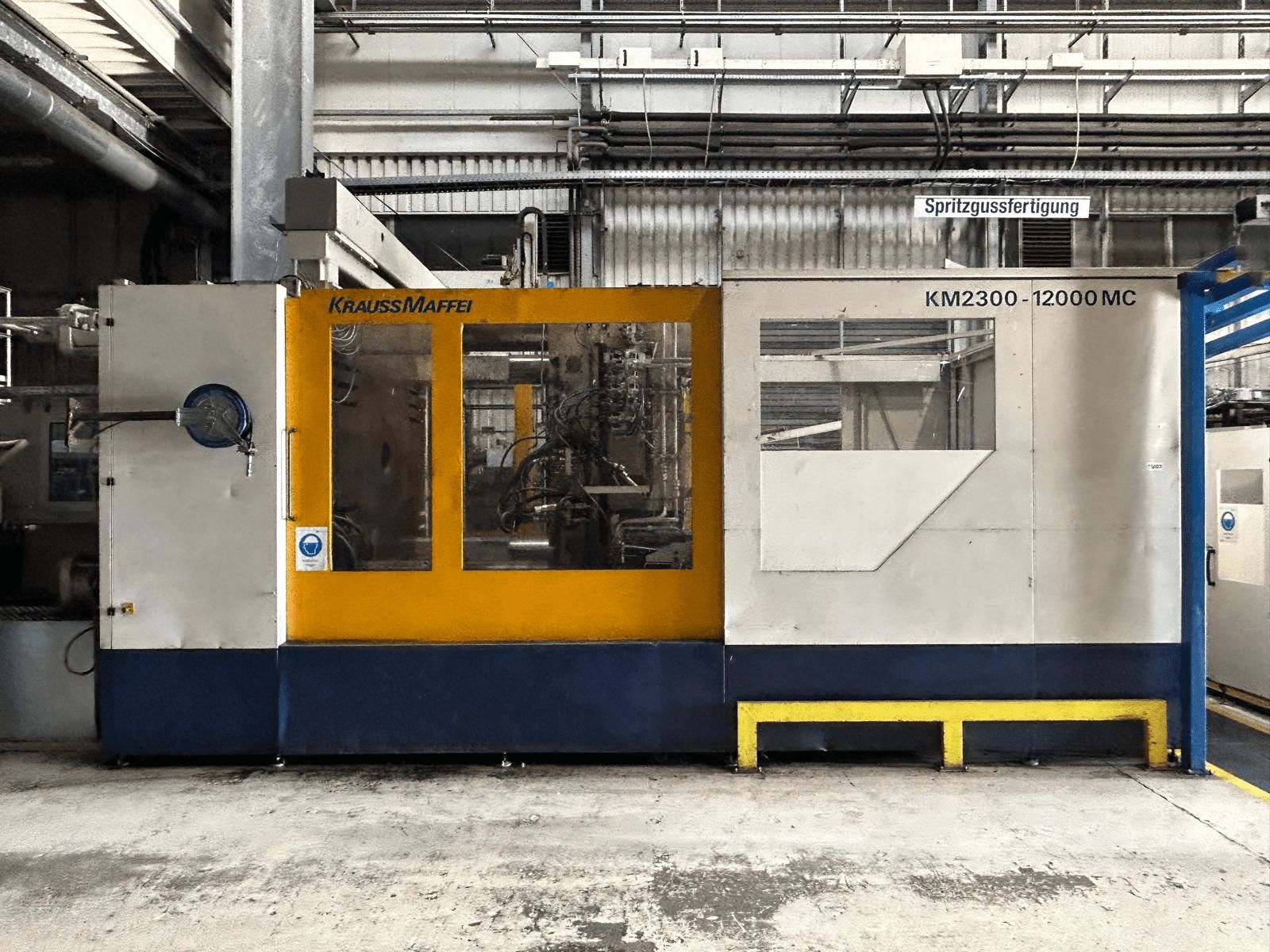

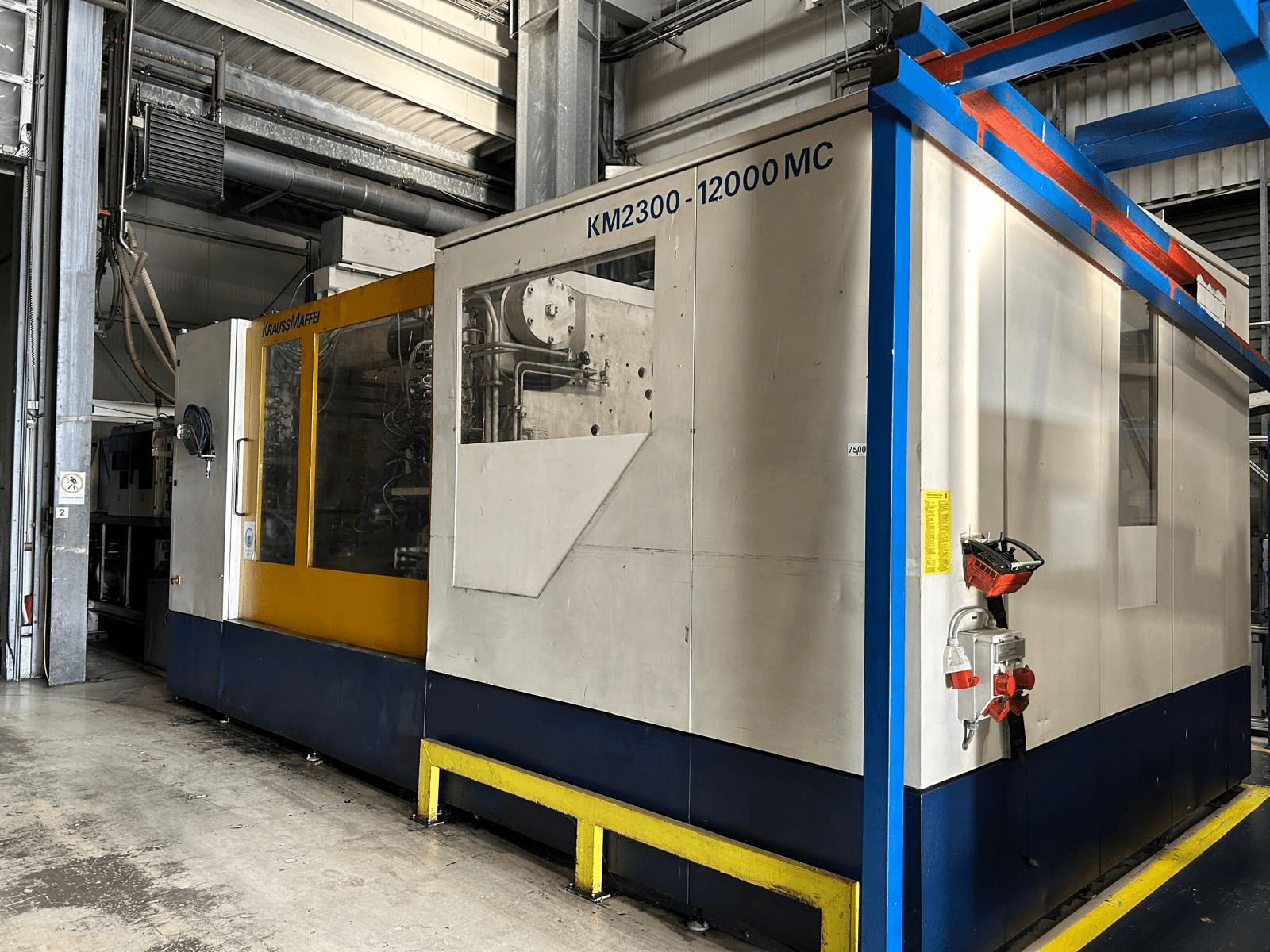

Used injection molding machine Krauss Maffei KM 2300-12000 MC
- Massive clamping force & large mold area
- High shot weights & precision
- Designed for robust high-volume production
| Spritzgiessmaschine bis 5.000 KN | |

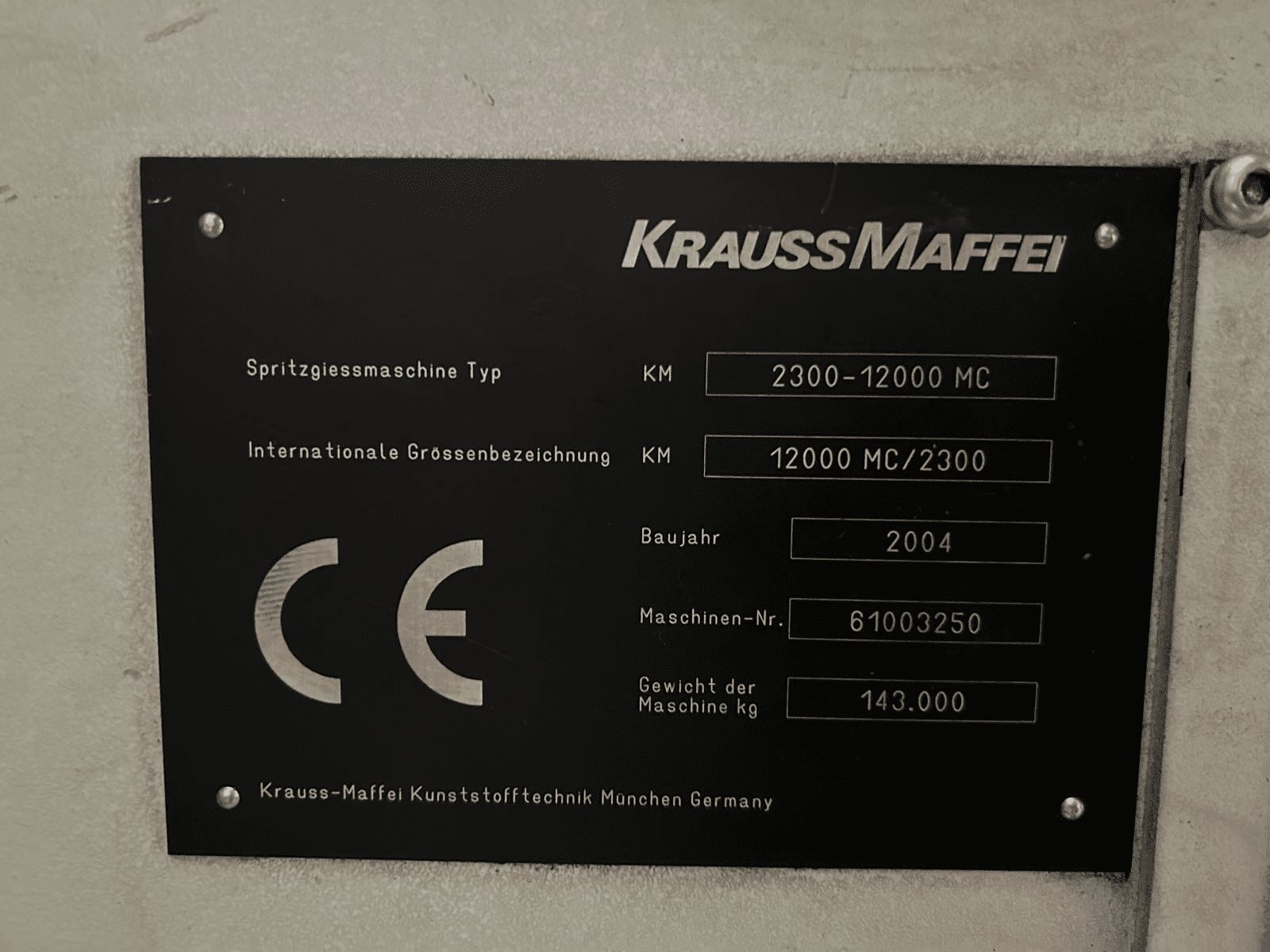

| Machine type: | Krauss Maffei KM 2300-12000 MC |
| Year: | 2004 |

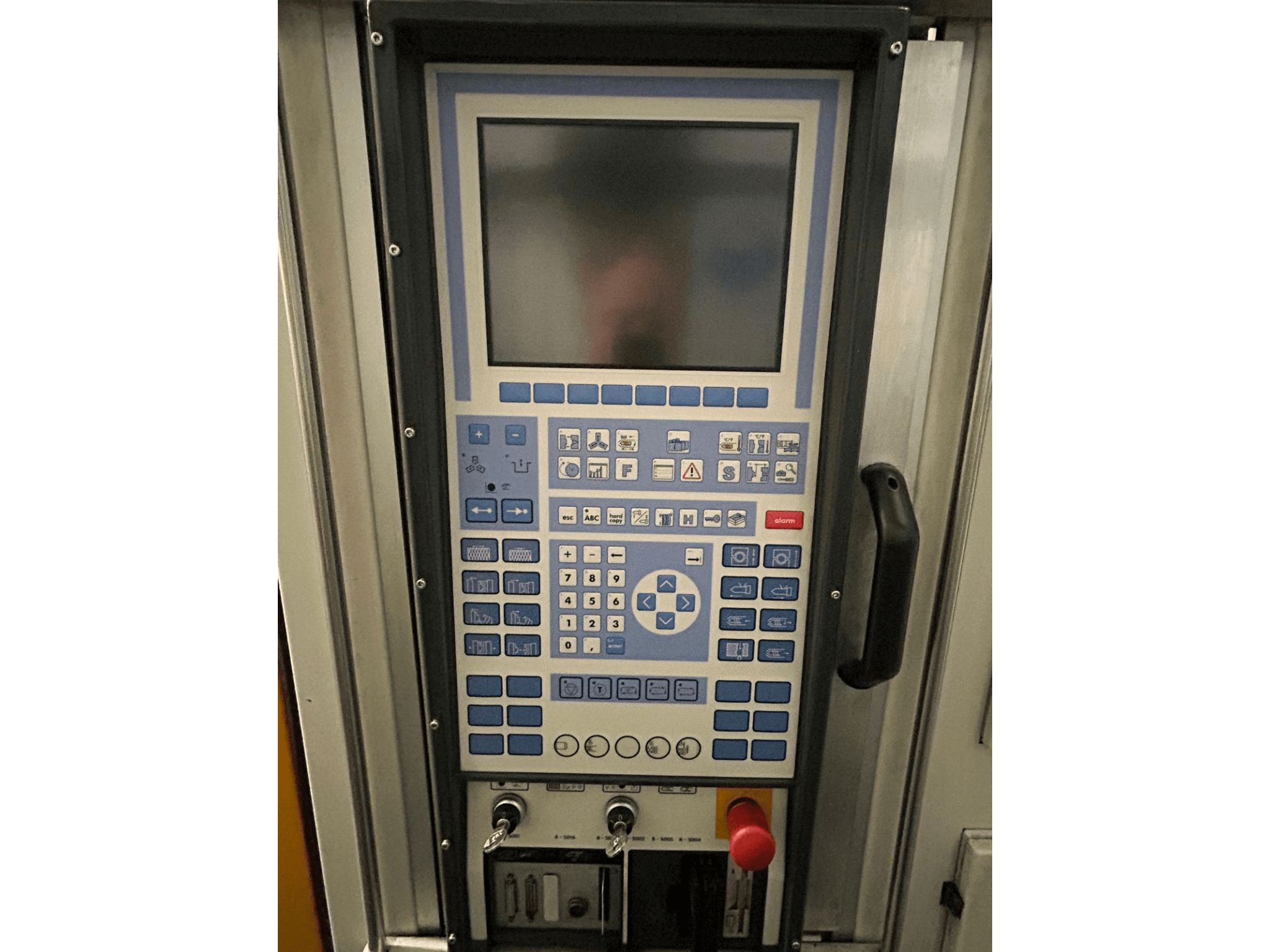

| Control: | CNC MC4 |
| Working hours: [h] | 93.900 |
| SPECIFICATIONS: | |
| Closing unit | |
| Closing force | 23,000 kN |
| Maximum tool opening force | 1,420 kN |
| Thrust force of the movable plate (opening) | 227 kN |
| Clamping force of the movable platen (closing) | 203 kN |

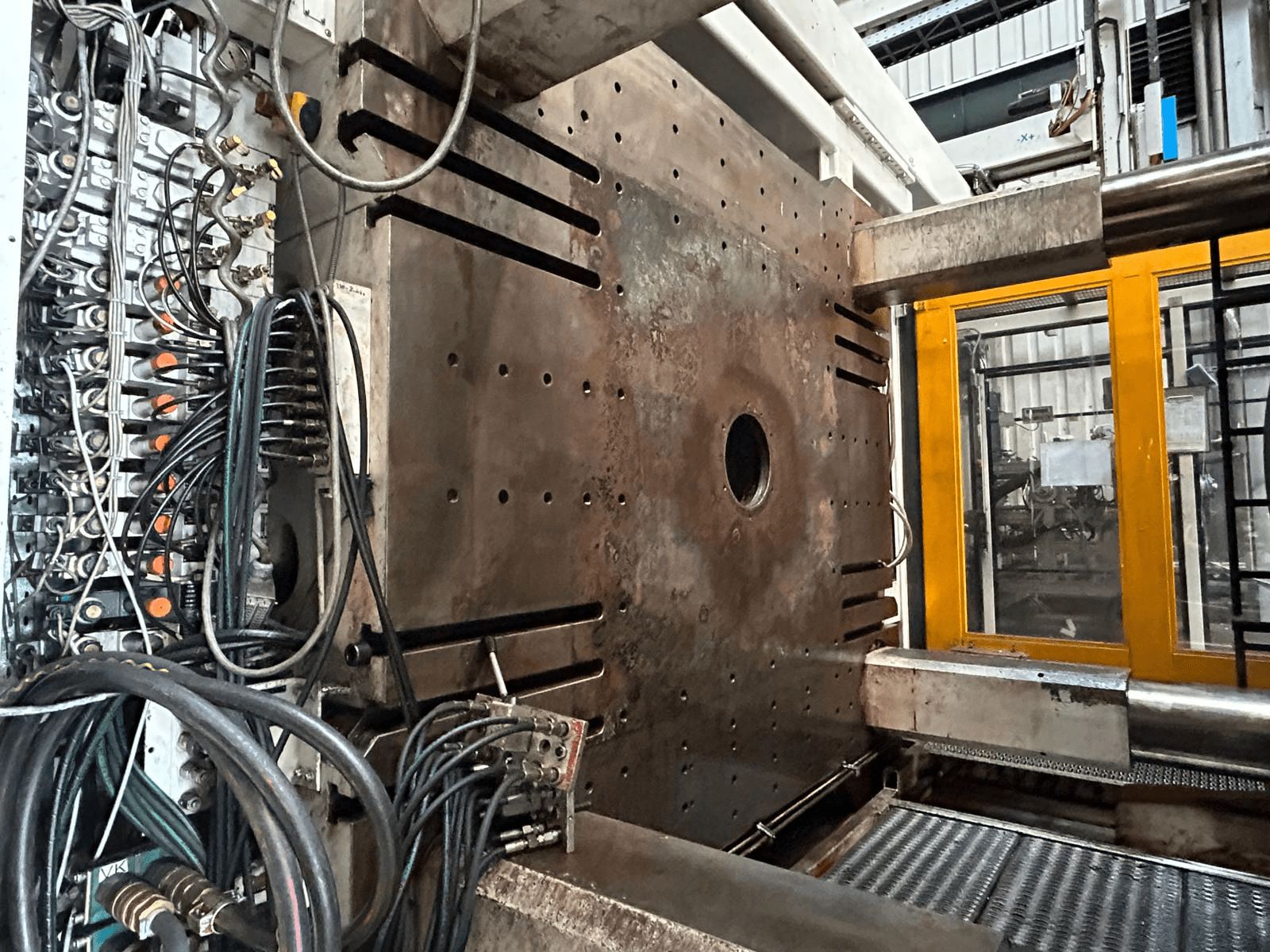

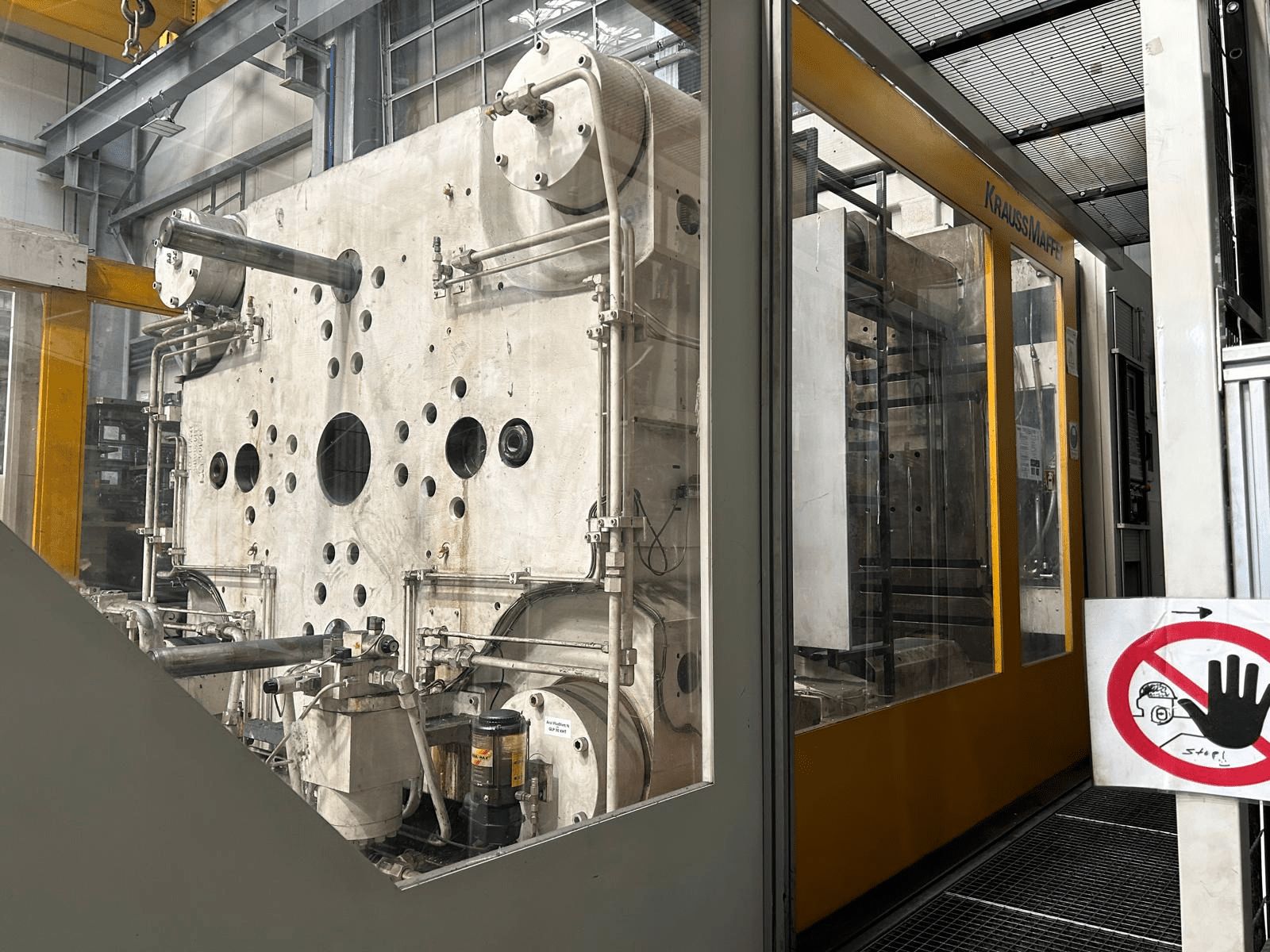

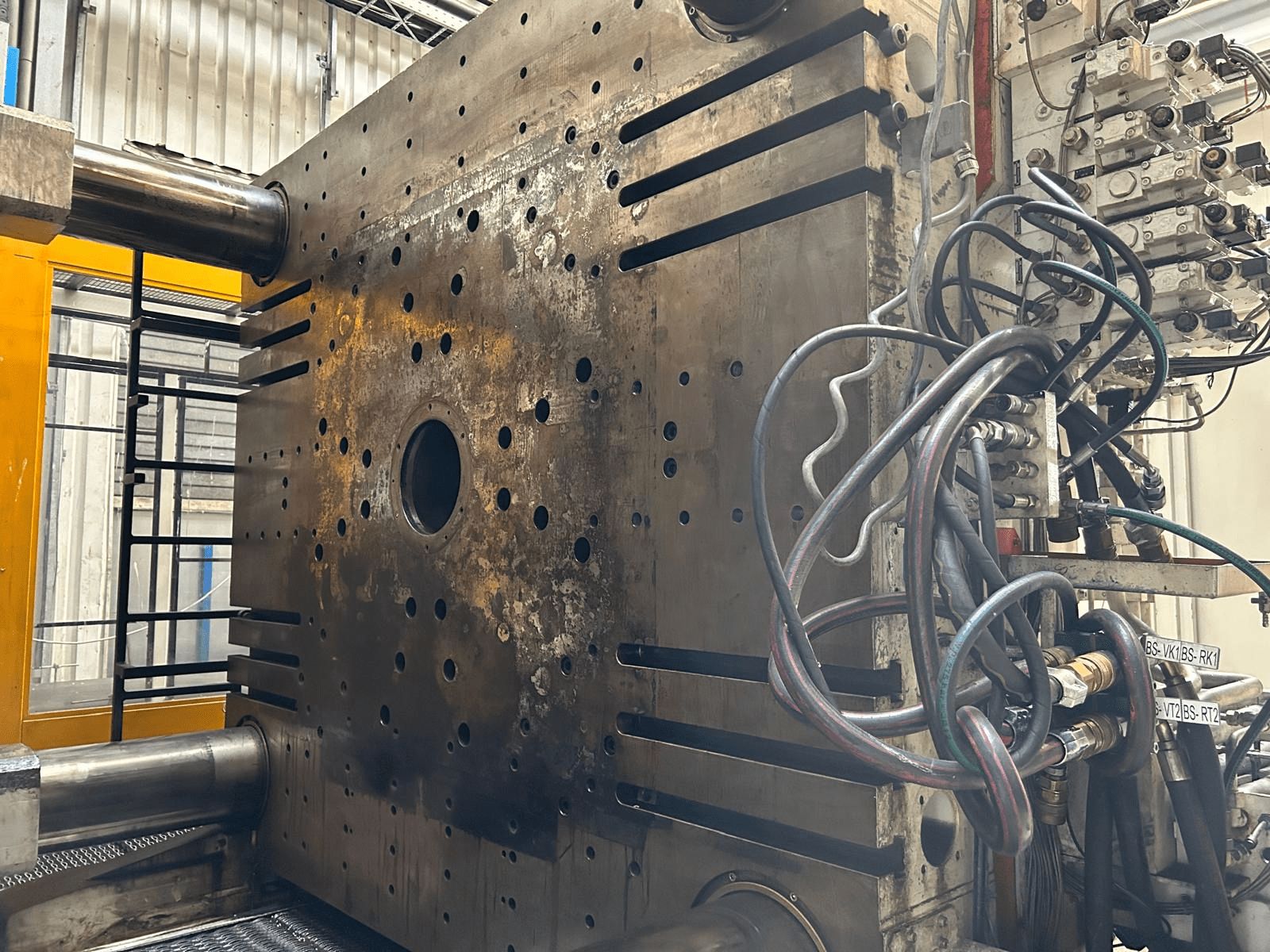

| Tool clamping area (H x W) | 2,830 mm x 2,400 mm |
| Stand spacing (H x W) | 2,000 mm x 1,600 mm |
| Tool opening stroke | 2,600 mm |
| Min. tool height | 1,100 mm |
| Maximum tool height | 1,800 mm |
| Maximum tool spacing | 3,700 mm |
| Hydraulic ejection stroke | 350 mm |
| Ejector force (forward/reverse) | 415/115 kN |
| Screw diameter | 135 mm |
| L/D ratio | 23 |
| Injection pressure | 1,389 bar |
| Displacement | 8,588 cc |
| Projectile weight (PS) | 7,815 g |
| Injection capacity | 1,019 cc/s |
| Screw speed | 113 rpm |
| Maximum plasticizing capacity | 191 g/s |
| Nozzle pressure | 241 kN |
| Electrical and hydraulic equipment | |
| Rated power of the pump motor | 132 kW |
| Installed heating capacity | 997 kW |
| Adjustable cylinder heating zones | 7 |
| Number of drying cycles | 350 per hour |
| Tank capacity | 2,500 L |
| Dimensions and Weight | |
| Machine dimensions | 15.15 m x 4.15 m x 3.29 m |
| Total weight of the machine | 143,000 kg |
| Maximum mold weight | 62,000 kg |

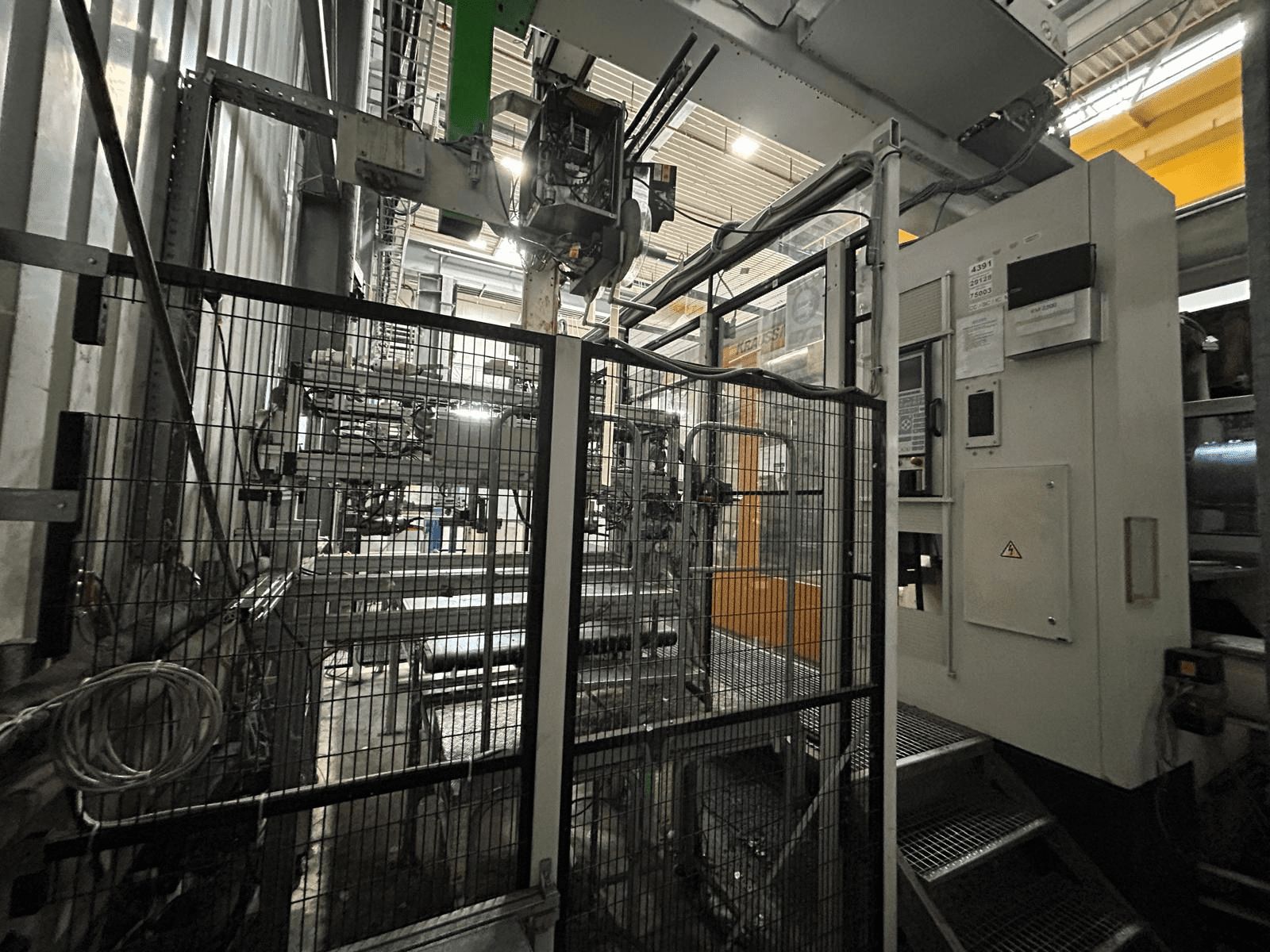

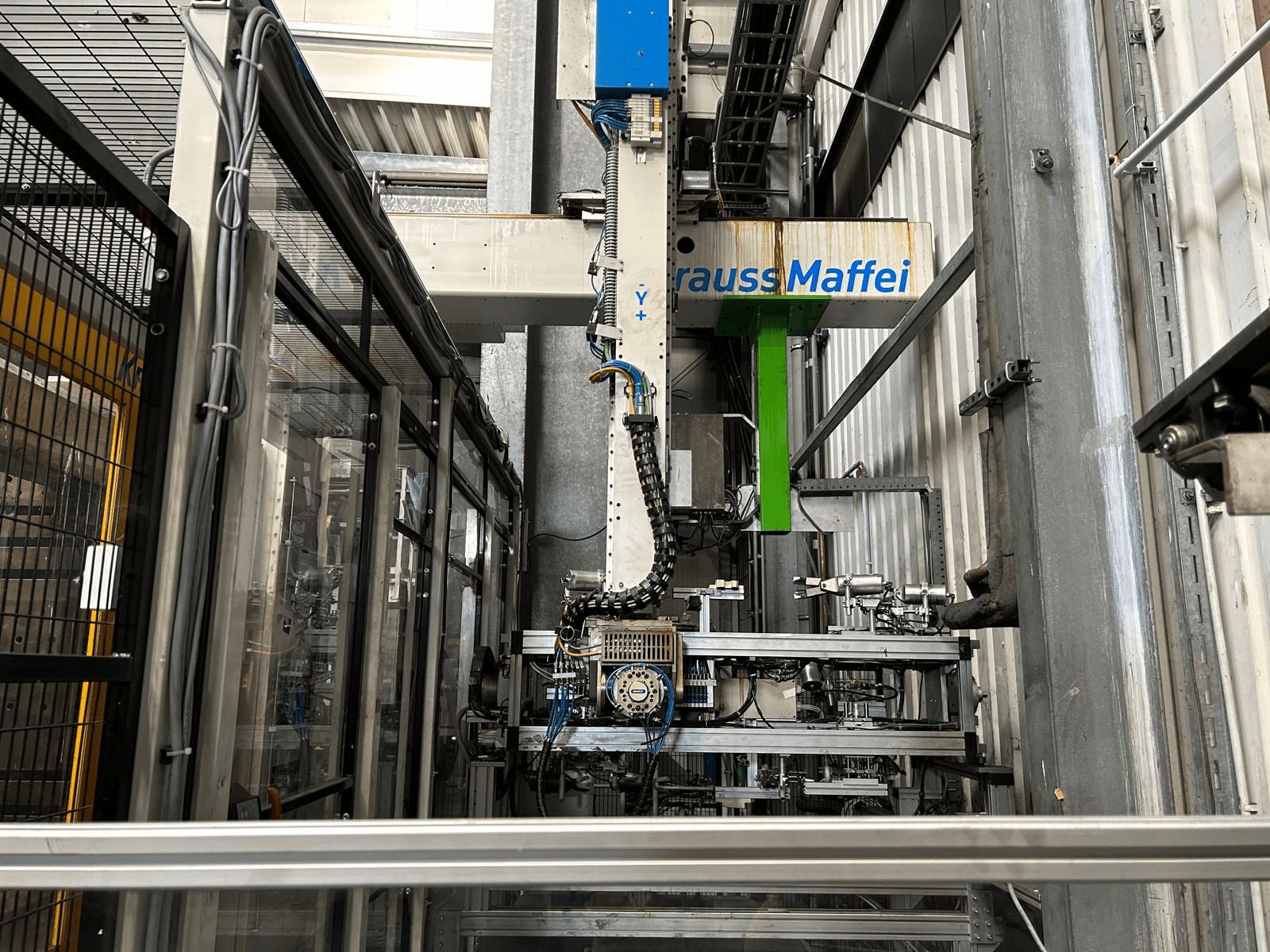

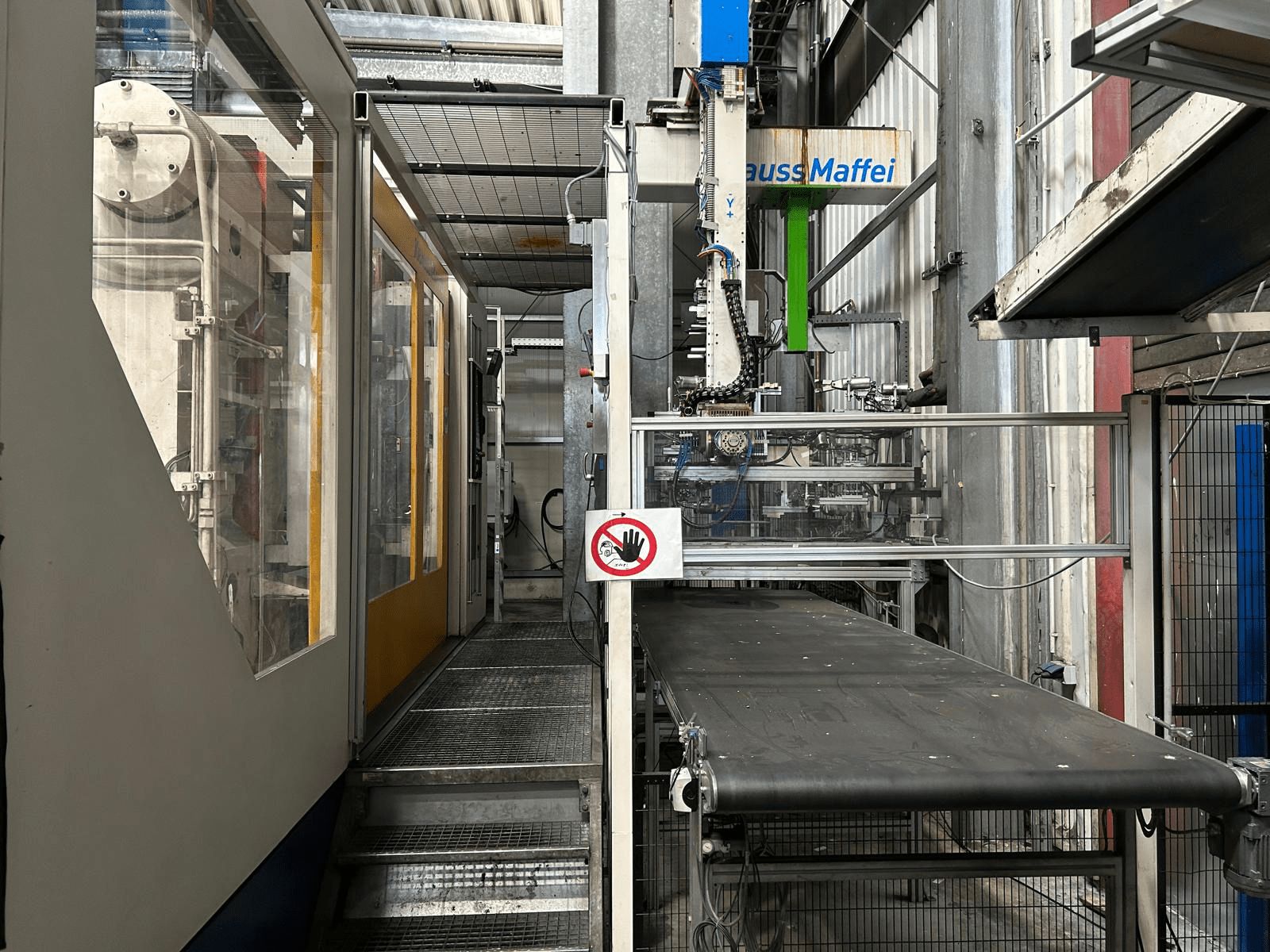

| LRX 1000 Robot | |
| X-Axis: [mm] | 2.000 |
| Y-Axis: [mm] | 3.000 |
| Z-Axis: [mm] | 5.000 |
