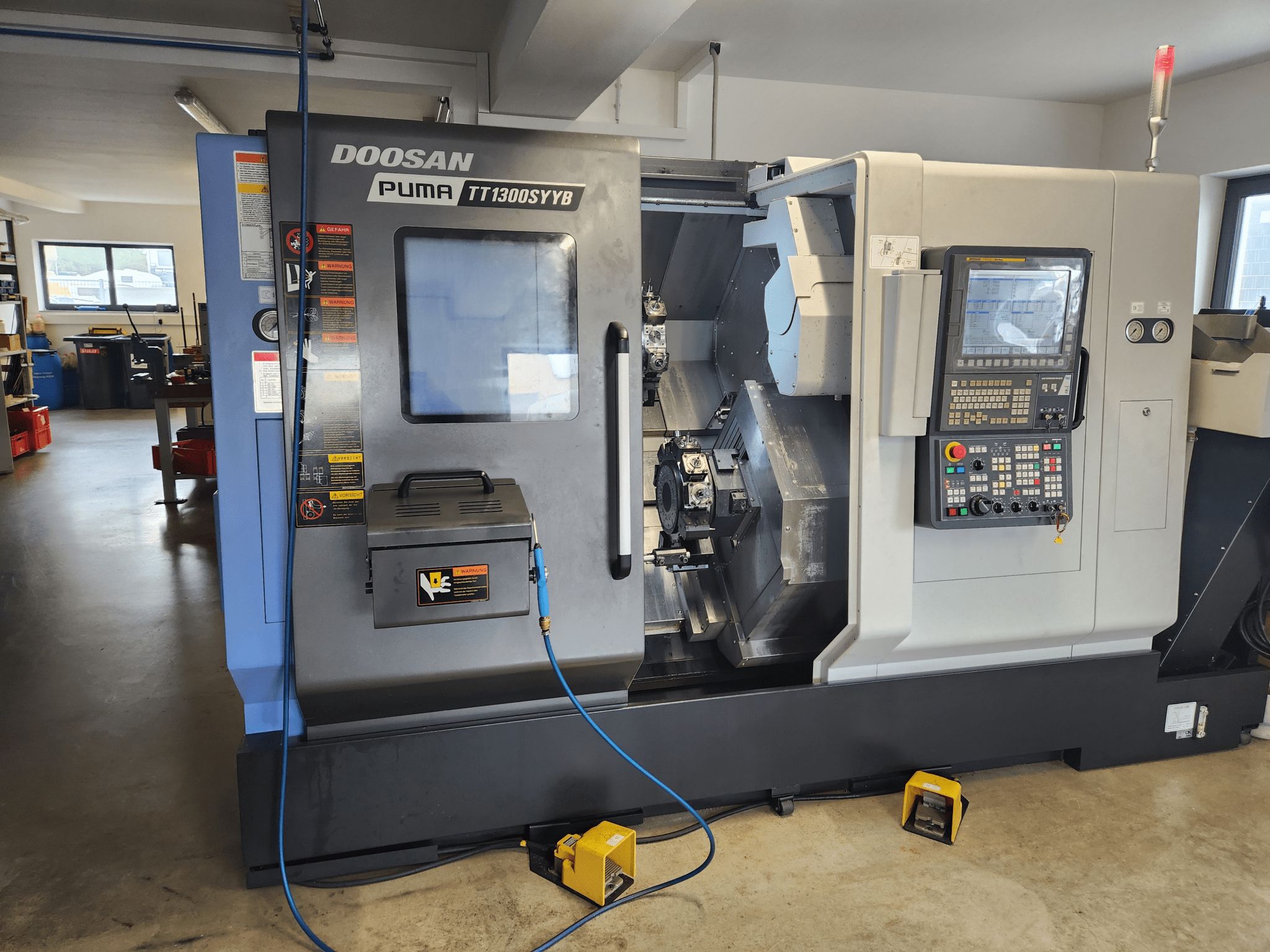

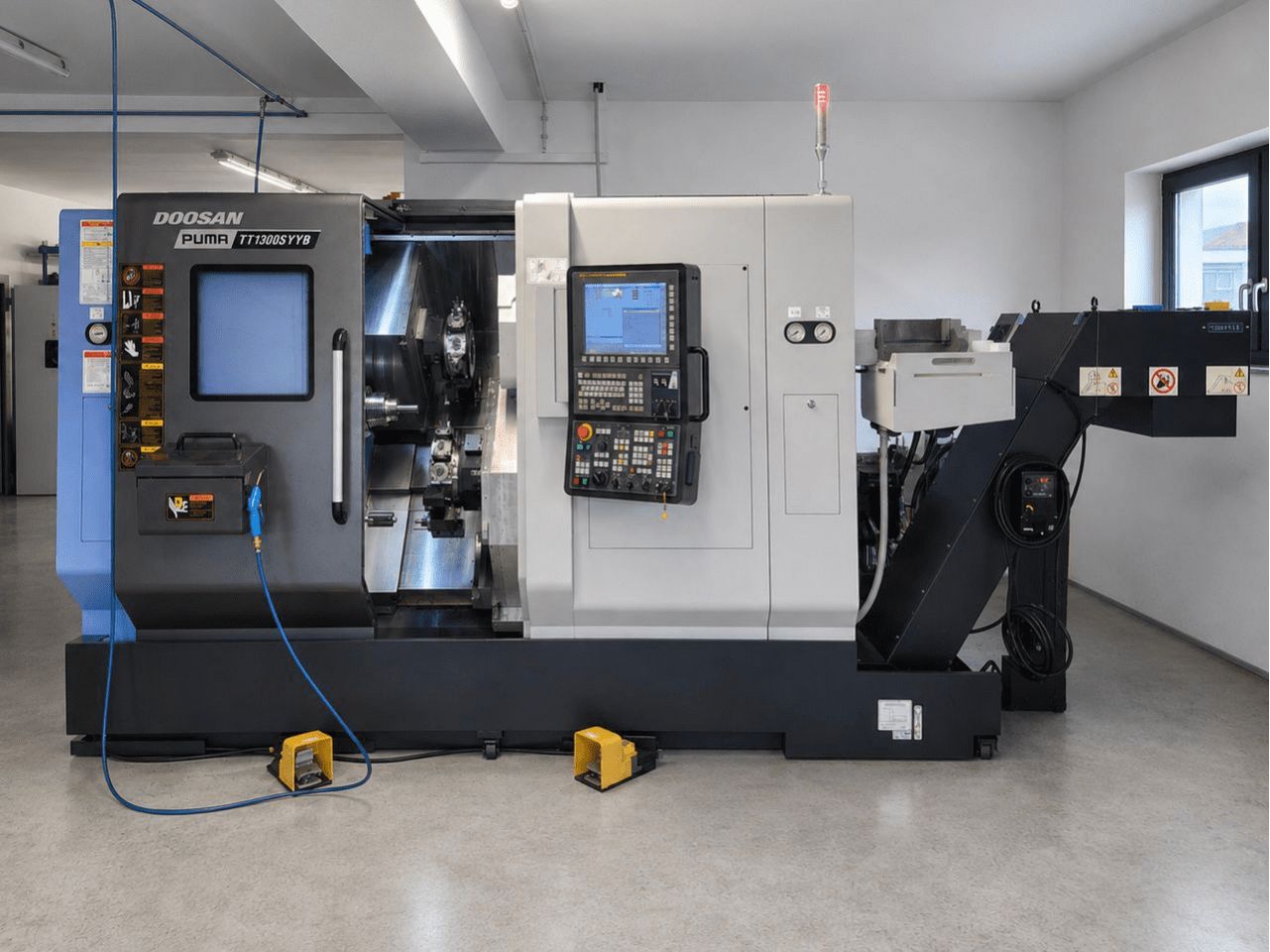

Used Doosan Puma TT1300SYYB
CNC Turning / Millingcenter
Request price for Doosan Puma TT1300SYYB:

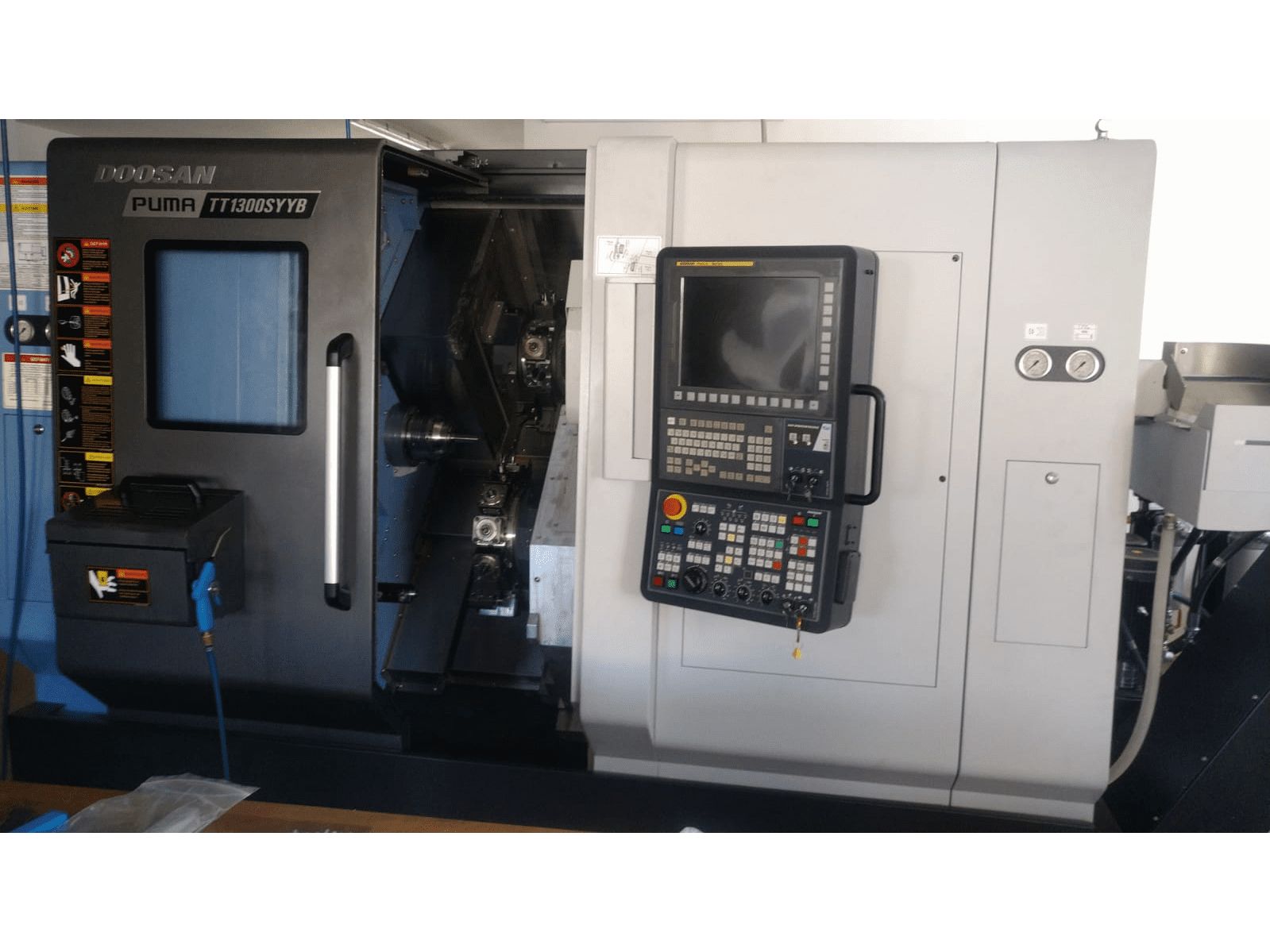

Doosan Puma TT1300SYYB in excellent condition
- It's only been in operation for two years!

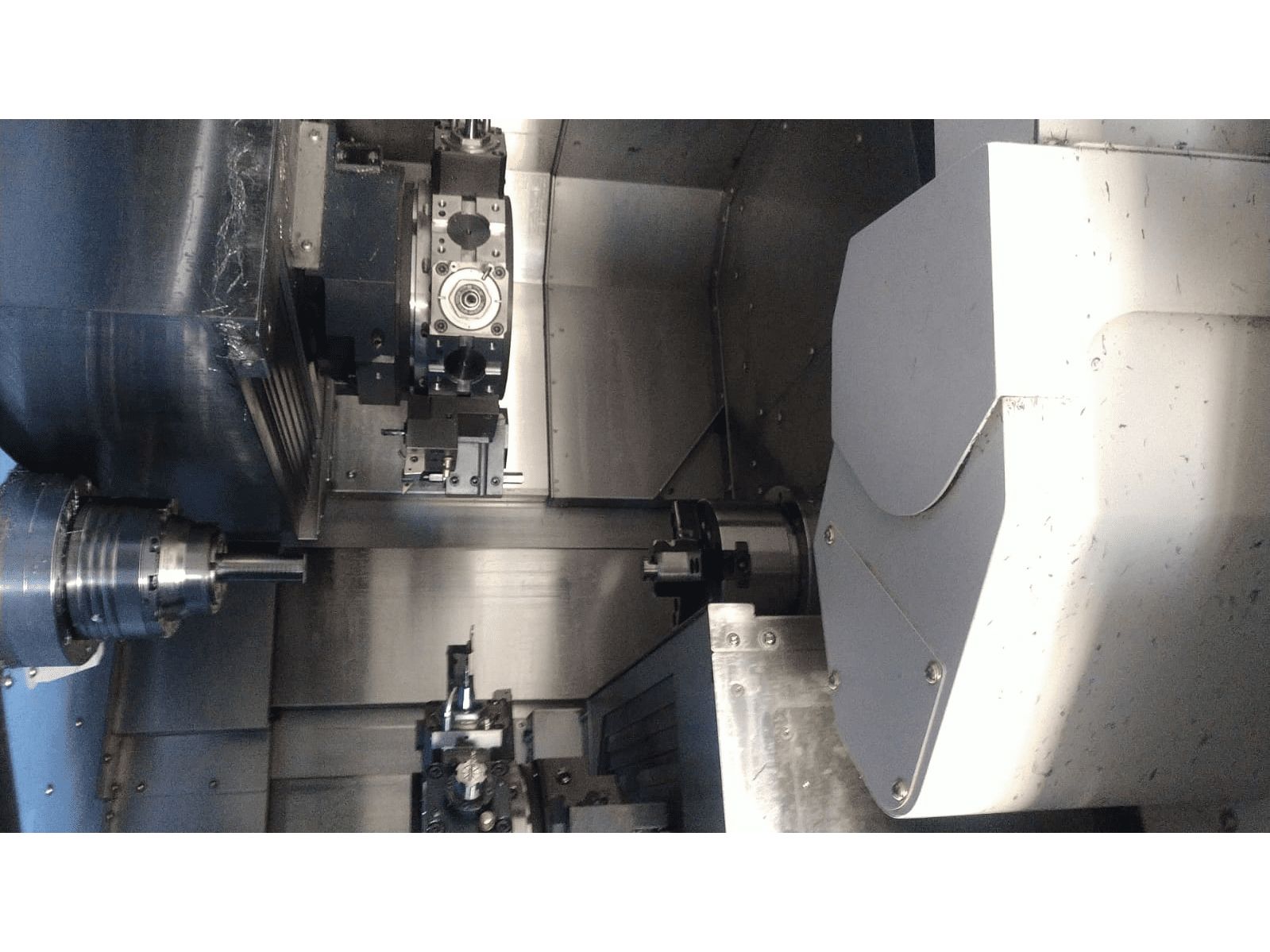

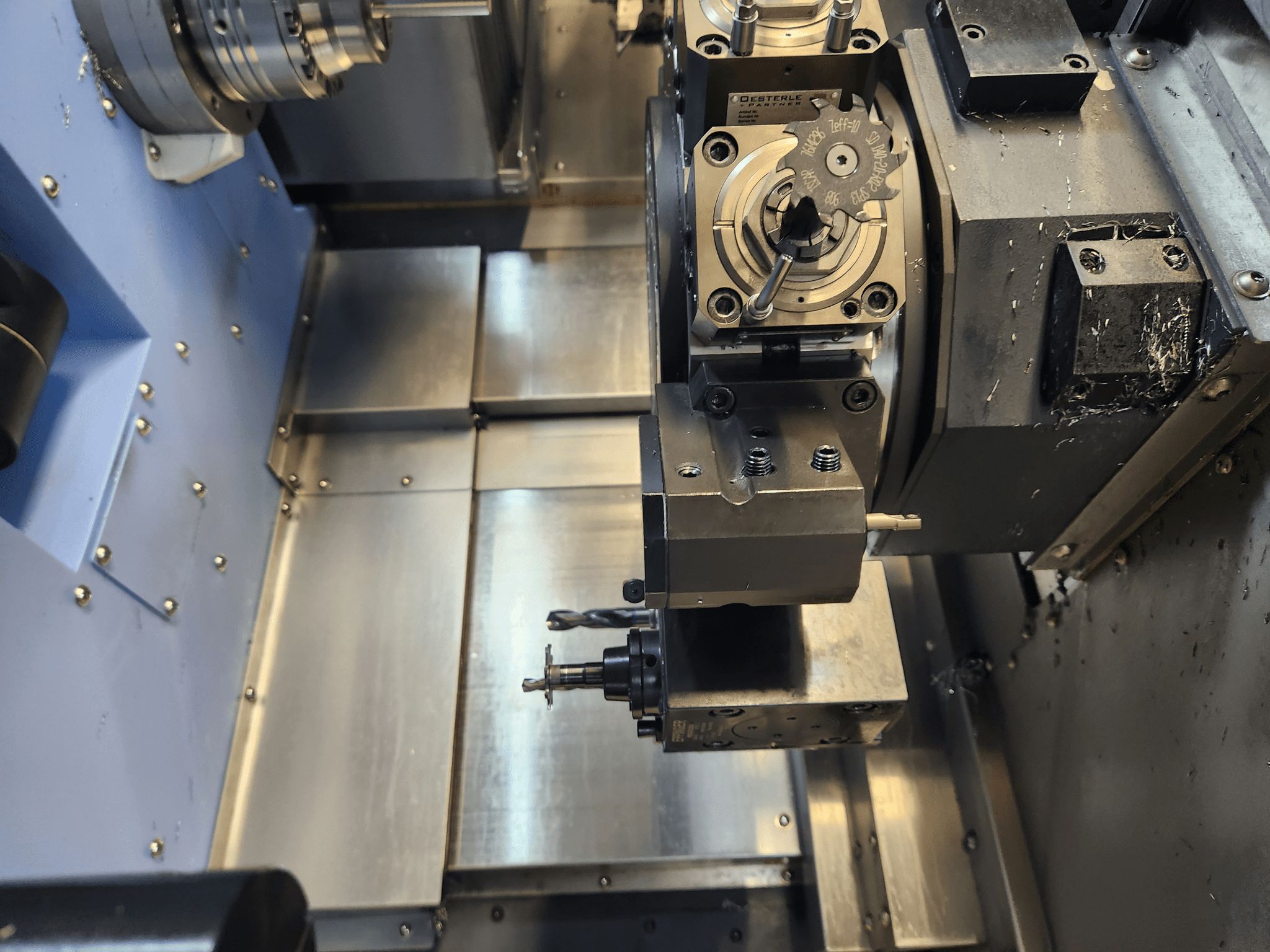

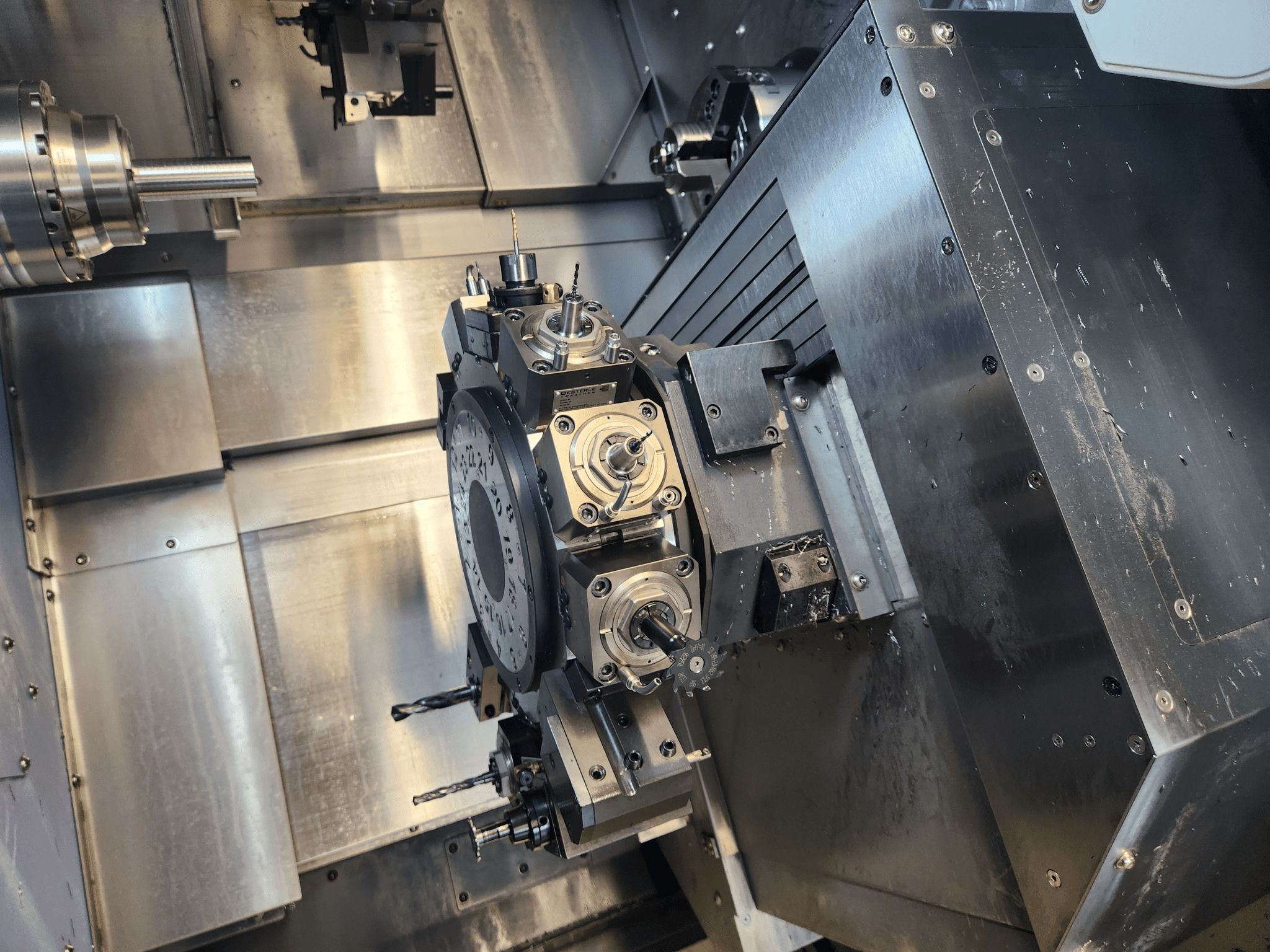

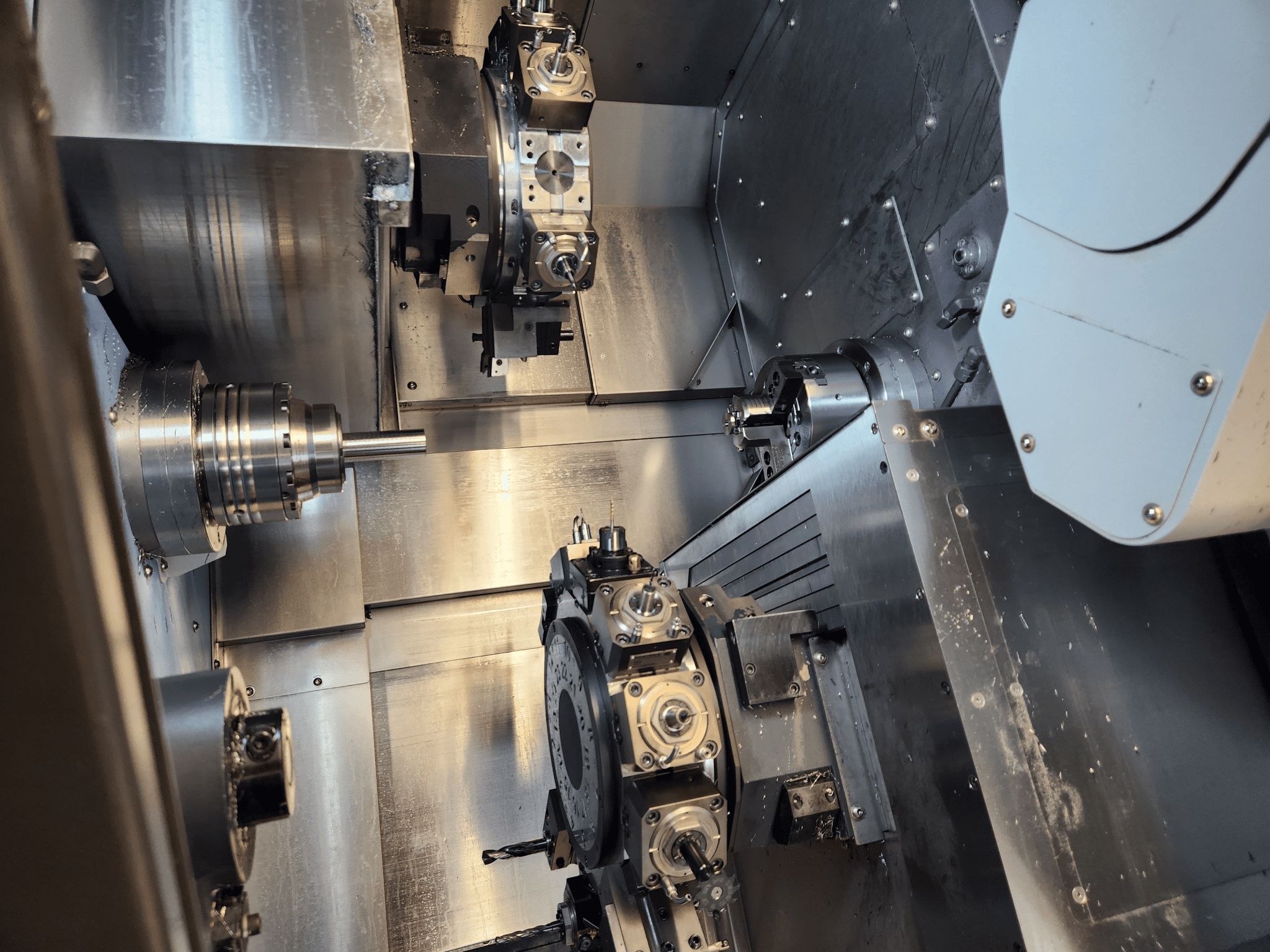

- Two turrets with a Y-axis for simultaneous machining with two tools
- Interface for bar-loading magazine
| CNC Turning / Millingcenter | |
| Machine type: | PUMA TT1300SYYB |

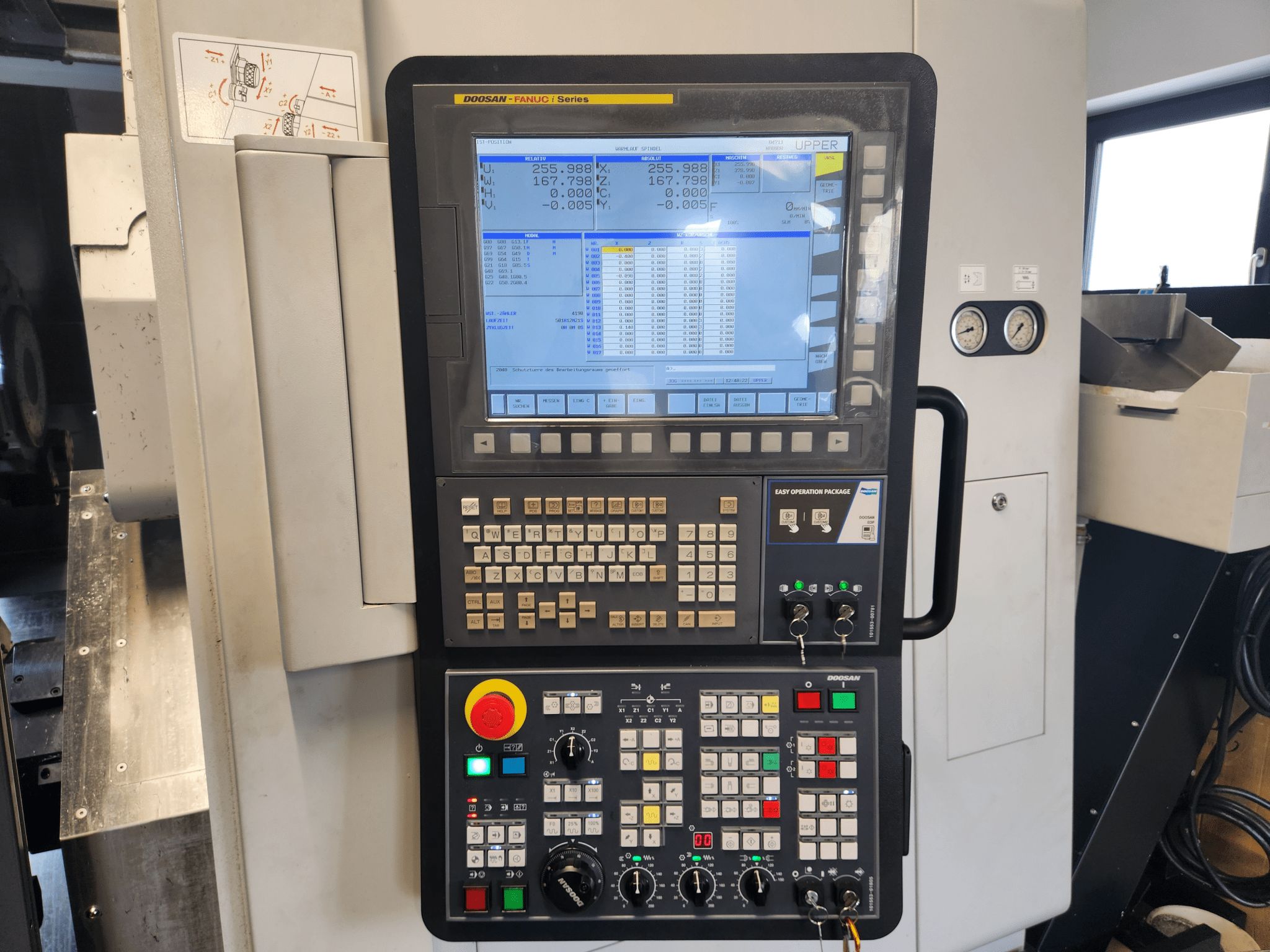

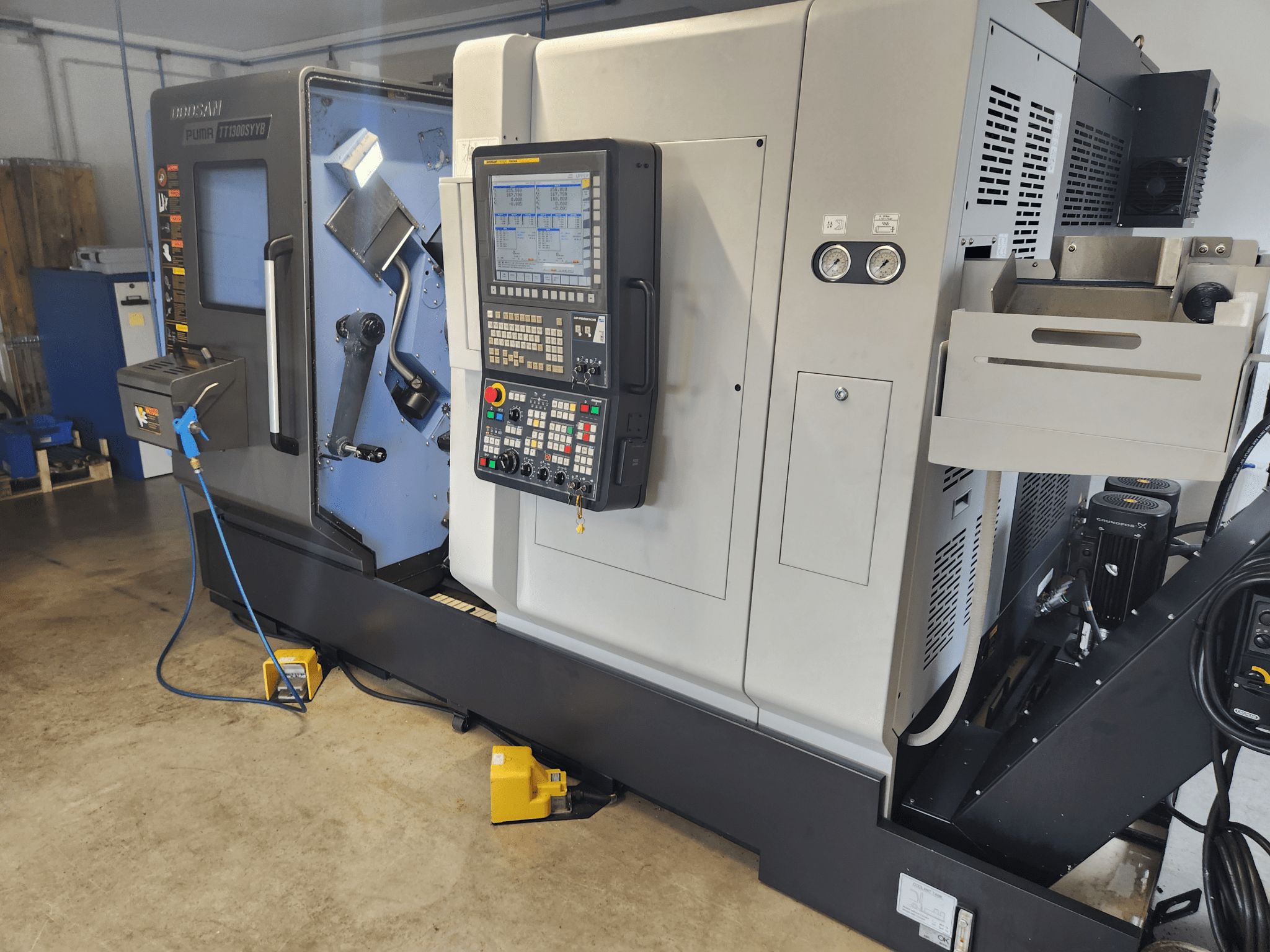

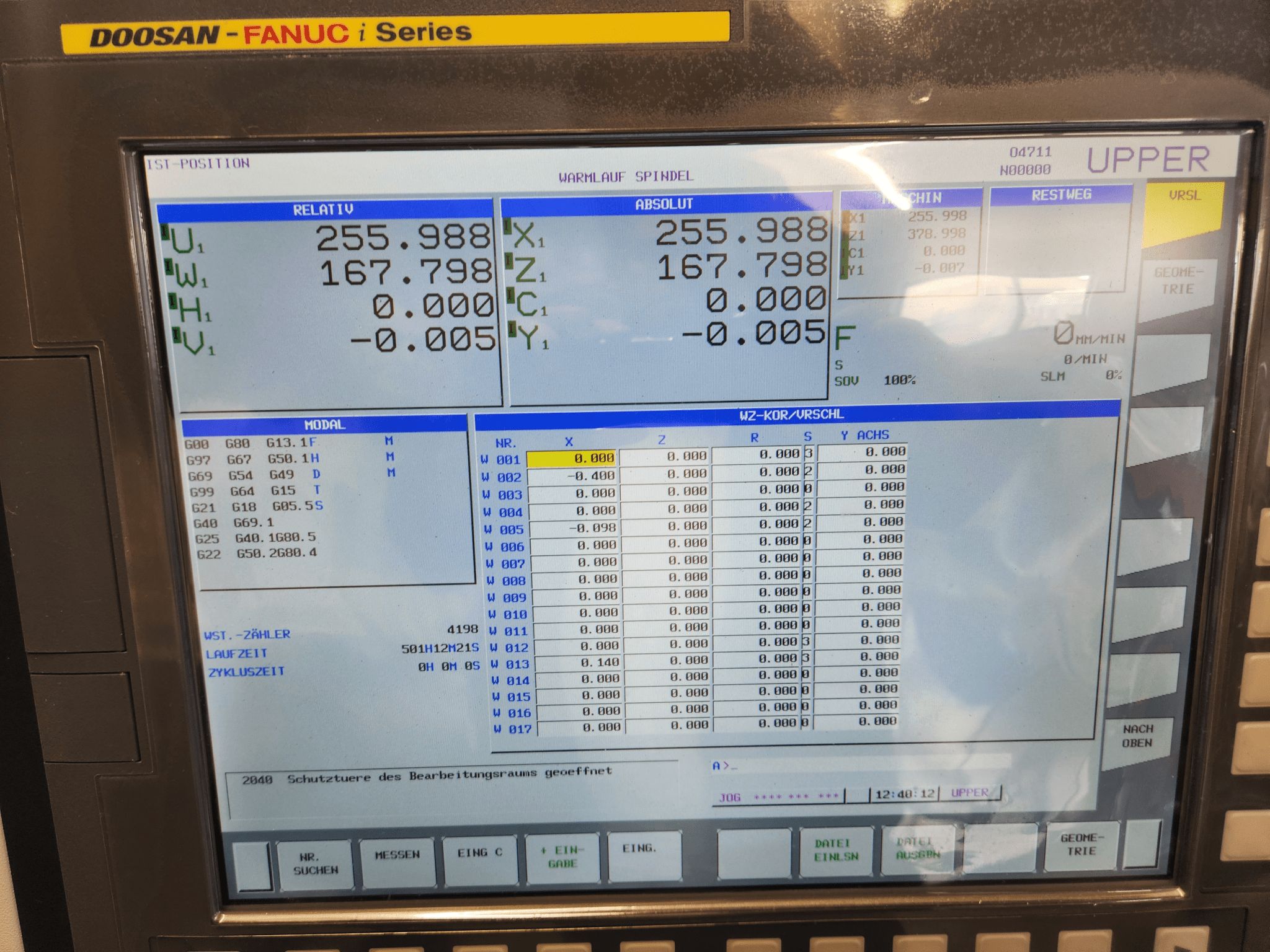

| Control: | Fanuc 0i-F |
| Year: | 2019 |
| Installation: | 2024 |
| SPECIFICATIONS: | |
| Max. turning length: [mm] | 120 |
| Turningdiameter: [mm] | 175 / 175 |
| Travel: | |
| X-Axis: [mm] | 135 |
| Y-Axis: [mm] | 80 |
| Z-Axis: [mm] | 530 |
| Rapid motion: (X/Y/Z) [m/min.] | 30 / 40 |
| Main Spindle | |
| Max. revolution: [rpm] | 6.000 |
| Spindle power: [kW] | 15 / 11 / 5,5 |
| Torque: [Nm] | 116 |
| Bar capacity: [mm] | 51 |
| Subspindle | |
| Max. revolution: [rpm] | 6.000 |
| Spindle power: [kW] | 11 / 7,5 / 5,5 |
| Torque: [Nm] | 93 |
| Amount of turrets: | 2 |
| Tool capacity: | 12 + 12 |
| Tool: | BMT 45 |
| Driven Tools | |
| revolution driven tools | 6.000 |
| Equipment: | |

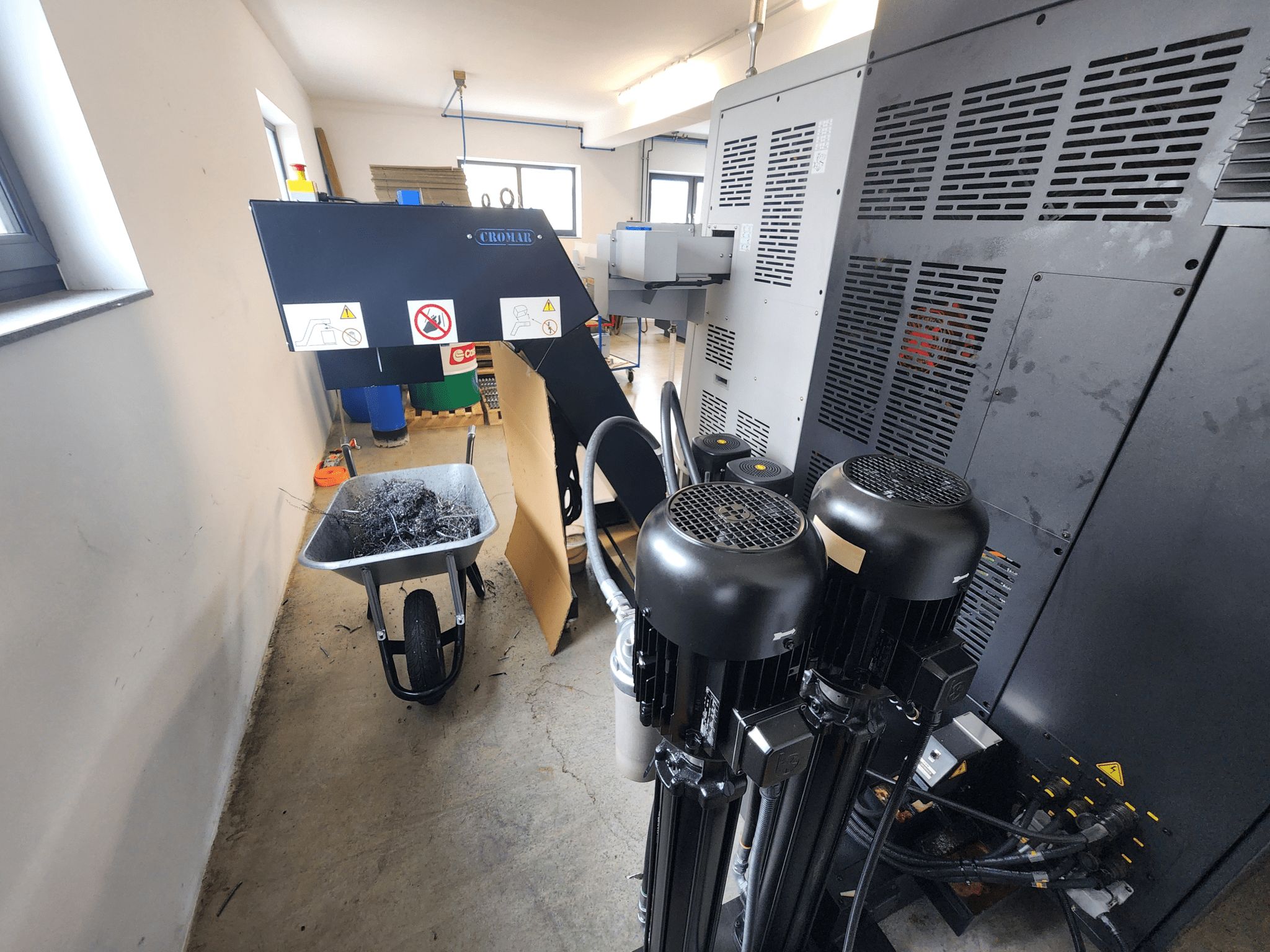

| Chip conveyor | |
| High pressure pumps | 30 bar |
| 3-jaw chuck [mm] | Samchully x 2 |
| Oil mist separator | |
| Interface barfeeder | |

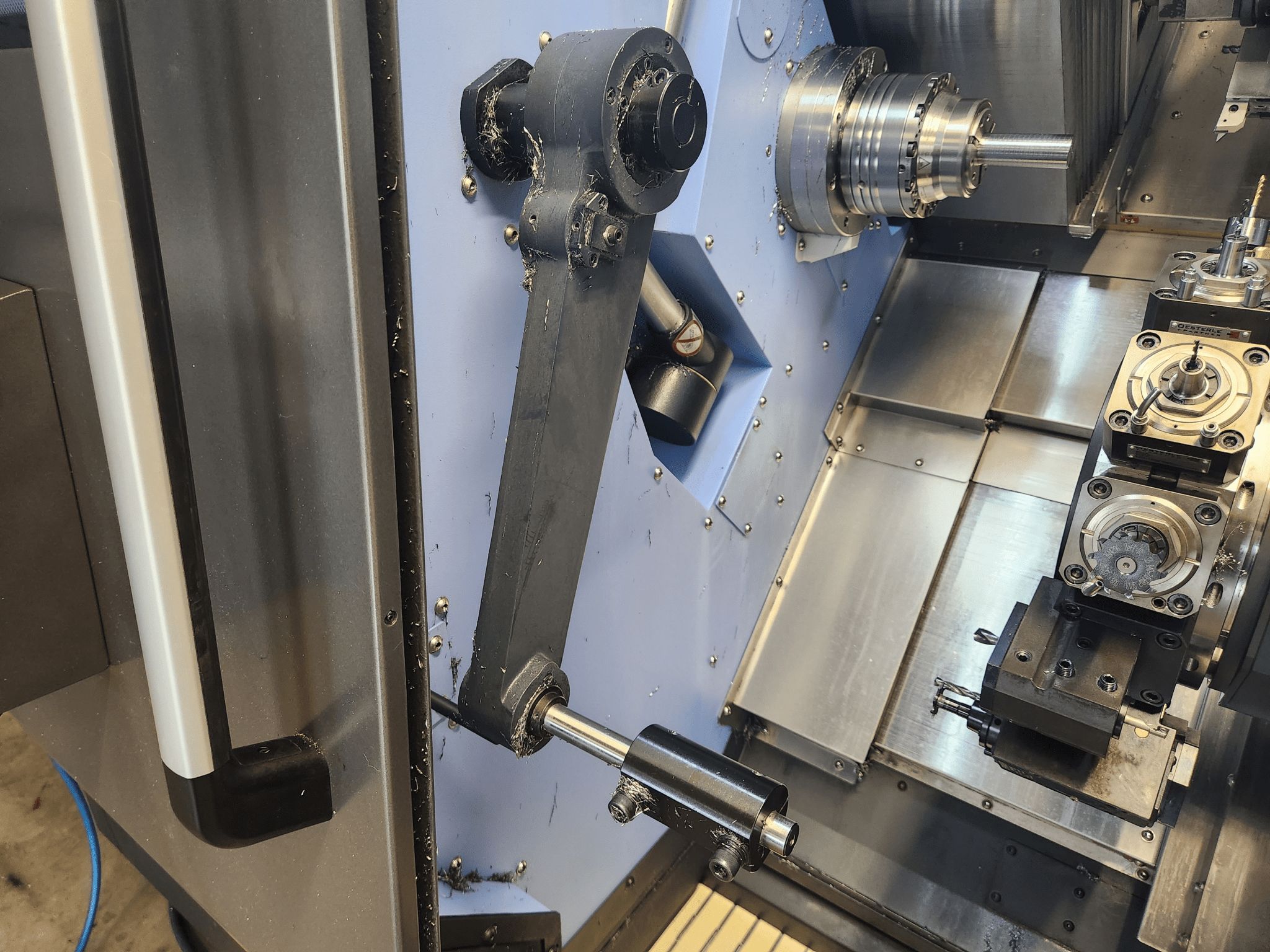

| Partscatcher | |
| Parts ejector | |

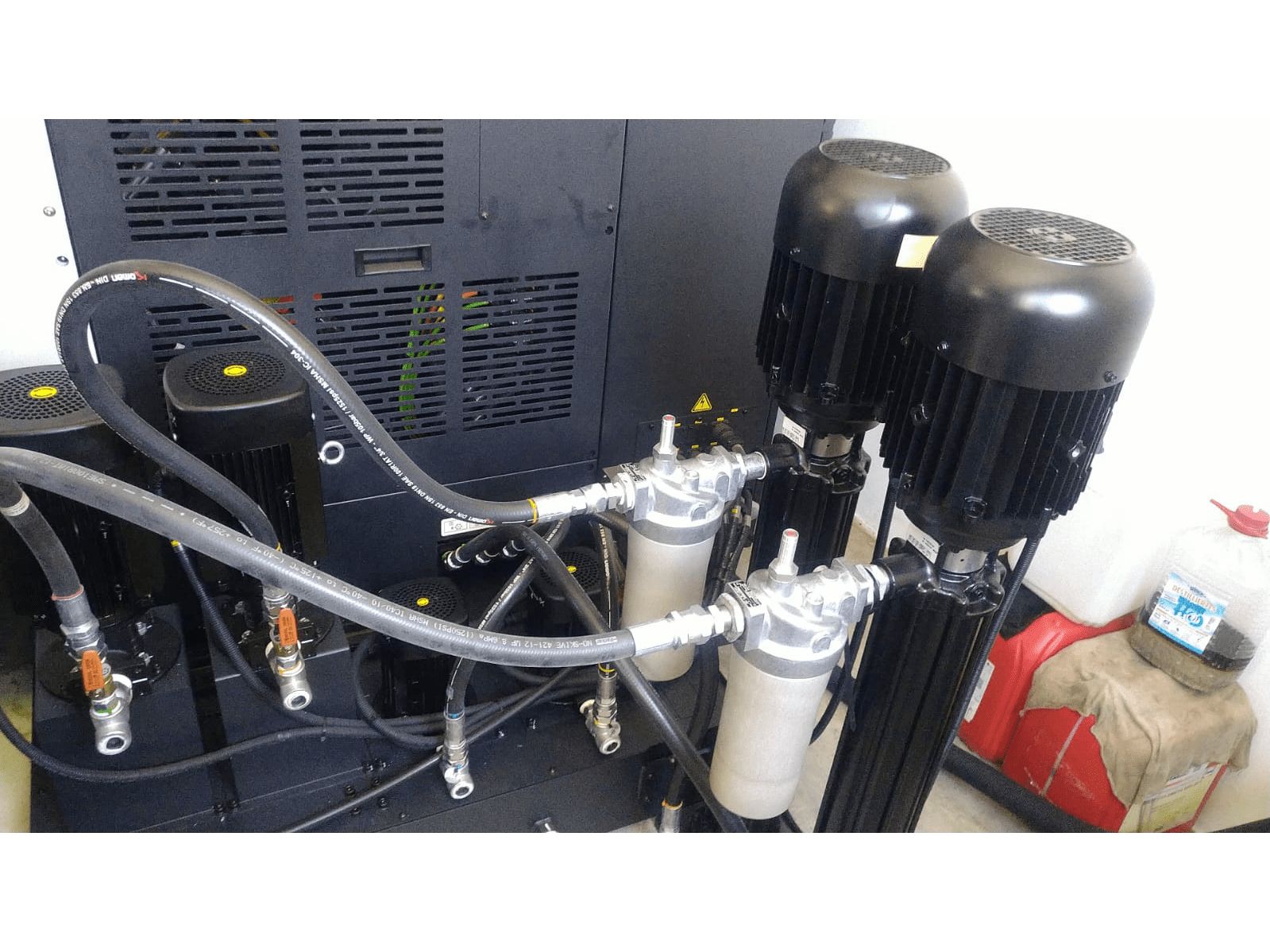

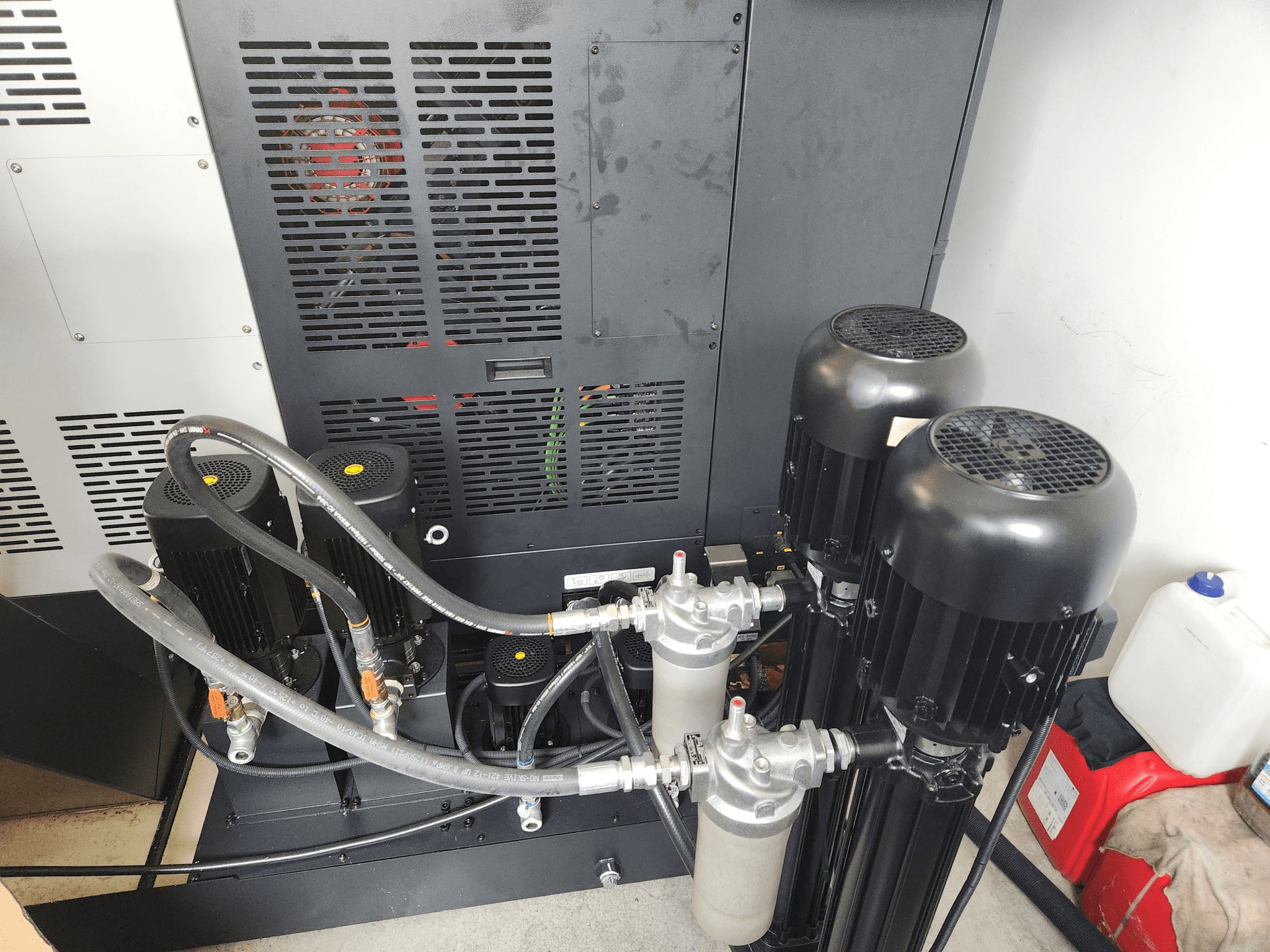

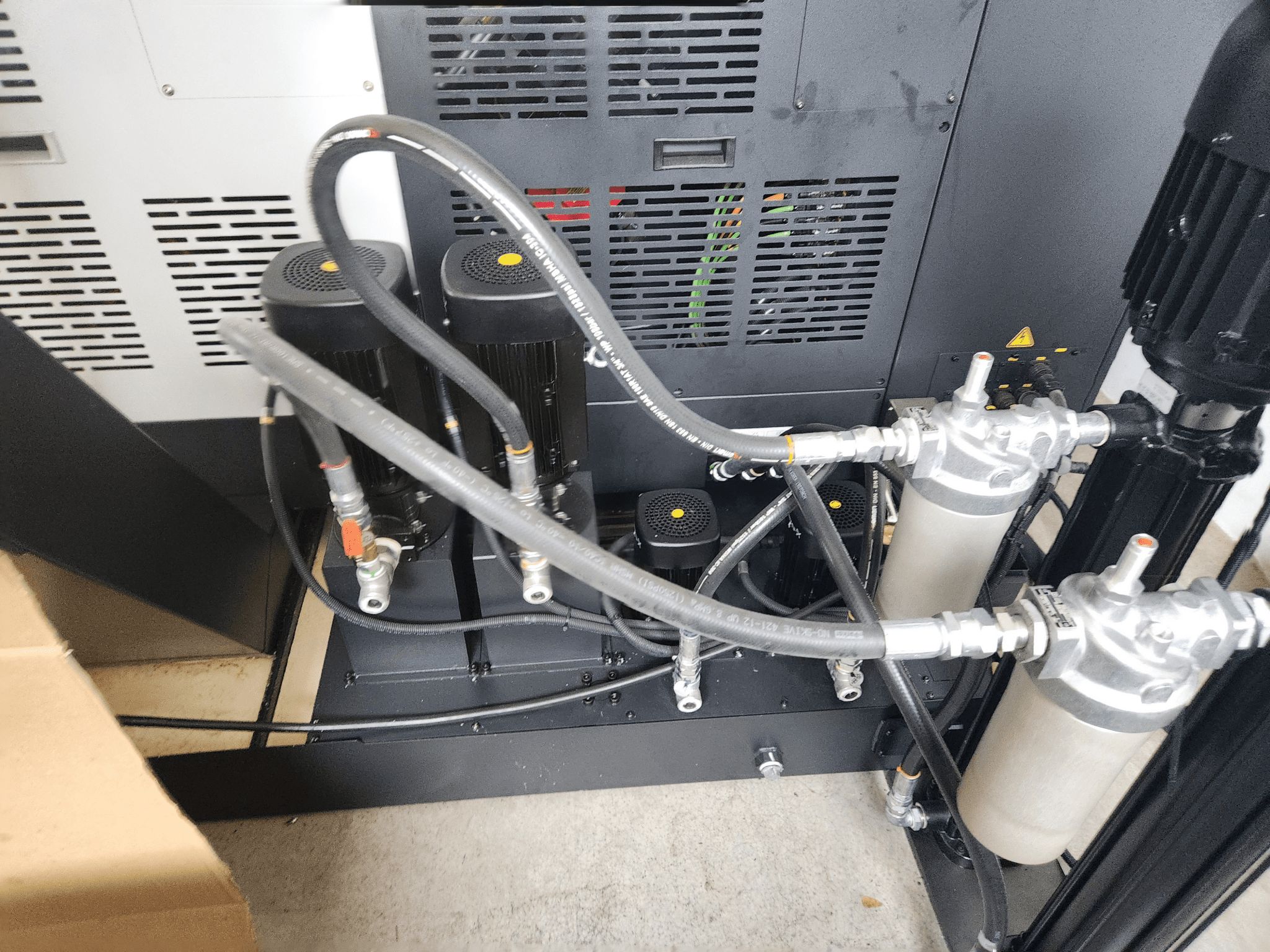

| High pressure pumps | Brinkmann 30 bar inkl. 5 mü Filter |
| Toolholders | 12 Standard- Klemmhalter |
Data sheet: Used Doosan Puma TT1300SYYB
