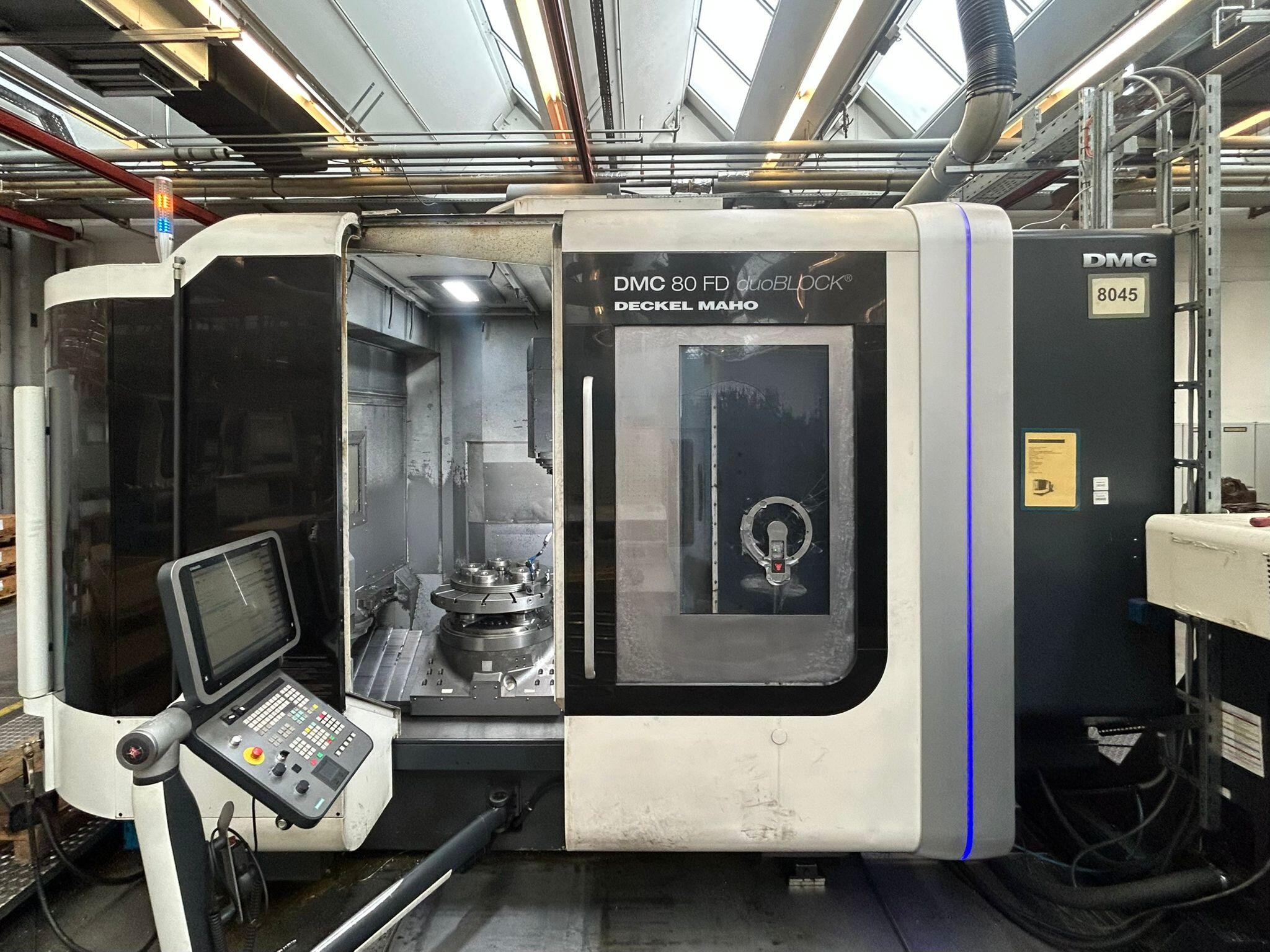

Milling machine DMG Mori DMC 80 FD duoBlock

Universal machining center

DMG Mori DMC 80 FD duoBlock 01
DMG MORI Logo
DMG Mori DMC 80 FD duoBlock 02
DMG Mori DMC 80 FD duoBlock 03
DMG Mori DMC 80 FD duoBlock 04
DMG Mori DMC 80 FD duoBlock 05
DMG Mori DMC 80 FD duoBlock 06
DMG Mori DMC 80 FD duoBlock 07
DMG Mori DMC 80 FD duoBlock 08
DMG Mori DMC 80 FD duoBlock 09
DMG Mori DMC 80 FD duoBlock 10
DMG Mori DMC 80 FD duoBlock 11
DMG Mori DMC 80 FD duoBlock 12
DMG Mori DMC 80 FD duoBlock 13
DMG Mori DMC 80 FD duoBlock 14

Request price for DMG Mori DMC 80 FD duoBlock:

How would you like to receive the offer? *

Used Universal machining center DMG Mori DMC 80 FD duoBlock

Request price
Universal machining center
Machine type:DMG DMC 80 FD duoBlock
Control:Siemens 840D solutionline mit Shopmill
Year:2009

SPECIFICATIONS:
Travel:
X-Axis: [mm]800
Y-Axis: [mm]800
Z-Axis: [mm]800
B-Axes
C-Axis
Rapid motion: (X/Y/Z) [m/min.]60
Amount of controlled axes:5

Spindle speeds: [rpm]0 - 10.000
Tool:HSK 100
Toolchanger
Tool capacity:120

NC-panning and rotary Table
Table size: [mm]800 x 630
Max. Table Load: [kg]800
Spindle speeds: [rpm]0 - 700

Palett system
Amount of paletts:2

Equipment:
Internal cooling: [bar]40
Cooling tank: [l]980
paper band filter
Chip conveyor
Electronical handwheel
CaliperHeidenhain
Tool setterBlum
 MPC
 Kühlmitteltemperierung
 Balluff Werkzeugerkennung RFID
PDF

Used Universal machining center DMG Mori DMC 80 FD duoBlock

Universal machining center
Machine type:DMG DMC 80 FD duoBlock
Control:Siemens 840D solutionline mit Shopmill
Year:2009


> View more technical data ...

DMG Mori DMC 80 FD duoBlock 02
SPECIFICATIONS:
Travel:
X-Axis: [mm]800
Y-Axis: [mm]800
Z-Axis: [mm]800
B-Axes
C-Axis
Rapid motion: (X/Y/Z) [m/min.]60
Amount of controlled axes:5

Spindle speeds: [rpm]0 - 10.000
Tool:HSK 100
Toolchanger
Tool capacity:120

NC-panning and rotary Table
Table size: [mm]800 x 630
Max. Table Load: [kg]800
Spindle speeds: [rpm]0 - 700

Palett system
Amount of paletts:2

Equipment:
Internal cooling: [bar]40
Cooling tank: [l]980
paper band filter
Chip conveyor
Electronical handwheel
CaliperHeidenhain
Tool setterBlum
 MPC
 Kühlmitteltemperierung
 Balluff Werkzeugerkennung RFID
