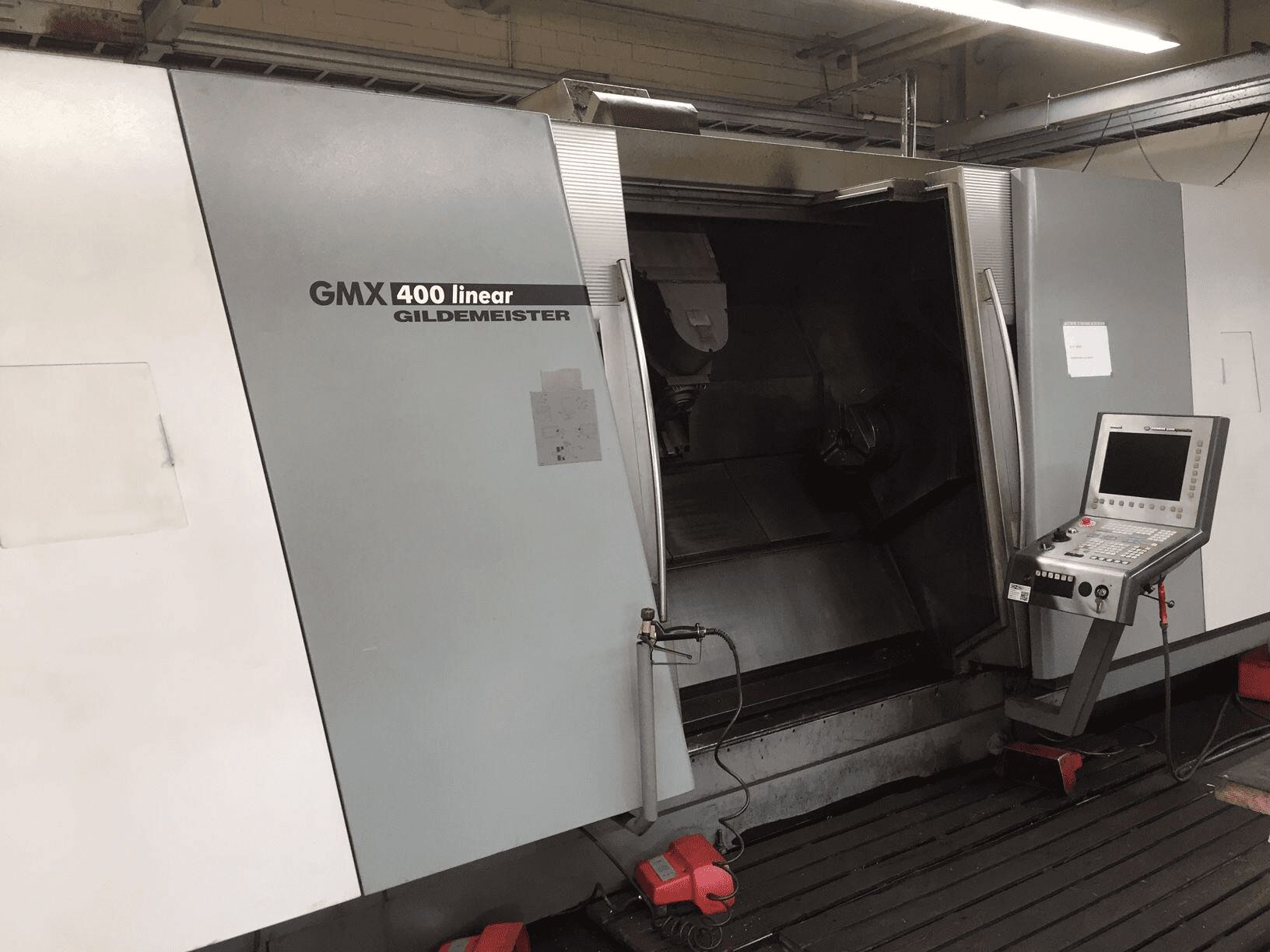

Lathe machine DMG GMX 400 Linear
CNC Milling / Turningcenter
Request price for DMG GMX 400 Linear:
Used DMG GMX 400 Linear
| CNC Milling / Turningcenter | ||
| Machine type: | DMG GMX 400 linear | |

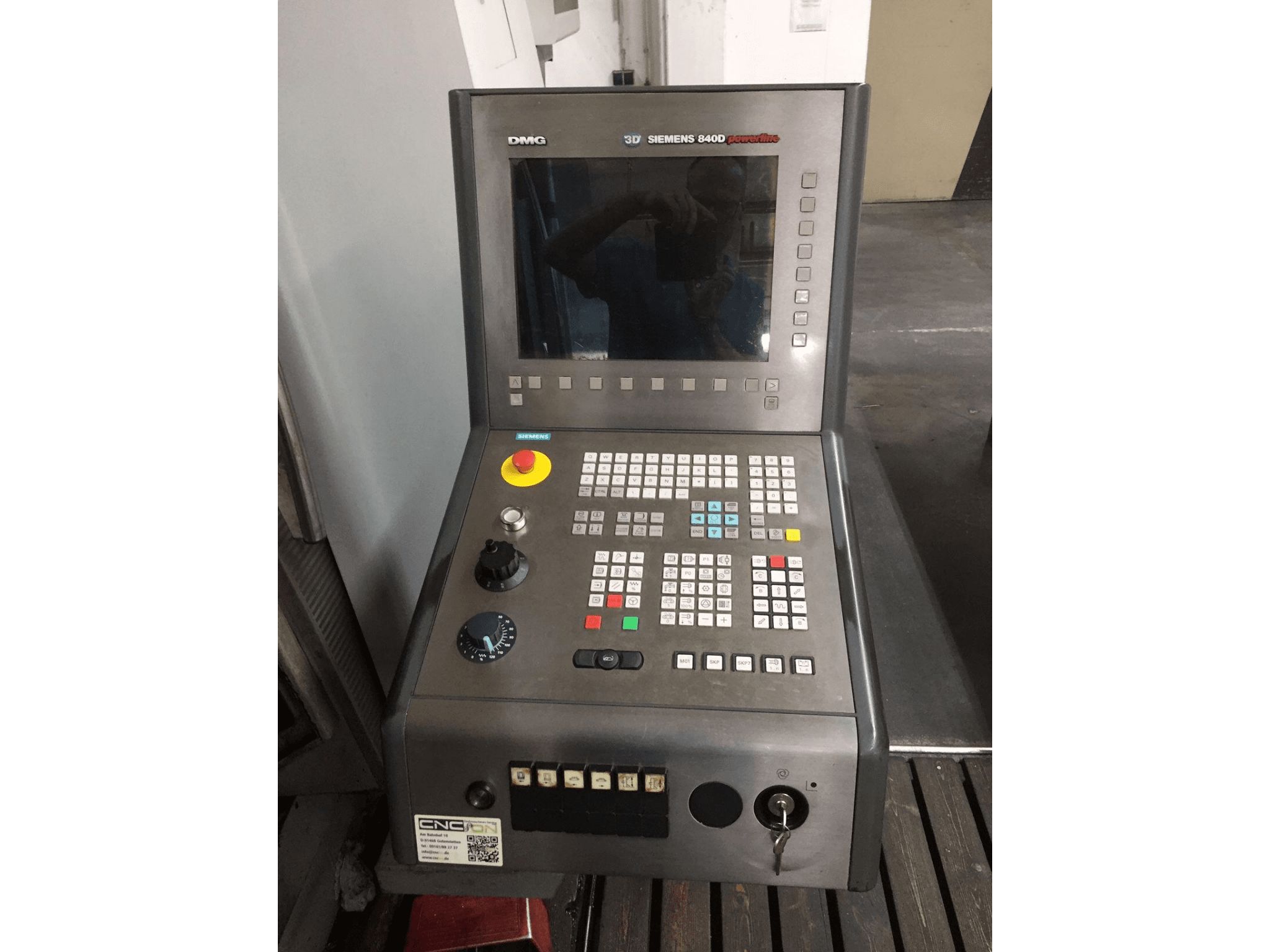

| Control: | Siemens 840 D Powerline | |
| Year: | 2007 | |
| SPECIFICATIONS: | ||
| Max. turning length: [mm] | 1.500 | |
| Turningdiameter: [mm] | 640 / 400 | |
| Bar capacity: [mm] | 92 | |
| C-Axis | 0,001° | |
| Spindle speeds: [rpm] | 4.000 | |
| Spindle power: [kW] | 45 / 36 | |
| Torque: [Nm] | 730 | |
| Travel: | ||
| X-Axis: [mm] | 550 | |
| Y-Axis: [+/- mm] | 180 ( +/- 90) | |
| Z-Axis: [mm] | 1.585 | |
| Rapid motion: (X/Y/Z) [m/min.] | 40 / 24 / 60 | |

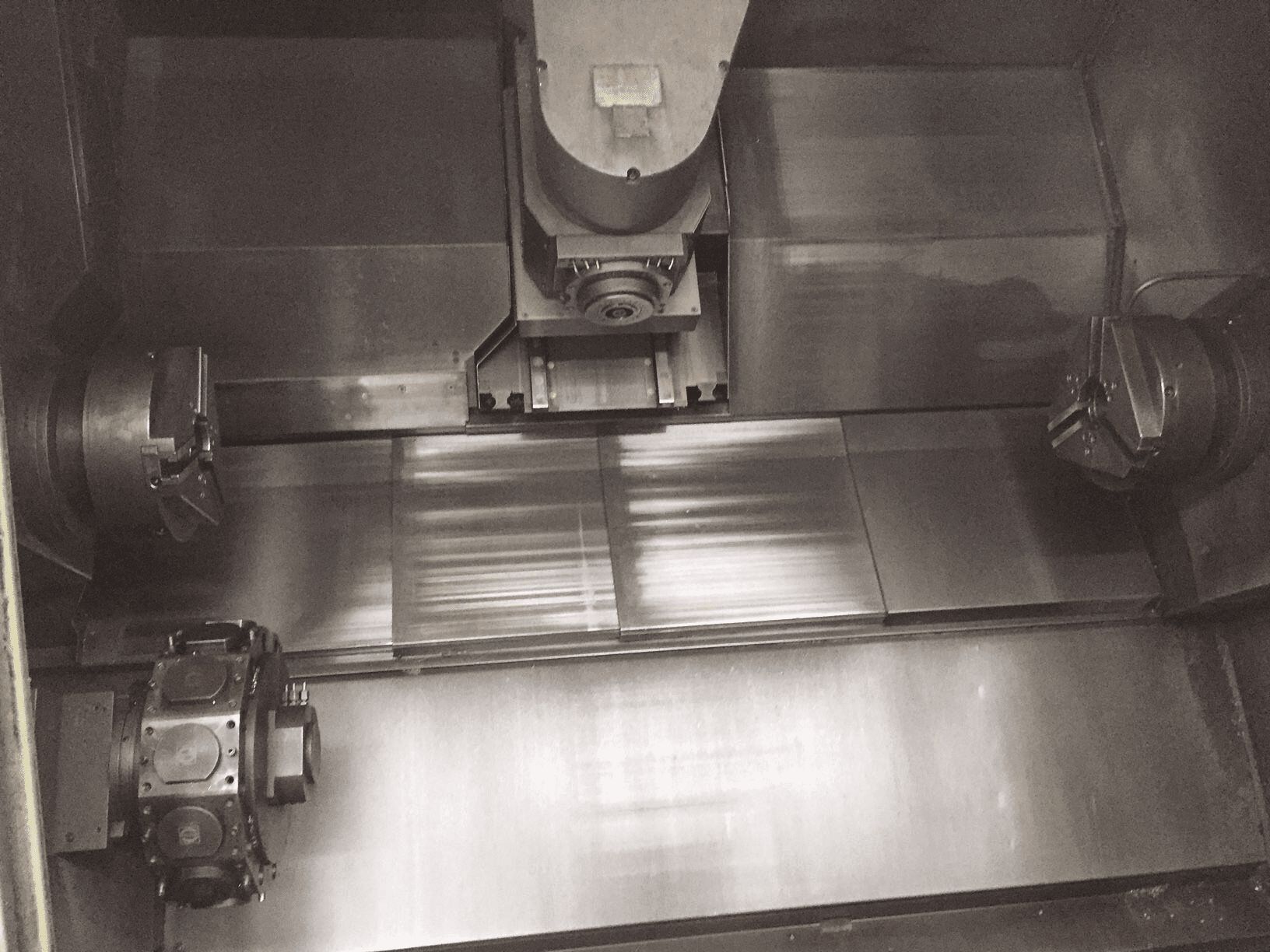

| Subspindle | ||
| Spindle speeds: [rpm] | 4.000 | |
| Spindle power: [kW] | 45 / 36 | |
| Bar capacity: [mm] | 92 | |
| C-Axis | ||
| CNC-Spindle tilting for cutting and turningopertations | ||
| Spindle speeds: [rpm] | 12.000 | |
| Spindle power: [kW] | 22 / 13,2 | |
| Torque: [Nm] | 100 | |
| Tool: | HASK 63 | |
| B-Axes | +/- 120° | |
| B-Axes | 3 fach Hirthverzahnung 1° | |
| Toolchanger | ||
| Time for tool change: [s] | 1,6 | |
| Tool capacity: | 60 | |
| Lower revolver | ||
| Driven Tools | 12 | |
| Equipment: | |
| High pressure pumps | 80 bar |
| cooling system | 980 Liter |

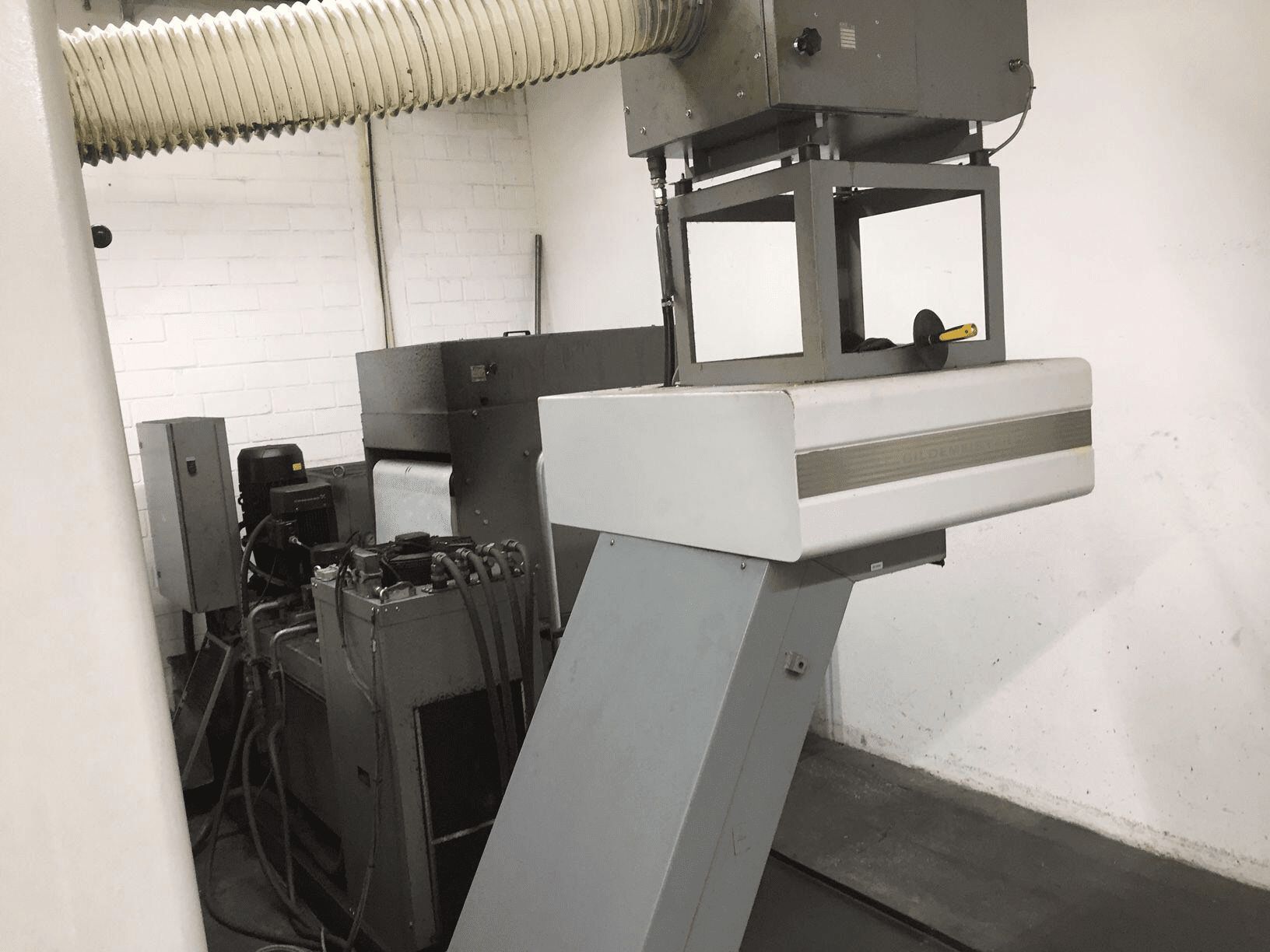

| Chip conveyor | |
| Coolant gun | |
| Air blow | |
| Oil mist separator | |
| Revolverkopflünette mit Oelzuführung | |
| 3-jaw chuck [mm] | KFD-HS 315-91 Röhm |
| Automatiktüren | |
