Milling machine DMG DMC 340 U
Universal machining center
Request price for DMG DMC 340 U:
Used DMG DMC 340 U
| Universal machining center | ||
| Machine type: | DMG DMC 340 U | |
| Control: | Heidenhain iTNC 530 | |
| Year: | 2002 | |
| SPECIFICATIONS: | ||
| Travel: | ||
| X-Axis: [mm] | 2.800 | |
| Y-Axis: [mm] | 3.400 | |
| Z-Axis: [mm] | 1.600 | |
| B-Axes | ||
| C-Axis | ||
| Rapid motion: (X/Y/Z) [m/min.] | 60 / 30 / 40 | |
| Panning head | ||
| Spindle speeds: [rpm] | 10.000 | |
| Spindle power: [kW] | 44/32 | |
| Torque: [Nm] | 288 | |
| Tool: | HSK 100 | |
| Tool capacity: | 120 | |
| Tool diameter: [mm] | 130 / 250 | |
| Tool lenght: [mm] | 650 | |
| Tool weight: [kg] | 30 | |

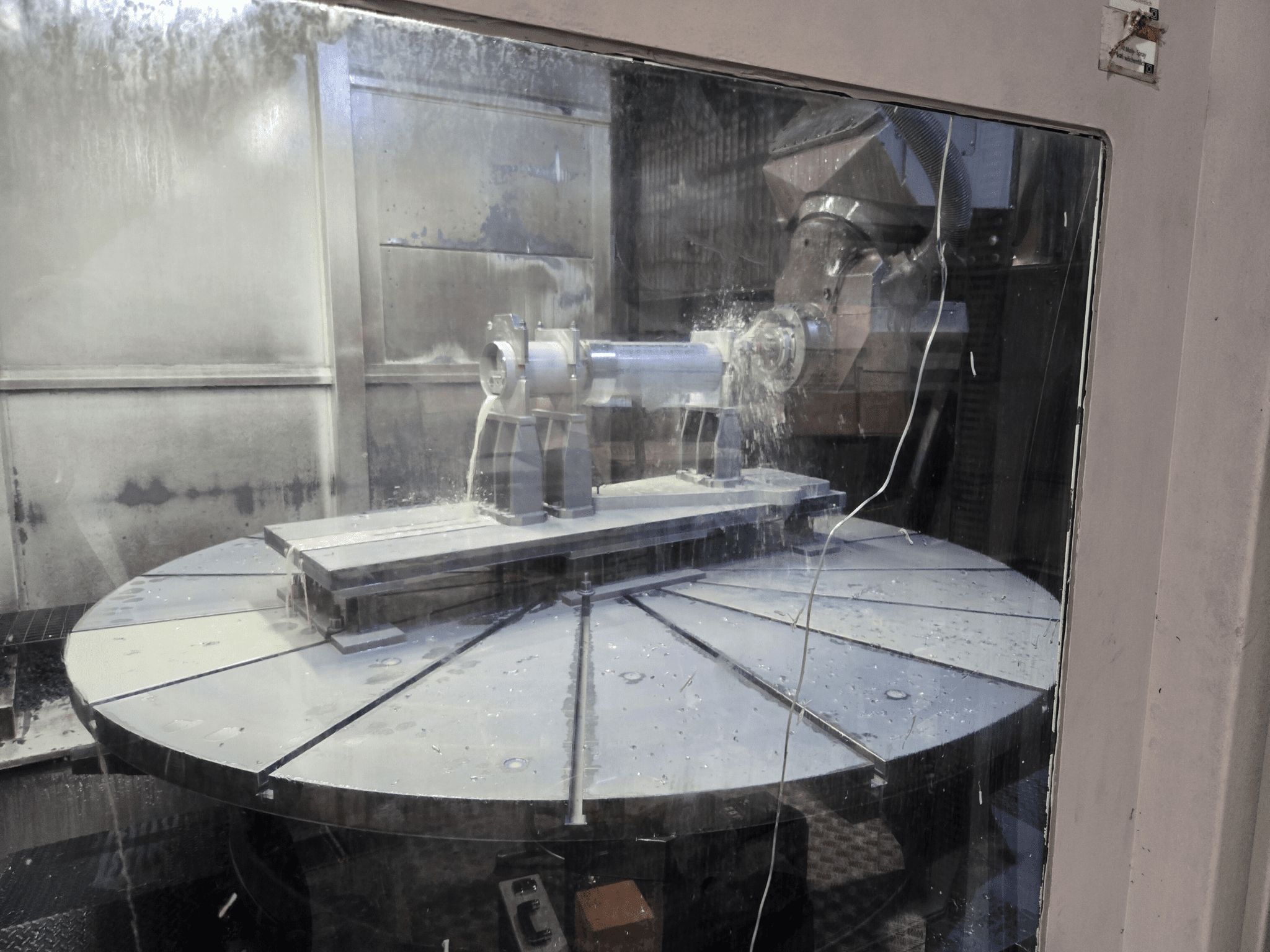

| NC rotary table | 2500 x 2000 | |
| Palett system | ||
| Amount of paletts: | 2 | |
| Palett size: [mm] | 2.500 x 2.000 | |

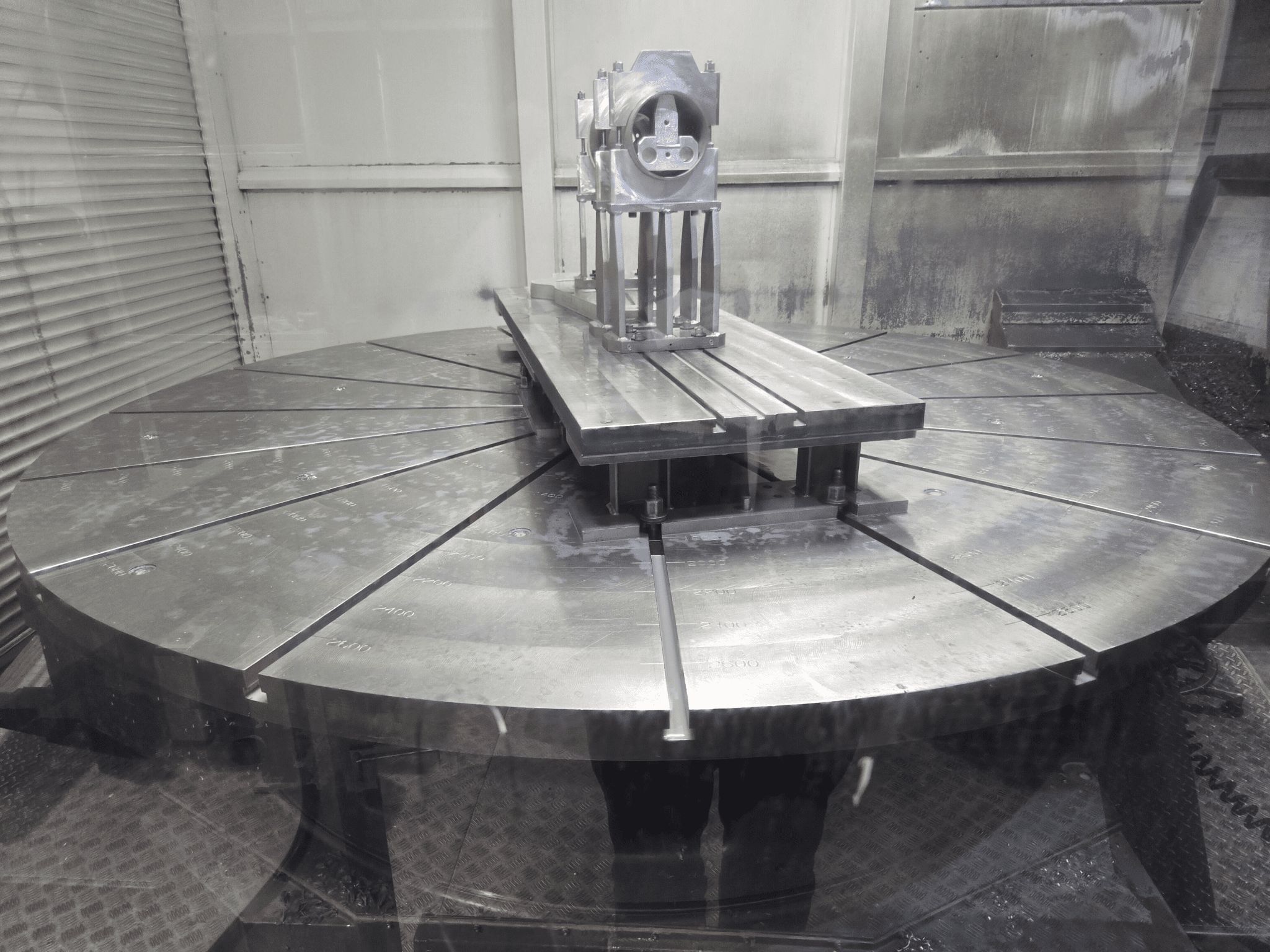

| Rotary table plate | D. 2.800 | |
| Equipment: | |
| Internal cooling: [bar] | |
| Cooling tank: [l] | |

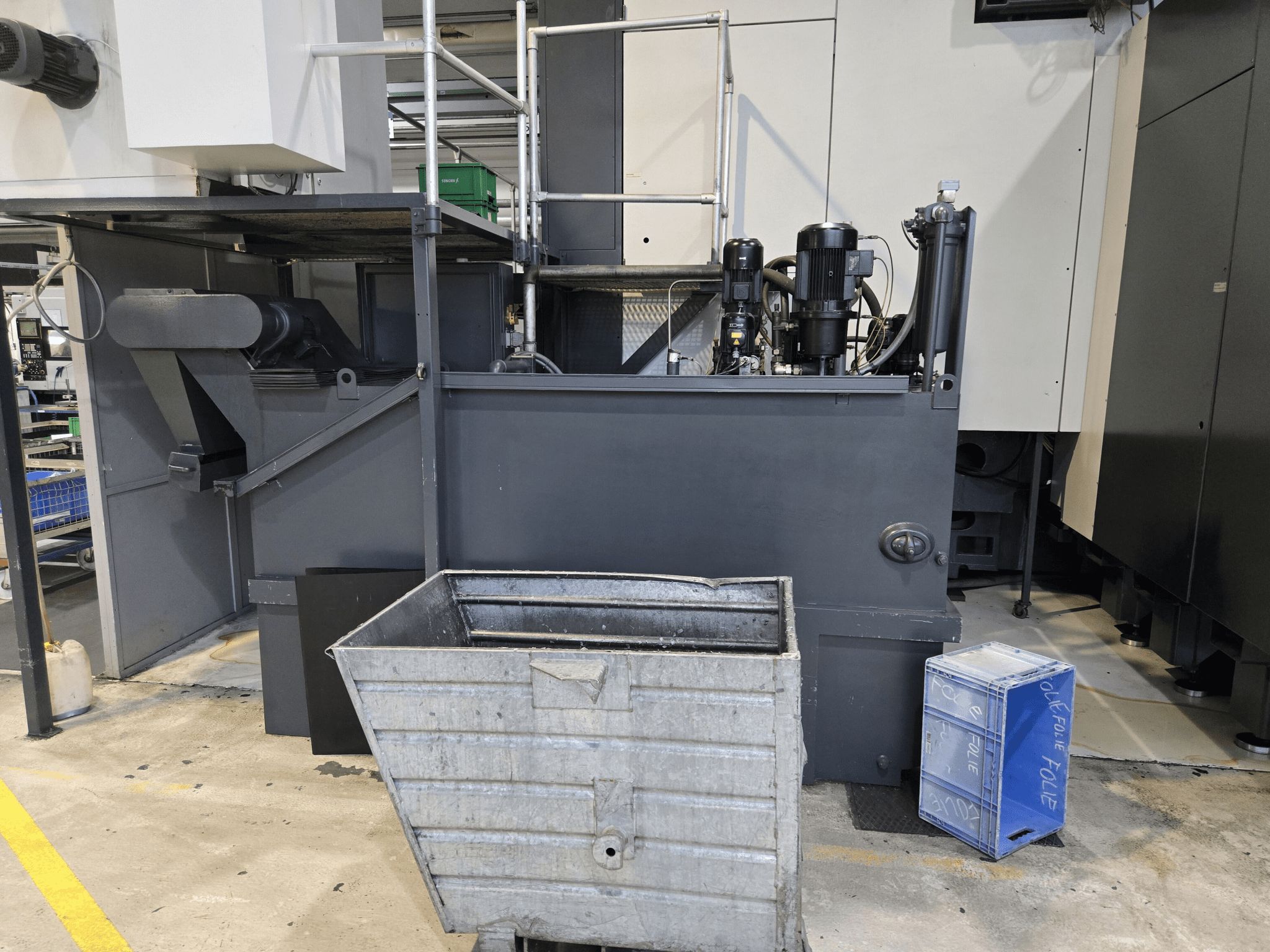

| Chip conveyor | |
| Electronical handwheel | |
| Chip rinsing pistol |
Used DMG DMC 340 U
| Universal machining center | ||
| Machine type: | DMG DMC 340 U | |
| Control: | Heidenhain iTNC 530 | |
| Year: | 2002 | |
| SPECIFICATIONS: | ||
| Travel: | ||
| X-Axis: [mm] | 2.800 | |
| Y-Axis: [mm] | 3.400 | |
| Z-Axis: [mm] | 1.600 | |
| B-Axes | ||
| C-Axis | ||
| Rapid motion: (X/Y/Z) [m/min.] | 60 / 30 / 40 | |
| Panning head | ||
| Spindle speeds: [rpm] | 10.000 | |
| Spindle power: [kW] | 44/32 | |
| Torque: [Nm] | 288 | |
| Tool: | HSK 100 | |
| Tool capacity: | 120 | |
| Tool diameter: [mm] | 130 / 250 | |
| Tool lenght: [mm] | 650 | |
| Tool weight: [kg] | 30 | |
| NC rotary table | 2500 x 2000 | |
| Palett system | ||
| Amount of paletts: | 2 | |
| Palett size: [mm] | 2.500 x 2.000 | |
| Rotary table plate | D. 2.800 | |
| Equipment: | |
| Internal cooling: [bar] | |
| Cooling tank: [l] | |
| Chip conveyor | |
| Electronical handwheel | |
| Chip rinsing pistol |
Request price for DMG DMC 340 U:
Buy used DMG DMC 340 U - powerful 5-axis gantry machining center
The DMG DMC 340 U is one of the largest and most powerful 5-axis machining centers from DMG MORI - designed for the precise machining of large components in a single clamping operation. If you are looking for the highest machining quality and maximum efficiency, the DMC 340 U is an economically attractive solution as a used machine.</p
Technical highlights of the DMC 340 U
- 5-axis machining with simultaneous control for complex geometries
- Large traverse paths: X up to 3,400 mm, Y up to 2,800 mm, Z up to 1,250 mm

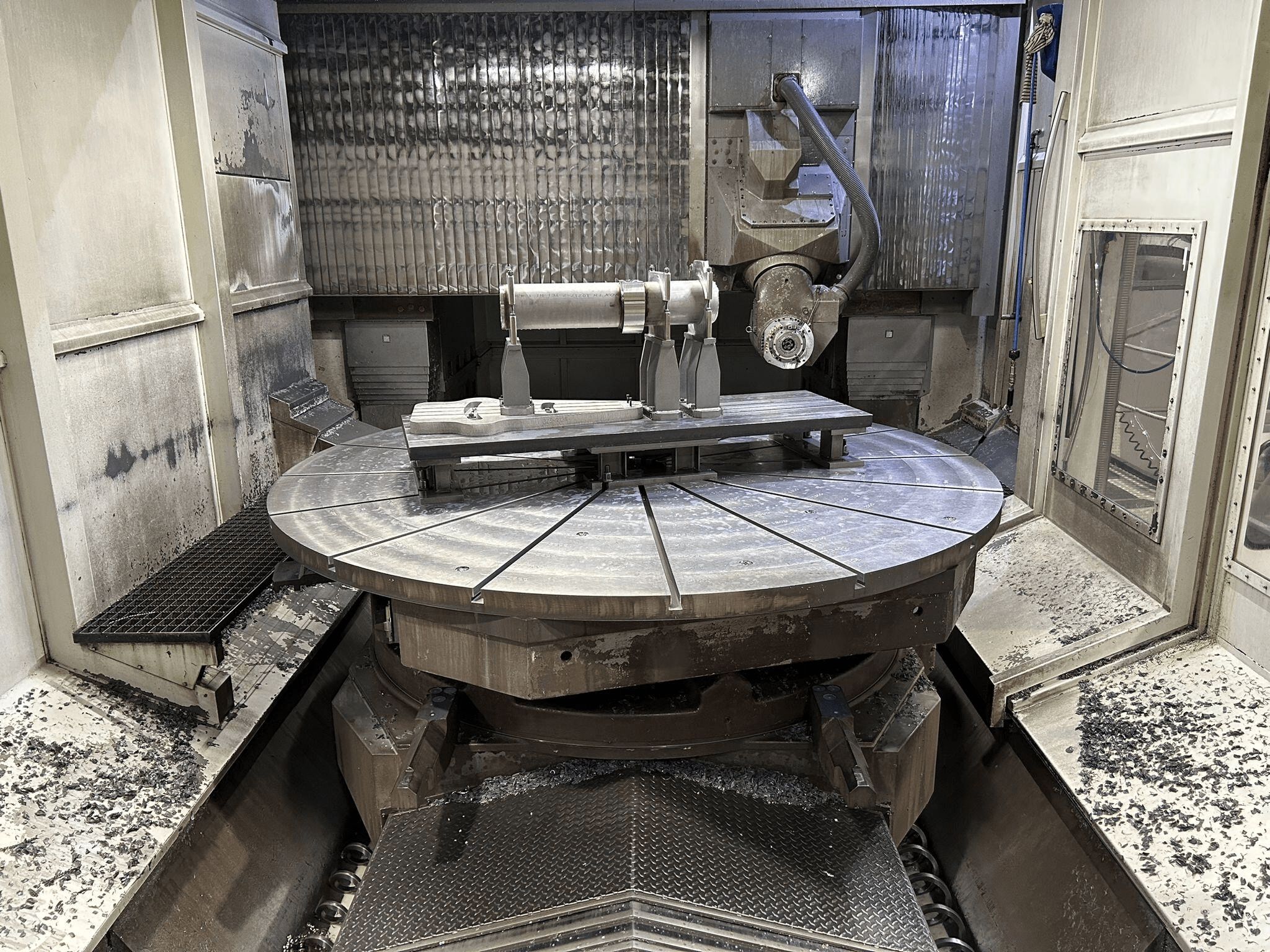

- Swivel head with B-axis and NC rotary table for complete 5-sided/5-axis machining
- Milling spindle with up to 10,000 rpm (HSK 100)

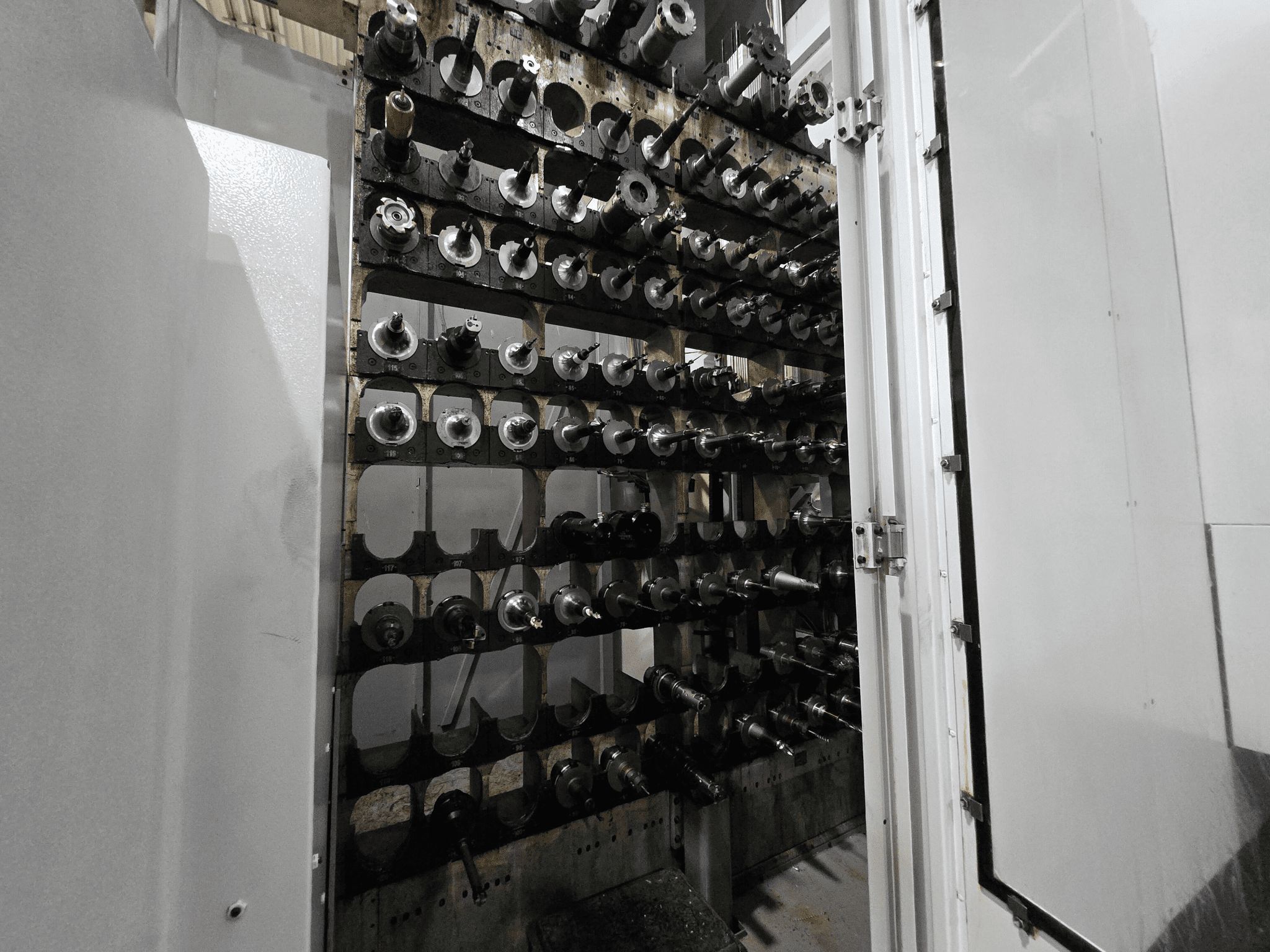

- Tool magazine with up to 120 pockets

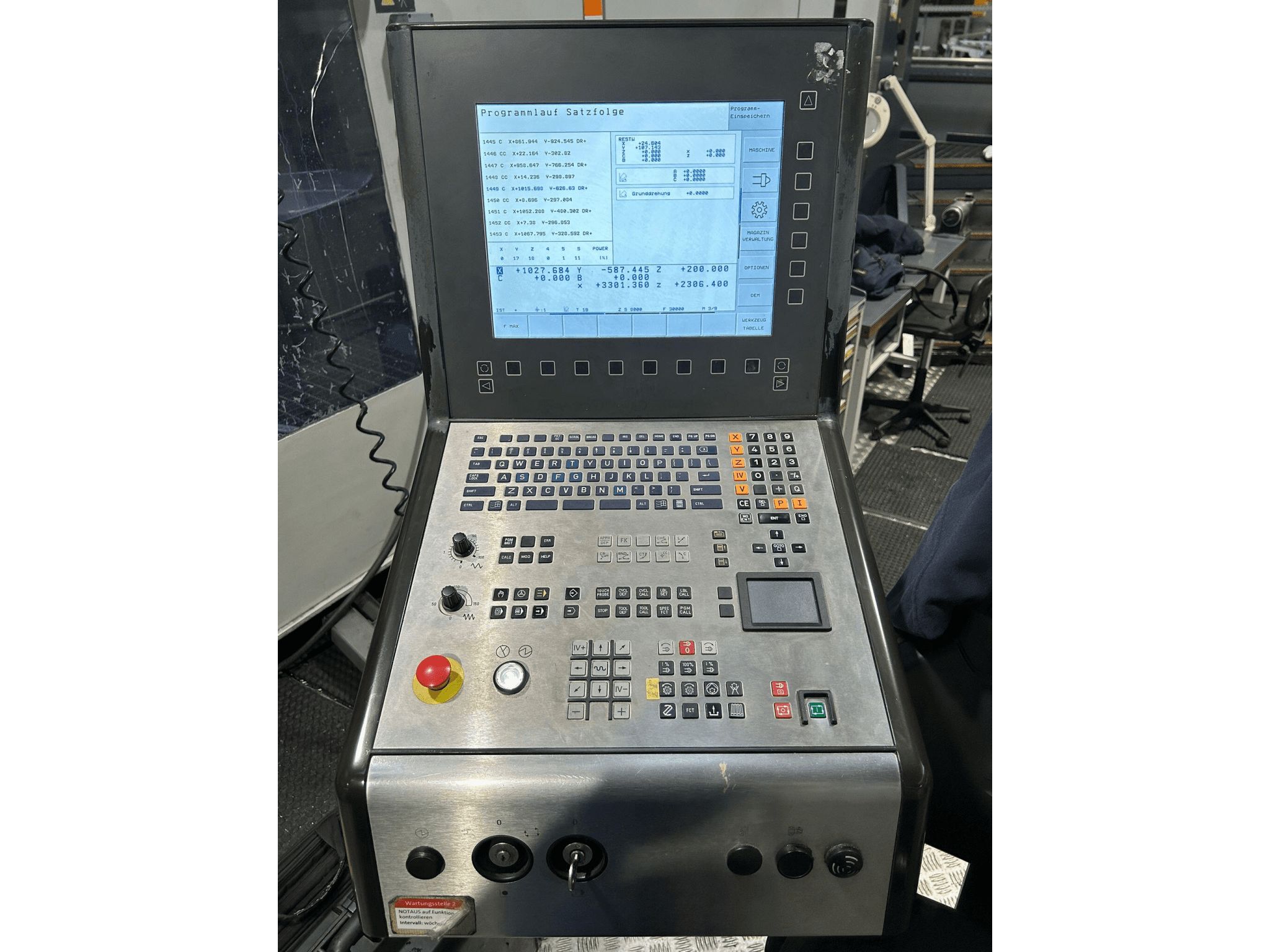

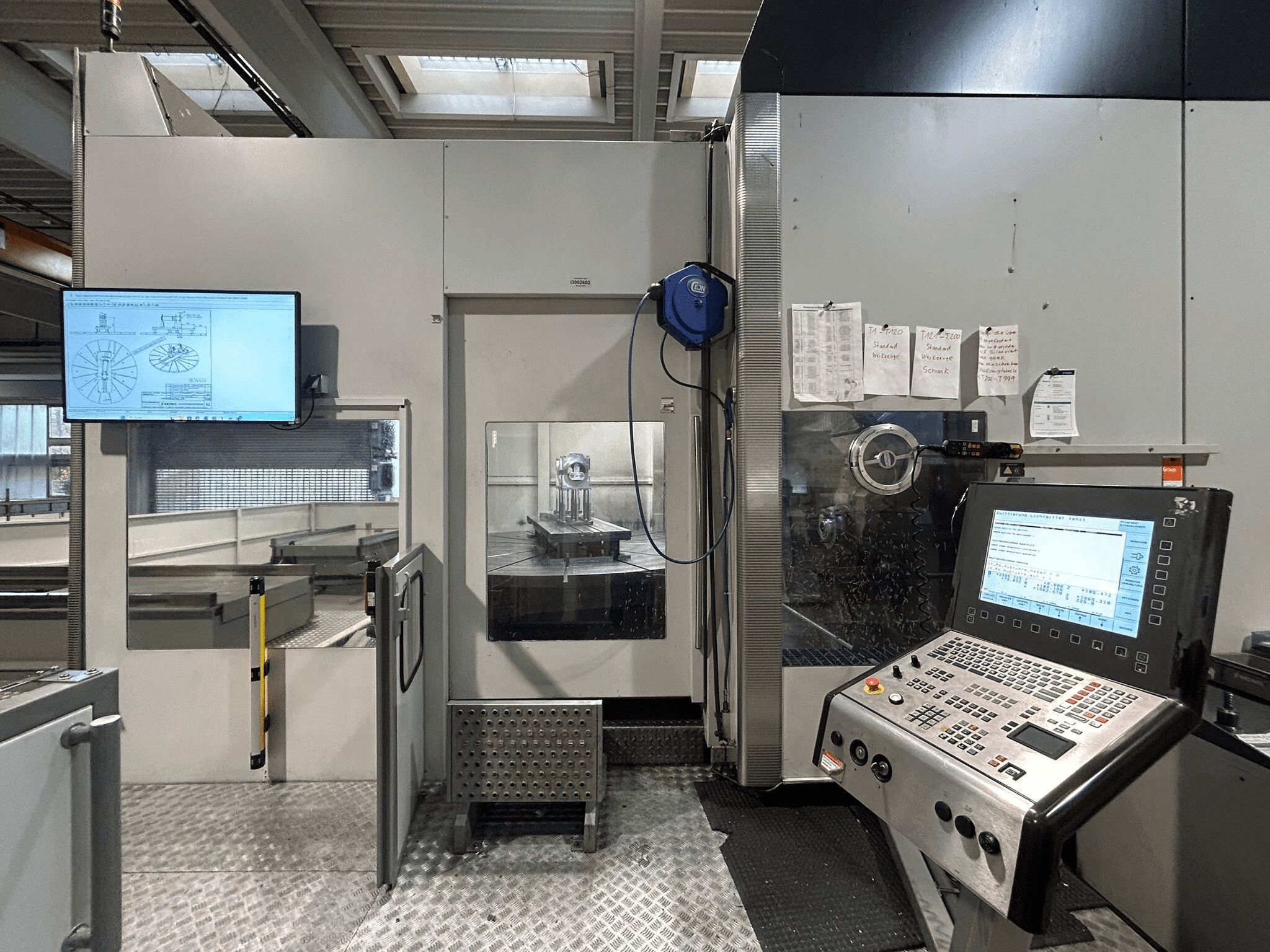

- Control:Heidenhain iTNC 530

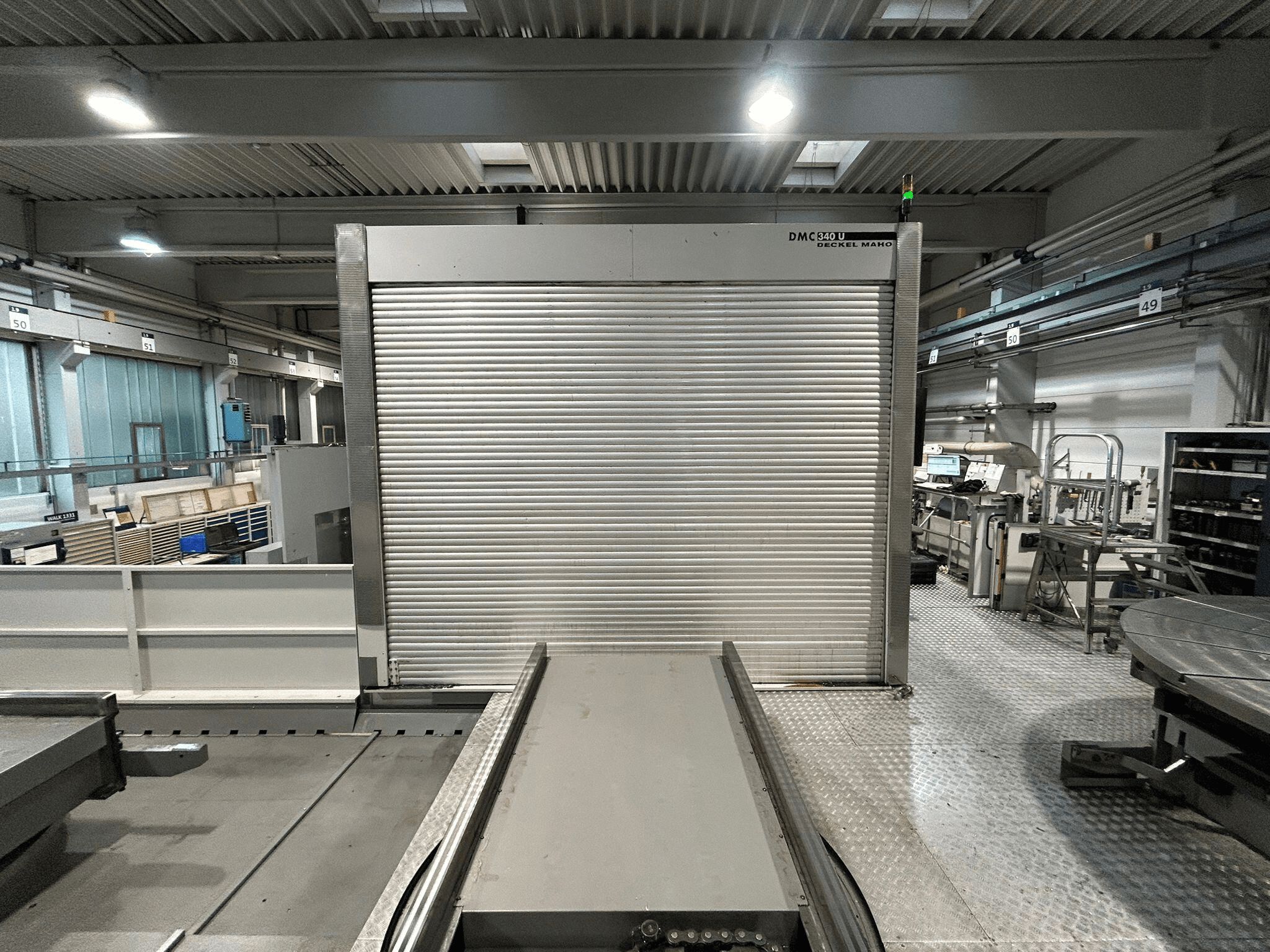

- Optional: 2-pallet system for uninterrupted production
Your advantages with a used DMC 340 U
- Top performance at a significantly reduced price compared to new machines
- Ideal for toolmaking, aerospace, energy and mechanical engineering
- High stability and precision even with workpiece weights of up to 10 tons
- Minimized set-up times thanks to pallet changer and automatic tool measurement
- Immediately available - no waiting times as with new machines
Typical areas of application
- Machining of large parts
- Precision parts for the aerospace industry
- Moulds and tools
- Structural components in mechanical engineering
DMG DMC 340 U used - tested and ready for immediate use
The machines we offer are technically inspected and documented with a ballbar test and geometry report. On request, we can take care of disassembly, transportation, reinstallation and commissioning - reliably and throughout Europe.</p
Enquire about the DMC 340 U now
Would you like to find out more about the models currently available or receive a individual offer directly? Contact us - we will provide you with expert, manufacturer-independent advice.
<pBuy used DMG DMC 340 U - maximum performance, maximum precision, fair investment
Arrange a viewing now or request a quote directly!
