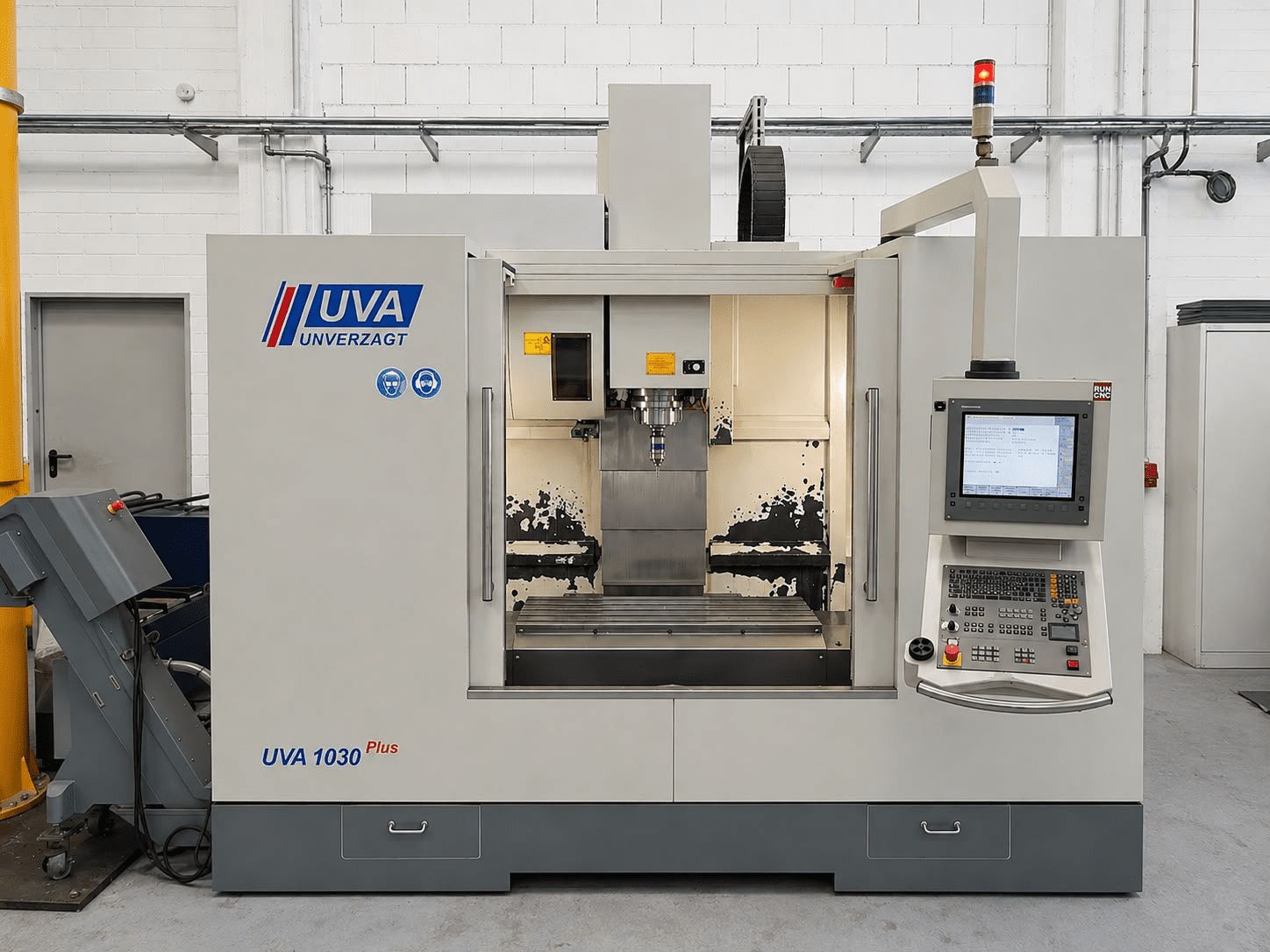

Milling machine UVA 1030 plus

Vertical machining center

UVA 1030 plus 01
UVA 1030 plus 02
UVA 1030 plus 03
UVA 1030 plus 04
UVA 1030 plus 05
UVA 1030 plus 06

Request price for UVA 1030 plus:

Used Vertical machining center UVA 1030 plus

Vertical machining center
Machine type:UVA 1030 plus

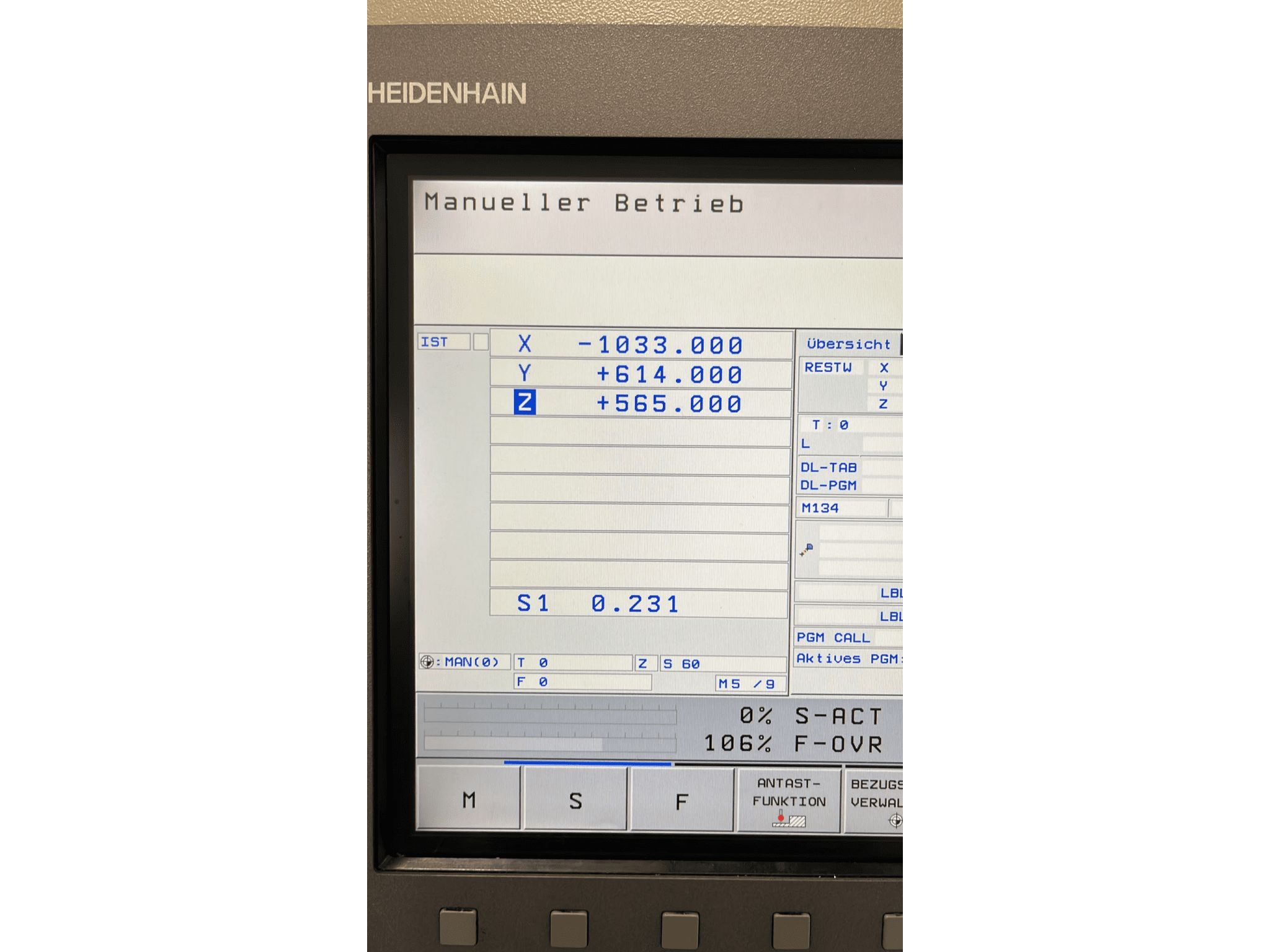

Control:Heidenhain iTNC 530
Year:2008

SPECIFICATIONS:
Travel:
X-Axis: [mm]1.030
Y-Axis: [mm]610
Z-Axis: [mm]560
Rapid motion: (X/Y/Z) [m/min.]30

Max. revolution: [rpm]10.000
Spindle power: [kW]13,5
Tool:SK40
Tool capacity:24

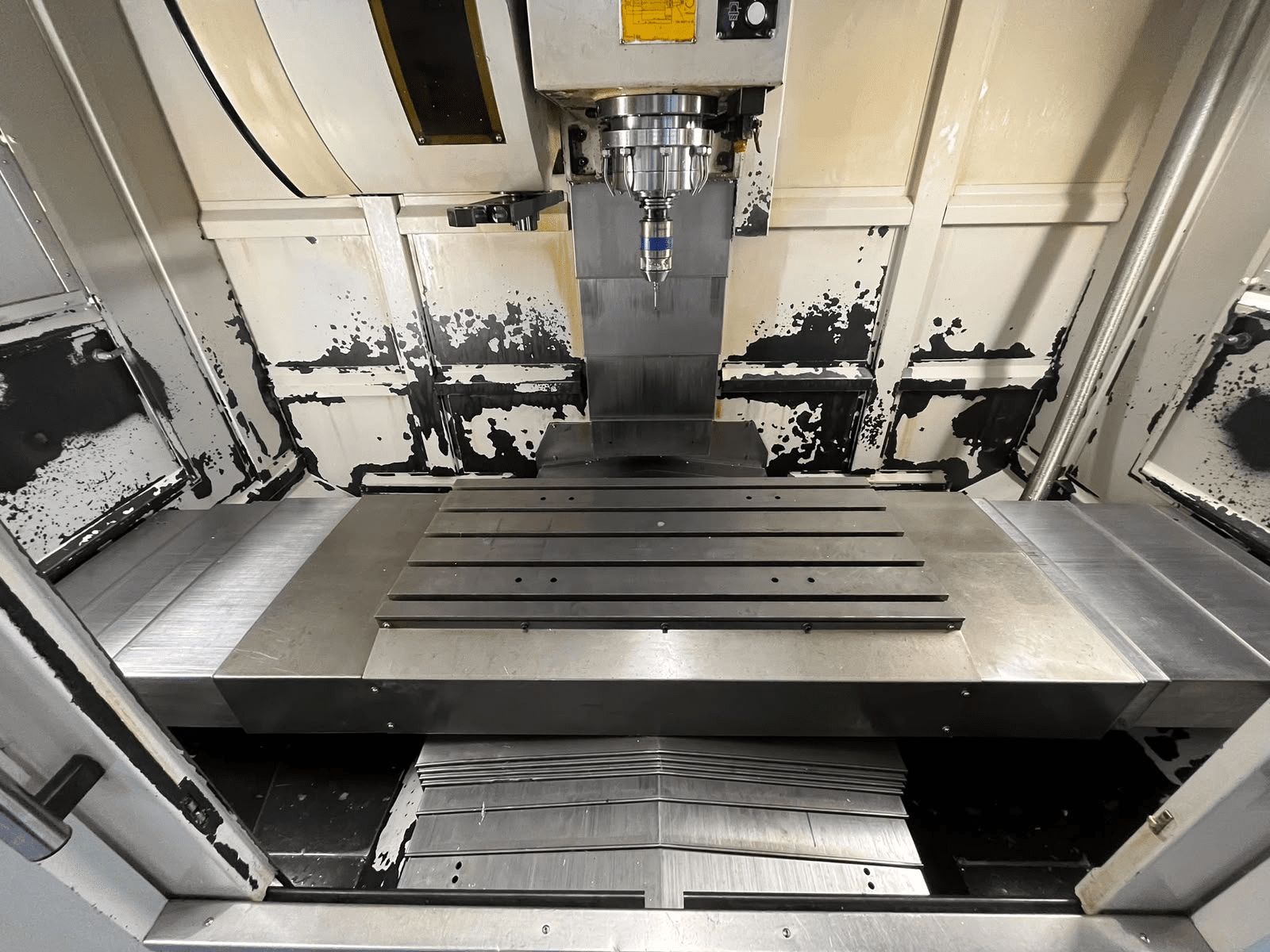

Table size: [mm]1.000 x 500
Max. Table Load: [kg]700

Equipment:
Chip conveyor
Electronical handwheel
Caliper
Internal cooling: [bar]20
Data sheet: Used UVA 1030 plus
Technical data: UVA 1030 plus (PDF)

Used Vertical machining center UVA 1030 plus

Vertical machining center
Machine type:UVA 1030 plus
Control:Heidenhain iTNC 530
Year:2008


> View technical data ... ...

UVA 1030 plus 02
SPECIFICATIONS:
Travel:
X-Axis: [mm]1.030
Y-Axis: [mm]610
Z-Axis: [mm]560
Rapid motion: (X/Y/Z) [m/min.]30

Max. revolution: [rpm]10.000
Spindle power: [kW]13,5
Tool:SK40
Tool capacity:24

Table size: [mm]1.000 x 500
Max. Table Load: [kg]700

Equipment:
Chip conveyor
Electronical handwheel
Caliper
Internal cooling: [bar]20
Data sheet: Used UVA 1030 plus
