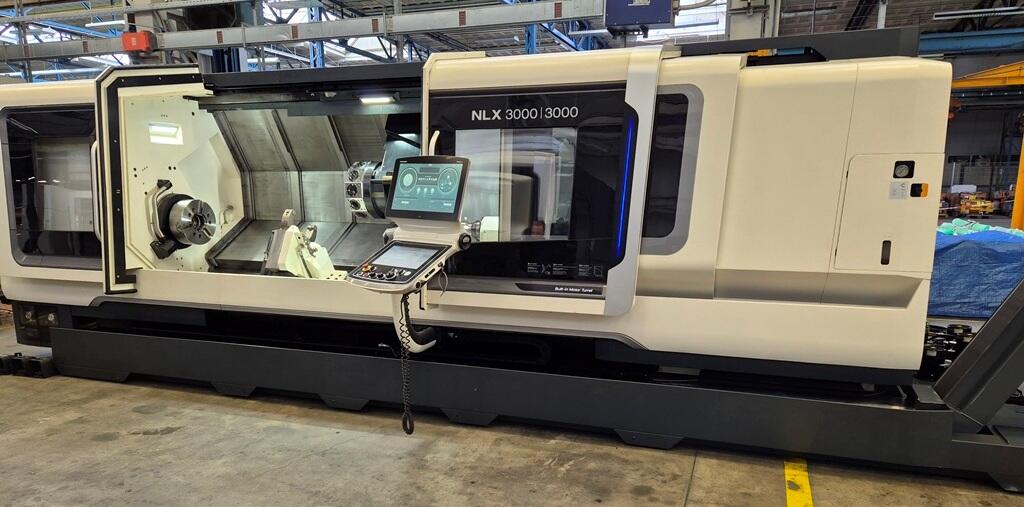

Used Mori Seiki NLX 3000 Y / 3000
CNC Turning / Millingcenter
Request price for Mori Seiki NLX 3000 Y / 3000:
Mori Seiki NLX 3000 Y / 3000
- Machine in top condition - year of manufacture 2020
- BMT turret with integrated drive up to 10,000 rpm
- Large workspace with good accessibility
| CNC Turning / Millingcenter | |
| Machine type: | Mori Seiki NLX 3000 Y / 3000 |
| Control: | CELOS mit MAPPS V |
| Year: | 2020 |
| SPECIFICATIONS: | |
| Max. turning length: [mm] | 3.123 |
| Turningdiameter: [mm] | 310 |
| Max. swing over bed: [mm] | 420 |
| Bar capacity: [mm] | 90 |
| Collets | 300 mm |
| C-Axis | |
| Max. revolution: [rpm] | 3.000 |
| Spindle power: [kW] | 22 / 18,5 |
| Travel: | |
| X-Axis: [mm] | 280 |
| Y-Axis: [+/- mm] | 60 |
| Z-Axis: [mm] | 3.170 |
| Rapid motion: (X/Y/Z) [m/min.] | 30 / 10 / 30 |
| Amount of turrets: | 1 |
| Tool: | |
| Tool capacity: | 12 |
| Driven Tools | 12 |
| revolution driven tools | 6.000 |

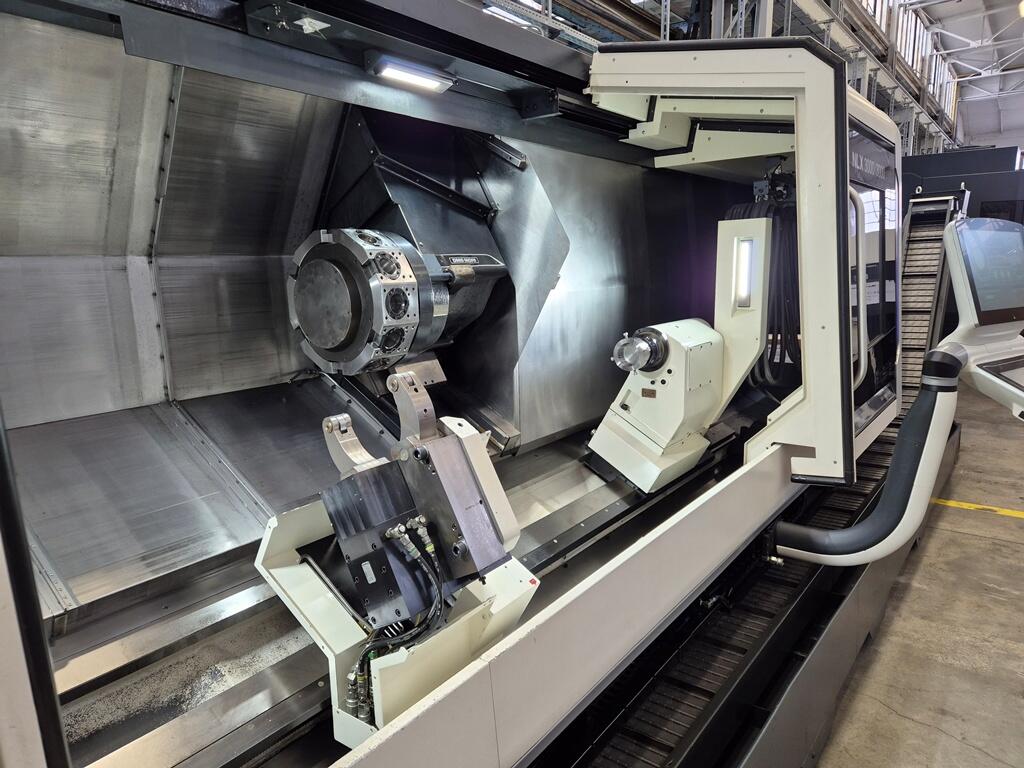

| Tailstock | 3.164 mm |
| Power consumption: [KW] | 54 |
| Machine weight: [kg] | 14.200 |
| Req. space (LxBxH): [m] | 8,3 x 3,5 x 2,41 |
| Equipment: | |
| Chip conveyor | |
| Cooling pumps | 5 bar |
| 3-jaw chuck [mm] | |
| Chip rinsing pistol | |
| Automatic doors | |

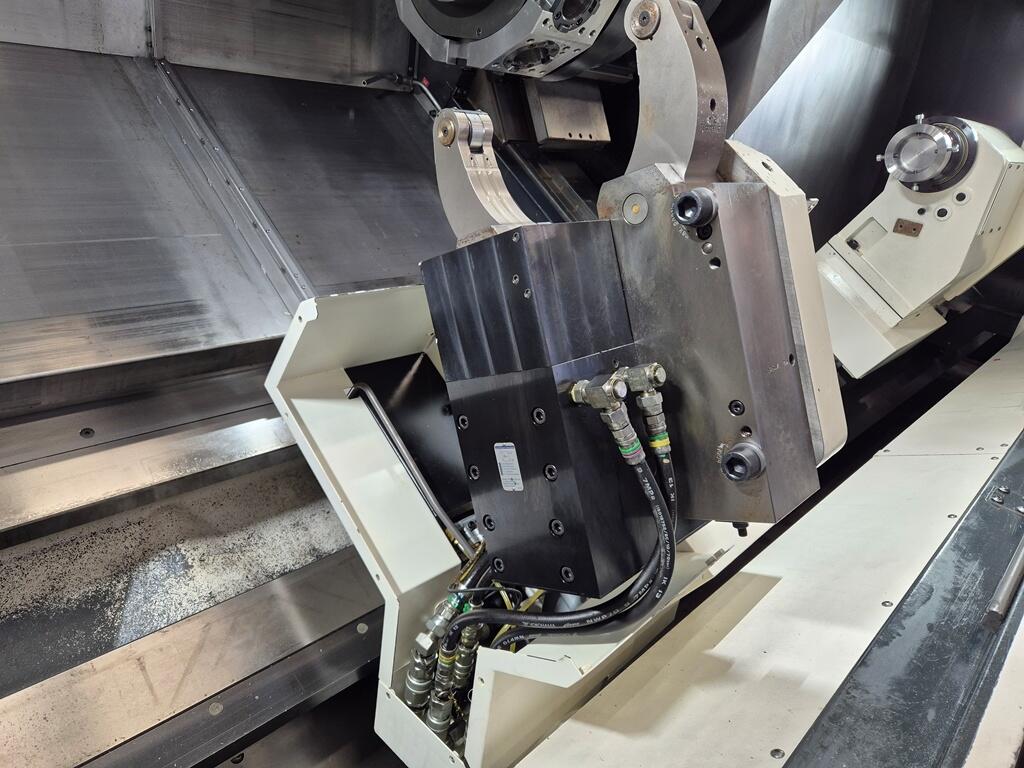

| Steady rest | |
Data sheet: Used Mori Seiki NLX 3000 Y / 3000
