Used Matec 30 HV

Universal machining center

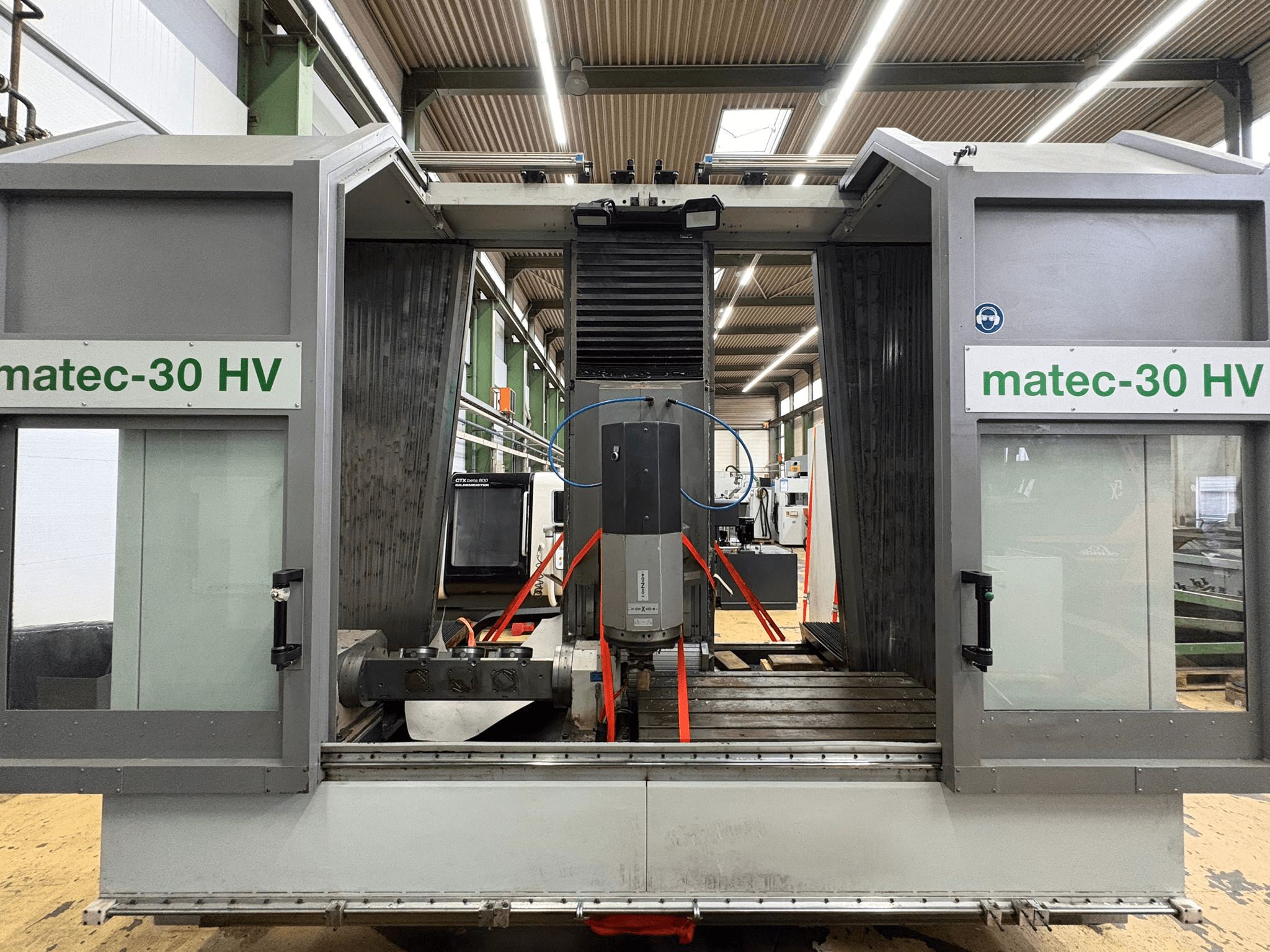

Matec 30 HV 01 Front view

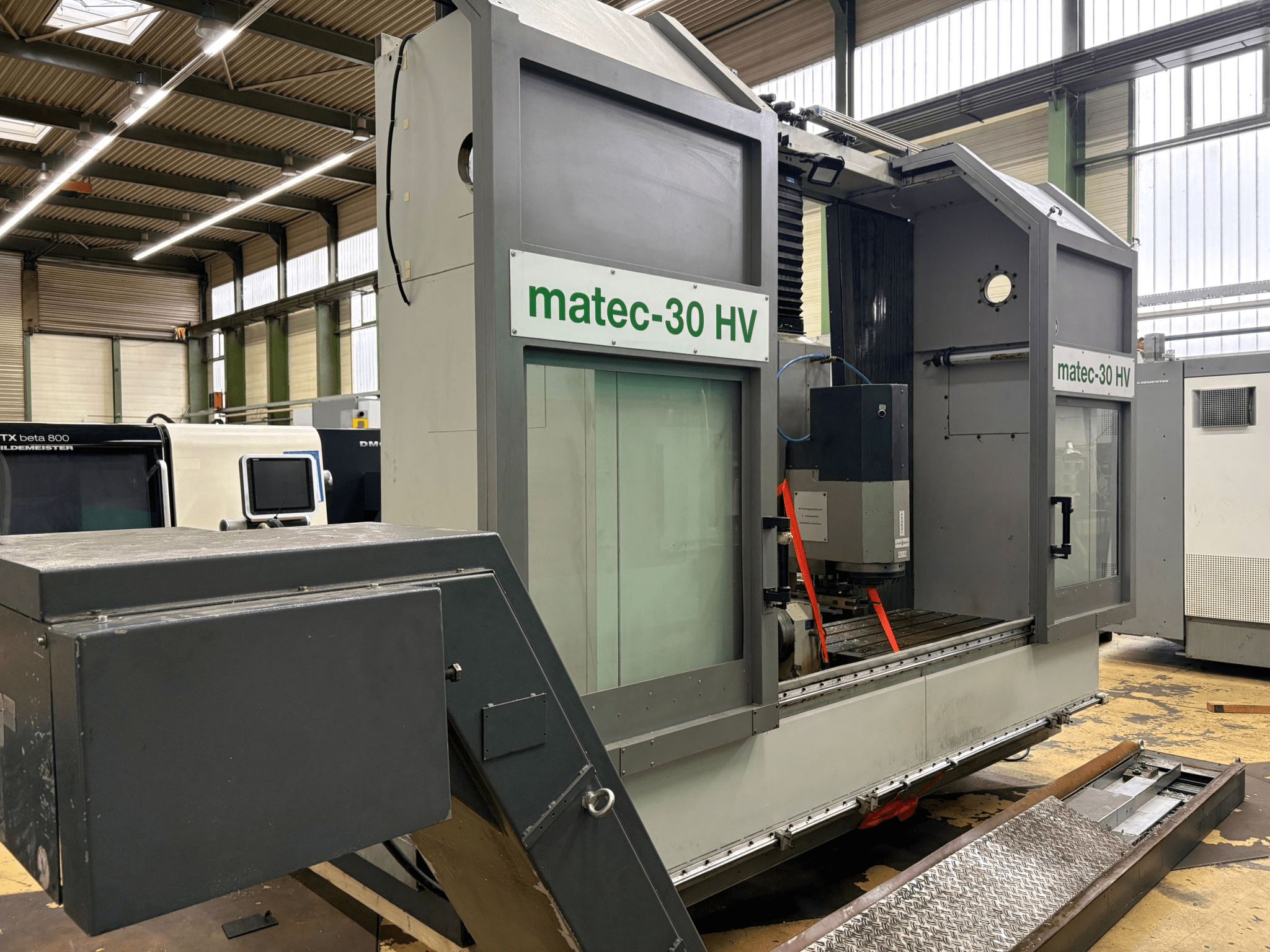

Matec 30 HV 02 Front view 2

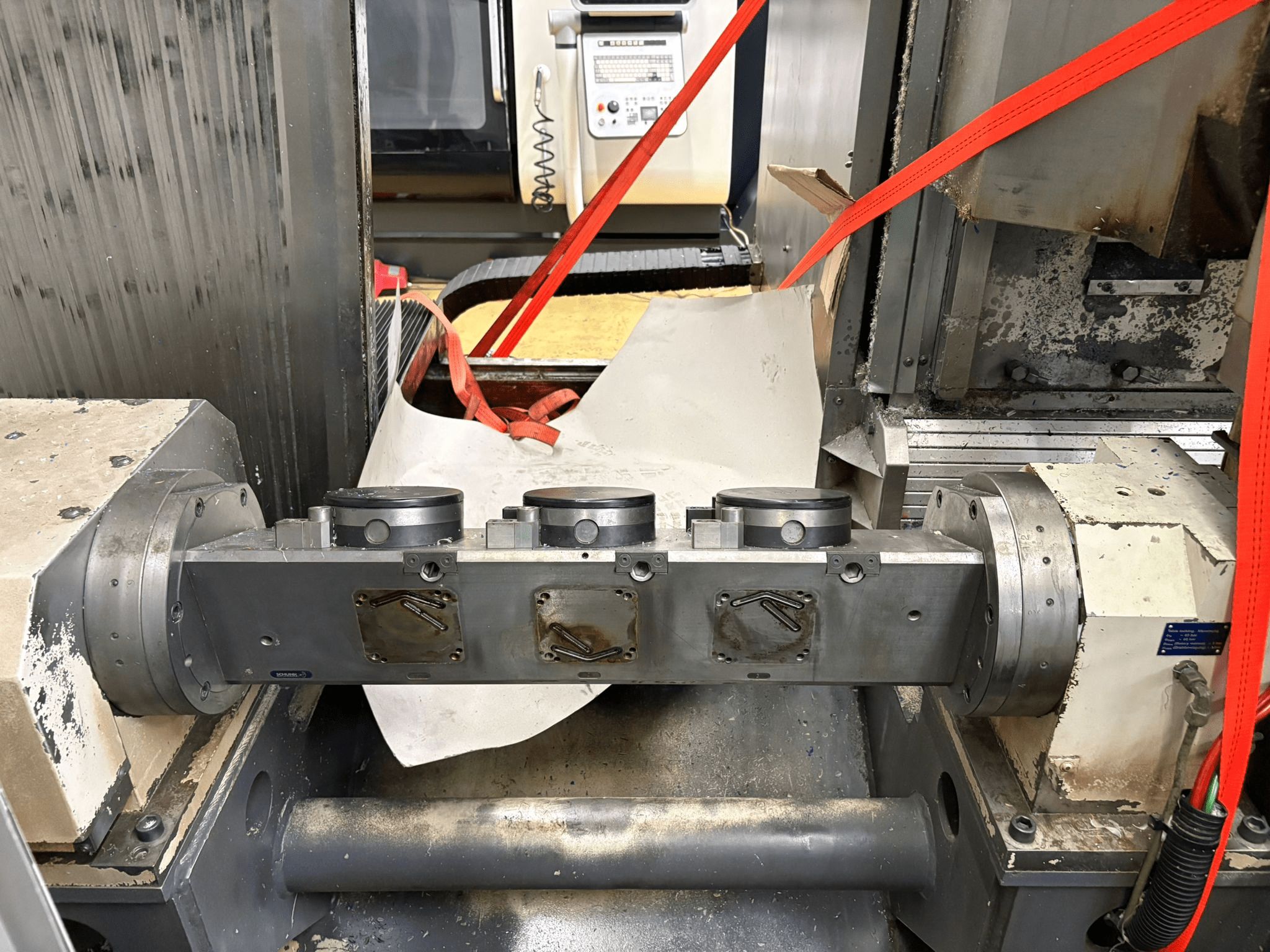

Matec 30 HV 03 Interior

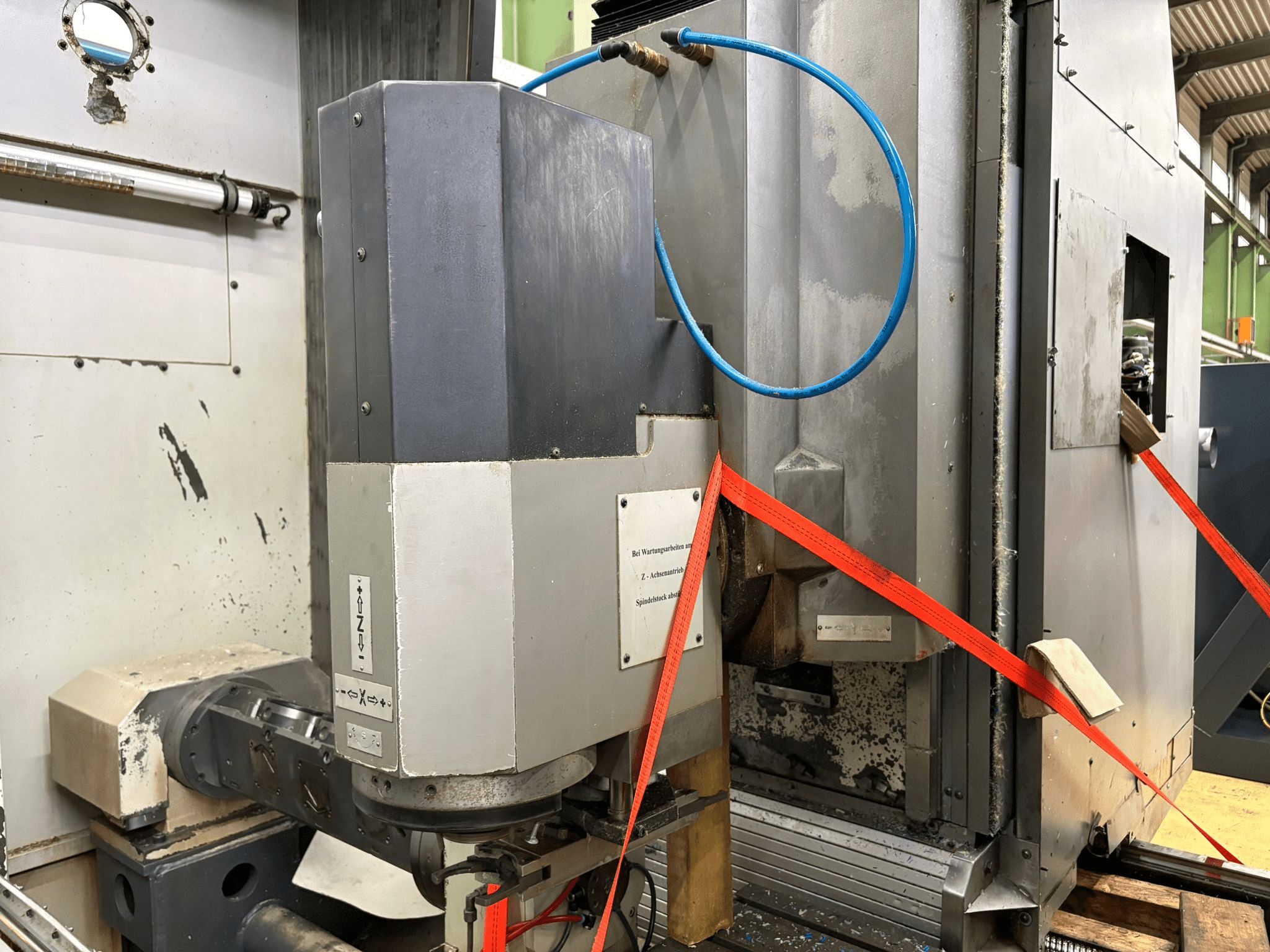

Matec 30 HV 04 Interior 2

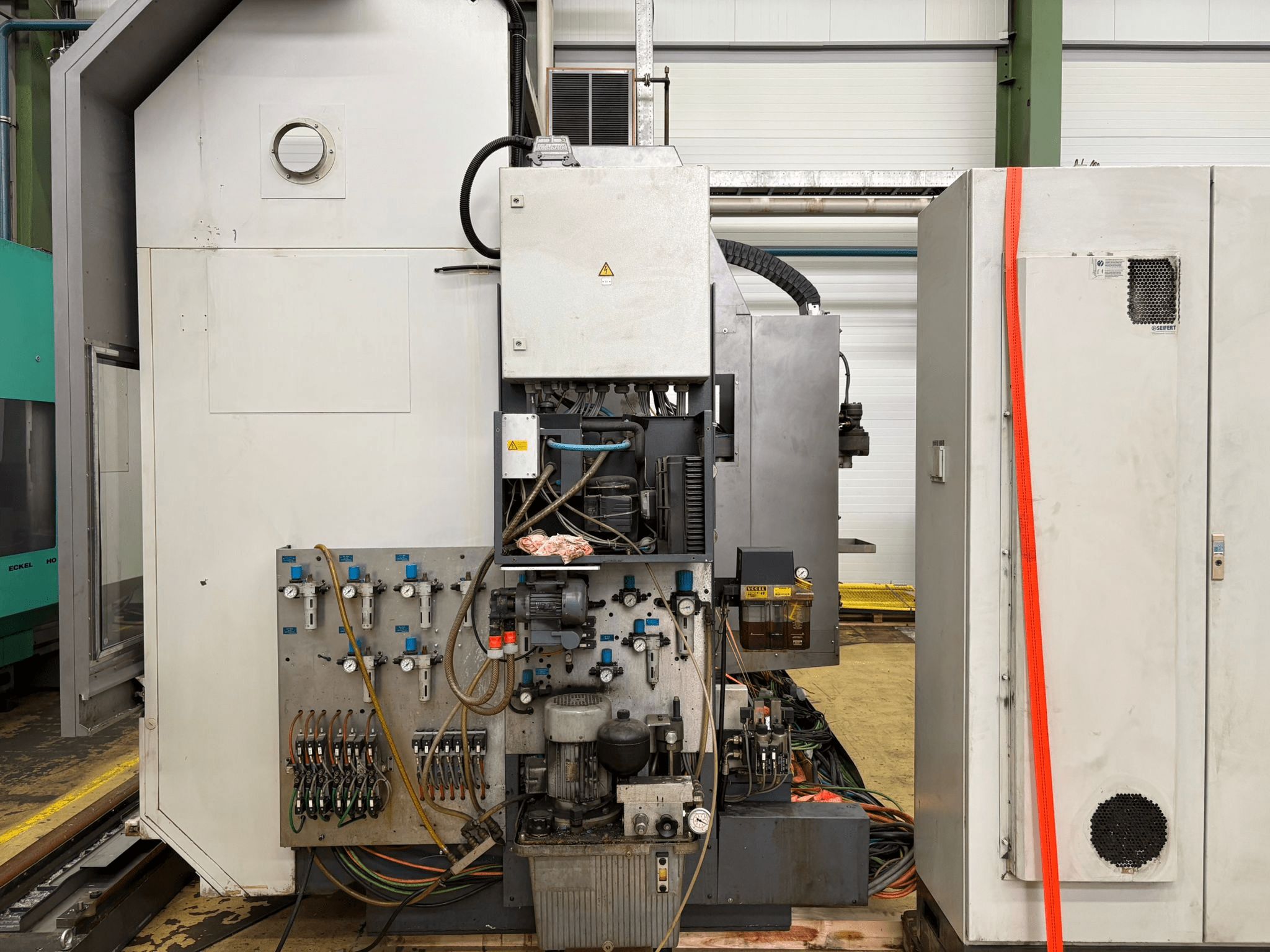

Matec 30 HV 05 Side view

Request price for Matec 30 HV:

Used Milling Machine Matec 30 HV

  • Long-bed design with a 2,000 mm X-axis
  • NC rotary table, direct position measurement system, chip conveyor
  • Tried-and-true Siemens 840 D Sinumerik control system
Universal machining centerFahrständer / travelling-column
Machine type:Matec 30 HV
Control:Siemens 840 D Sinumerik
Year:2004

SPECIFICATIONS:
Travel:
X-Axis: [mm]2.000 (2 x 750)
Y-Axis: [mm]600
Z-Axis: [mm]800
B-Axes+/- 105°
C-Axis

Spindle speeds: [rpm]15.000
Spindle power: [kW]15
Torque: [Nm]100
Tool:HSK 63
Tool capacity:48

NC rotary tableRW/NC-160/250

Equipment:
Internal cooling: [bar]20
cooling system
Chip conveyor
Caliper
separating plate
Direct linear scales
Data sheet: Used Matec 30 HV
Technical data: Matec 30 HV (PDF)
