Milling machine Hermle C 400 U at Top prices

Universal machining center

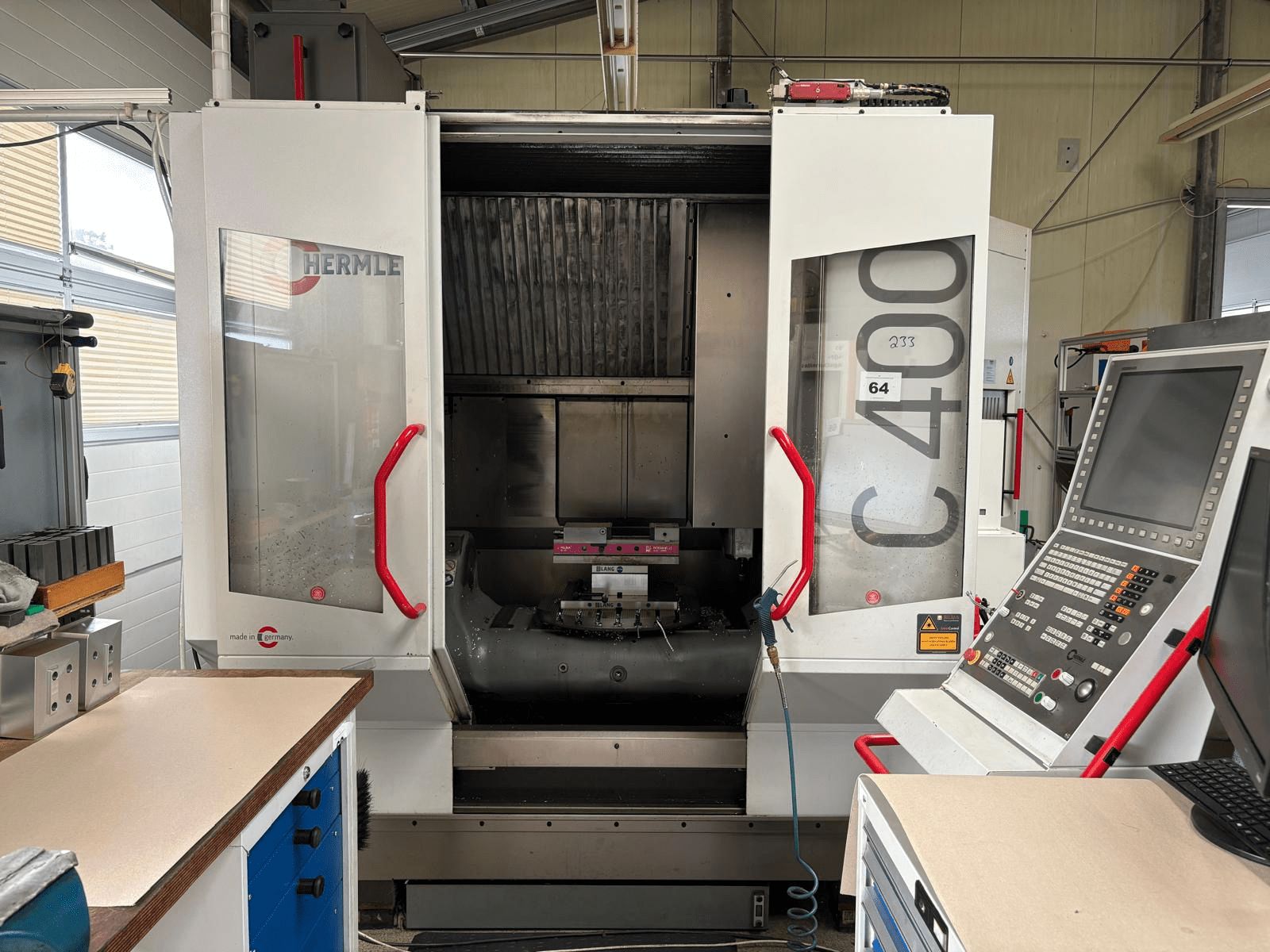

Hermle C 400 U 01

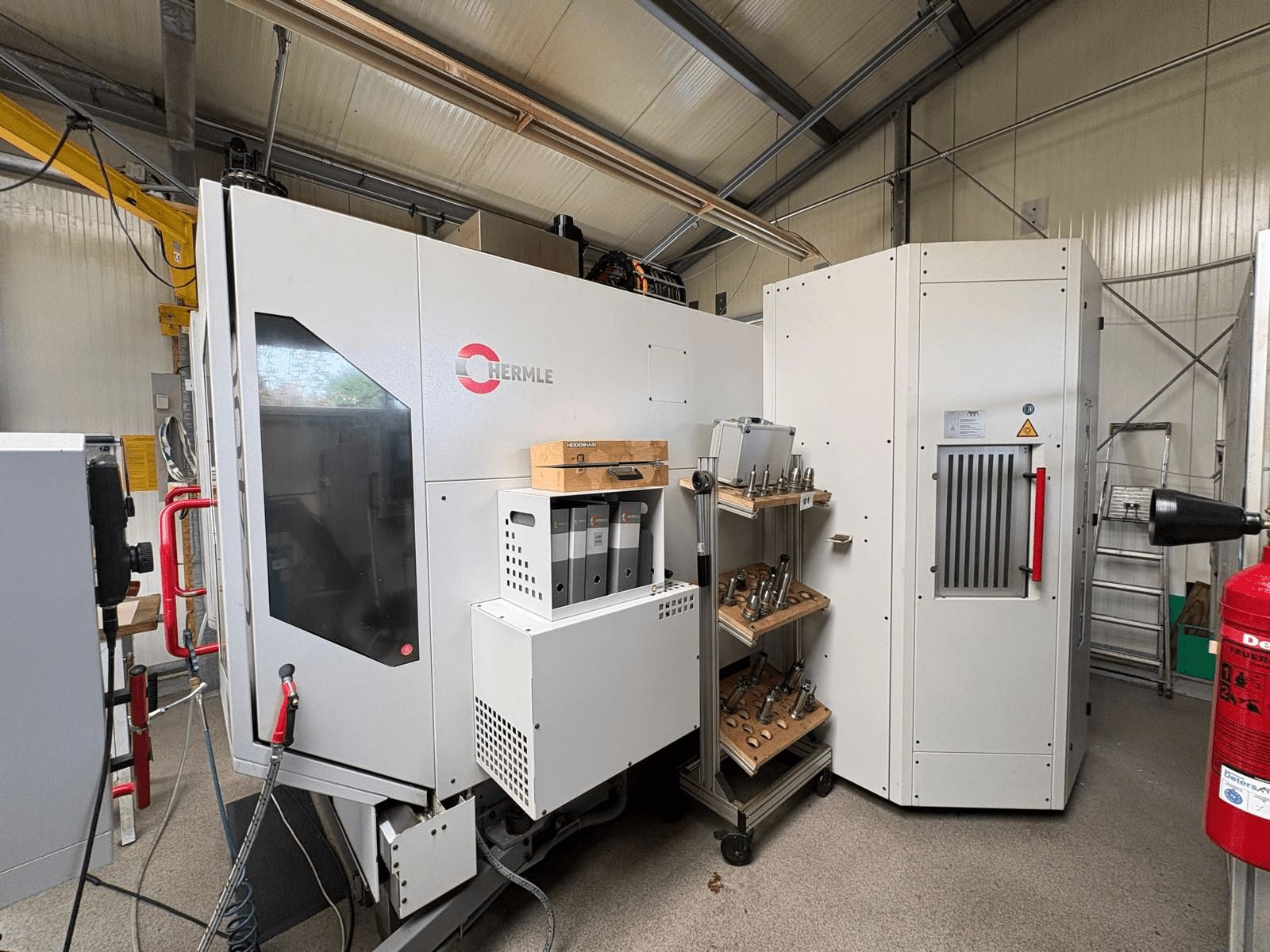

Hermle C 400 U 02

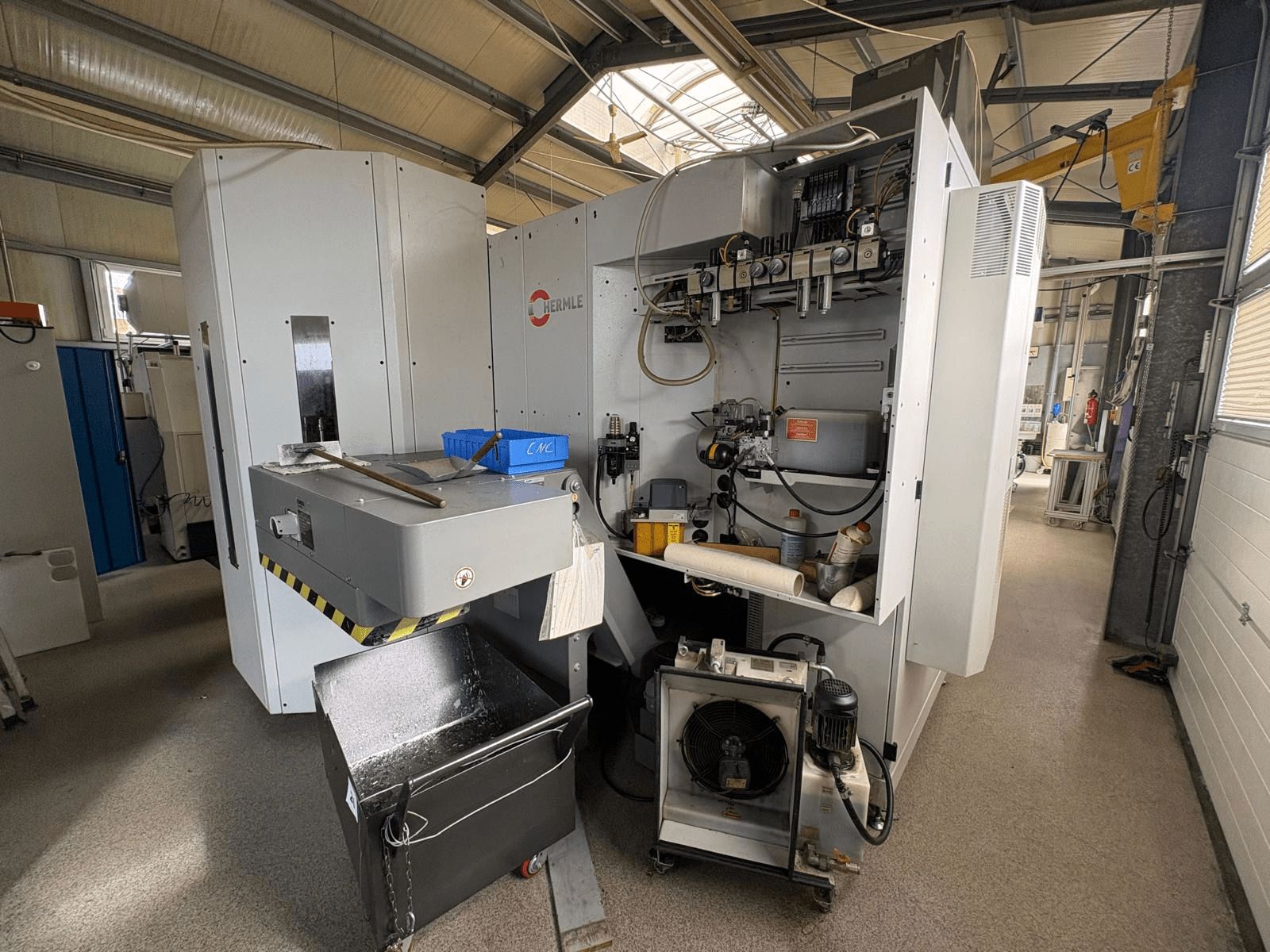

Hermle C 400 U 03
Hermle C 400 U 04
Hermle C 400 U 05
Hermle C 400 U 06
Hermle C 400 U 07

Request price for Hermle C 400 U:

Used Universal machining center Hermle C 400 U at Top prices

Universal machining center
Machine type:Hermle C 400 U

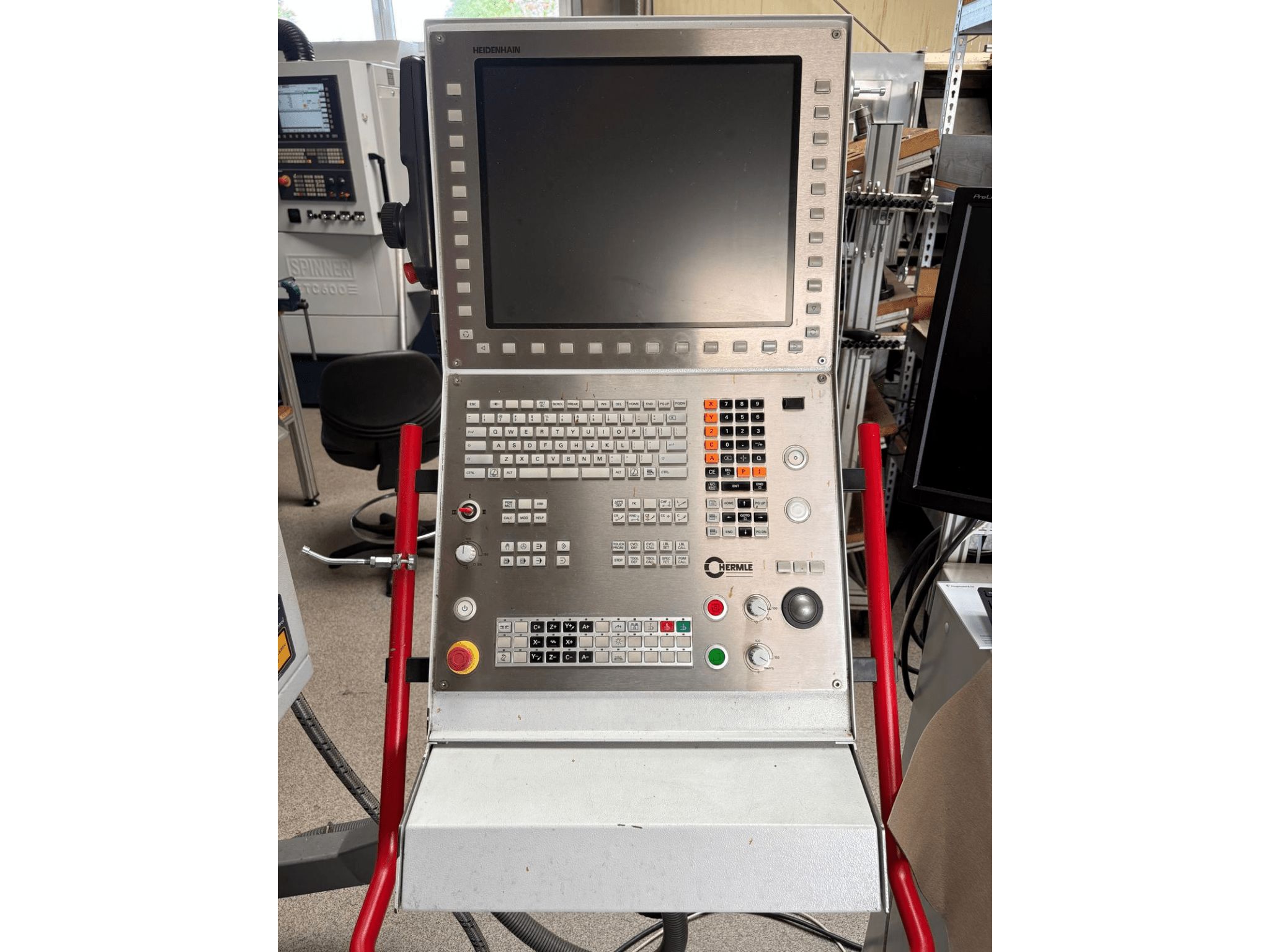

Control:Heidenhain TNC 640
Year:2017

SPECIFICATIONS:
Travel:
X-Axis: [mm]850
Y-Axis: [mm]700
Z-Axis: [mm]500
A-Axes25 1/min.
C-Axis30 1/min.

Spindle speeds: [rpm]18.000
Spindle power: [kW]20
Torque: [Nm]173

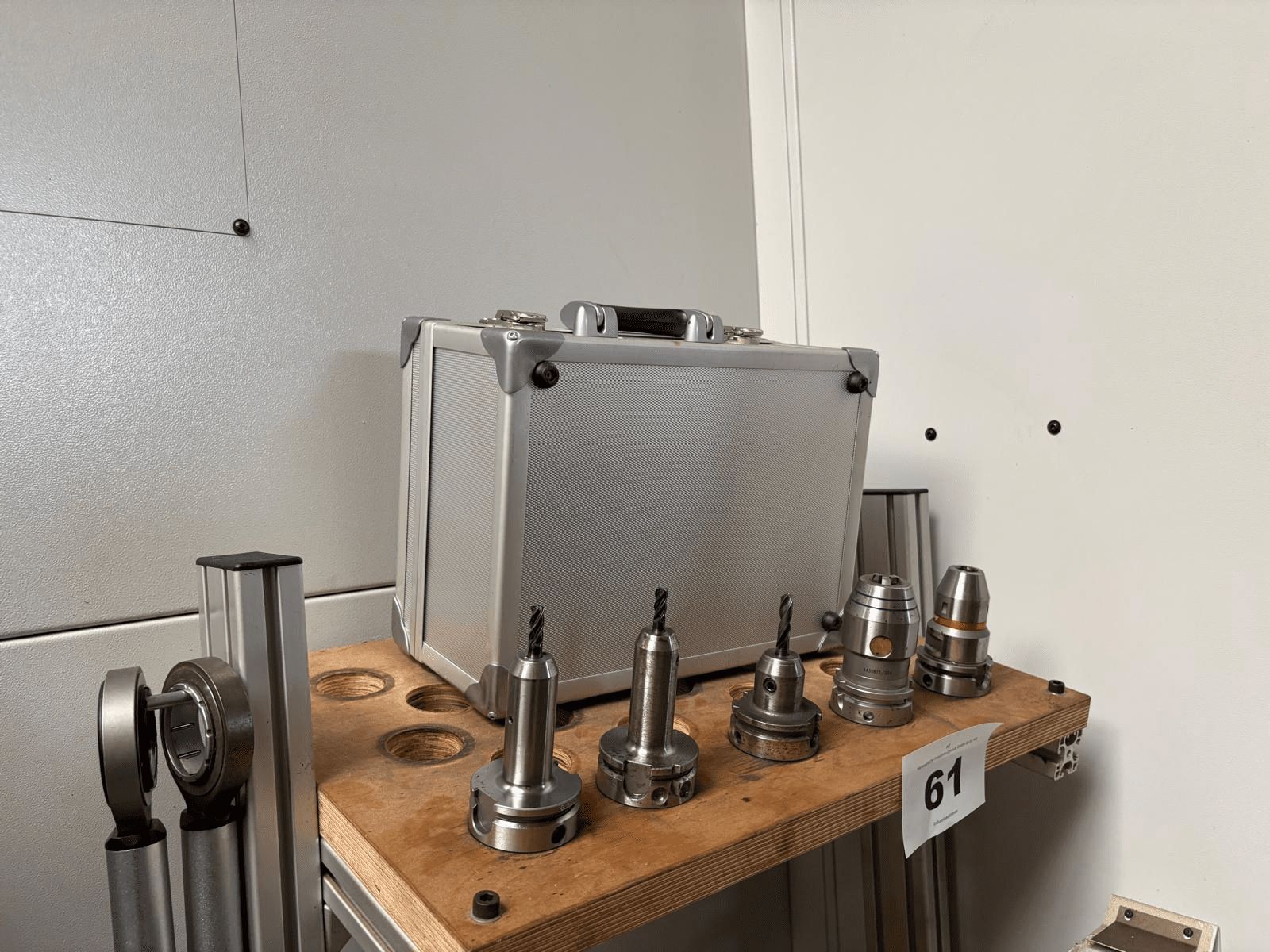

Tool:HSK 63
Toolchanger
Tool capacity:38 + 50

NC-panning and rotary Table
Table size: [mm]Ø 650mm
Angular range:+91° / -139°

Equipment:

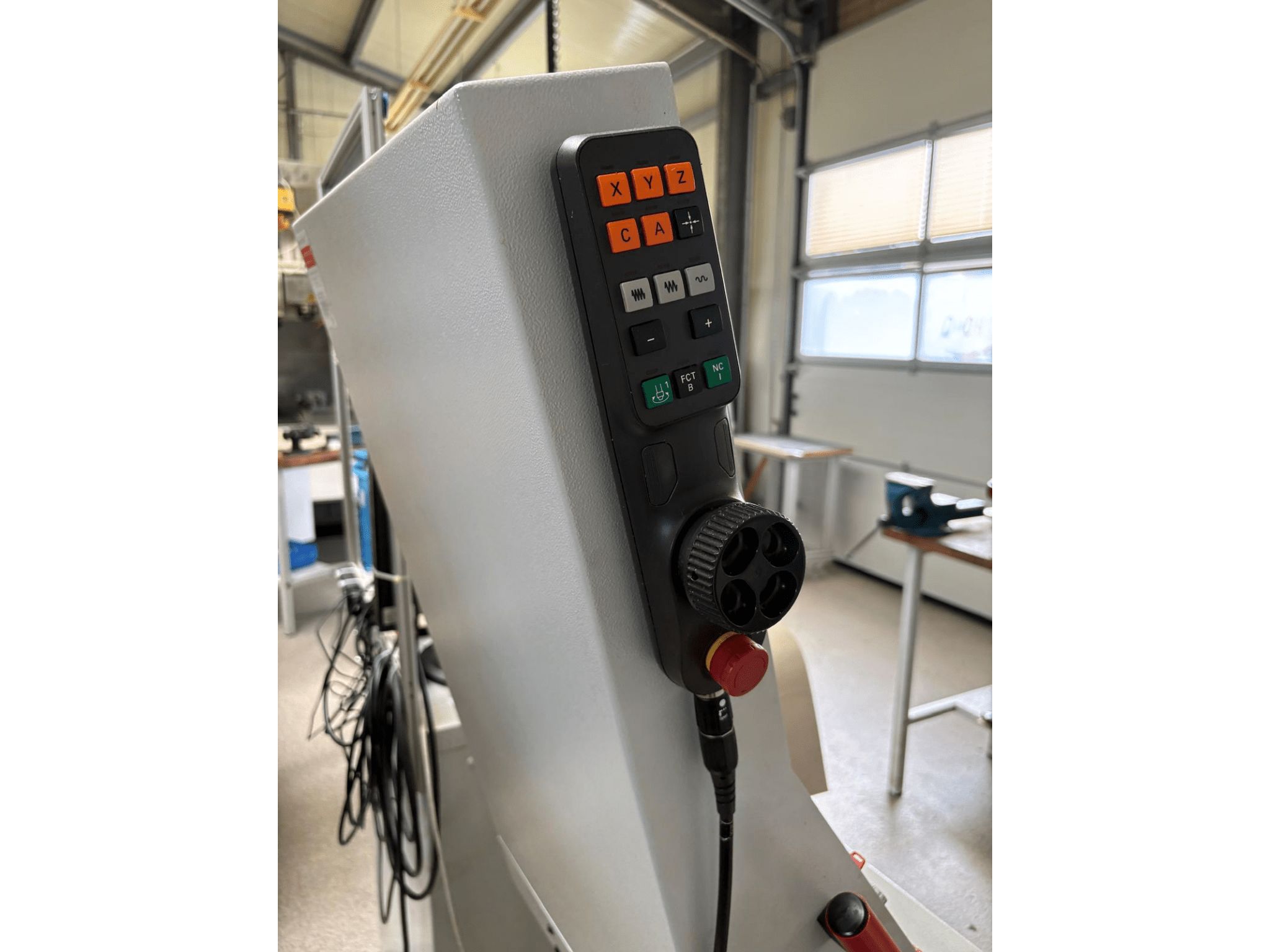

Electronical handwheel
Chip conveyor
CaliperHeidenhain
Tool measurementBLUM
Oil mist separator
Data sheet: Used Hermle C 400 U
Technical data: Hermle C 400 U (PDF)

Used Universal machining center Hermle C 400 U at Top prices

Universal machining center
Machine type:Hermle C 400 U
Control:Heidenhain TNC 640
Year:2017


> View technical data ... ...

Hermle C 400 U 02
SPECIFICATIONS:
Travel:
X-Axis: [mm]850
Y-Axis: [mm]700
Z-Axis: [mm]500
A-Axes25 1/min.
C-Axis30 1/min.

Spindle speeds: [rpm]18.000
Spindle power: [kW]20
Torque: [Nm]173
Tool:HSK 63
Toolchanger
Tool capacity:38 + 50

NC-panning and rotary Table
Table size: [mm]Ø 650mm
Angular range:+91° / -139°

Equipment:
Electronical handwheel
Chip conveyor
CaliperHeidenhain
Tool measurementBLUM
Oil mist separator
Data sheet: Used Hermle C 400 U

Request price for Hermle C 400 U:
