PREVIEW: Milling machine Hermle C 400 U
Universal machining center

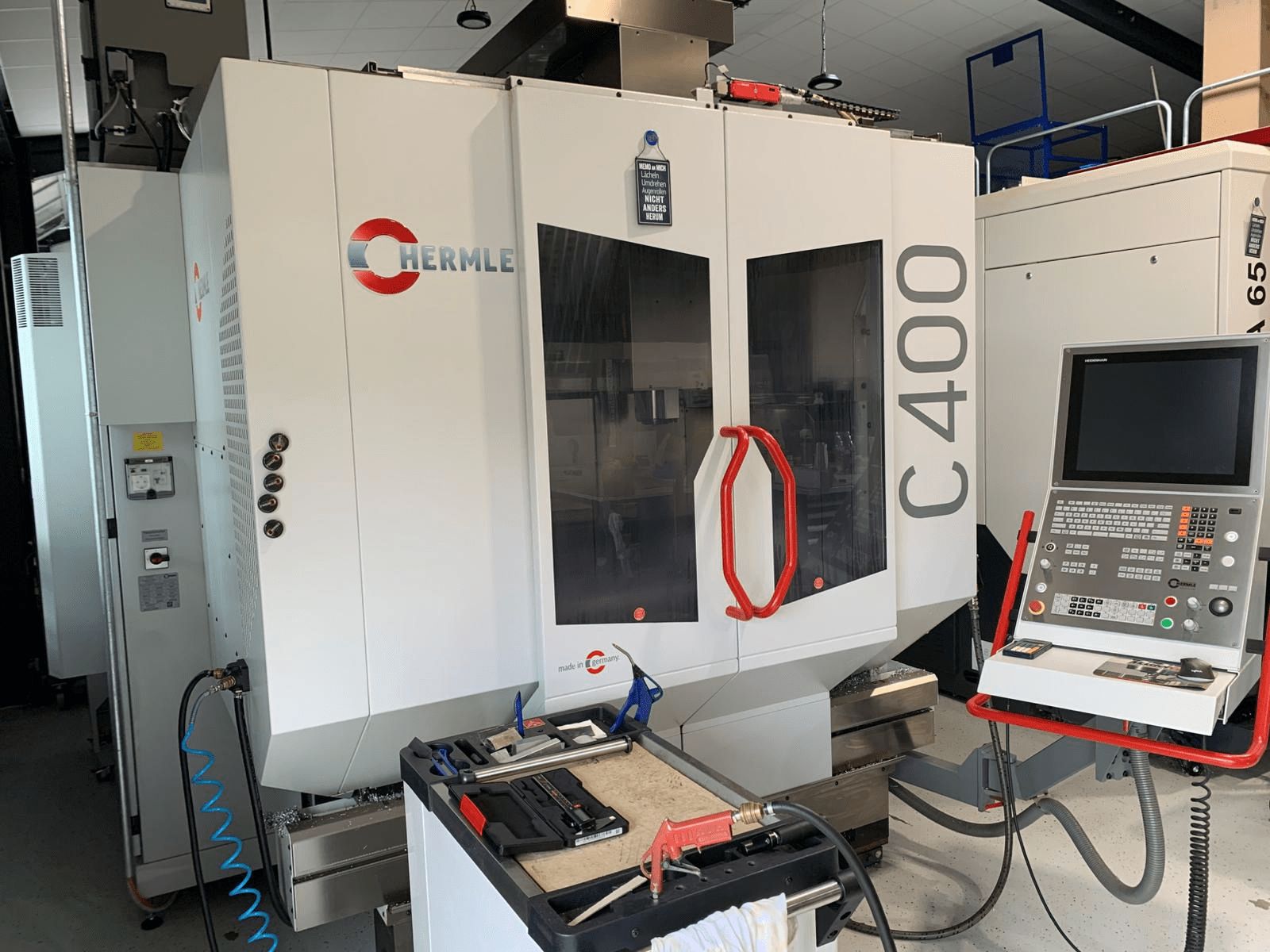

Used Universal machining center Hermle C 400 U
| Universal machining center | |
| Machine type: | Hermle C 400 U |

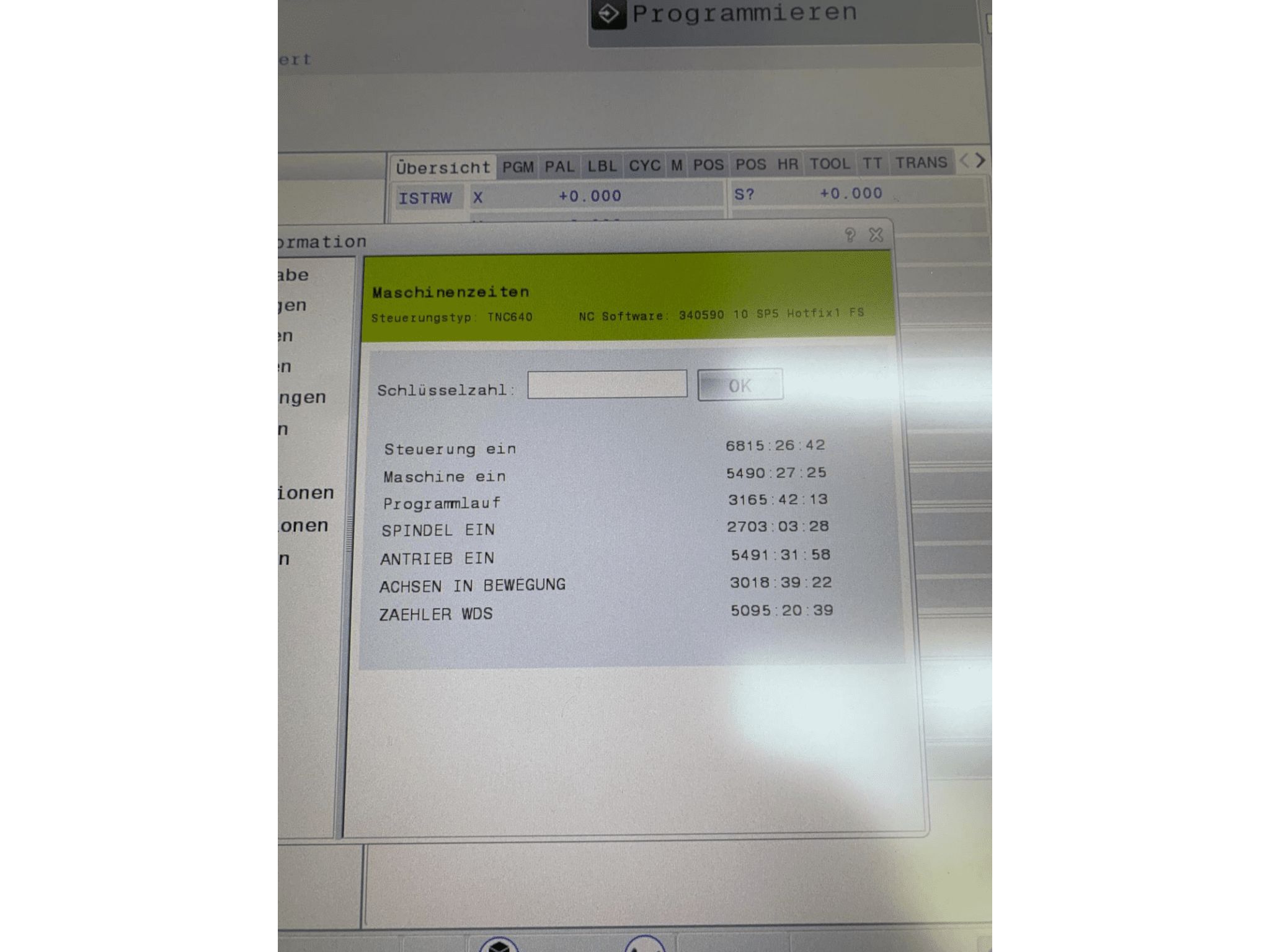

| Control: | Heidenhain TNC 640 |
| Year: | 2021 |
| SPECIFICATIONS: | |
| Travel: | |
| X-Axis: [mm] | 850 |
| Y-Axis: [mm] | 700 |
| Z-Axis: [mm] | 500 |
| A-Axes | 25 1/min. |
| C-Axis | 30 1/min. |
| Spindle speeds: [rpm] | 20- 15.000 |
| Spindle power: [kW] | 10/20 |
| Torque: [Nm] | 86 / 173 |
| Tool: | SK 40 |
| Toolchanger | |
| Tool capacity: | 38 |

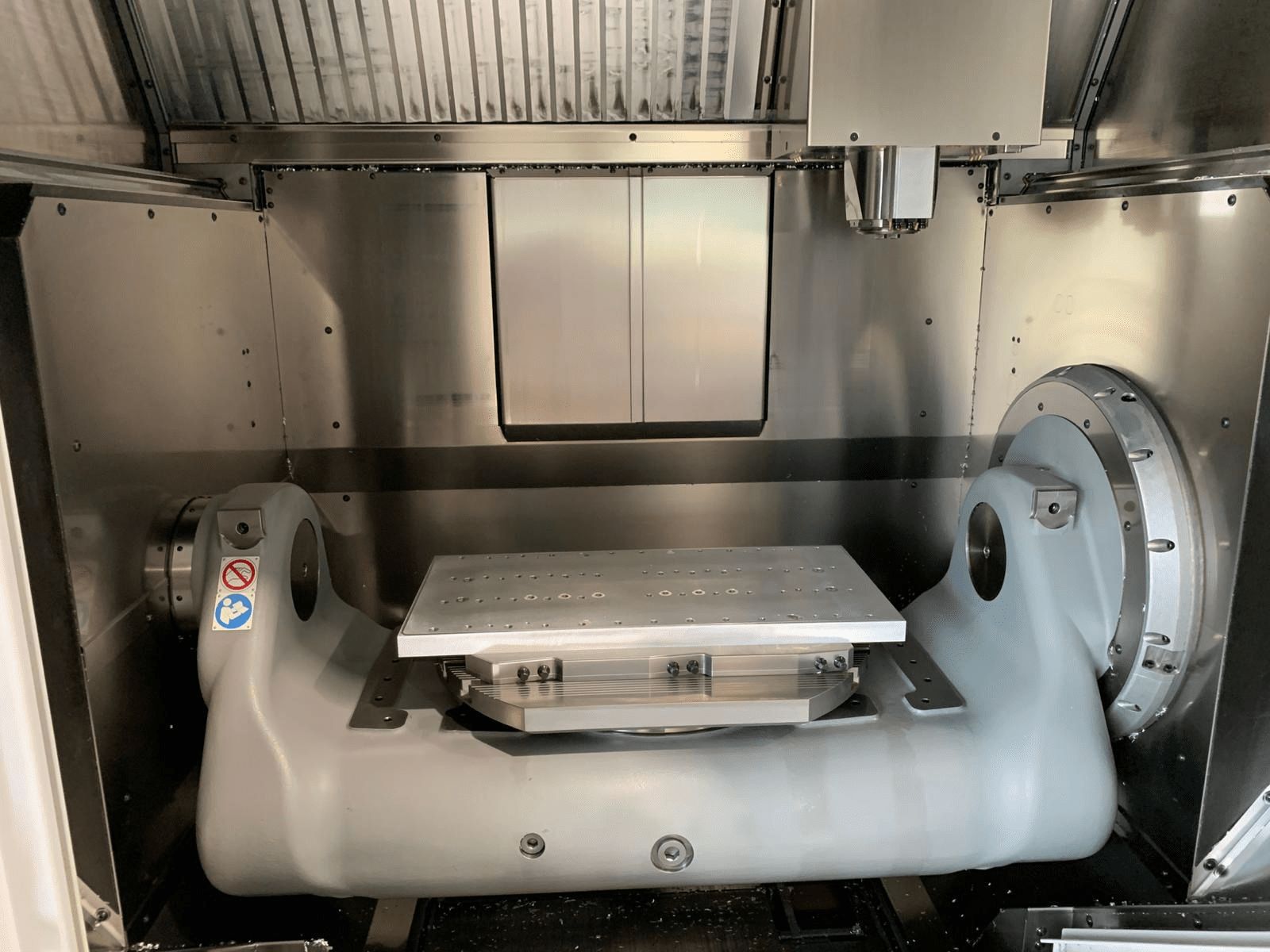

| NC-panning and rotary Table | |
| Table size: [mm] | Ø 650mm |
| Angular range: | +91° / -139° |
| Max. Table Load: [kg] | 600 |
| Equipment: | |

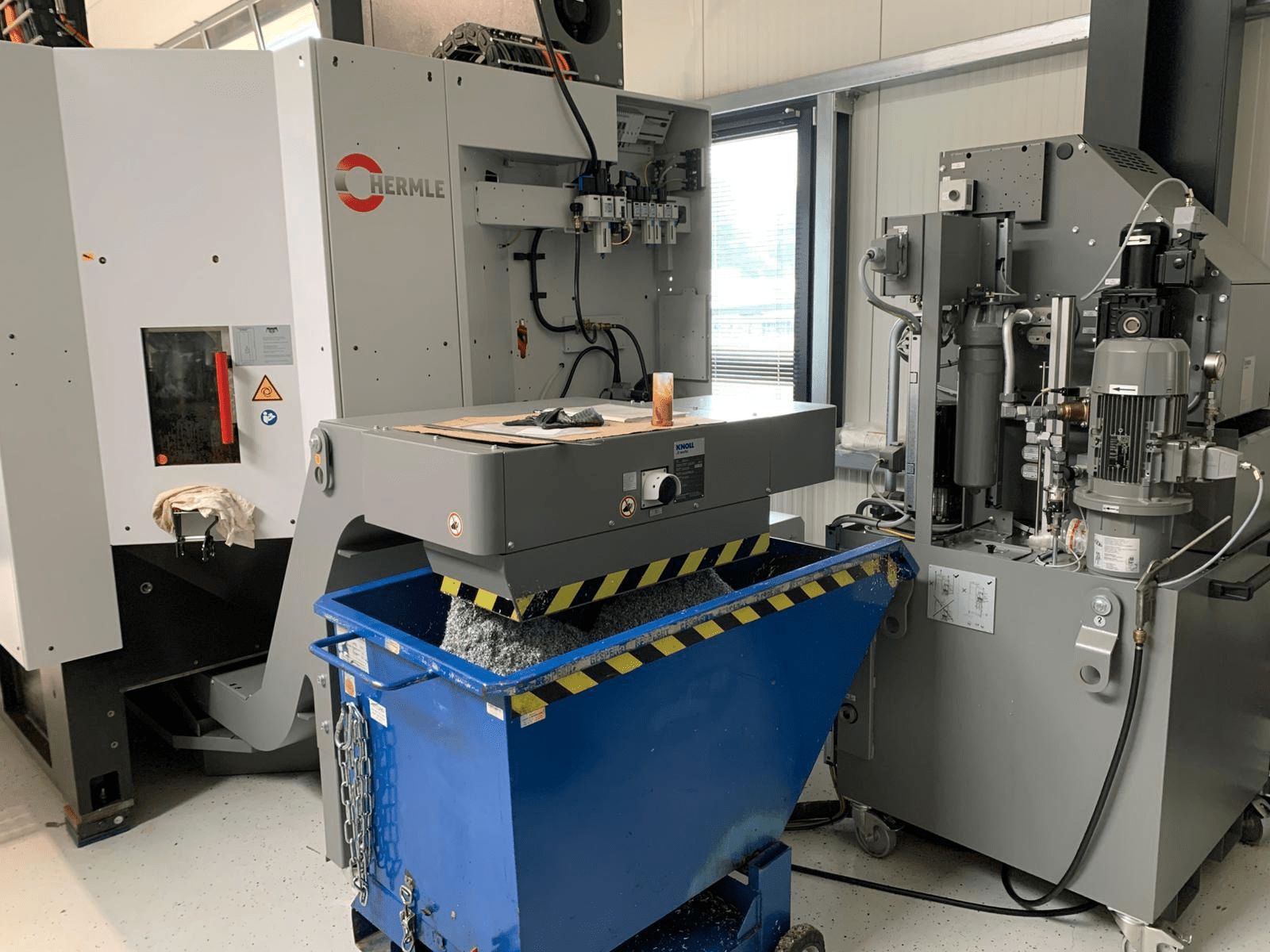

| Chip conveyor | |
| Internal cooling: [bar] | 40 |
| Electronical handwheel | |
| paper band filter | |
| Caliper | M&H |
| Chip rinsing pistol | |
| Oil mist separator | |
| Air blow | |
| Sperrluft Maßstäbe | |
| Wärmekompensation | |
