Milling machine Hermle C 22 U

Universal machining center

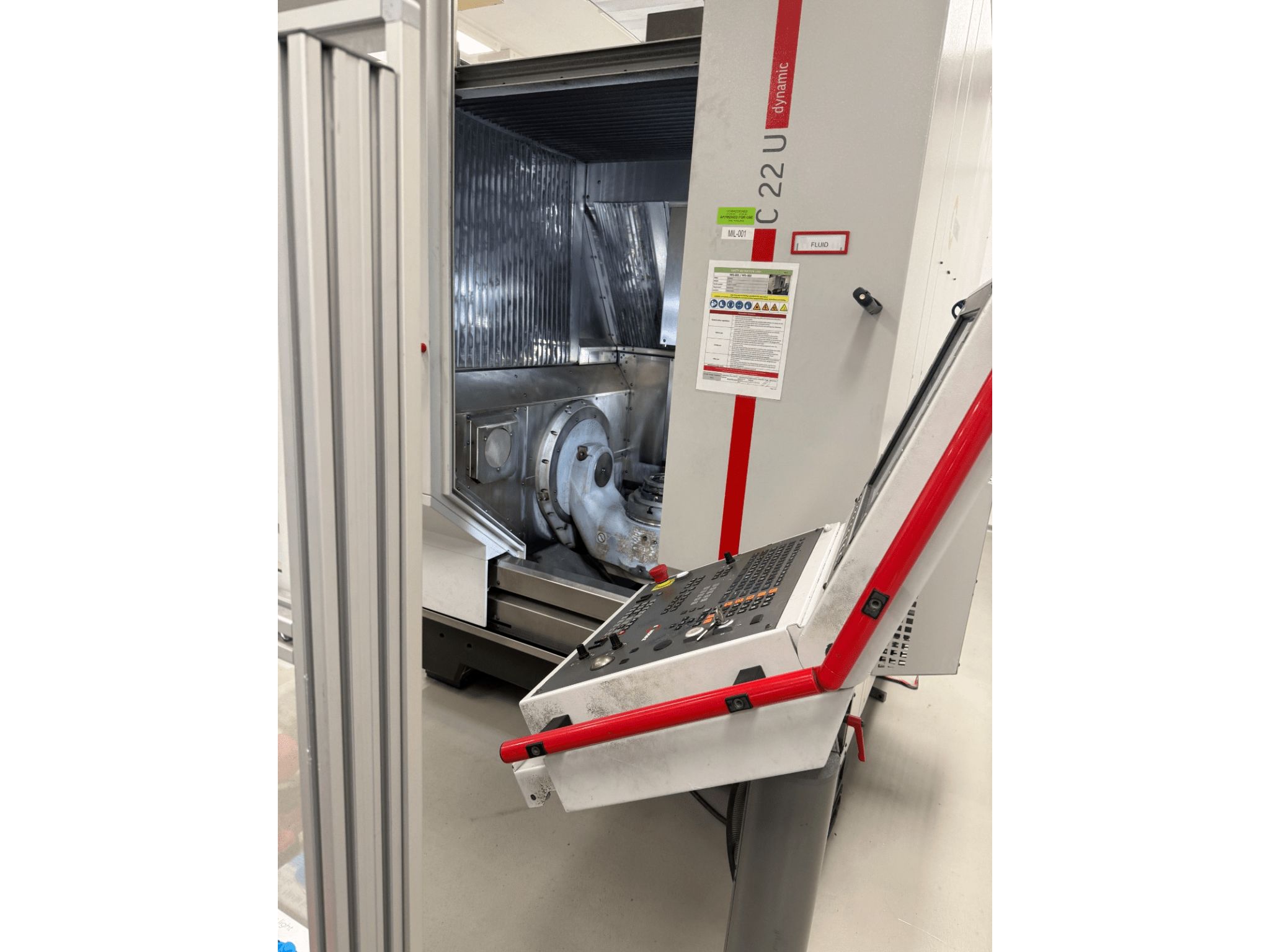

Hermle C 22 U 01

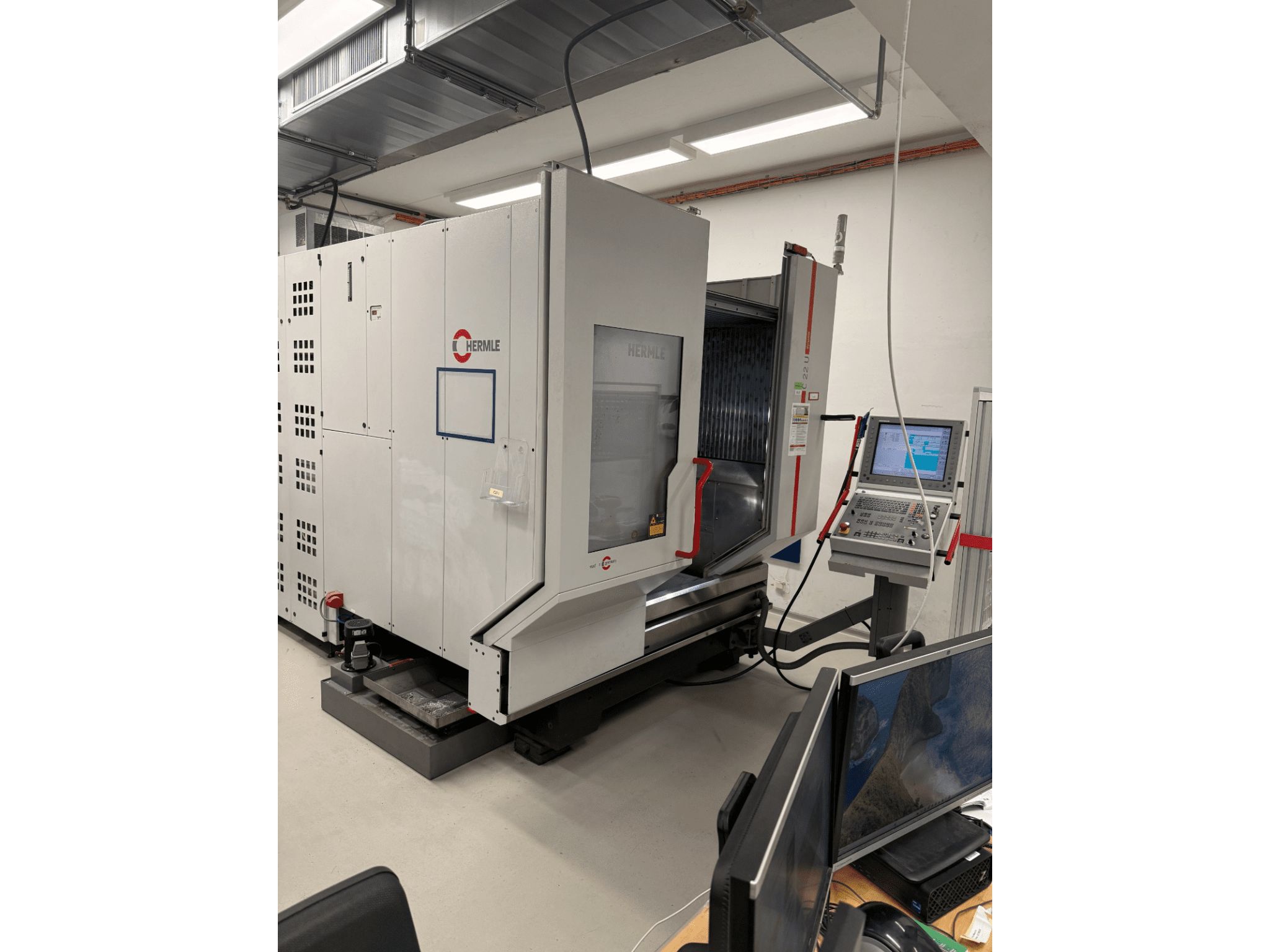

Hermle C 22 U 02

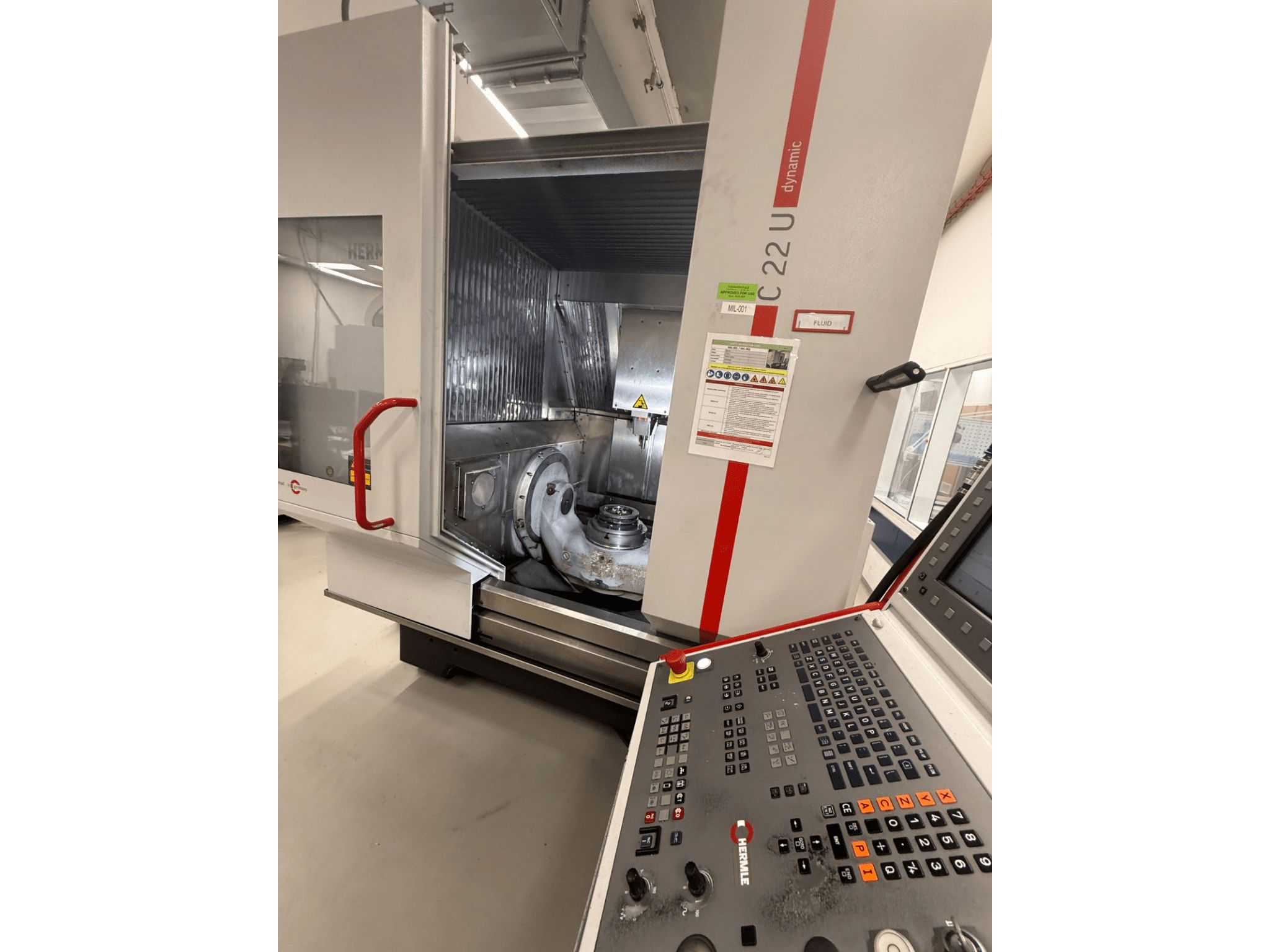

Hermle C 22 U 03

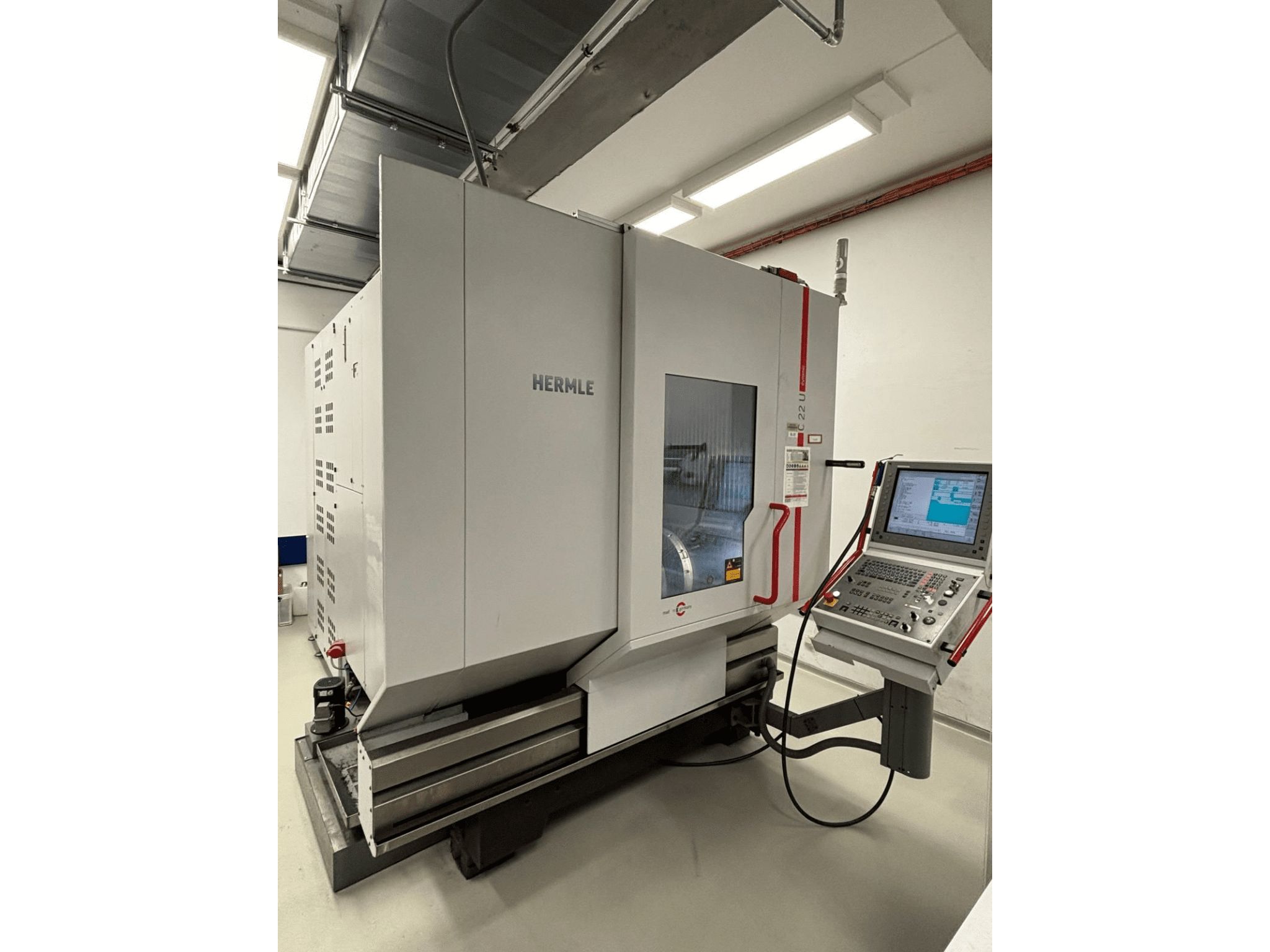

Hermle C 22 U 04
Hermle C 22 U 05

Request price for Hermle C 22 U:

Used Universal machining center Hermle C 22 U

Universal machining center
Machine type:Hermle C 22 U
Control:Heidenhain iTNC 530
Year:2012

SPECIFICATIONS:
Travel:
X-Axis: [mm]450
Y-Axis: [mm]600
Z-Axis: [mm]330
A-Axes+ 30 / - 115°
C-Axis360°
Rapid motion: [m/min.]30
Amount of controlled axes:5

Max. revolution: [rpm]30.000
Tool:HSK 50

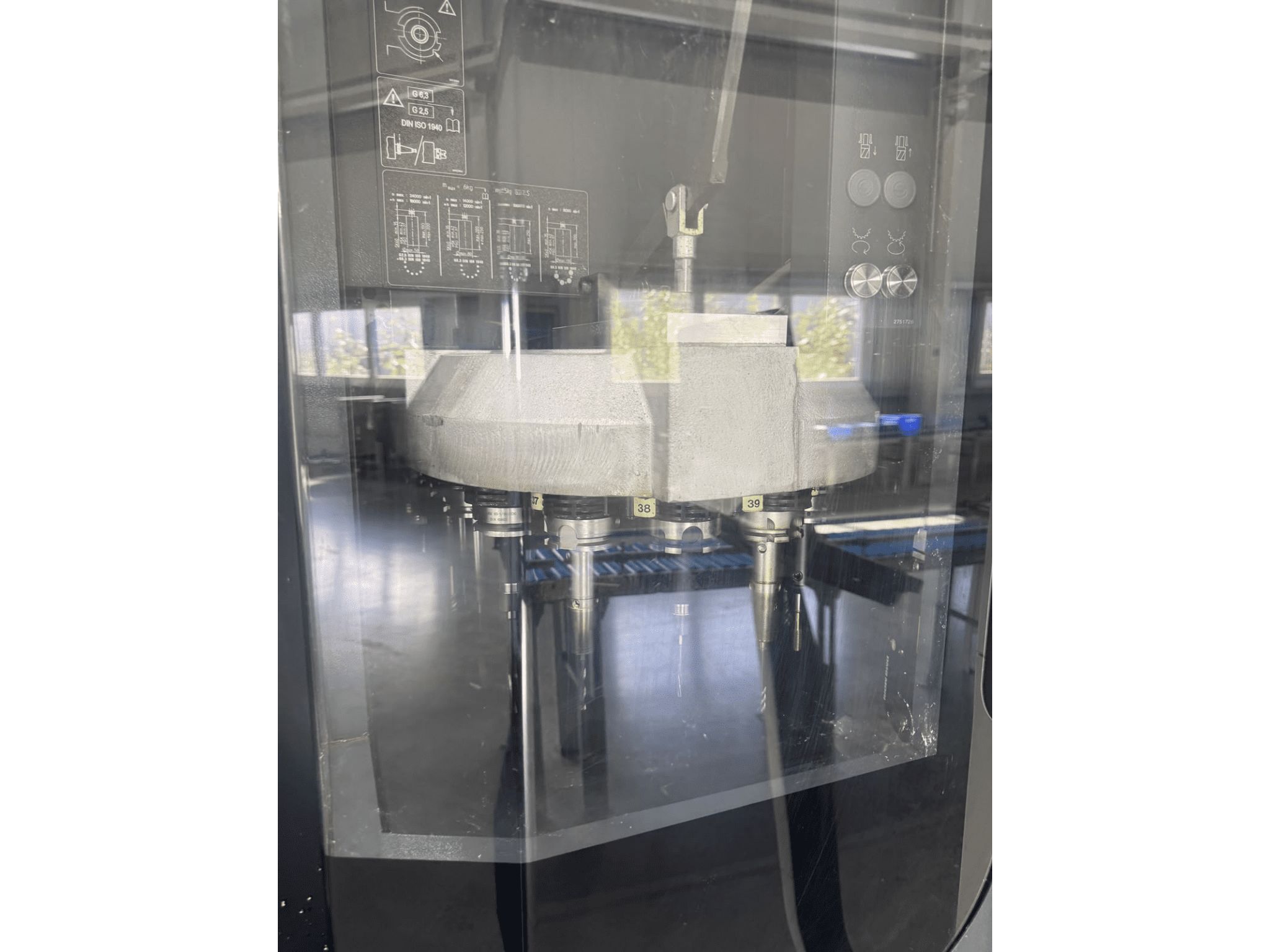

Toolchanger
Tool capacity:55

NC-panning and rotary Table
Table size: [mm]Ø 320 mm

Accessories:
No chip conveyorSpänewanne
No cooling through spindle
Tool measurementBlum
Caliper
Data sheet: Used Hermle C 22 U
Technical data: Hermle C 22 U (PDF)

Used Universal machining center Hermle C 22 U

Universal machining center
Machine type:Hermle C 22 U
Control:Heidenhain iTNC 530
Year:2012


> View technical data ... ...

Hermle C 22 U 02
SPECIFICATIONS:
Travel:
X-Axis: [mm]450
Y-Axis: [mm]600
Z-Axis: [mm]330
A-Axes+ 30 / - 115°
C-Axis360°
Rapid motion: [m/min.]30
Amount of controlled axes:5

Max. revolution: [rpm]30.000
Tool:HSK 50
Toolchanger
Tool capacity:55

NC-panning and rotary Table
Table size: [mm]Ø 320 mm

Accessories:
No chip conveyorSpänewanne
No cooling through spindle
Tool measurementBlum
Caliper
Data sheet: Used Hermle C 22 U

Request price for Hermle C 22 U:
