PREVIEW: Milling machine Hedelius Acura 65
Universal machining center

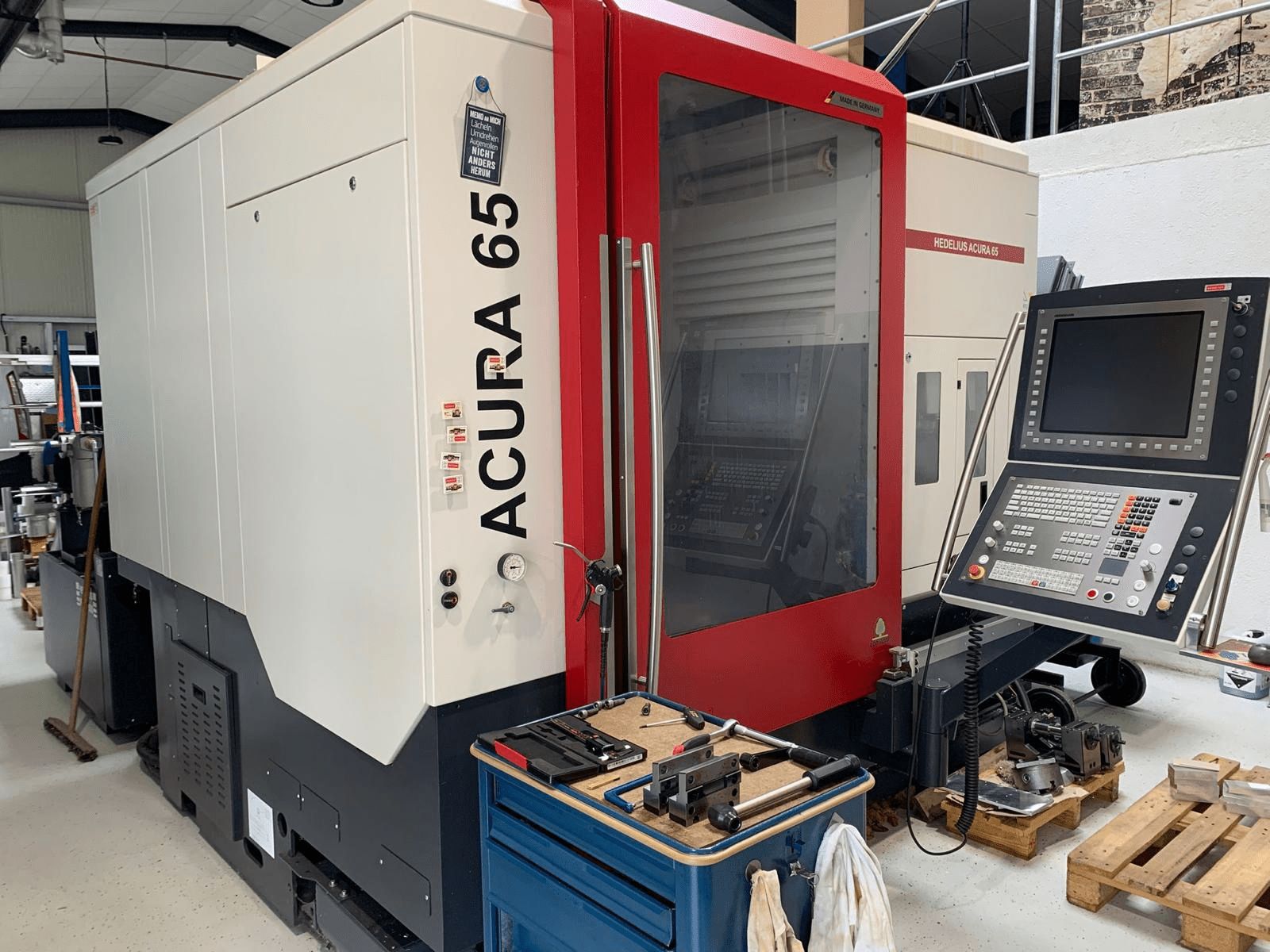

Used Universal machining center Hedelius Acura 65
| Universal machining center | |
| Machine type: | Hedelius Acura 65 |

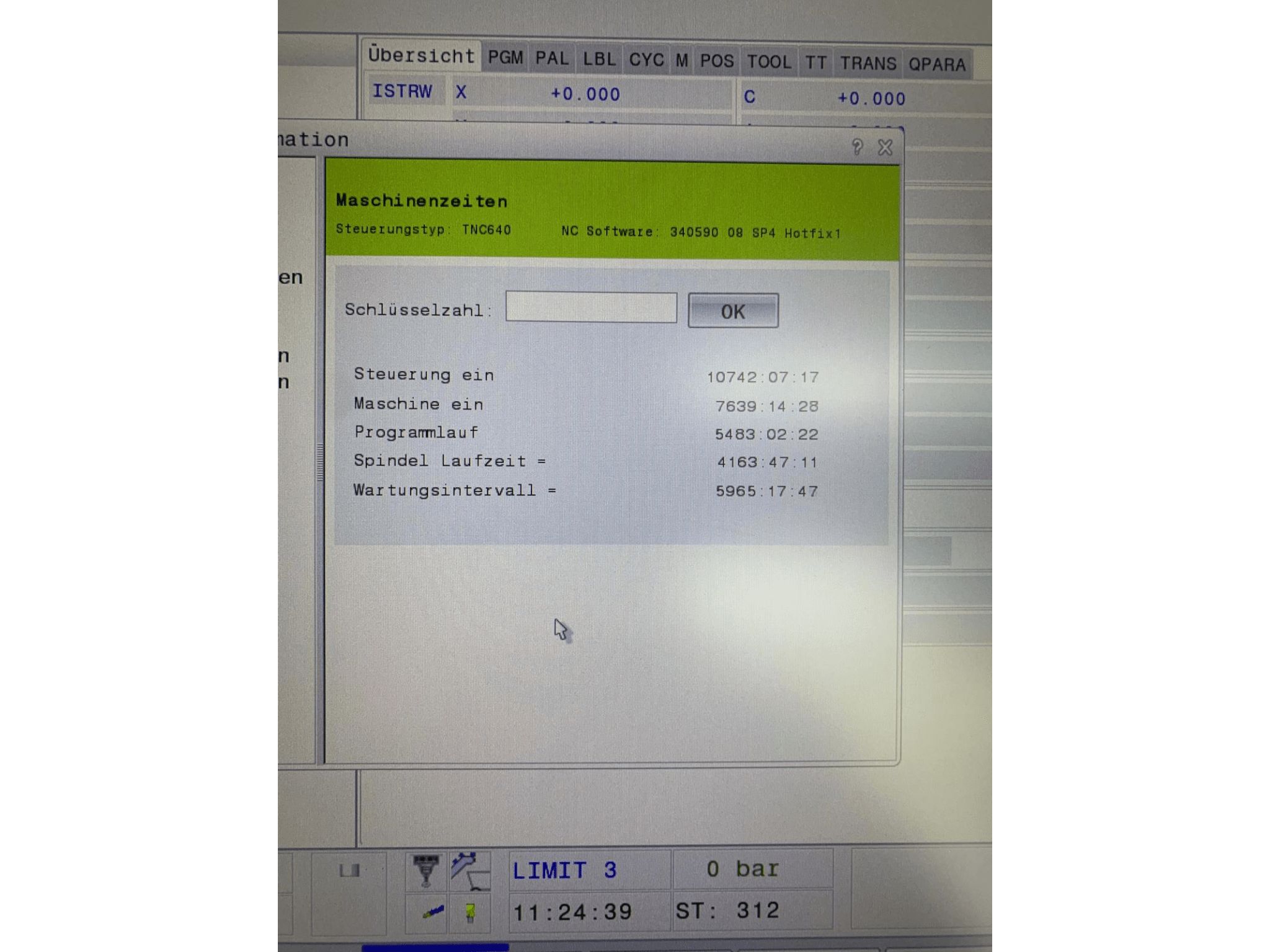

| Control: | Heindenhain TNC 640-Aurca /RS |
| Year: | 2018 |
| SPECIFICATIONS: | |

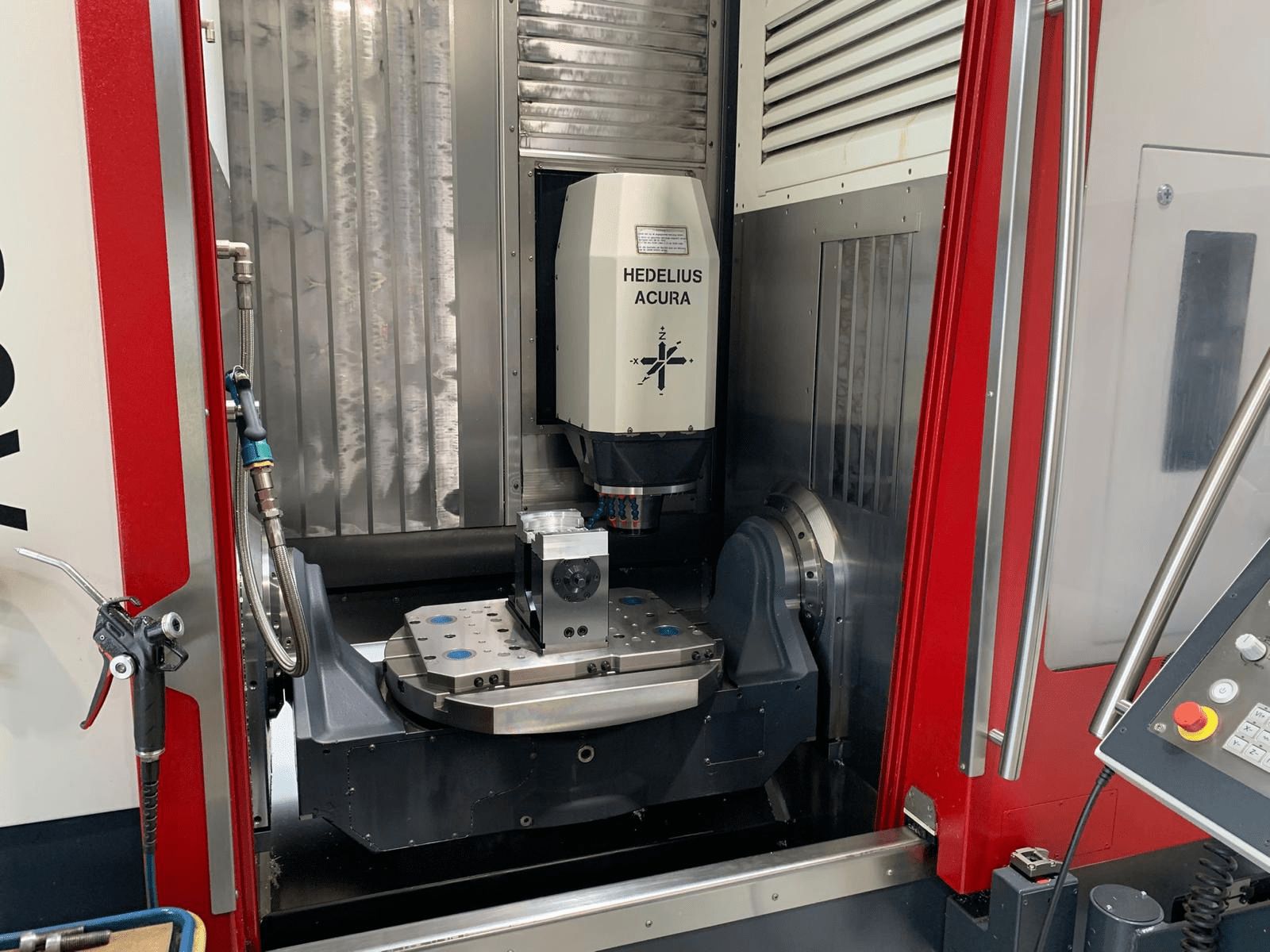

| 5-axis-simultaneous | |
| X-Axis: [mm] | 700 |
| Y-Axis: [mm] | 650 / 465 |
| Z-Axis: [mm] | 600 |
| Rapid motion: (X/Y/Z) [m/min.] | 40/40/40 |
| B-Axes | +30° / -115° |
| Spindle speeds: [rpm] | 12.000 |
| Spindle power: [kW] | 22 |
| Torque: [Nm] | 117 |
| Tool: | SK 40 |
| Tool capacity: | 65 |
| Table size: [mm] | D: 650 x 540 mm |
| Max. Table Load: [kg] | 500 |
| Equipment: | |
| Chip conveyor | |
| 3D-Touch probe | M&H |
| Internal cooling: [bar] | 25 |

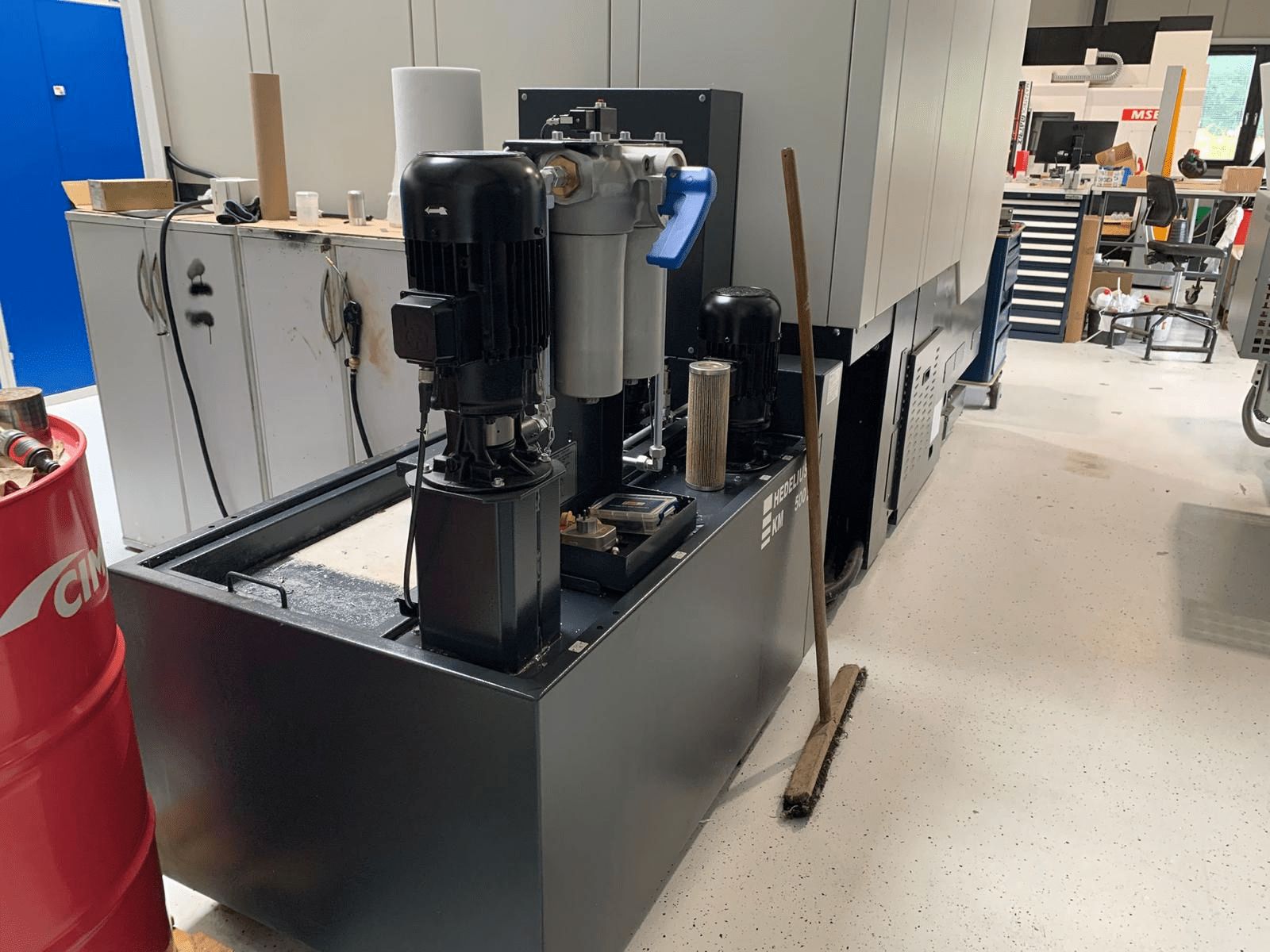

| Cooling tank: [l] | 500 |
| Electronical handwheel | HR 510 |
| Oil mist separator | |
| Chip rinsing pistol | |
| Kinematikset | |
| 3D-Formenbauabstimmung | |
| Documentation - German | |
