Lathe machine DMG NEF 320

cycle controlled lathe

DMG NEF 320 01
DMG NEF 320 02
DMG NEF 320 03
DMG NEF 320 04
DMG NEF 320 05
DMG NEF 320 06
DMG NEF 320 07
DMG NEF 320 08

Request price for DMG NEF 320:

Used cycle controlled lathe DMG NEF 320

cycle controlled lathe
Machine type:DMG NEF 320
Control:Heidenhain Manual plus
Year:2003
Available after:sofort / now

SPECIFICATIONS:
Max. turning length: [mm]750
Turningdiameter: [mm]320
Spindle bore: [mm]52

Spindle speeds: [rpm]10 - 4.000
Transmission ratio2
Spindle power: [kW]9

TailstockMK 5

Power consumption: [KW]14 kVA
Machine weight: [kg]2.800
Req. space (LxBxH): [m]2,45 x 1,67 x 1,83

Equipment:

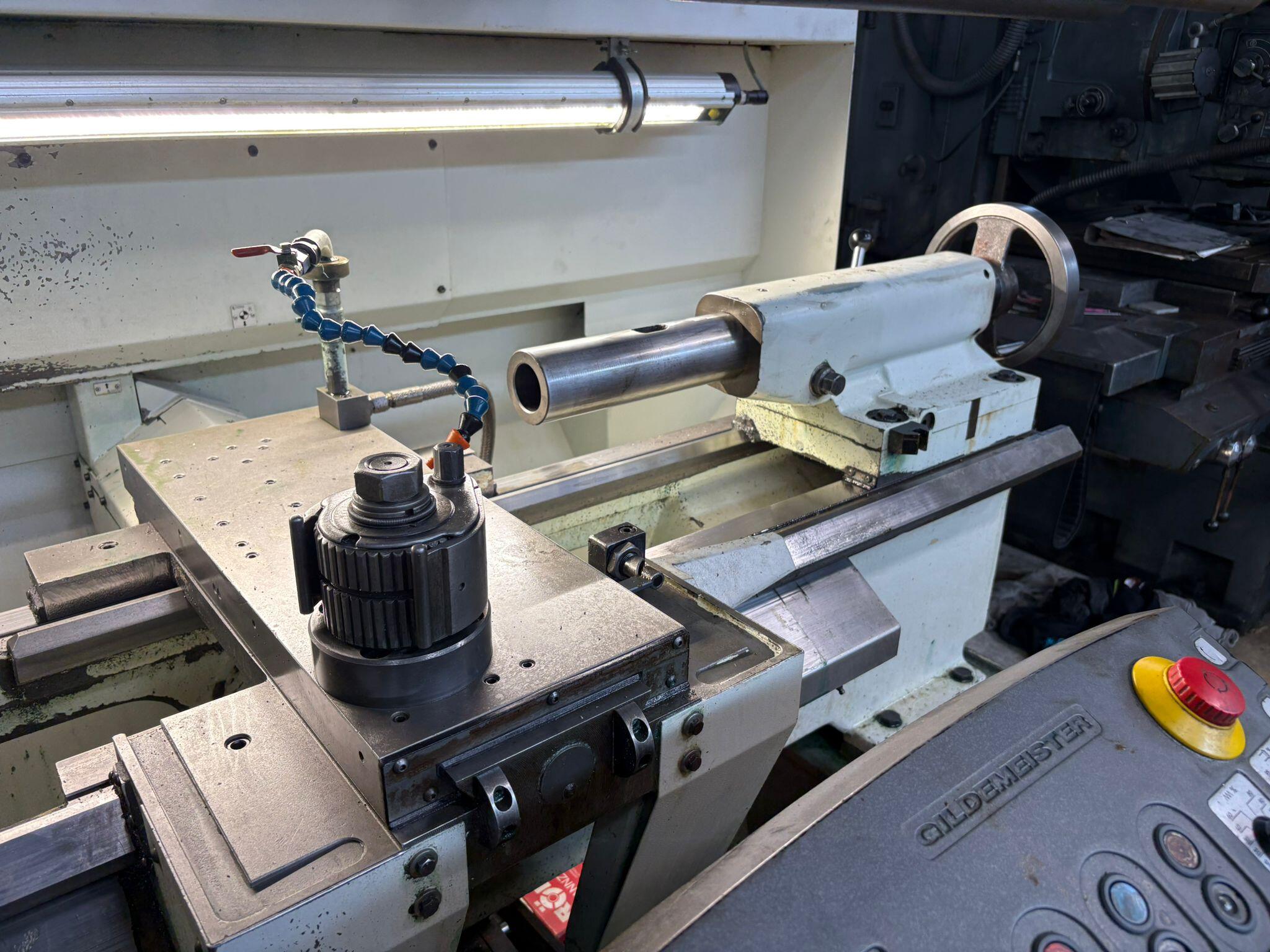

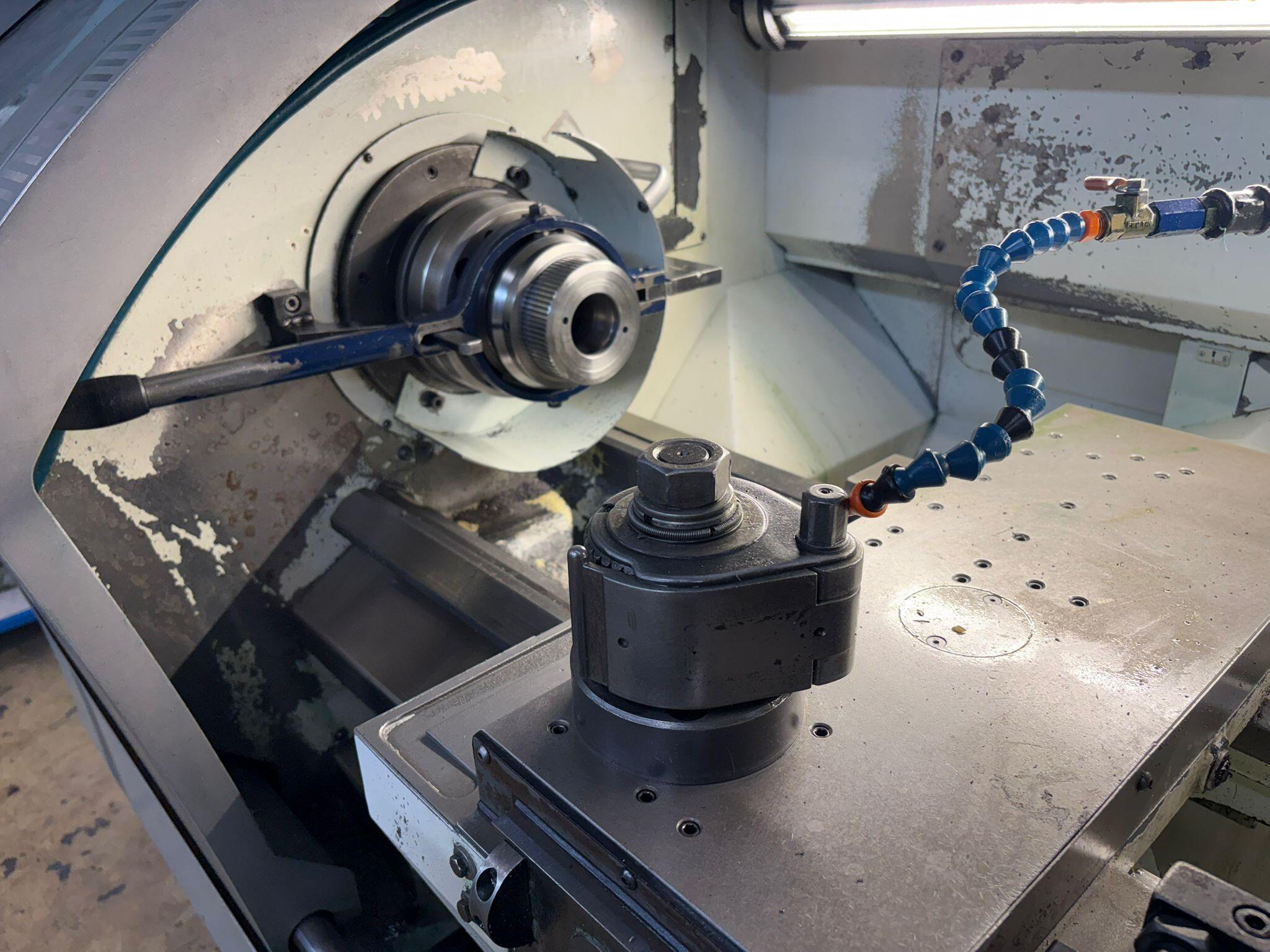

Collet chuckMultifix B
No chip conveyor
No cooling through spindle
Data sheet: Used DMG NEF 320
Technical data: DMG NEF 320 (PDF)
