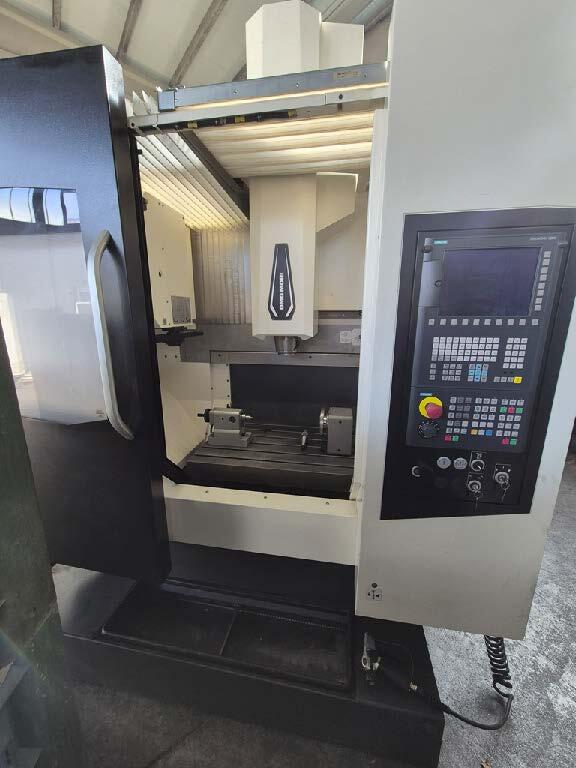

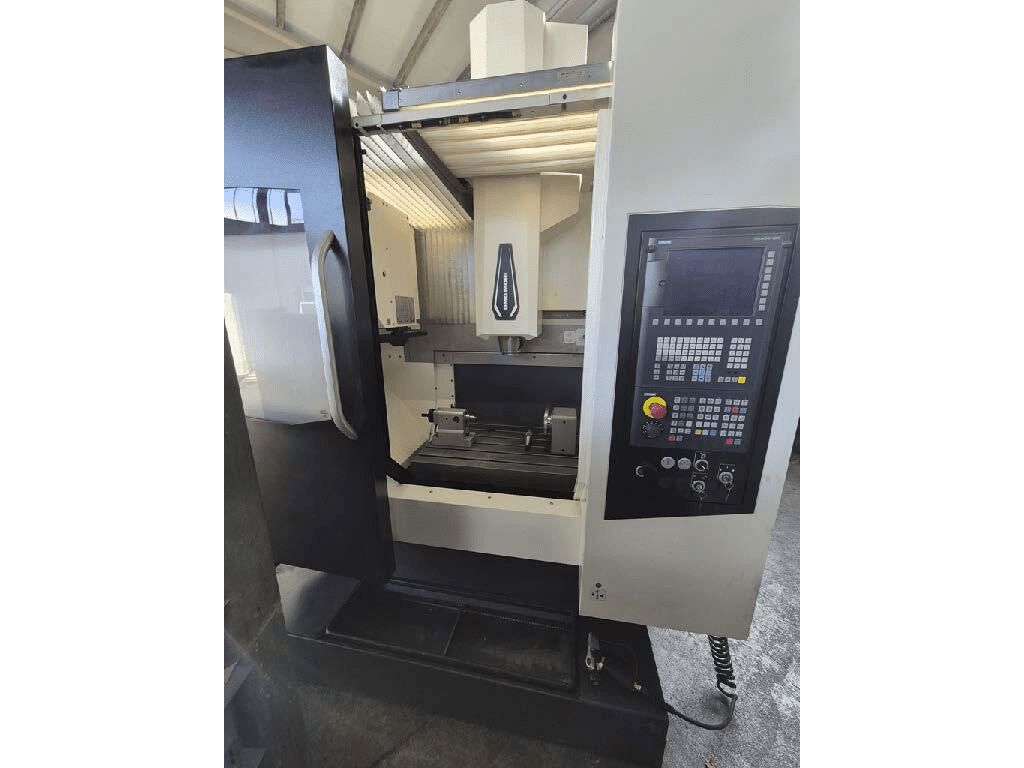

Used DMG Mori M1 Pro
Vertical machining center
Request price for DMG Mori M1 Pro:
Used DMG Mori M1 Pro at a top price
- 4 years young machining center in top condition
- Cost-efficient machine for 3-axis milling work
- NC rotary table & tailstock, chip conveyor, measuring probe
| Vertical machining center | |
| Machine type: | DMG M1 Pro |
| Control: | Siemens 828 D |
| Year: | 2021 |
| SPECIFICATIONS: | |
| Travel: | |
| X-Axis: [mm] | 550 |
| Y-Axis: [mm] | 550 |
| Z-Axis: [mm] | 510 |
| Spindle speeds: [rpm] | 12.000 |
| Spindle power: [kW] | 13 / 9 |
| Tool: | SK 40 |
| Tool capacity: | 24 |
| Table size: [mm] | 850 x 650 |
| Max. workpiece weight: [kg] | 600 |
| Req. space (LxBxH): [m] | 3,07 x 2,67 x 2,84 |
| Machine weight: [kg] | 5.600 |
| Equipment: | |
| Chip conveyor | |
| Internal cooling: [bar] | 20 |
| Caliper | |
| Electronical handwheel | |
| Interface | 4te Achse |
| NC rotary table | + Reitstock |
Data sheet: Used DMG Mori M1 Pro
Used DMG Mori M1 Pro at a top price
- 4 years young machining center in top condition
- Cost-efficient machine for 3-axis milling work
- NC rotary table & tailstock, chip conveyor, measuring probe
| Vertical machining center | |
| Machine type: | DMG M1 Pro |
| Control: | Siemens 828 D |
| Year: | 2021 |
| SPECIFICATIONS: | |
| Travel: | |
| X-Axis: [mm] | 550 |
| Y-Axis: [mm] | 550 |
| Z-Axis: [mm] | 510 |
| Spindle speeds: [rpm] | 12.000 |
| Spindle power: [kW] | 13 / 9 |
| Tool: | SK 40 |
| Tool capacity: | 24 |
| Table size: [mm] | 850 x 650 |
| Max. workpiece weight: [kg] | 600 |
| Req. space (LxBxH): [m] | 3,07 x 2,67 x 2,84 |
| Machine weight: [kg] | 5.600 |
| Equipment: | |
| Chip conveyor | |
| Internal cooling: [bar] | 20 |
| Caliper | |
| Electronical handwheel | |
| Interface | 4te Achse |
| NC rotary table | + Reitstock |
Data sheet: Used DMG Mori M1 Pro
