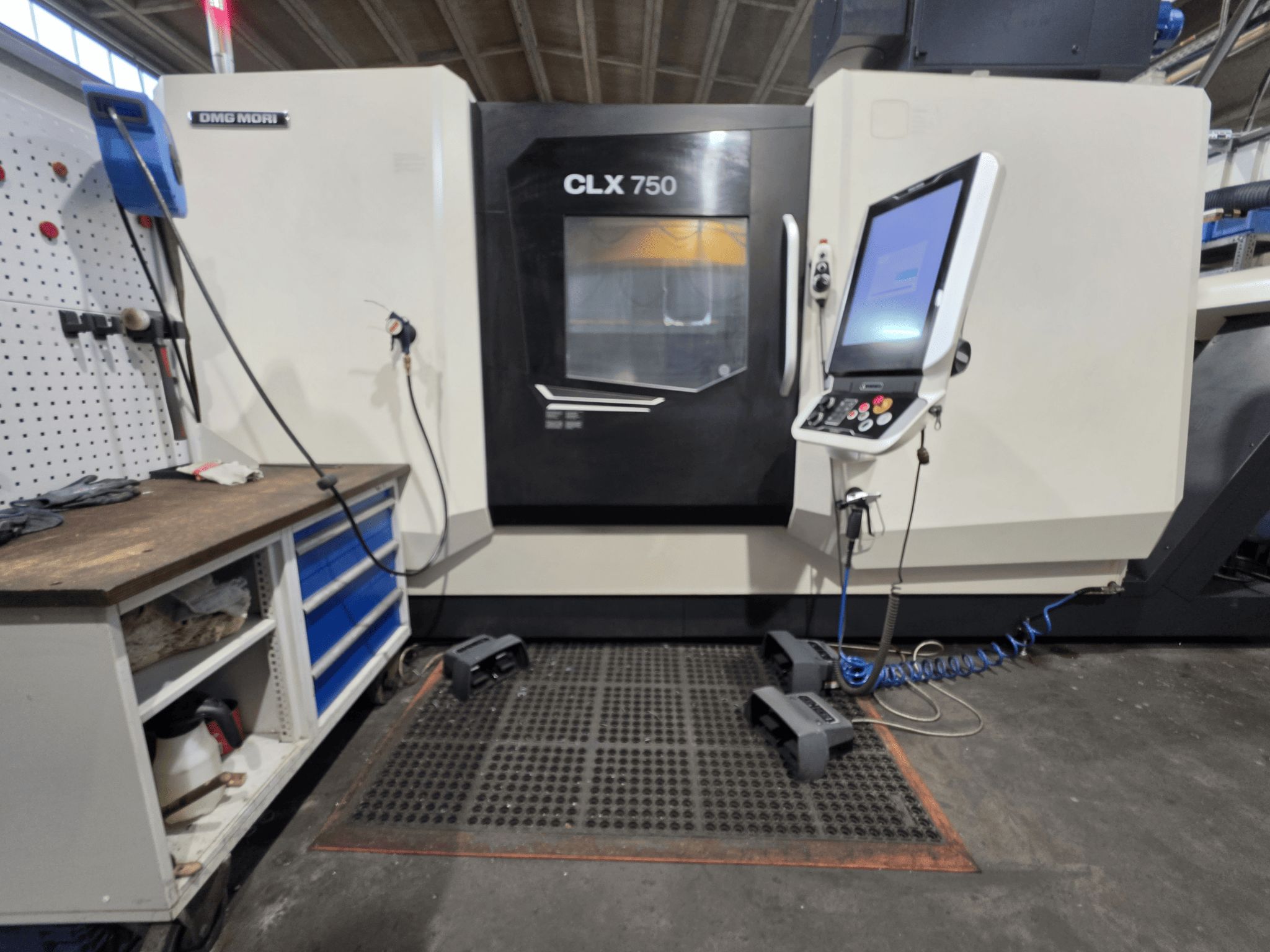

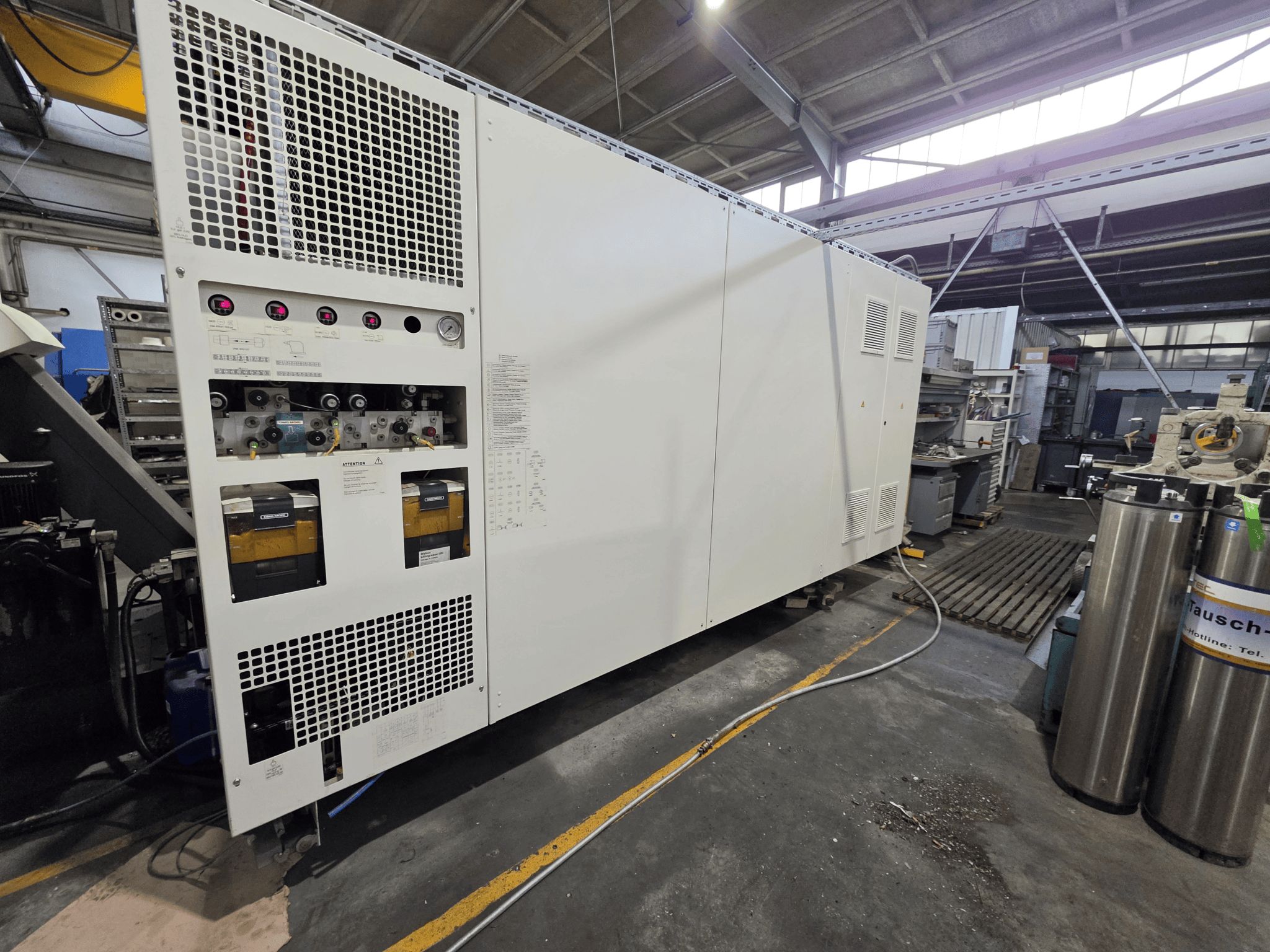

Lathe machine DMG MORI CLX 750 V4
CNC Turning / Millingcenter
Request price for DMG MORI CLX 750 V4:
Used CNC Turning / Millingcenter DMG MORI CLX 750 V4
| CNC Turning / Millingcenter | |
| Machine type: | DMG MORI CLX 750 V4 |

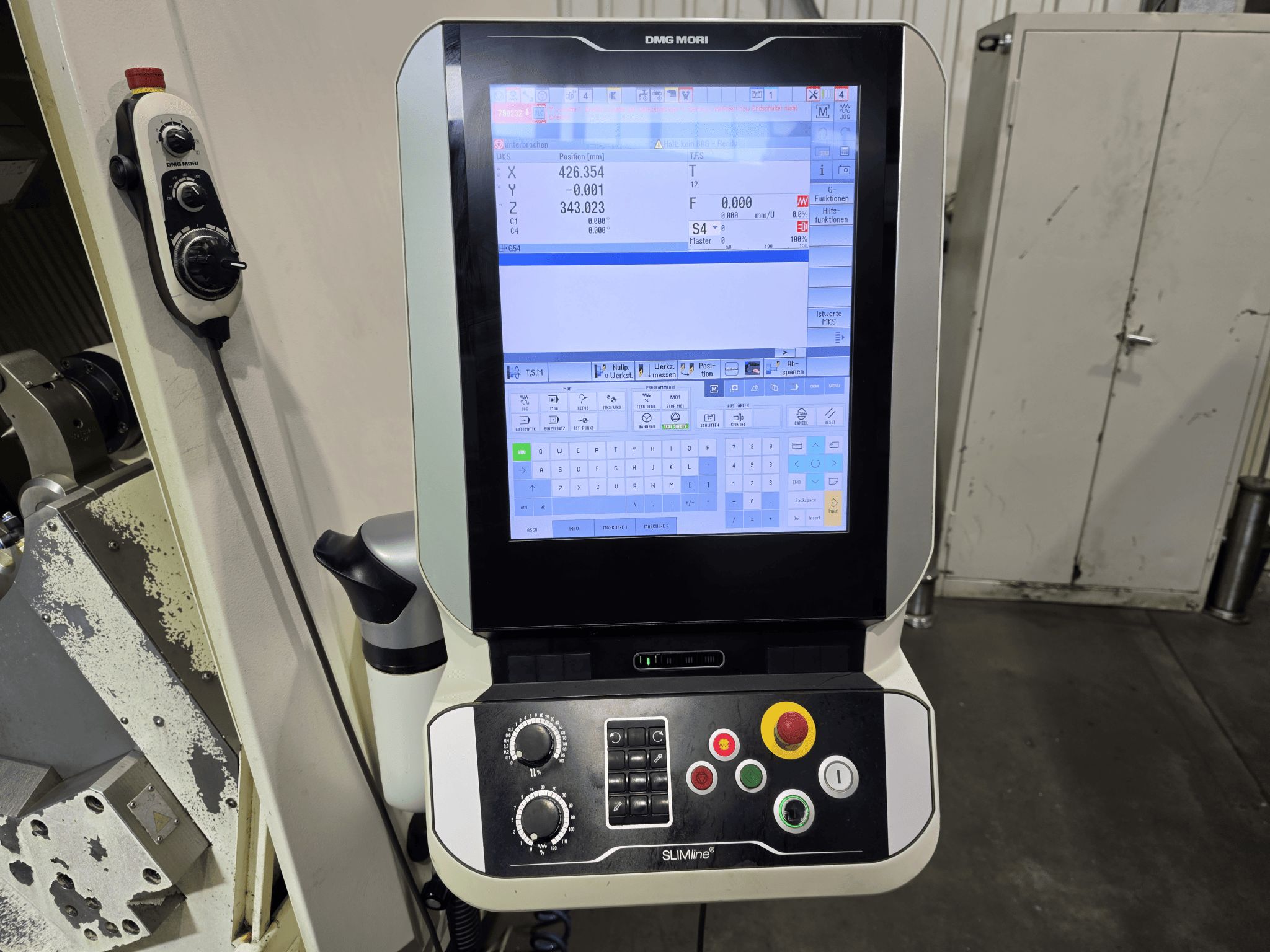

| Control: | Siemens 840 D solutionline + Shopturn |
| Year: | 2020 |
| SPECIFICATIONS: | |
| Max. turning length: [mm] | 1.290 |
| Turningdiameter: [mm] | 640 |
| Max. swing over bed: [mm] | ca. 790 |

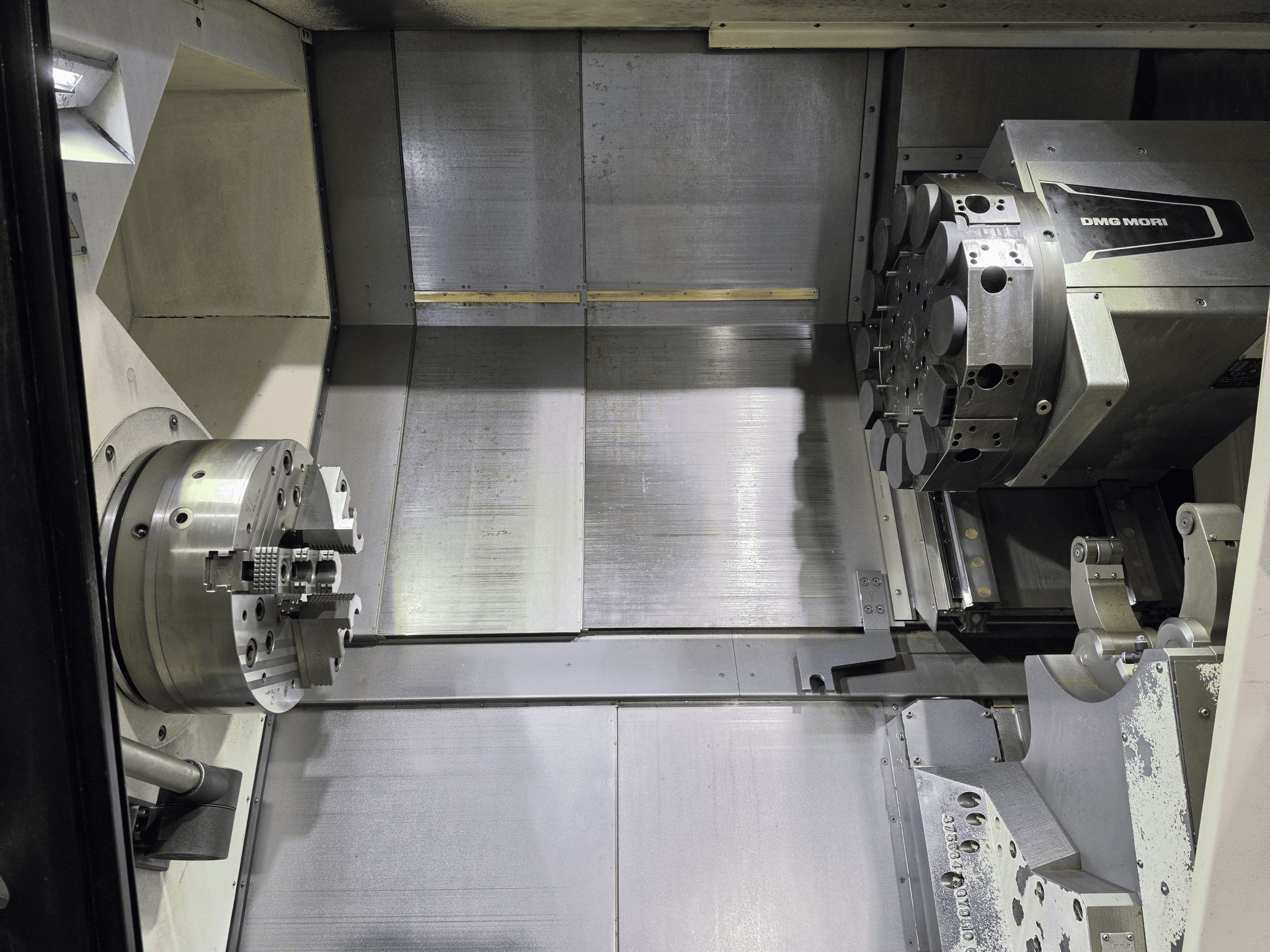

| Main Spindle | SM127 |
| Spindle nose: | A2-11 |

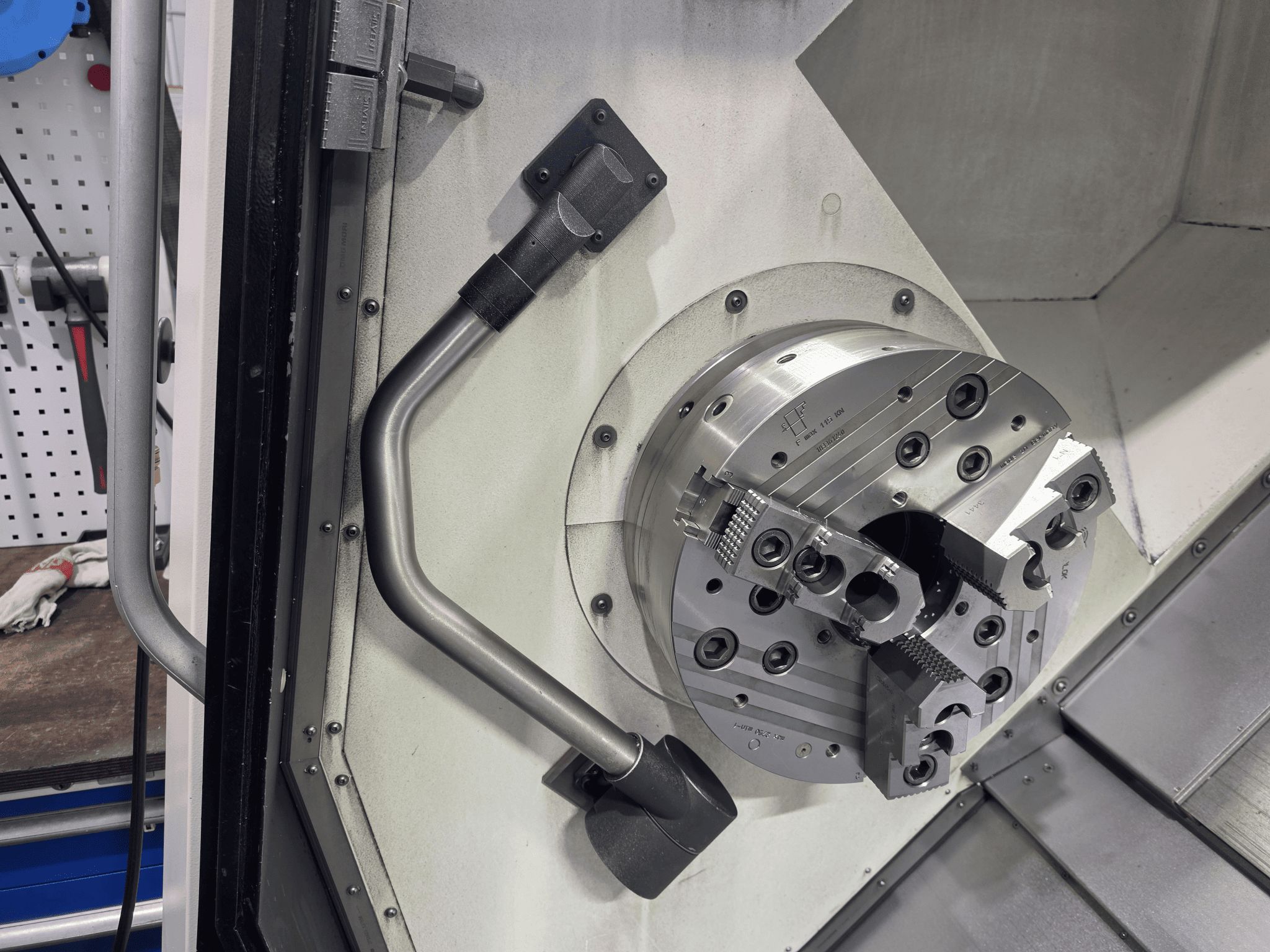

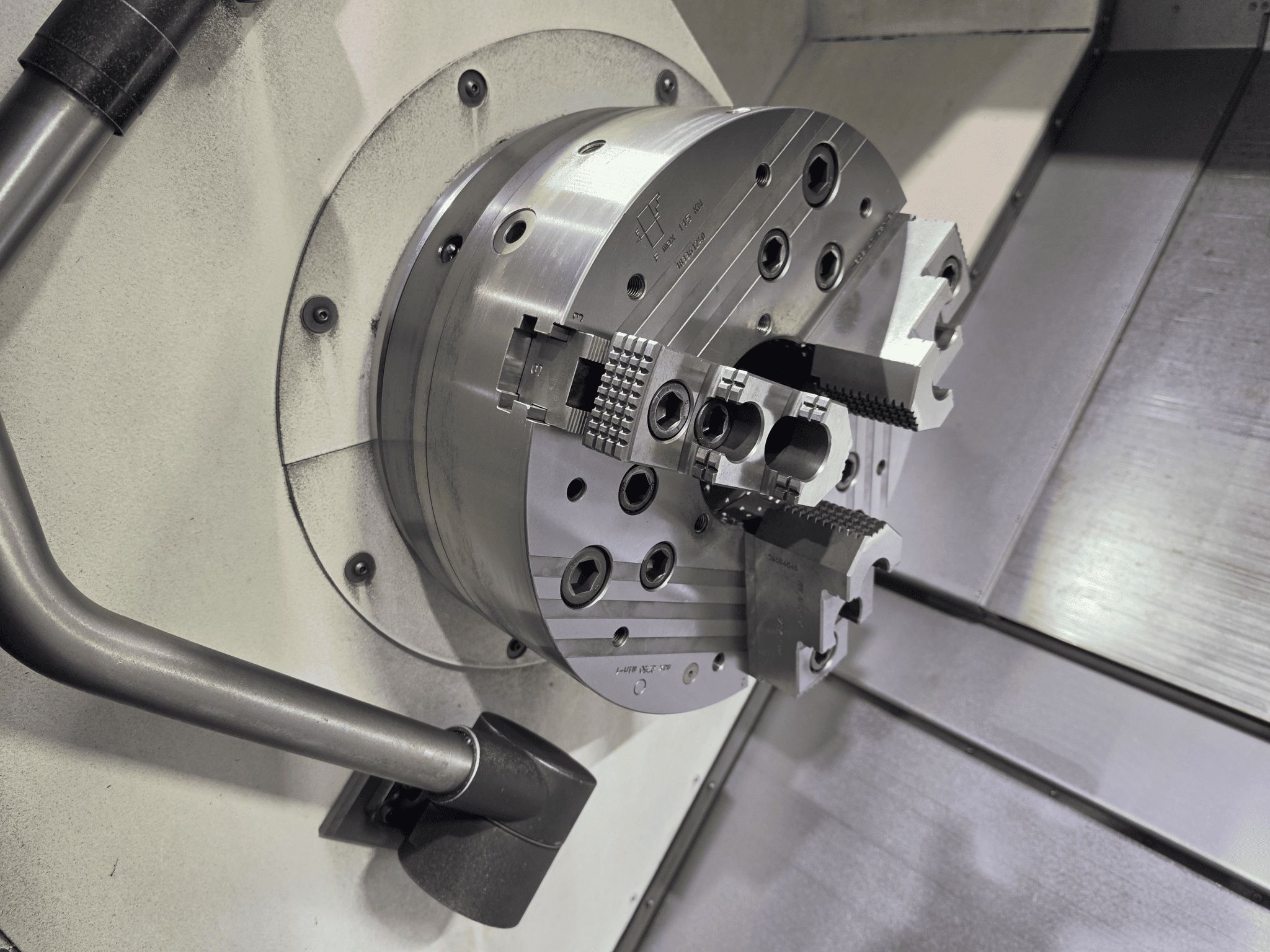

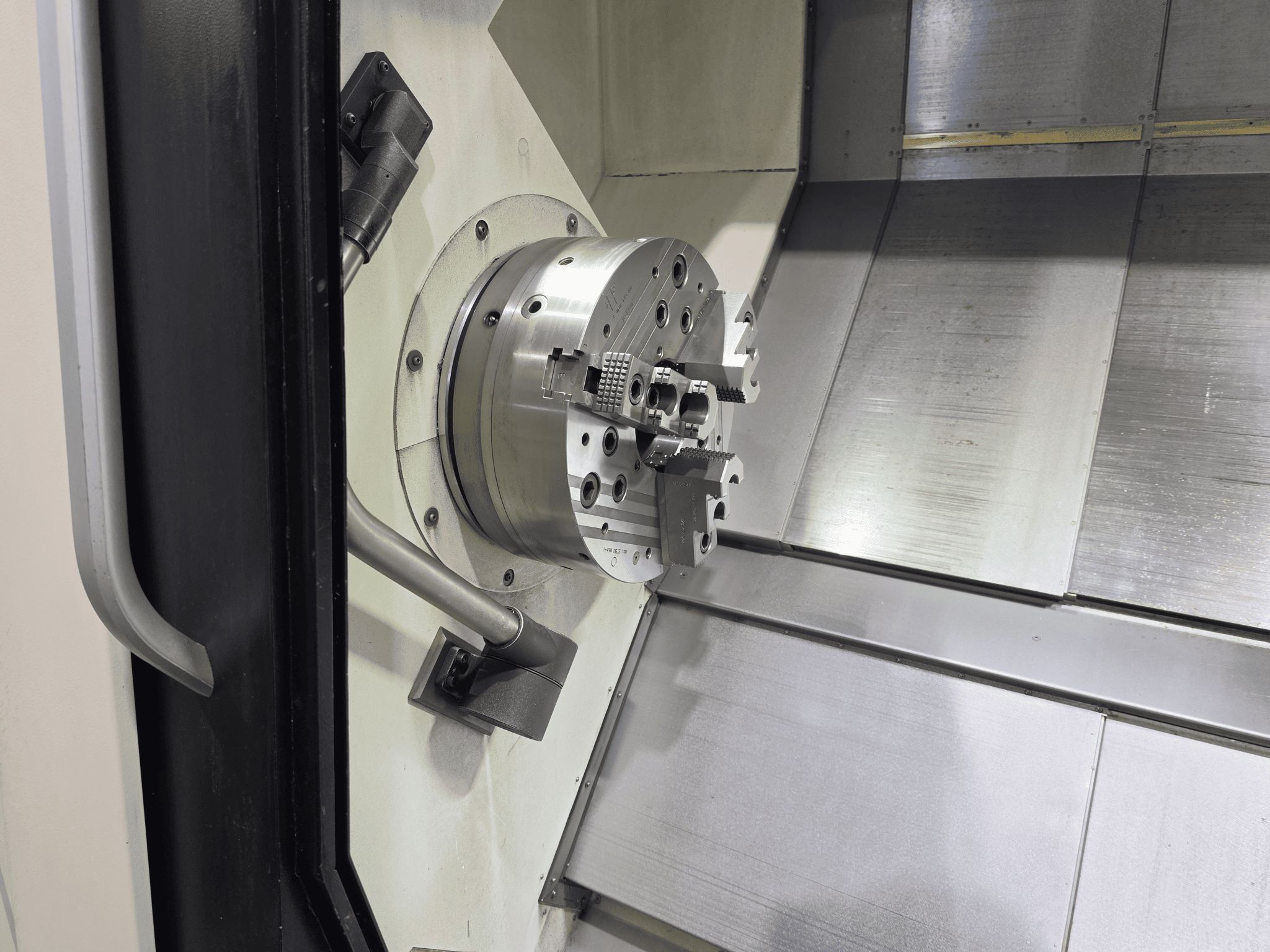

| 3-jaw chuck [mm] | 400 mm (SMW) |
| Spindle speeds: [rpm] | 2.000 |
| Spindle power: [kW] | 46 / 37 |
| Torque: [Nm] | 2.000 / 1.600 |
| Partscatcher A left | |
| C-Axis | 0,001° |

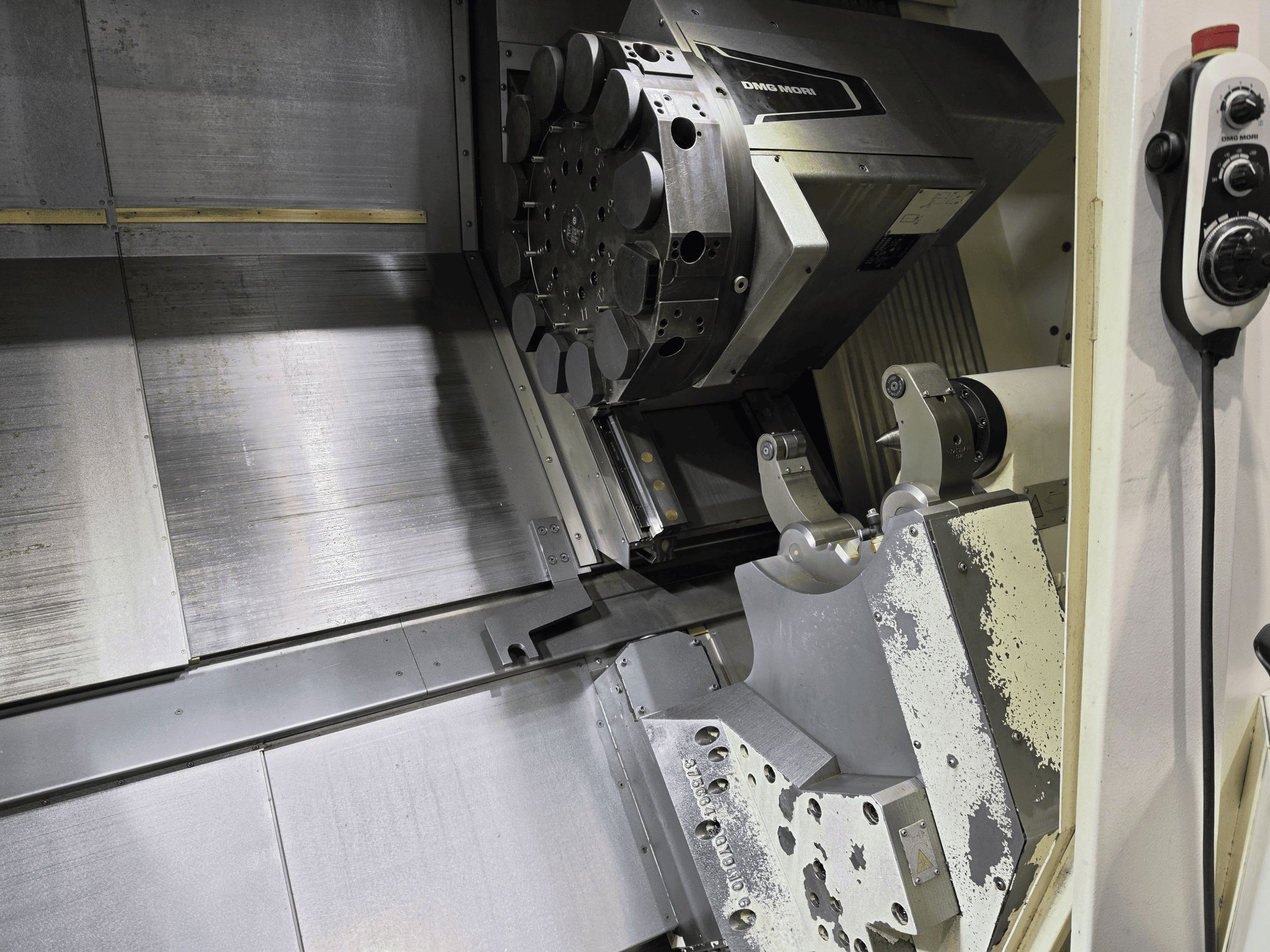

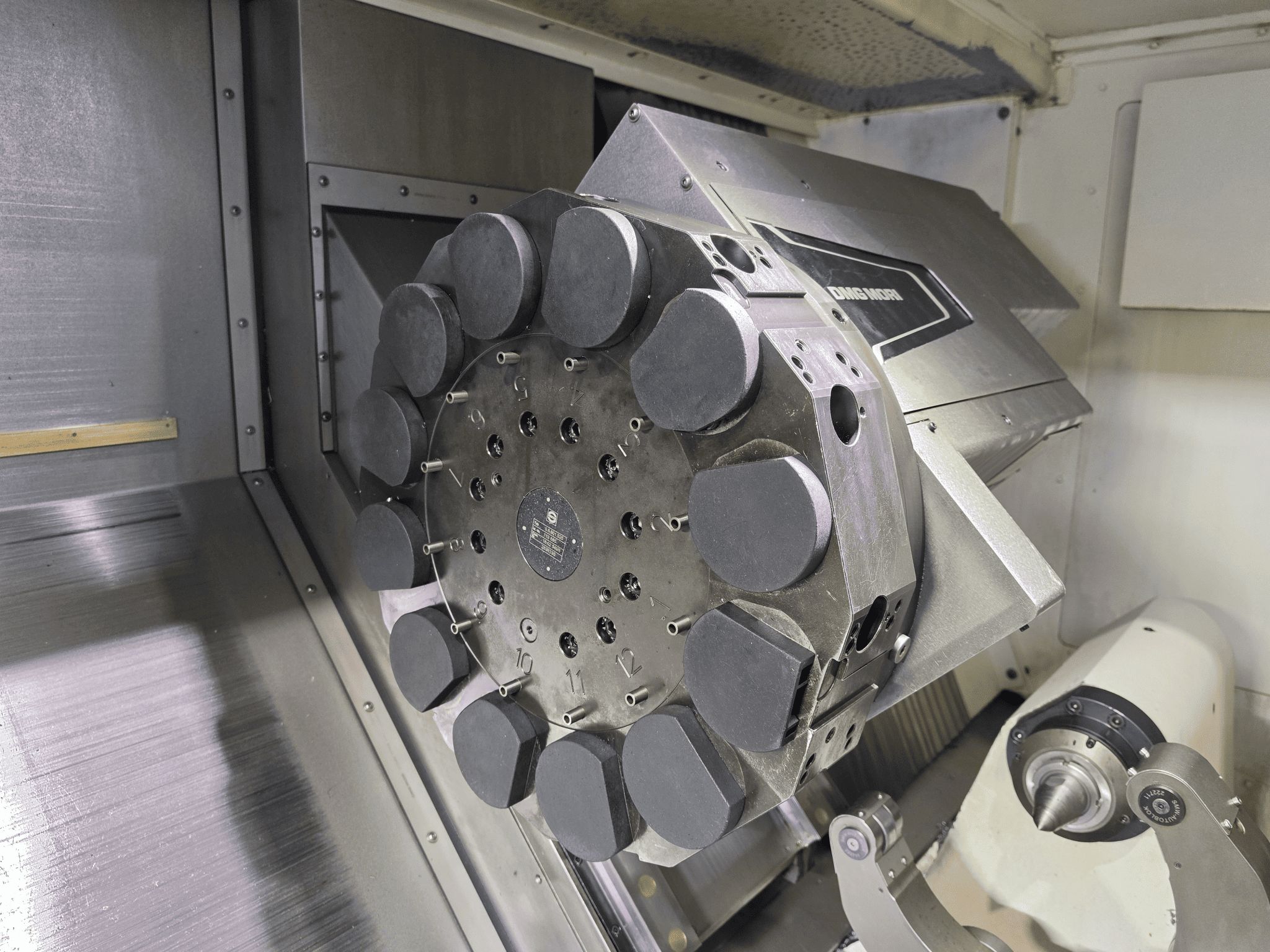

| Amount of turrets: | 1 |
| Tool capacity: | 12 |
| Tool: | VDI 50 |
| Driven Tools | |
| revolution driven tools | 4.000 |
| drive power driven tools [kW]: | 8 |
| X-Axis: [mm] | 435 |
| Y-Axis: [+/- mm] | 80 |
| Z-Axis: [mm] | 1.290 |
| Tailstock | |
| Equipment: | |

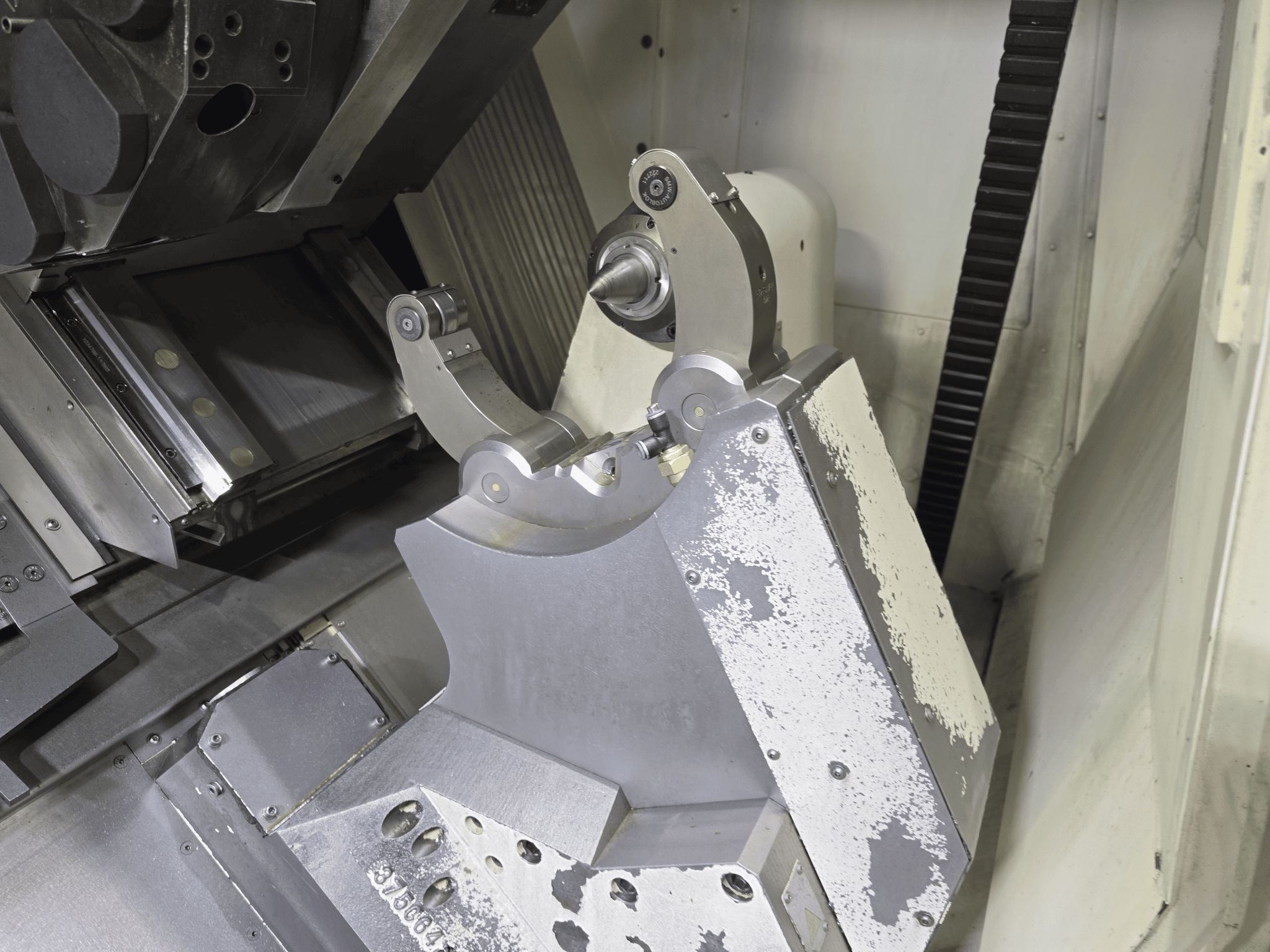

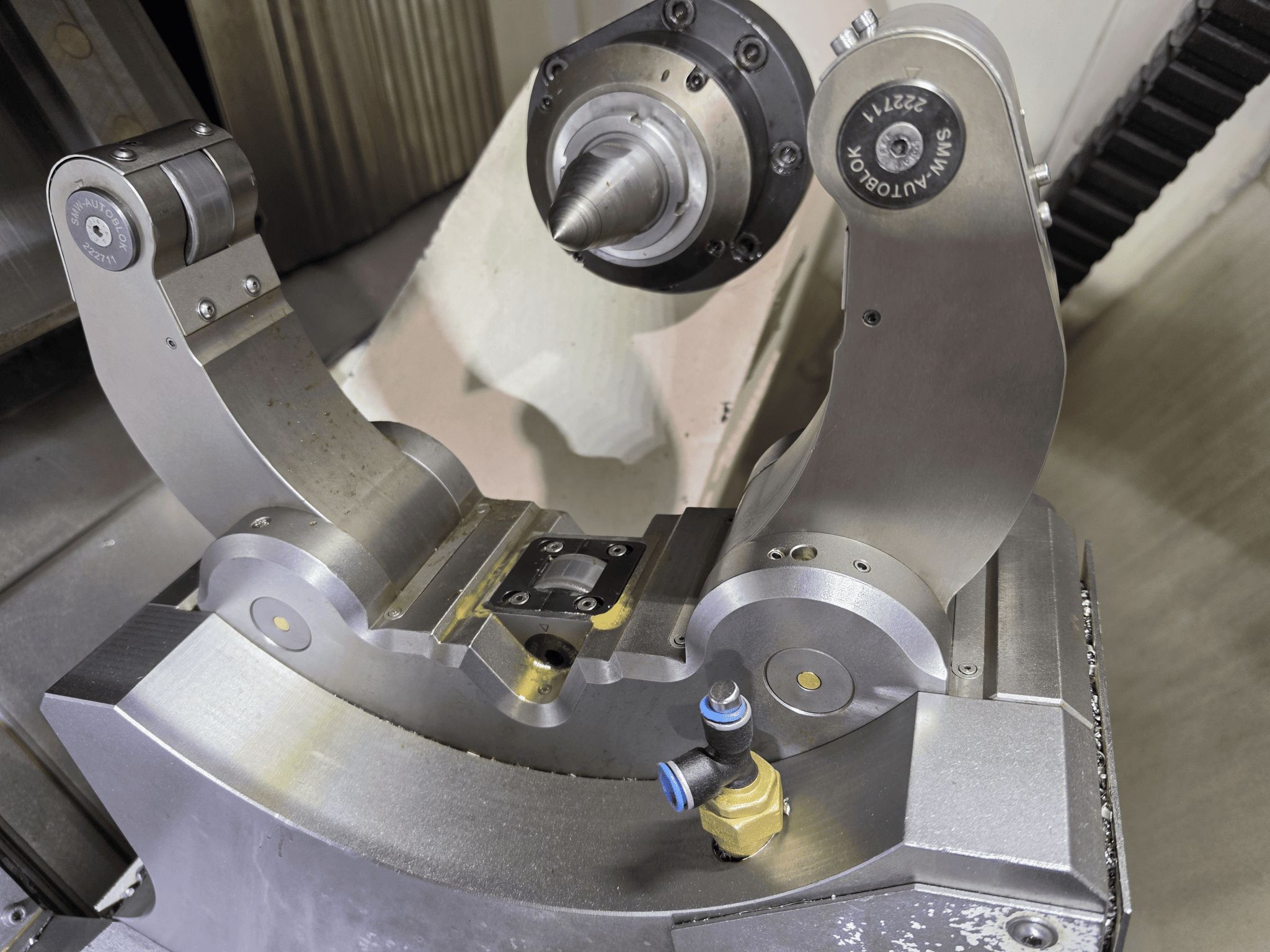

| Steady rest | SMW Autoblock |
| dragged bezel support | |
| Chip conveyor | |
| Tool measurement | |
| Direct linear scales | |
| Electronical handwheel | |

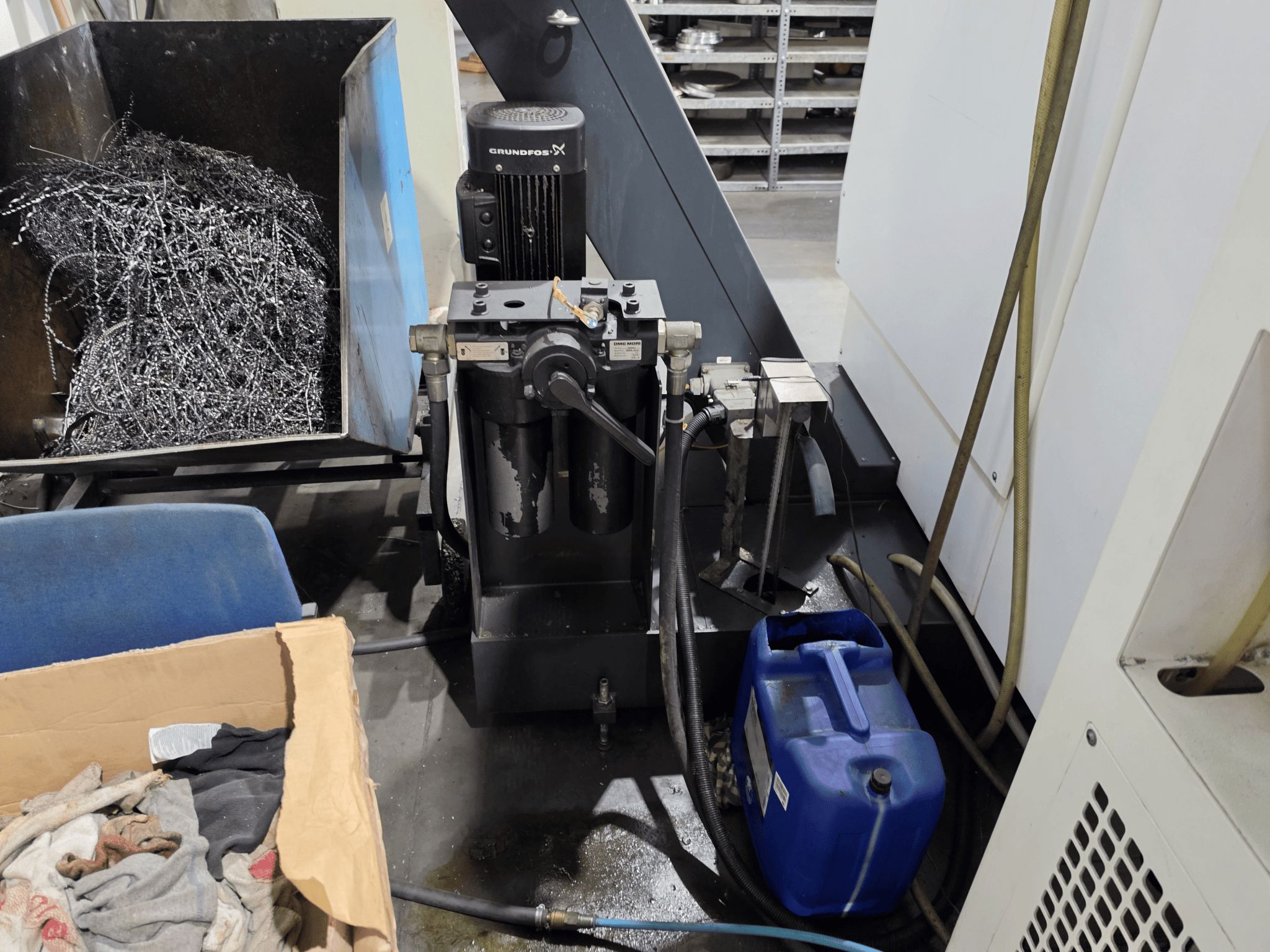

| cooling system | 5-20 bar |
| Chip rinsing pistol | |

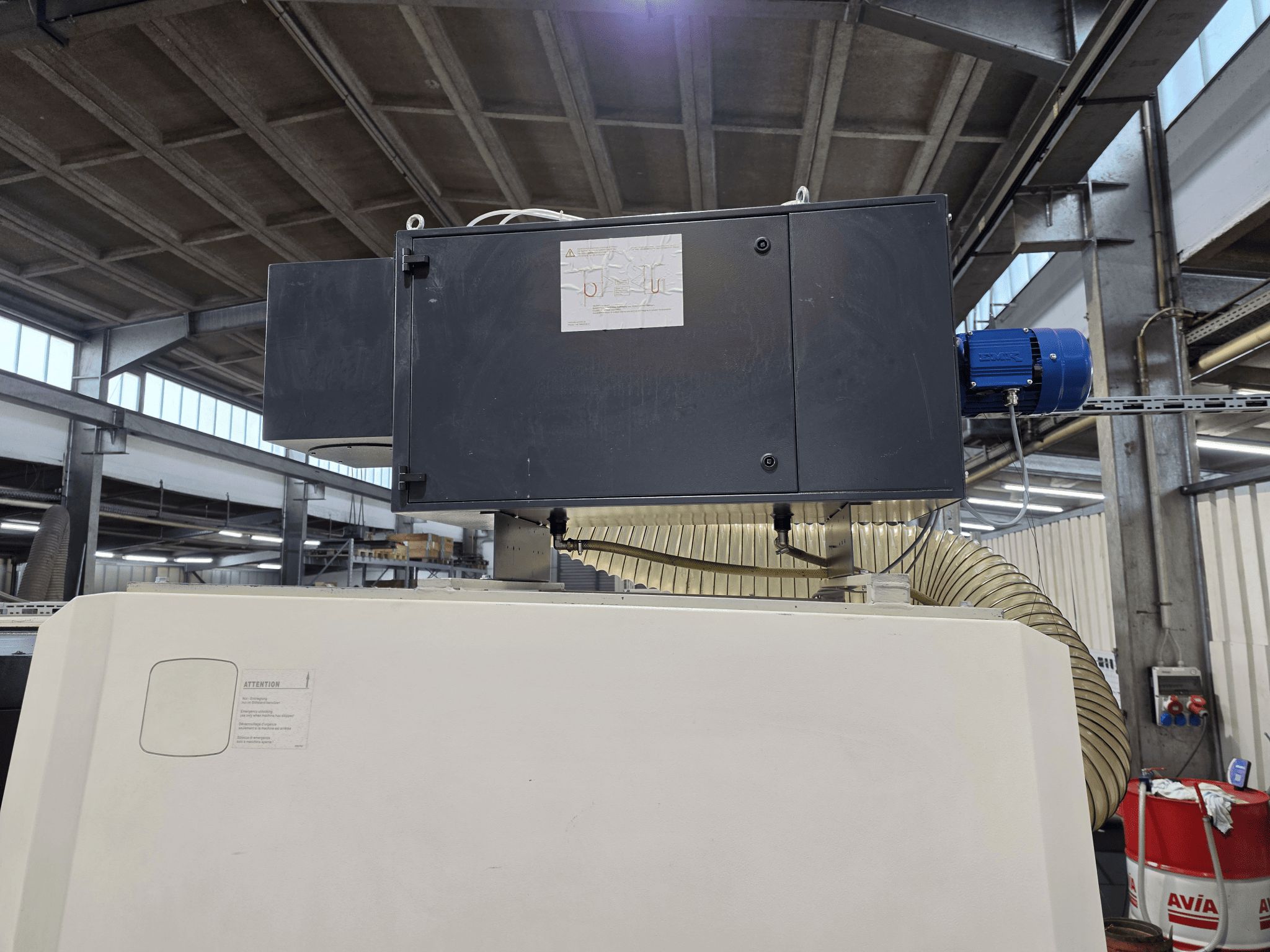

| Oil mist separator | |
Data sheet: Used DMG MORI CLX 750 V4
