Buy cheap Lathe machine DMG Mori CLX 450 TC
CNC Milling / Turningcenter
Request price for DMG Mori CLX 450 TC:

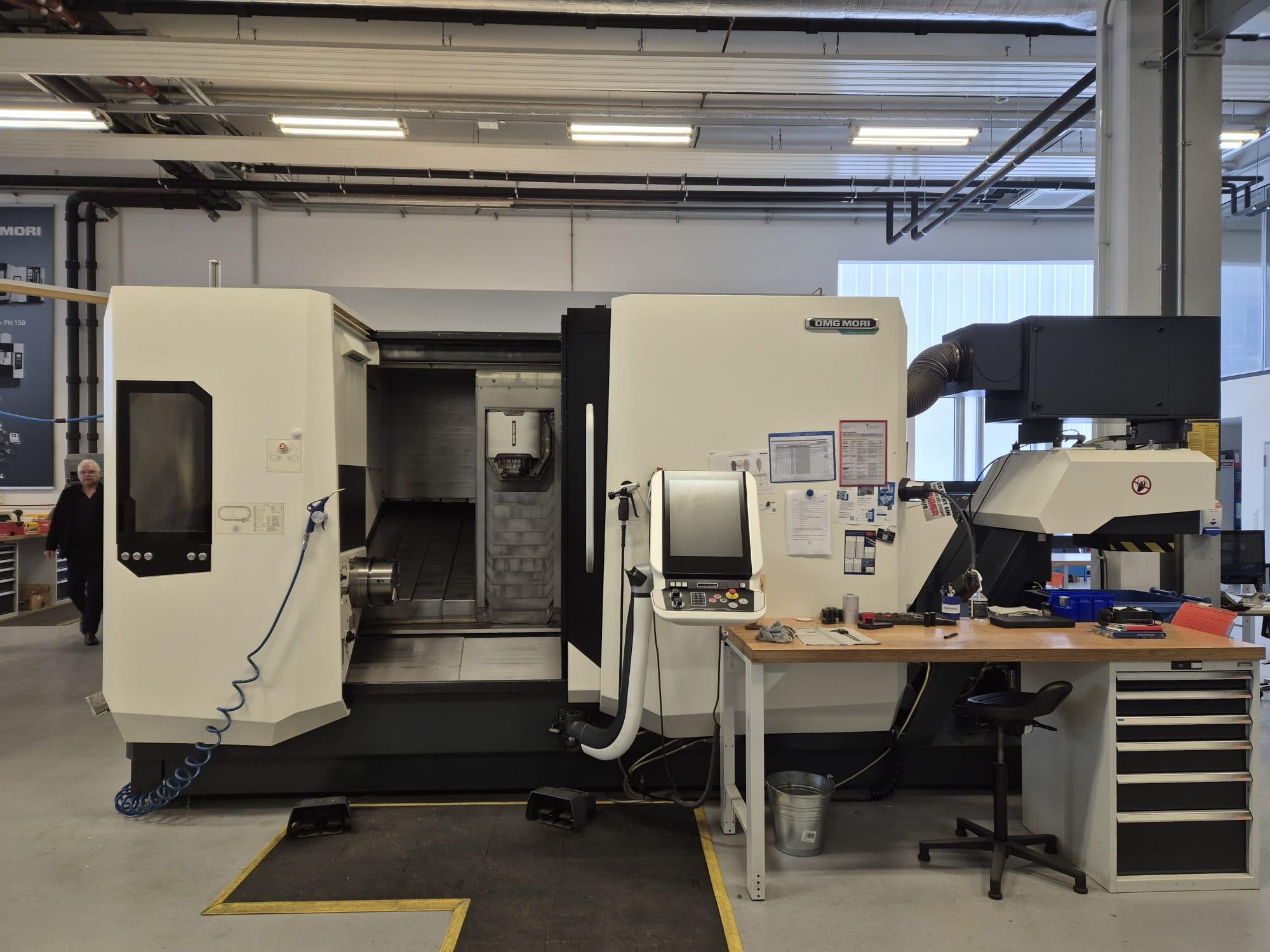

Buy cheap used CNC Milling / Turningcenter DMG Mori CLX 450 TC
| CNC Milling / Turningcenter | |
| Machine type: | DMG Mori CLX 450 TC |
| Control: | Siemens 840 D sl Operate Slimline |
| Year: | 2022 |
| SPECIFICATIONS: | |
| Max. turning length: [mm] | 1.100 |
| Turningdiameter: [mm] | 400 |
| Main Spindle | ISM 65 |
| Spindle speeds: [rpm] | 5.000 |
| Spindle power: [kW] | 14 / 17 |
| Torque: [Nm] | 275 / 345 |
| Spindle nose: | A2-8 |
| Bar capacity: [mm] | 67 |
| C-Axis | |
| CNC-Spindle tilting for cutting and turningopertations | |
| Max. revolution: [rpm] | 12.000 |
| Spindle power: [kW] | 8,8 / 10,5 |
| Torque: [Nm] | 73 / 90 |
| Tool: | HSK 63 |
| Tool capacity: | 60 |
| Subspindle | ISM 65 |
| Spindle nose: | A2-8 |
| Max. revolution: [rpm] | 5.000 |
| Spindle power: [kW] | 14 / 17 |
| Torque: [Nm] | 275 / 345 |
| C-Axis | |
| X-Axis: [mm] | 750 |
| Y-Axis: [+/- mm] | 100 |
| Z-Axis: [mm] | 1.100 |
| B-Axes | +/- 120 mm |
| Equipment: | |
| Chip conveyor | |
| Direct linear scales | |
| Chip rinsing pistol | |
| 3-jaw chuck [mm] | SMW-Autoblok |
| 3-jaw chuck [mm] | SMW-Autoblok |
| Reitstockfunktion Gegenspindel | |
| High pressure pumps | 8 bar / 20 bar |
| Cooling tank: [l] | 600 |
| Oil mist separator | |
| Caliper | Renishaw RMP 40 |
| Tool setter | Z- Nano |
| MPC | |
| Automatic doors | |
| Interface | Robo2Go |
| Interface barfeeder | |
| Tropenpaket | |
| Electronical handwheel | |
Data sheet: Used DMG Mori CLX 450 TC
Buy cheap used CNC Milling / Turningcenter DMG Mori CLX 450 TC
| CNC Milling / Turningcenter | |
| Machine type: | DMG Mori CLX 450 TC |
| Control: | Siemens 840 D sl Operate Slimline |
| Year: | 2022 |
| SPECIFICATIONS: | |
| Max. turning length: [mm] | 1.100 |
| Turningdiameter: [mm] | 400 |
| Main Spindle | ISM 65 |
| Spindle speeds: [rpm] | 5.000 |
| Spindle power: [kW] | 14 / 17 |
| Torque: [Nm] | 275 / 345 |
| Spindle nose: | A2-8 |
| Bar capacity: [mm] | 67 |
| C-Axis | |
| CNC-Spindle tilting for cutting and turningopertations | |
| Max. revolution: [rpm] | 12.000 |
| Spindle power: [kW] | 8,8 / 10,5 |
| Torque: [Nm] | 73 / 90 |
| Tool: | HSK 63 |
| Tool capacity: | 60 |
| Subspindle | ISM 65 |
| Spindle nose: | A2-8 |
| Max. revolution: [rpm] | 5.000 |
| Spindle power: [kW] | 14 / 17 |
| Torque: [Nm] | 275 / 345 |
| C-Axis | |
| X-Axis: [mm] | 750 |
| Y-Axis: [+/- mm] | 100 |
| Z-Axis: [mm] | 1.100 |
| B-Axes | +/- 120 mm |
| Equipment: | |
| Chip conveyor | |
| Direct linear scales | |
| Chip rinsing pistol | |
| 3-jaw chuck [mm] | SMW-Autoblok |
| 3-jaw chuck [mm] | SMW-Autoblok |
| Reitstockfunktion Gegenspindel | |
| High pressure pumps | 8 bar / 20 bar |
| Cooling tank: [l] | 600 |
| Oil mist separator | |
| Caliper | Renishaw RMP 40 |
| Tool setter | Z- Nano |
| MPC | |
| Automatic doors | |
| Interface | Robo2Go |
| Interface barfeeder | |
| Tropenpaket | |
| Electronical handwheel | |
Data sheet: Used DMG Mori CLX 450 TC
