SOLD: Used DMG DMU 60 Evo
Universal machining center
Used DMG DMU 60 Evo milling machine at a top price
| Universal machining center | |
| Machine type: | DMG DMU 60 evo |

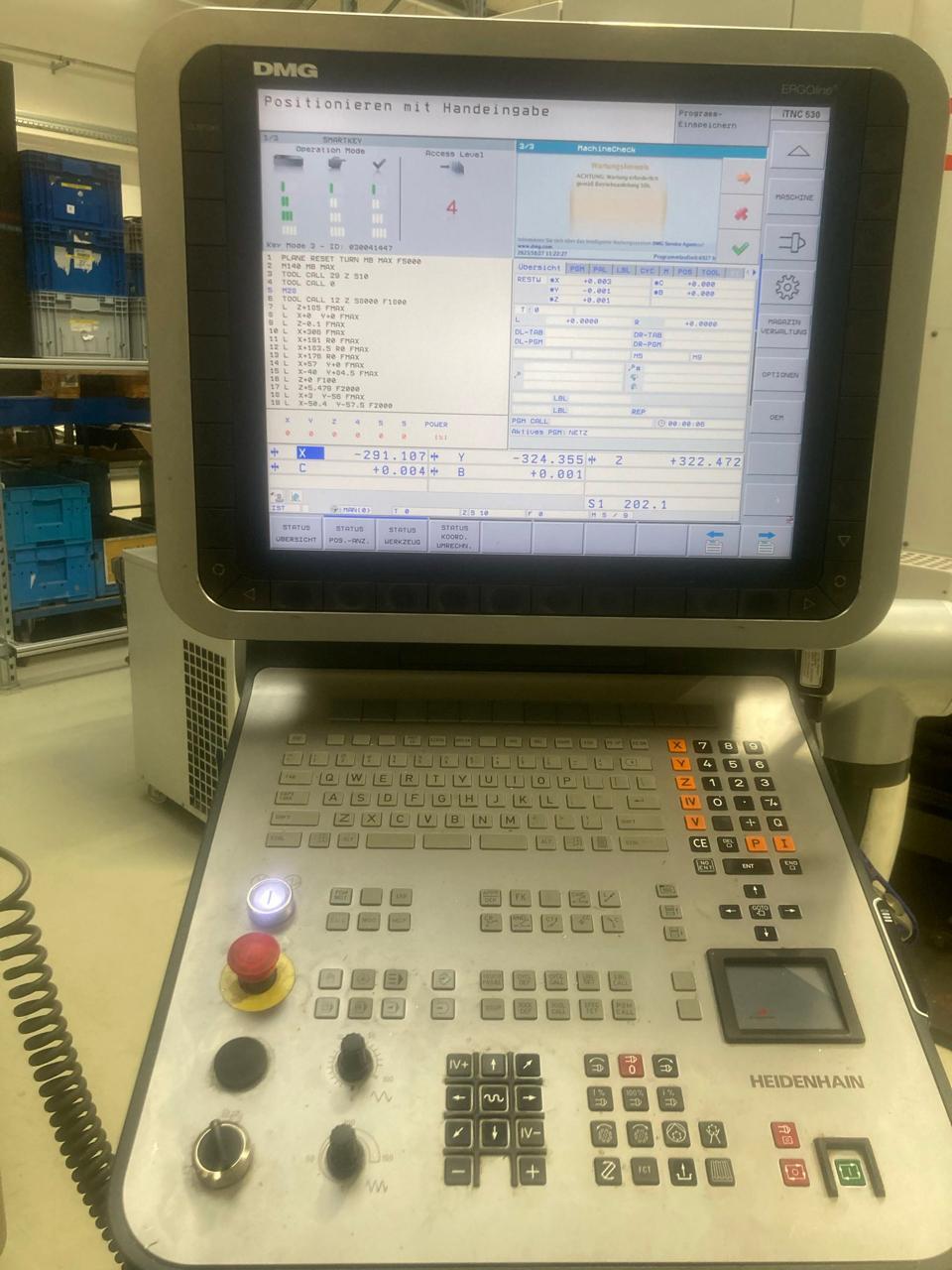

| Control: | Heidenhain iTNC 530 |
| Year: | 2011 |
| SPECIFICATIONS: | |
| Travel: | |
| Amount of controlled axes: | 5 |
| X-Axis: [mm] | 600 |
| Y-Axis: [mm] | 500 |
| Z-Axis: [mm] | 500 |
| B-Axes | -5° / +110° |
| C-Axis | 360° |
| Rapid motion: (X/Y/Z) [m/min.] | 10 |
| Spindle speeds: [rpm] | 20 - 18.000 |
| Tool: | HSK 63 |
| Toolchanger | |
| Tool capacity: | 30 |
| NC-panning and rotary Table | |
| Table size: [mm] | 600 x 500 |
| Max. workpiece weight: [kg] | 400 |
| Equipment: | |
| Chip conveyor | |
| Tool measurement | Blum Laser |
| Electronical handwheel | |
| Caliper | Heidenhain |

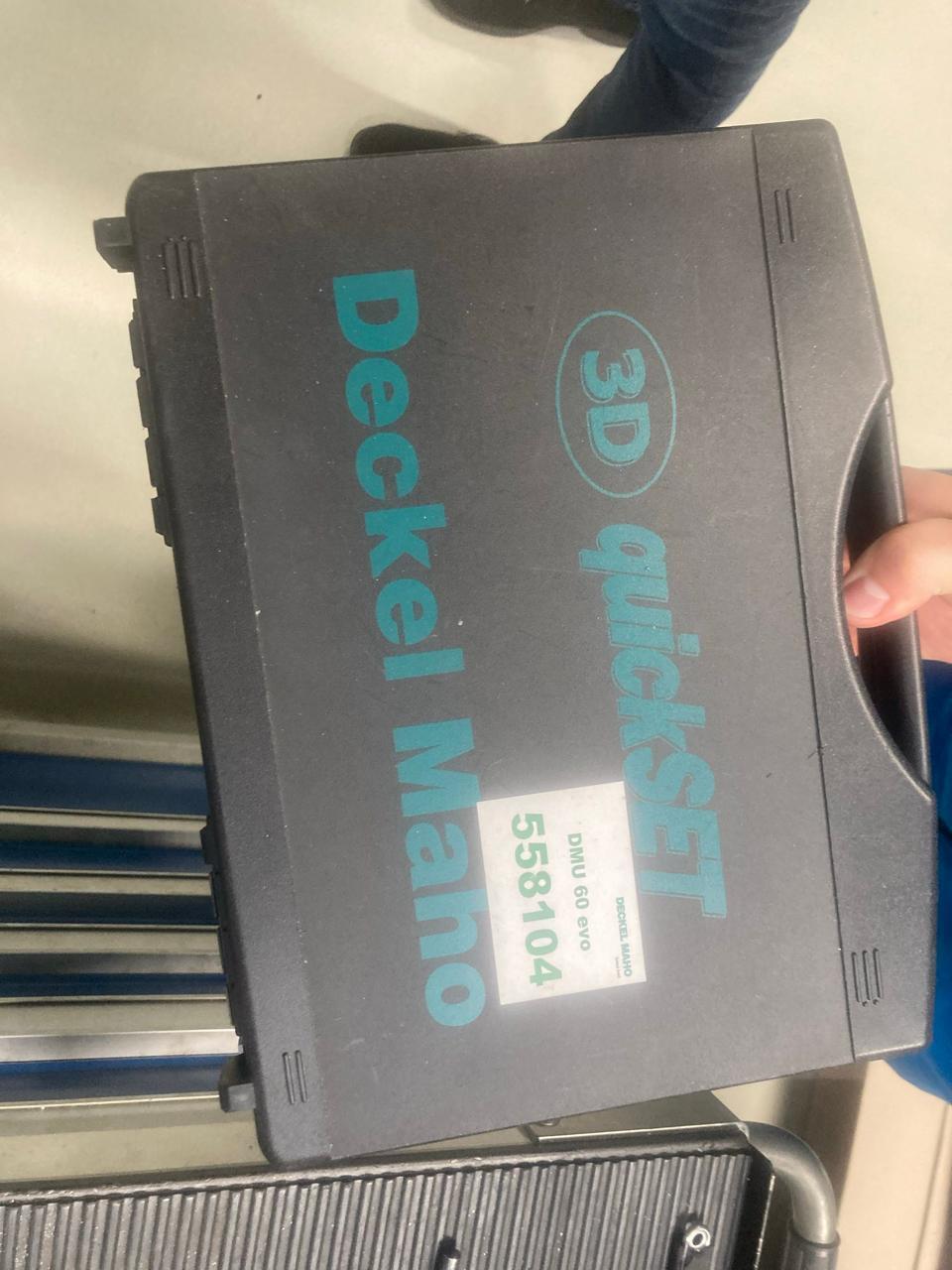

| 3D quickSet | |
| Chip rinsing pistol | |
| No cooling through spindle | Aber nachrüstbar |
