Used DMG DMU 60 evo

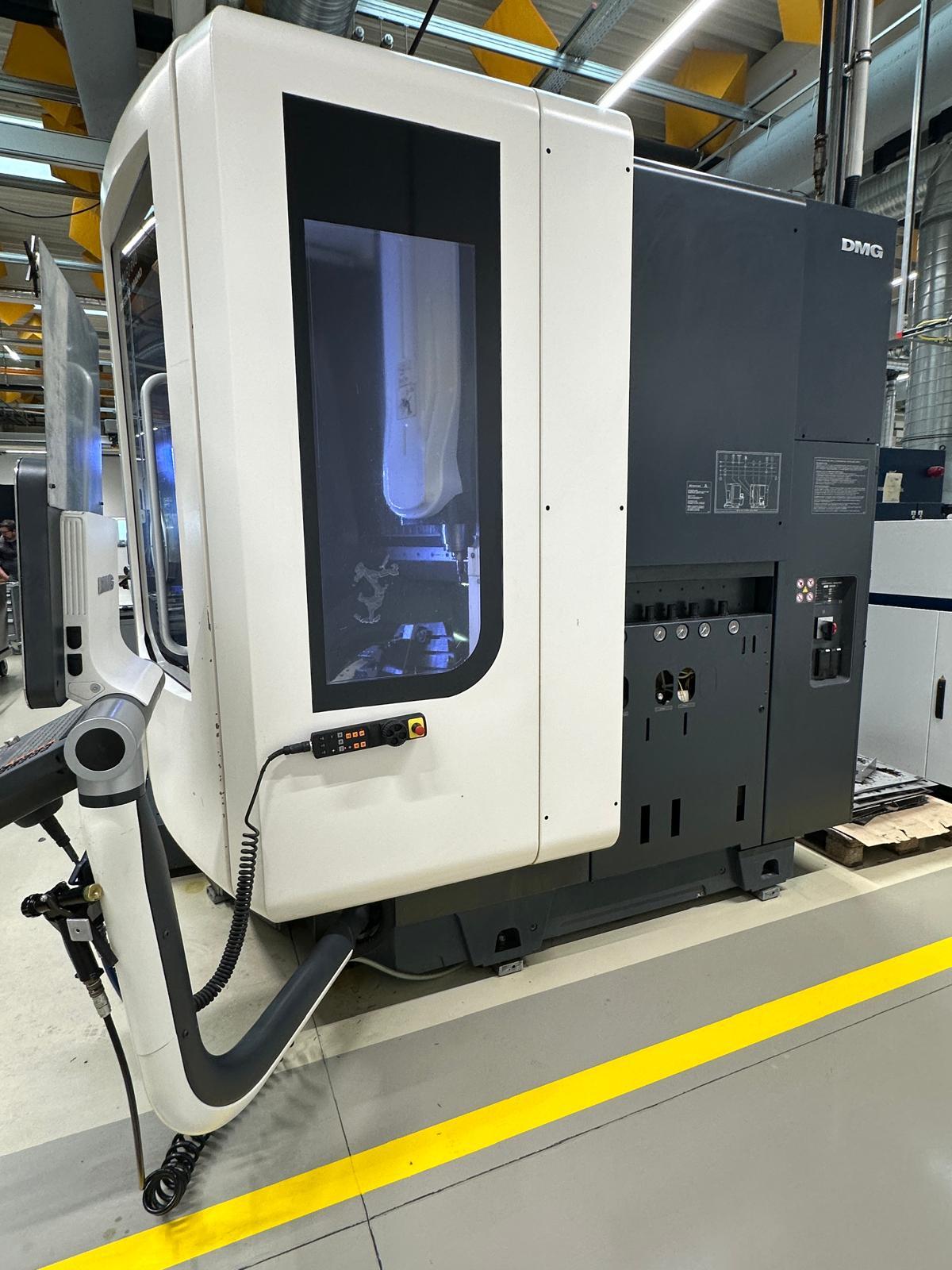

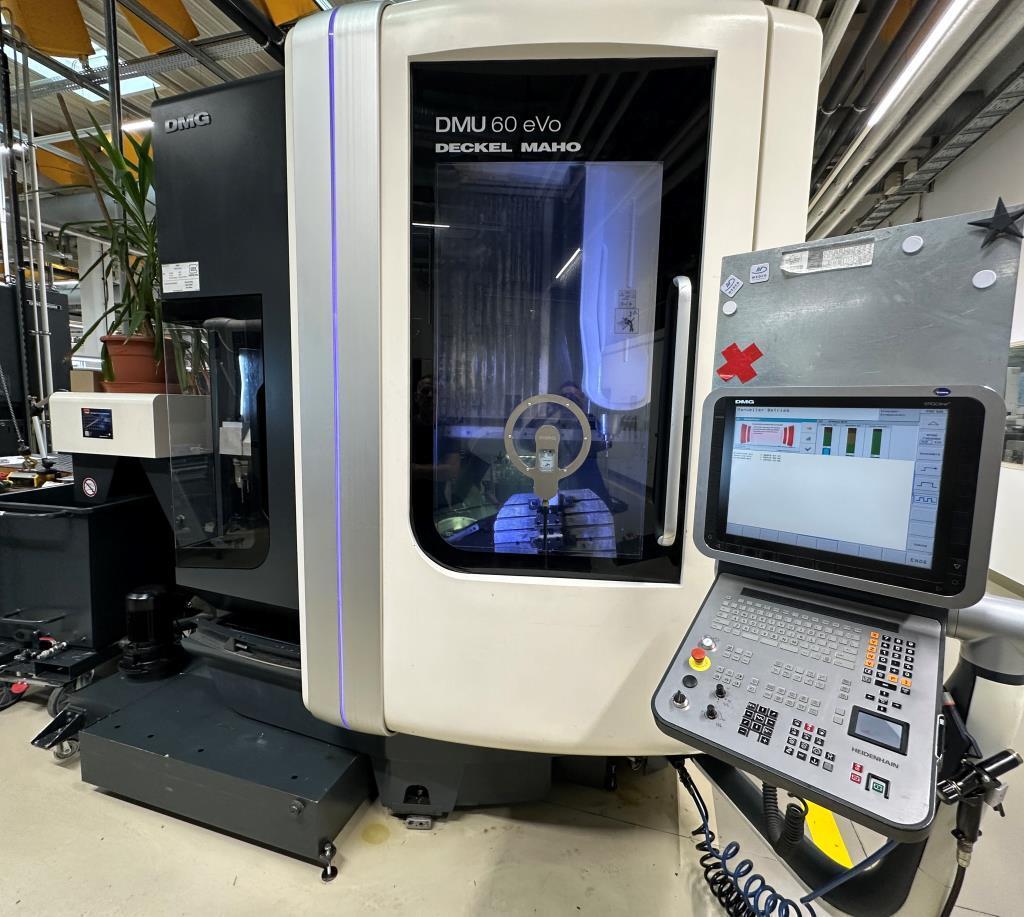

DMG DMU 60 eVo – Compact 5-axis universal machining center for precise machining

The DMG Mori DMU 60 eVo is a versatile universal machining center with simultaneous 5-axis capability, designed for high precision, performance and flexibility. It is ideally suited for machining complex geometries and highly dynamic milling and drilling processes across numerous industries – from single parts to series components.

Technical specifications of the DMG DMU 60 eVo

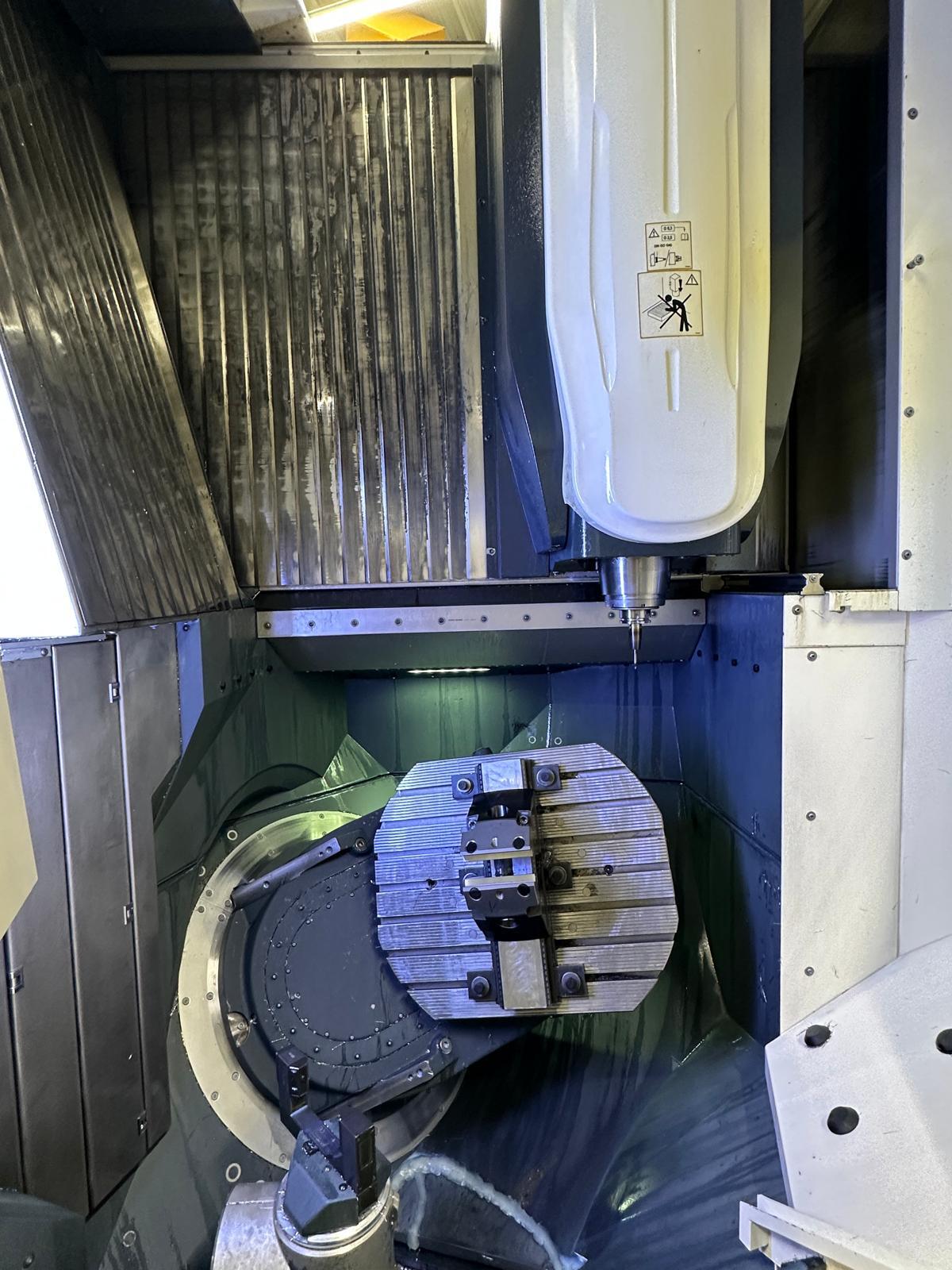

The DMG DMU 60 eVo features compact yet generous travels, typically around 610 mm in X, 560 mm in Y and 510 mm in Z. The simultaneous 5-axis machining is realized via a rotary/tilting table axis, enabling flexible access to all sides of the workpiece. The working area is optimized for medium-sized components and is particularly suitable for demanding, complex contours.

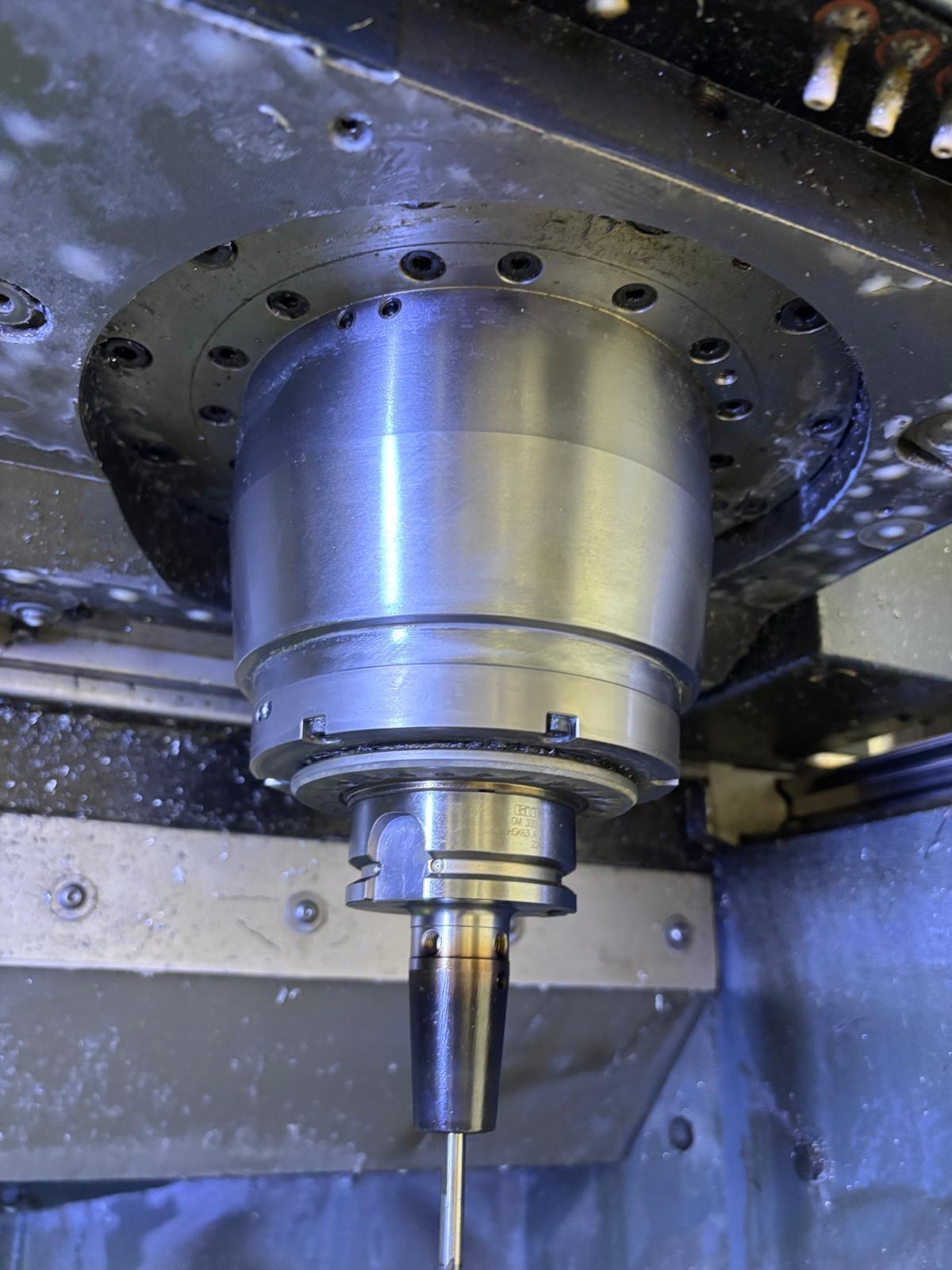

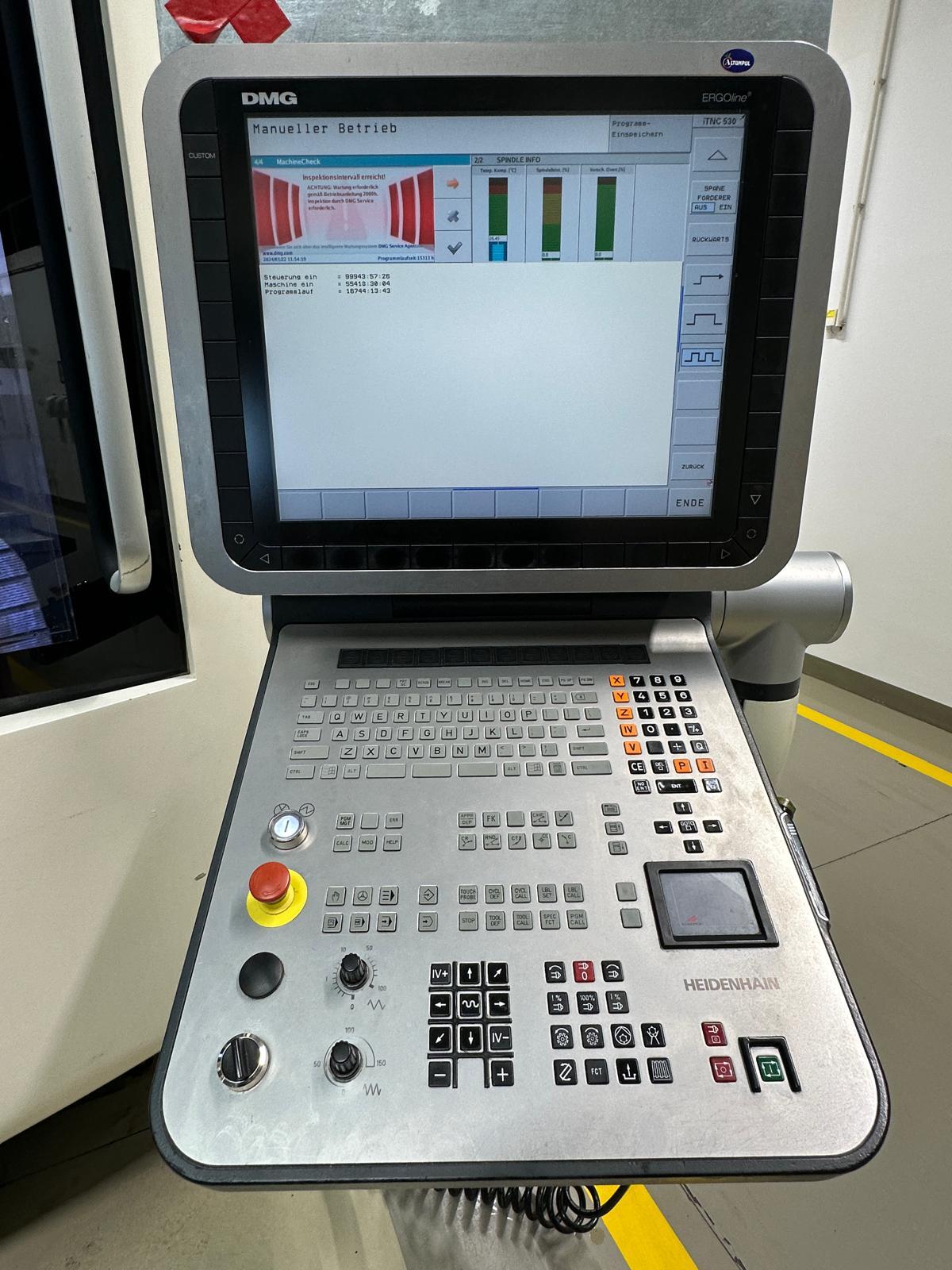

Typical CNC controls include the Heidenhain iTNC 530 or the Siemens Sinumerik 840D powerline, both ensuring precise and reliable motion control as well as user-friendly programming – either directly at the machine or via modern CAM software. The motor spindle offers high speed ranges with strong power reserves and excellent dynamic performance throughout the entire speed spectrum.

Special features and advantages

The DMG DMU 60 eVo is known for its compact design, combining high machine rigidity with a small footprint. The linear-guided axis geometry ensures precise positioning and minimal response times. Thermally optimized machine components contribute to stable machining results even during long production shifts.

Additional equipment options such as automatic workpiece measurement, probing systems, integrated coolant supply or tool breakage monitoring increase process reliability and make the DMG DMU 60 eVo suitable for automated manufacturing cells.

Fields of application and industries

The DMG DMU 60 eVo is widely used in industries with high demands on accuracy and surface quality, including:

• Mechanical and plant engineering
• Aerospace industry
• Automotive and motorsport industry
• Tool and mold making
• Medical technology and precision engineering

The machine excels particularly in complex free-form surfaces, multifunctional components and demanding simultaneous 5-axis machining operations.

The DMG DMU 60 eVo as a used machine

The DMG DMU 60 eVo is highly sought after as a used machine. Thanks to its robust construction, high repeat accuracy and extensive equipment, it is ideal for companies looking to expand or modernize their production capacity without the investment costs of a new machine.

When purchasing a used DMG DMU 60 eVo, particular attention should be paid to the condition of the spindle, guideways and control system, as well as to the service and maintenance history. Carefully inspected used machines with documented maintenance intervals often represent an excellent balance between performance and investment volume.

Alternative machines

Depending on specific requirements, other 5-axis universal machining centers may also be considered. Within the DMG Mori portfolio, the DMU 50 eVo and the DMU 70 eVo linear with larger working areas and increased dynamics are interesting options.

Further alternatives can be found from other manufacturers:

• Hermle C series, e.g. C 32 or C 42 – premium 5-axis machining centers
• Röders Tec RXU series – high-precision 5-axis machines
• Mikron HSM or MILL series – powerful 5-axis machining centers
• Kern Micro – ultra-precision 5-axis solutions for fine mechanical applications

Service and maintenance

Regular maintenance and professional service are essential for high machine availability and long service life of the DMG DMU 60 eVo. Information on service, maintenance and technical support can be found on our service page.
