Lathe machine DMG CTX Beta 800 V4

CNC Turning / Millingcenter

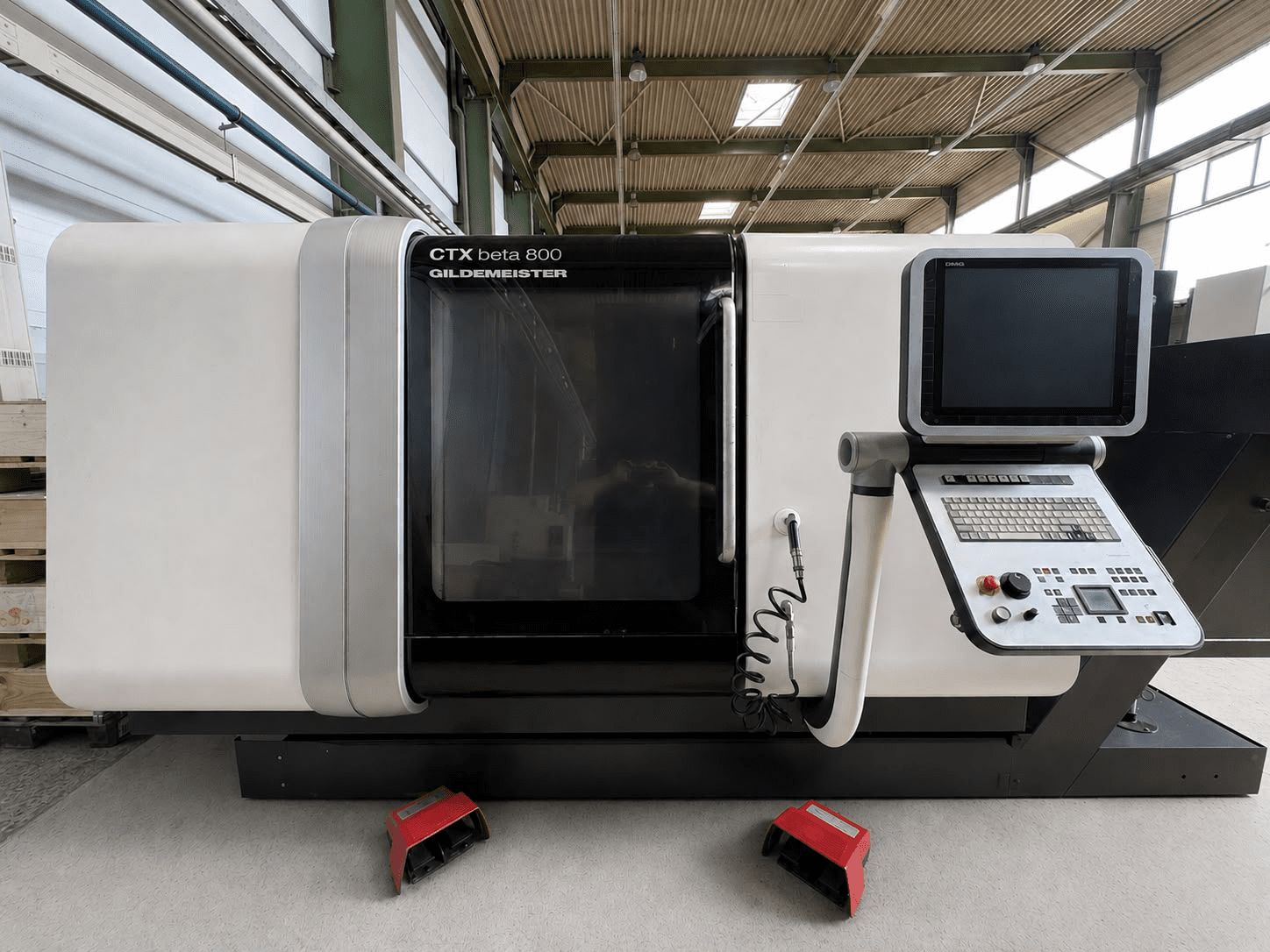

DMG CTX Beta 800 V4 01 Front view

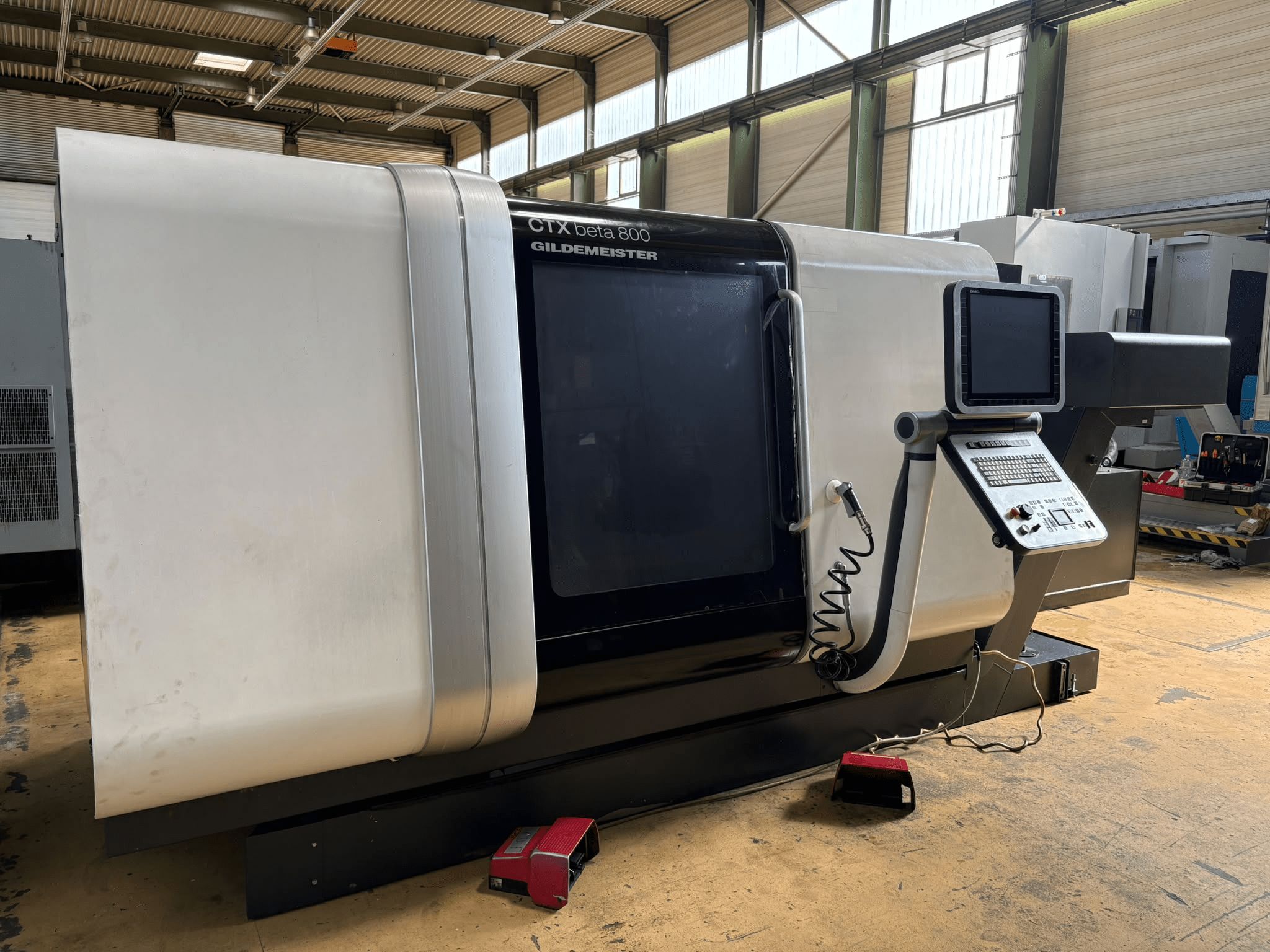

DMG CTX Beta 800 V4 02 Front view 2

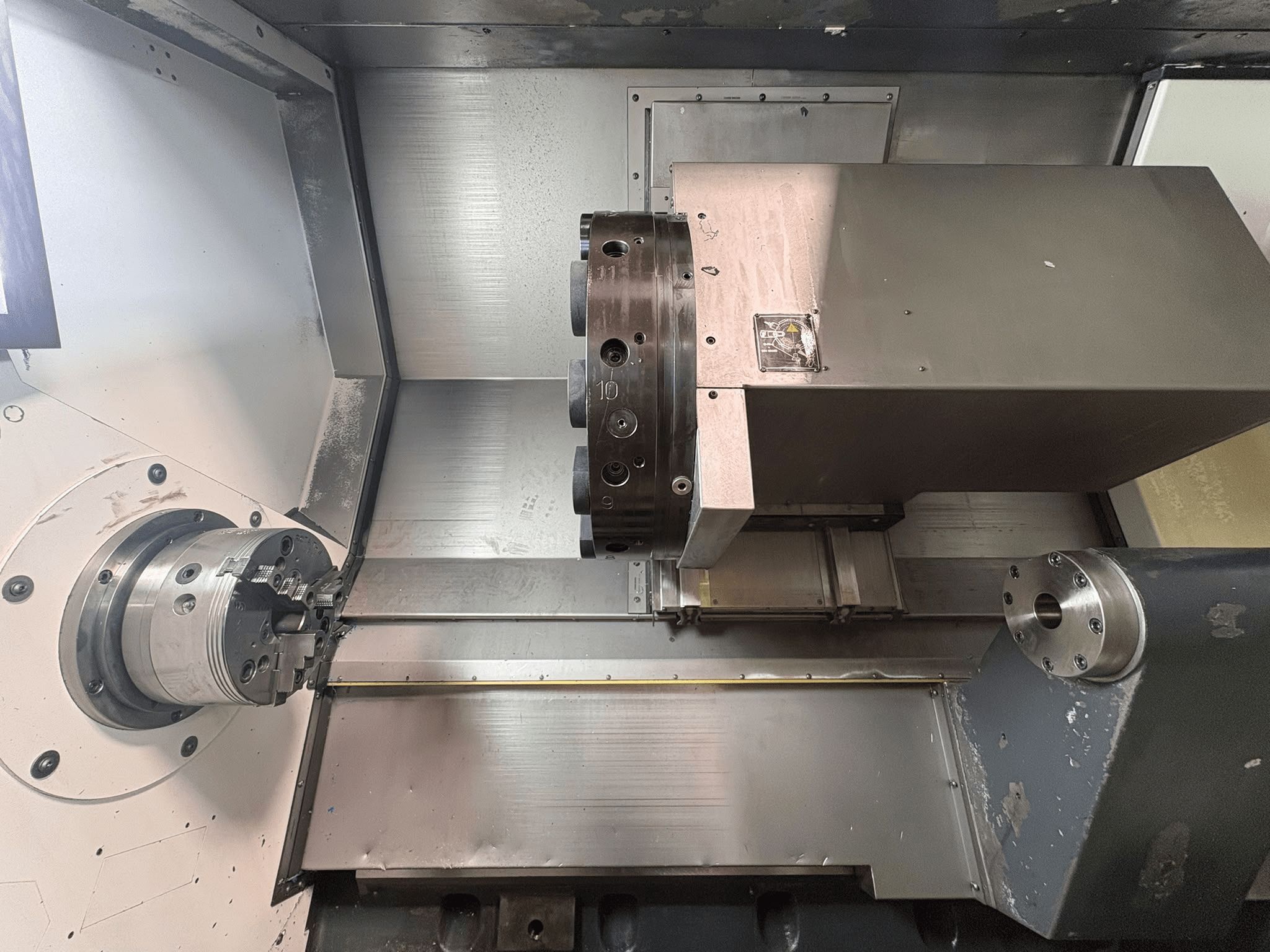

DMG CTX Beta 800 V4 03 Interior

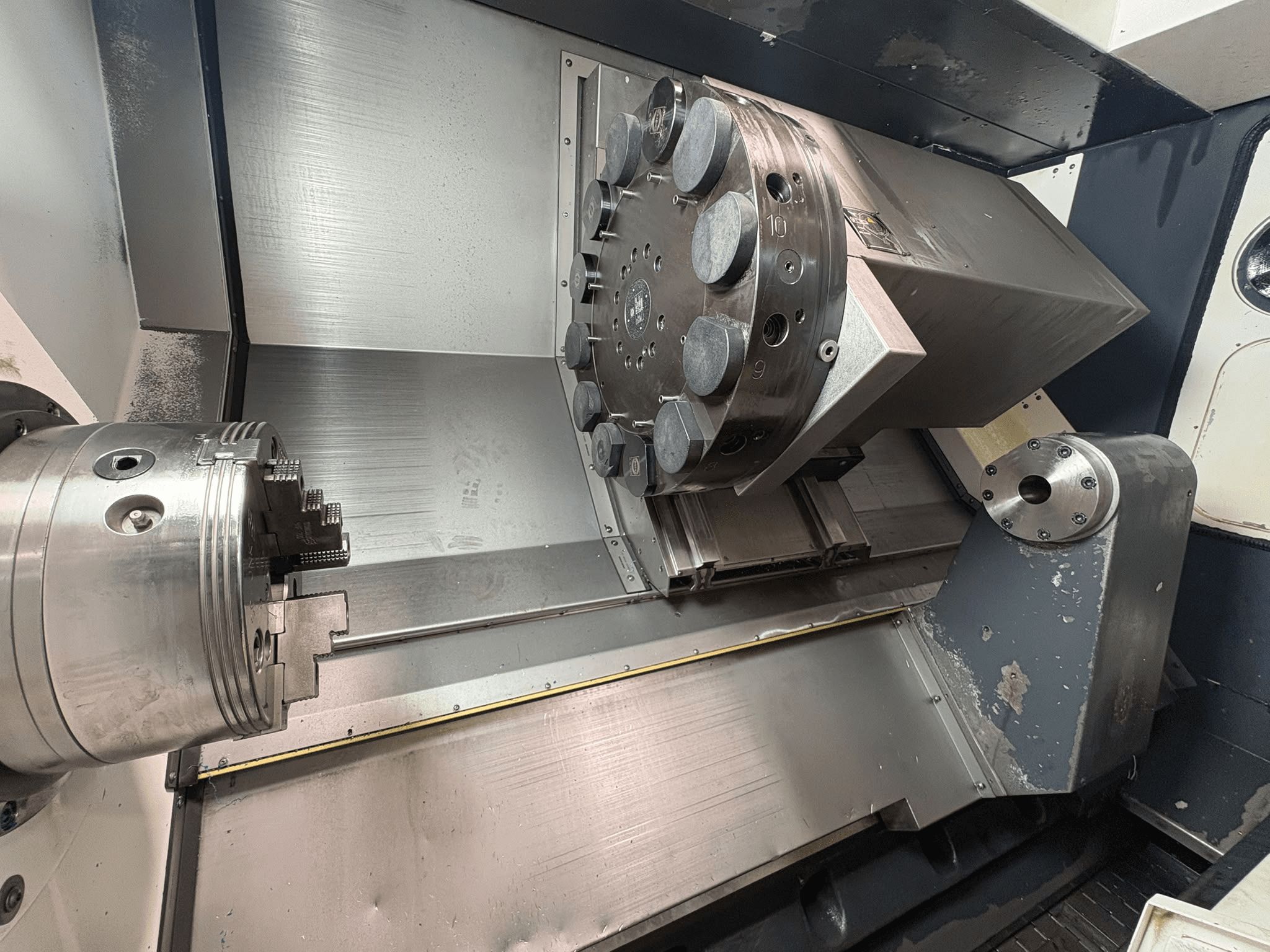

DMG CTX Beta 800 V4 04 Interior 2

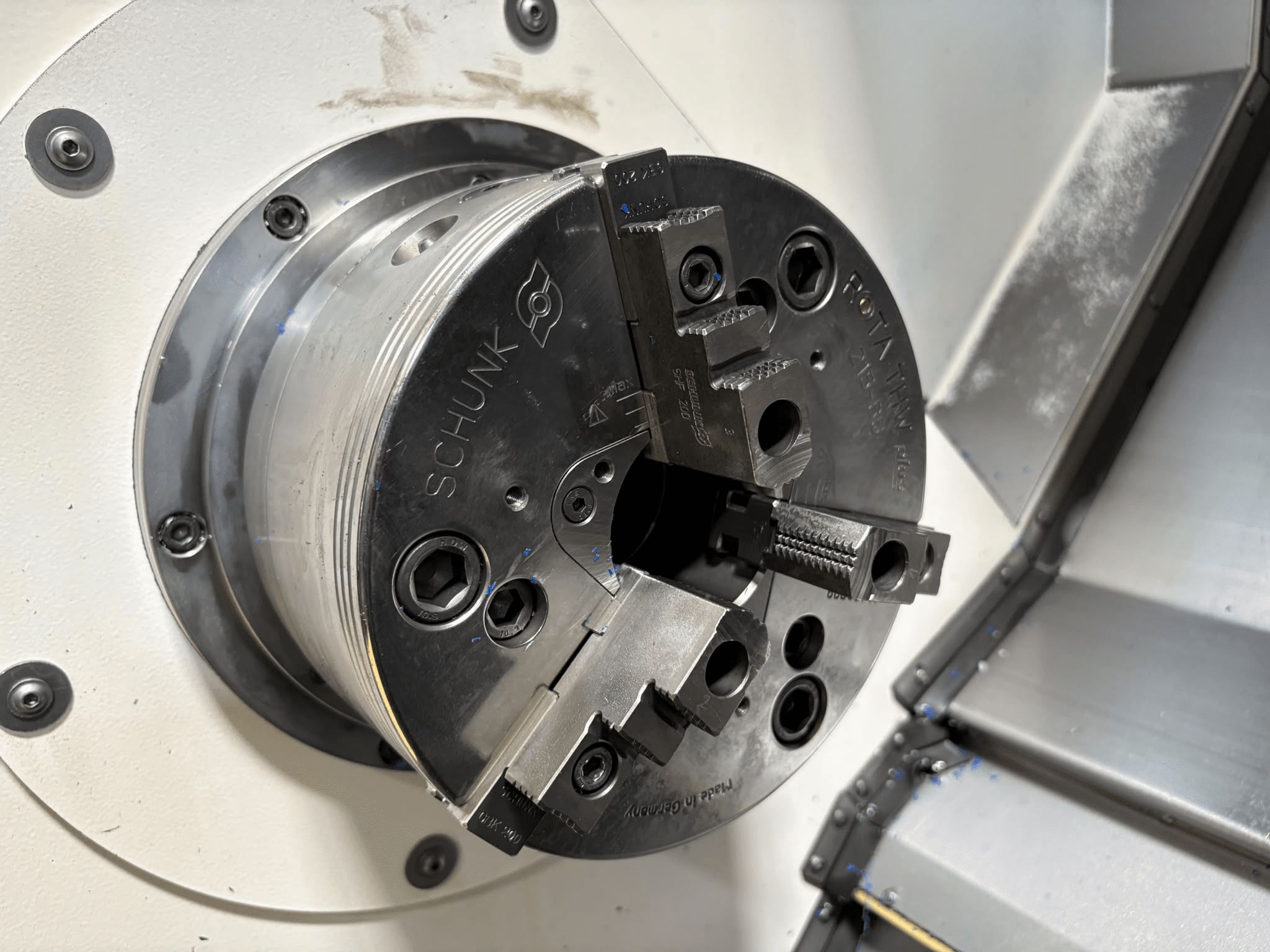

DMG CTX Beta 800 V4 05 Food

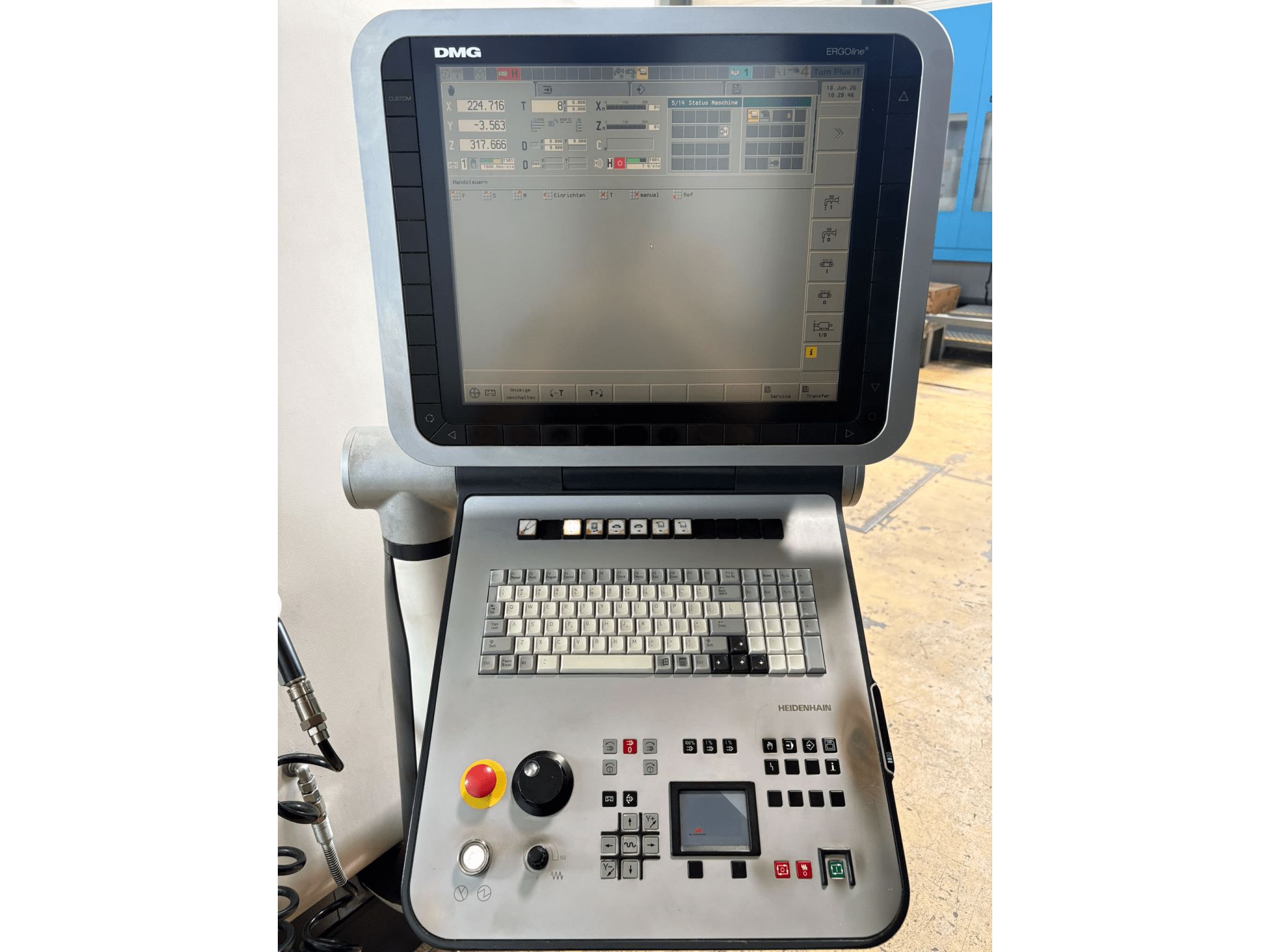

DMG CTX Beta 800 V4 06 Control system

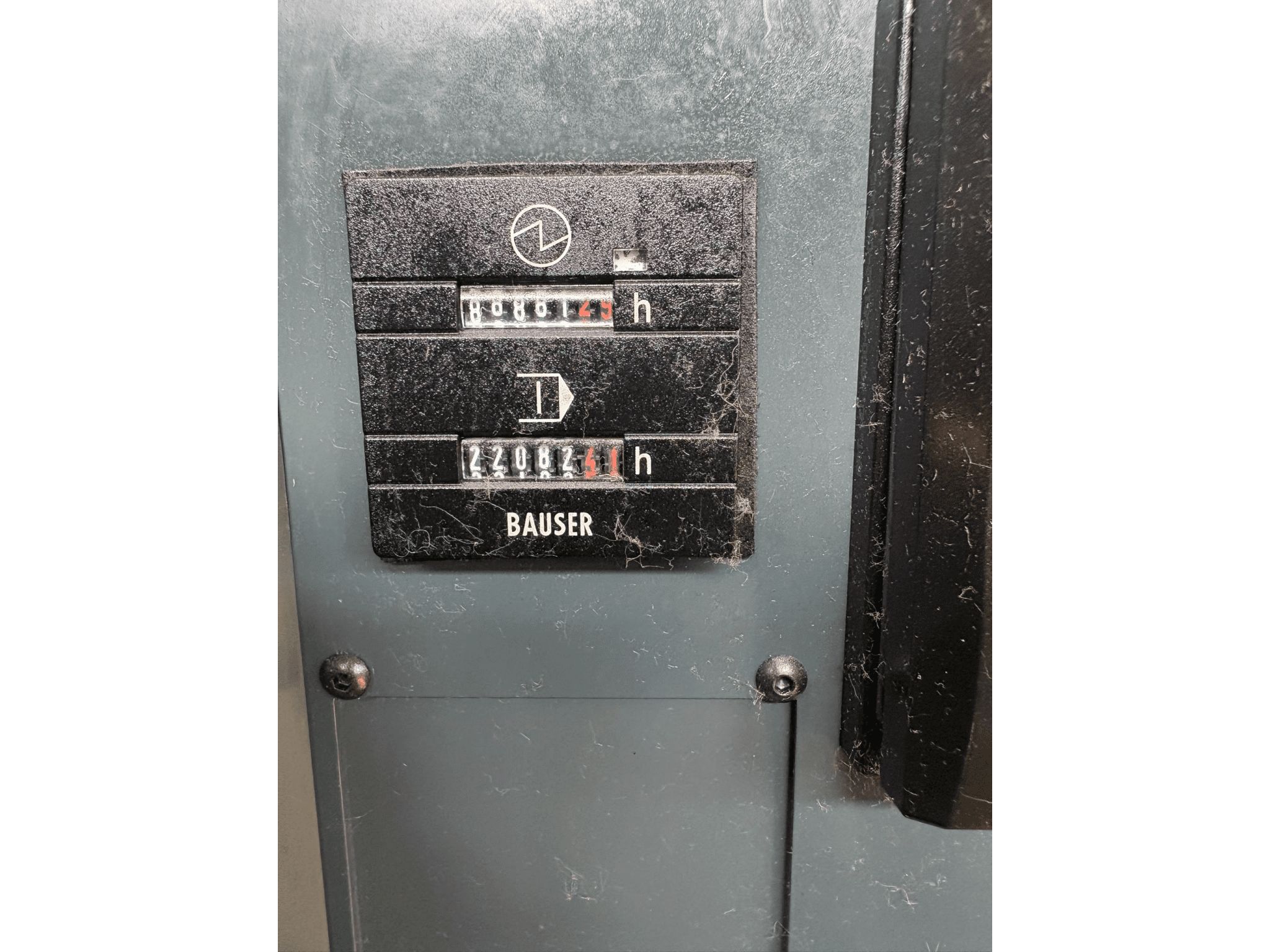

DMG CTX Beta 800 V4 07 Hours

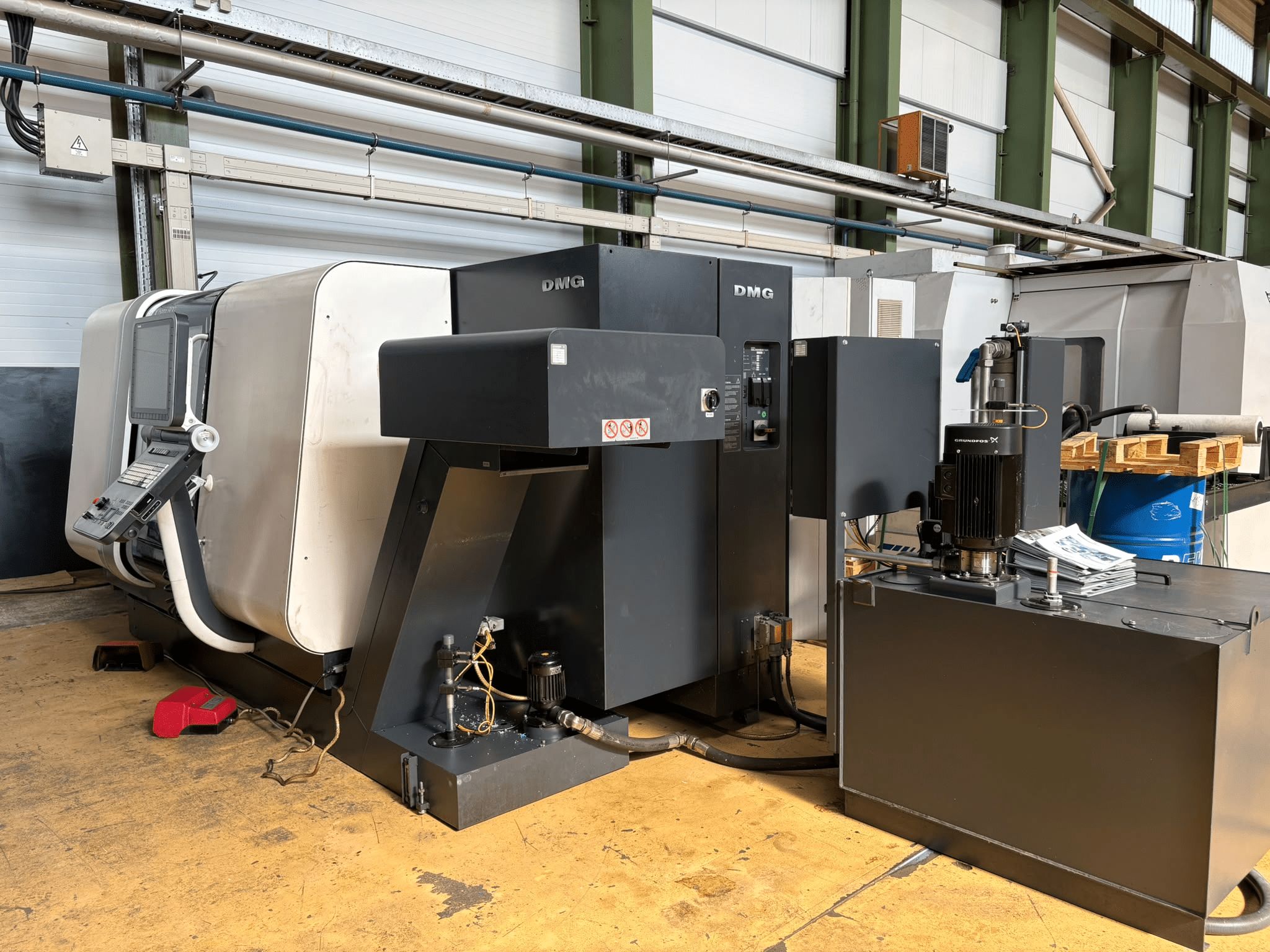

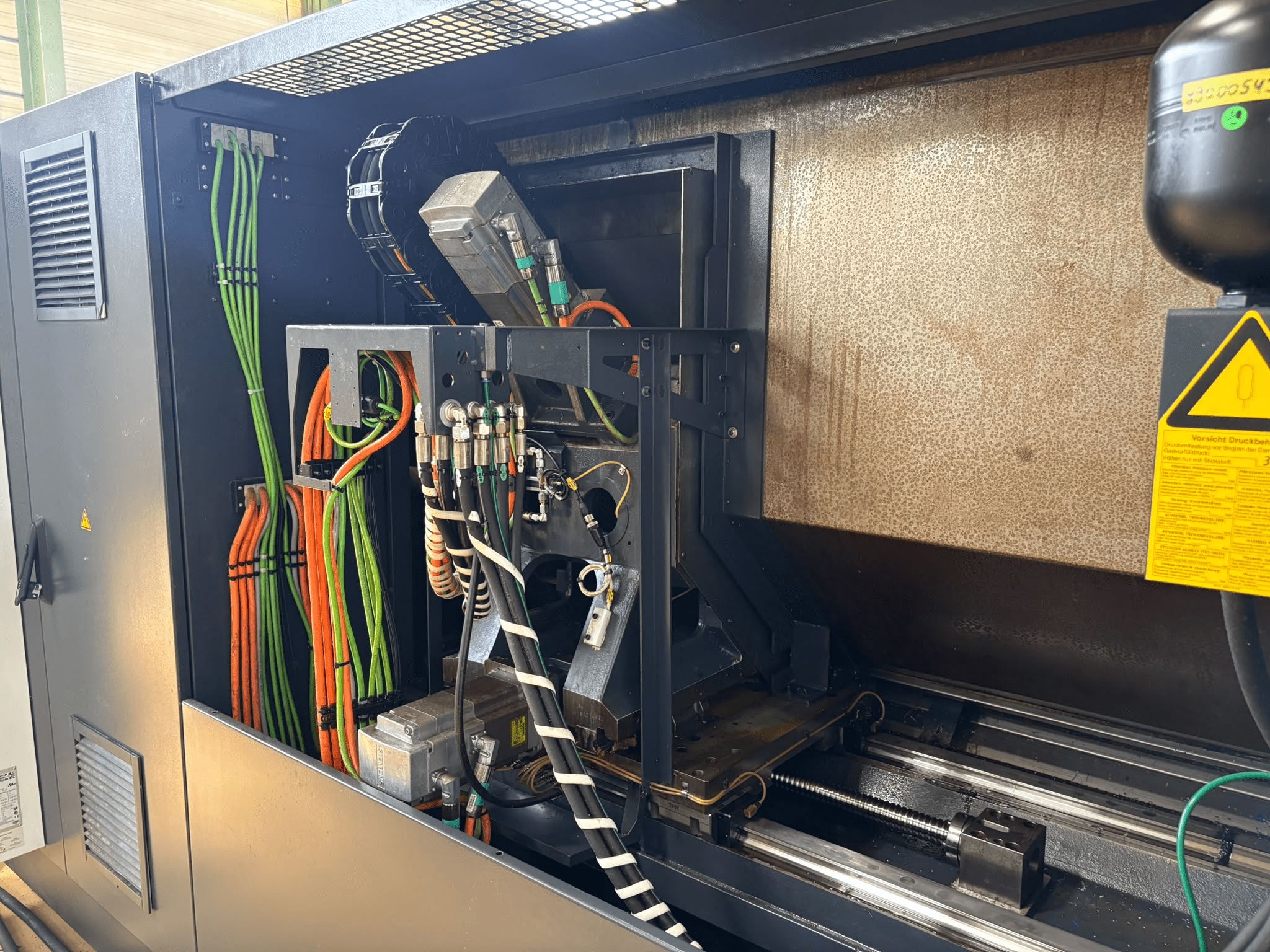

DMG CTX Beta 800 V4 08 Rear view
DMG CTX Beta 800 V4 09 Chip conveyor

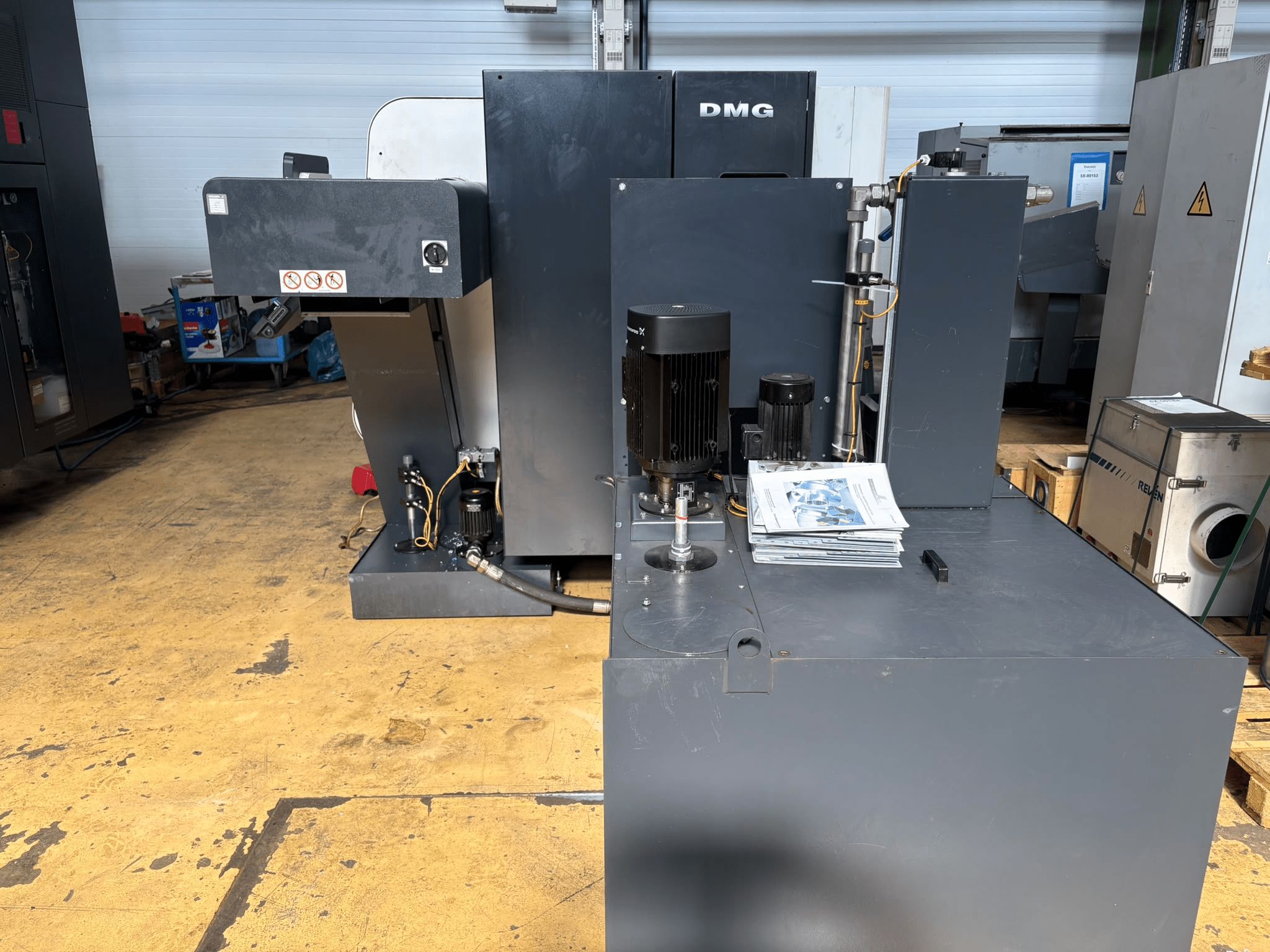

DMG CTX Beta 800 V4 10 Coolant tank

Request price for DMG CTX Beta 800 V4:

Used CNC Turning / Millingcenter DMG CTX Beta 800 V4

CNC Turning / Millingcenter
Machine type:DMG CTX Beta 800 V4
Control:Heidenhain 4290
Year:2009
Available after:sofort / now

SPECIFICATIONS:
Max. turning length: [mm]800
Turningdiameter: [mm]410
Max. swing over bed: [mm]700
Bar capacity: [mm]67
C-Axis

Main Spindle
Max. revolution: [rpm]5.000
Spindle power: [kW]34 / 25

Tailstock

Travel:
X-Axis: [mm]300
Y-Axis: [+/- mm]60
Z-Axis: [mm]800

Amount of turrets:1
Tool capacity:12
Tool:VDI 40
Driven Tools12

Equipment:
Chip conveyor
High pressure pumps
ColletsSchunk
Chip rinsing pistol
Data sheet: Used DMG CTX Beta 800 V4
Technical data: DMG CTX Beta 800 V4 (PDF)
