Used DMG CTX Beta 500 V6
CNC Turning / Millingcenter
Request price for DMG CTX Beta 500 V6:

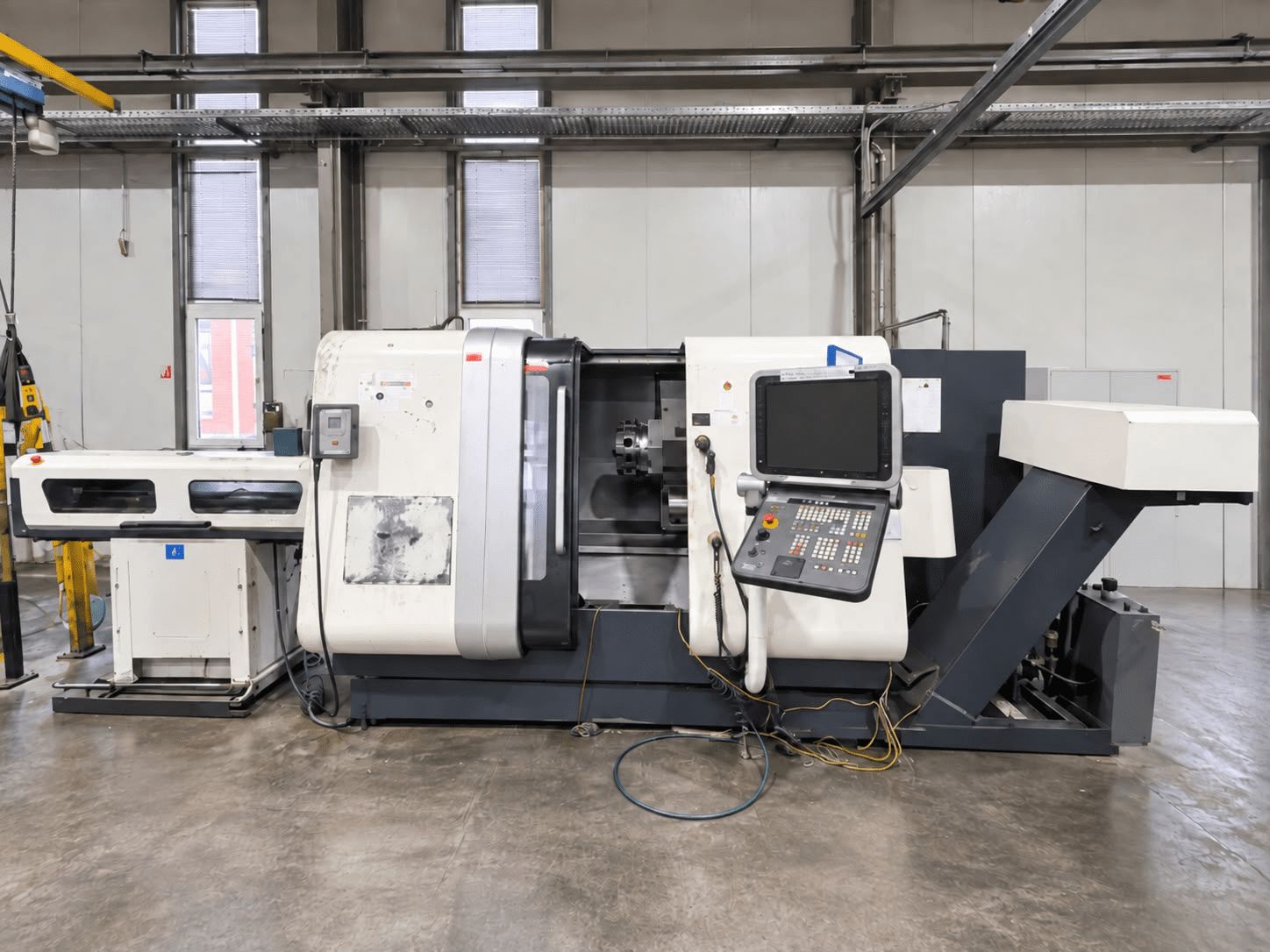

Used Lathe DMG CTX Beta 500 V6
- Excellent value for the money
- Proven Control Technology: Siemens 840 D
- Complete machining in a single setup
| CNC Turning / Millingcenter | |
| Machine type: | DMG CTX beta 500 V6 |

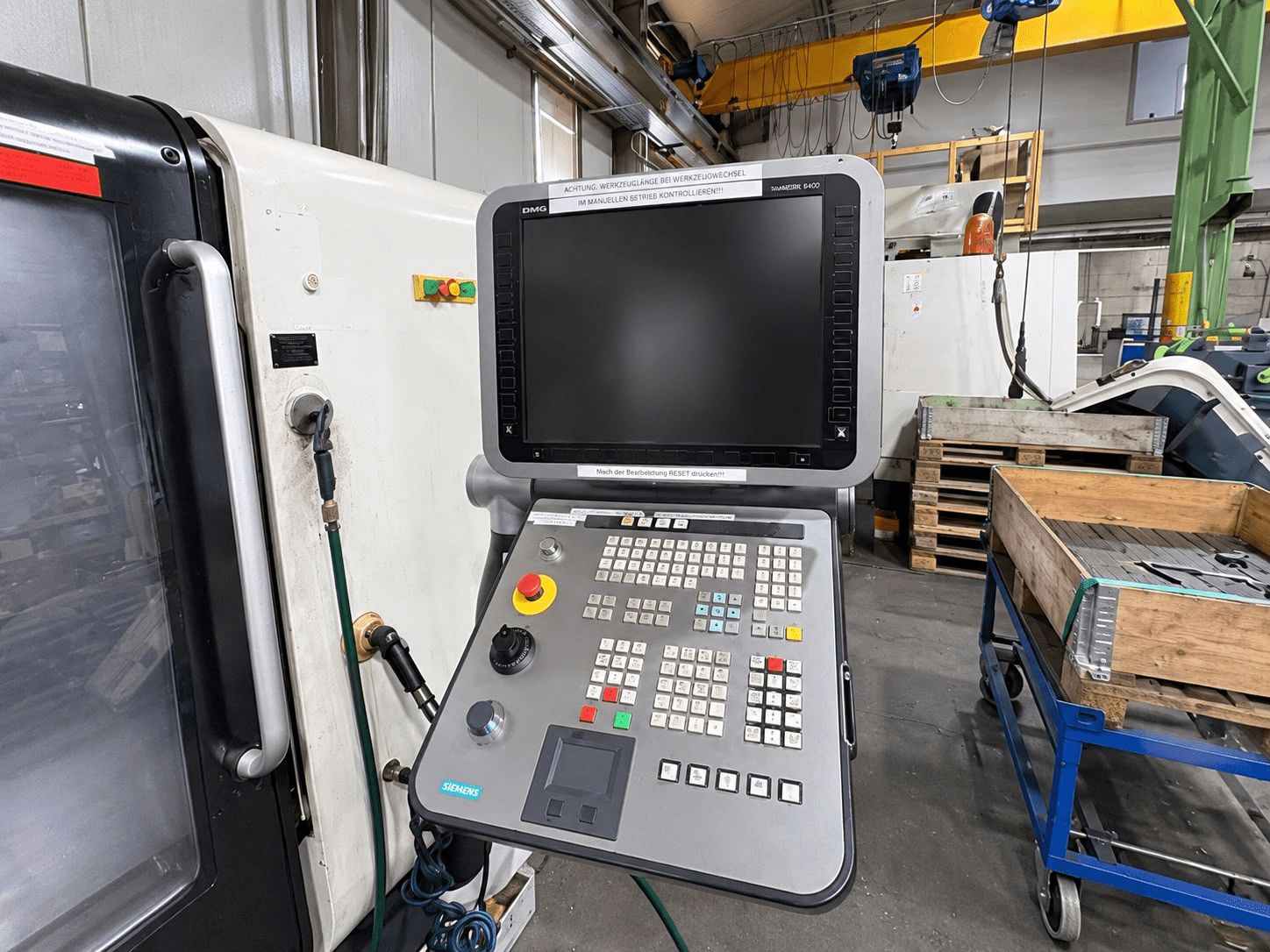

| Control: | Siemens 840 D Shopturn |
| Year: | 2012 |
| Working hours: [h] | 42.067 |
| Spindle running time: [h] | 20.209 |
| SPECIFICATIONS: | |
| Max. turning length: [mm] | 500 |
| Turningdiameter: [mm] | 410 |
| Max. swing over bed: [mm] | 700 |
| Spindle bore: [mm] | 87 |
| Bar capacity: [mm] | 77 |
| C-Axis | 0,01° |
| Main Spindle | ISM 76 |
| Max. revolution: [rpm] | 5.000 |
| Spindle power: [kW] | 25 / 34 |
| Torque: [Nm] | 280 |
| Collet chuck | Hainbuch Spantop Nova 65 |
| Subspindle | ISM 52 |
| Max. revolution: [rpm] | 5.000 |
| 3-jaw chuck [mm] | Berg KHL 200 |
| Travel: | |
| Y-Axis: [+/- mm] | +/- 60 |
| Amount of turrets: | 1 |
| Tool: | VDI 40 |
| Driven Tools | 12 |
| revolution driven tools | 4.000 |
| drive power driven tools [kW]: | 11,3 |
| Equipment: | |
| Chip conveyor | |
| Short Bar Loader | LNS QLS 80 S2 |
| Direct linear scales | X,Y |
| High pressure pumps | |
| Toggle filter | |
| Tool setter | |
Data sheet: Used DMG CTX Beta 500 V6
Used Lathe DMG CTX Beta 500 V6
- Excellent value for the money
- Proven Control Technology: Siemens 840 D
- Complete machining in a single setup
| CNC Turning / Millingcenter | |
| Machine type: | DMG CTX beta 500 V6 |
| Control: | Siemens 840 D Shopturn |
| Year: | 2012 |
| Working hours: [h] | 42.067 |
| Spindle running time: [h] | 20.209 |
| SPECIFICATIONS: | |
| Max. turning length: [mm] | 500 |
| Turningdiameter: [mm] | 410 |
| Max. swing over bed: [mm] | 700 |
| Spindle bore: [mm] | 87 |
| Bar capacity: [mm] | 77 |
| C-Axis | 0,01° |
| Main Spindle | ISM 76 |
| Max. revolution: [rpm] | 5.000 |
| Spindle power: [kW] | 25 / 34 |
| Torque: [Nm] | 280 |
| Collet chuck | Hainbuch Spantop Nova 65 |
| Subspindle | ISM 52 |
| Max. revolution: [rpm] | 5.000 |
| 3-jaw chuck [mm] | Berg KHL 200 |
| Travel: | |
| Y-Axis: [+/- mm] | +/- 60 |
| Amount of turrets: | 1 |
| Tool: | VDI 40 |
| Driven Tools | 12 |
| revolution driven tools | 4.000 |
| drive power driven tools [kW]: | 11,3 |
| Equipment: | |
| Chip conveyor | |
| Short Bar Loader | LNS QLS 80 S2 |
| Direct linear scales | X,Y |
| High pressure pumps | |
| Toggle filter | |
| Tool setter | |
Data sheet: Used DMG CTX Beta 500 V6
Request price for DMG CTX Beta 500 V6:
