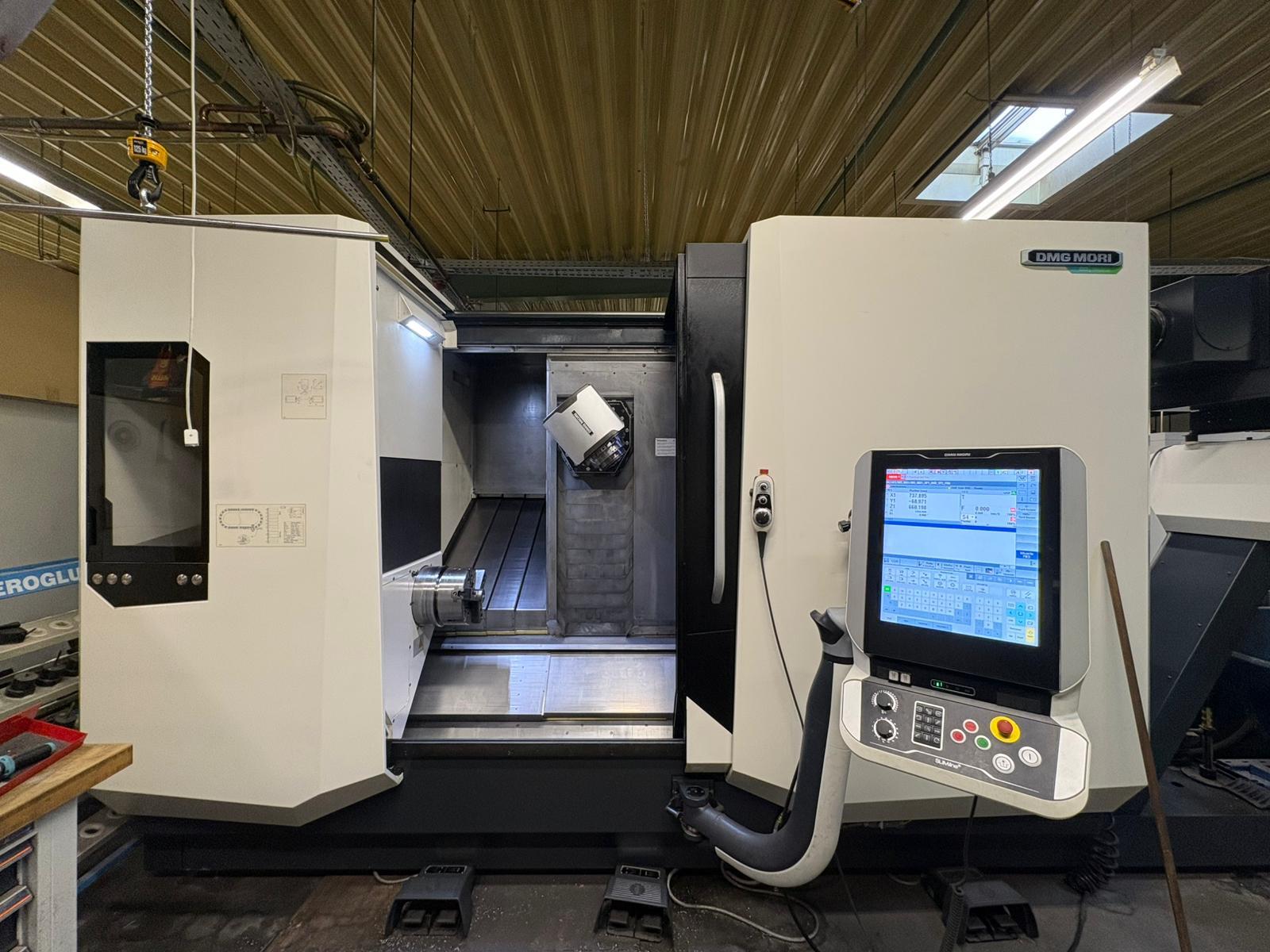

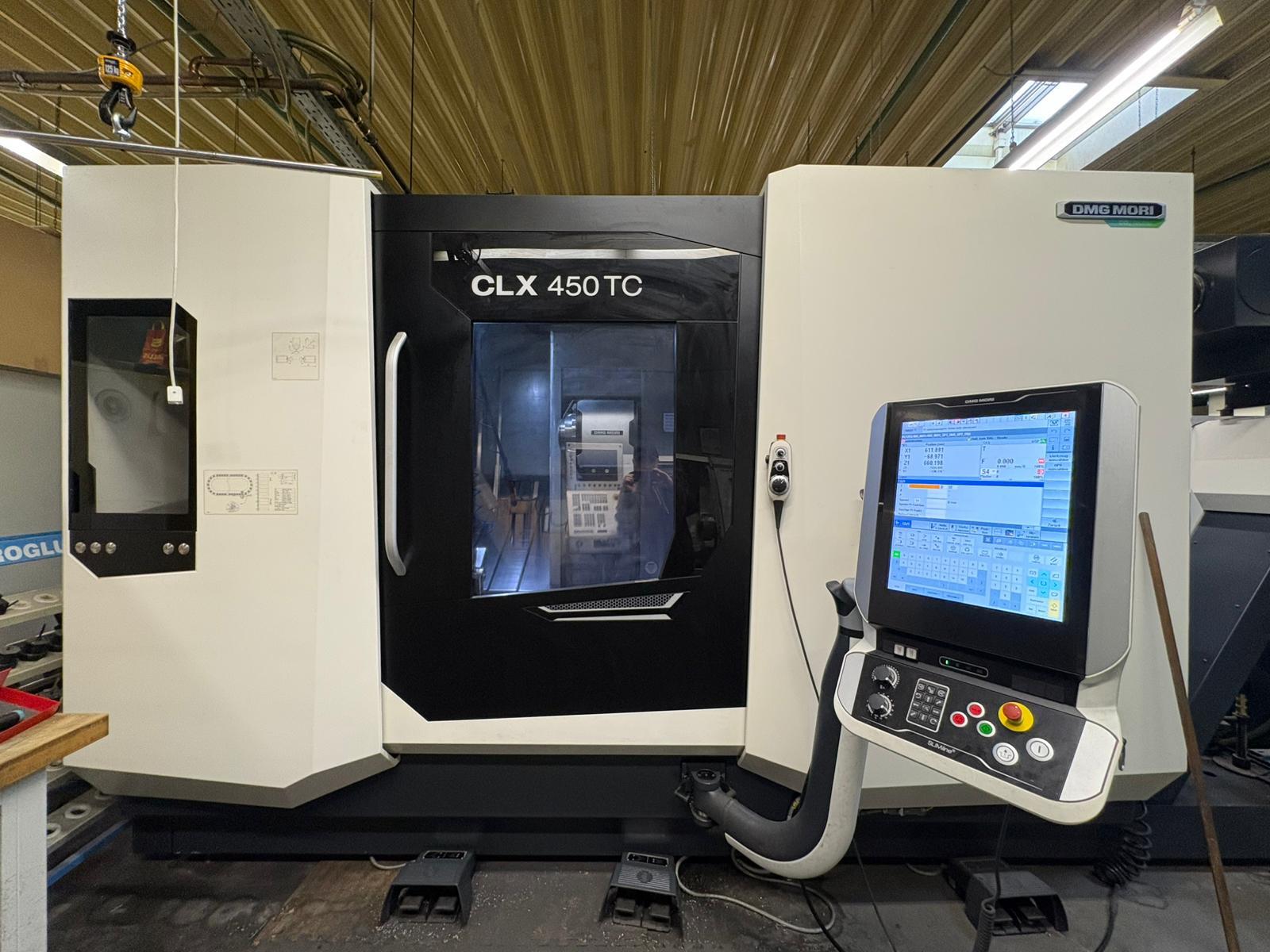

Used DMG Mori CLX 450 TC
CNC Milling / Turningcenter
Request price for DMG Mori CLX 450 TC:
Used lathe DMG Mori CLX 450 TC
| CNC Milling / Turningcenter | |
| Machine type: | DMG Mori CLX 450 TC |

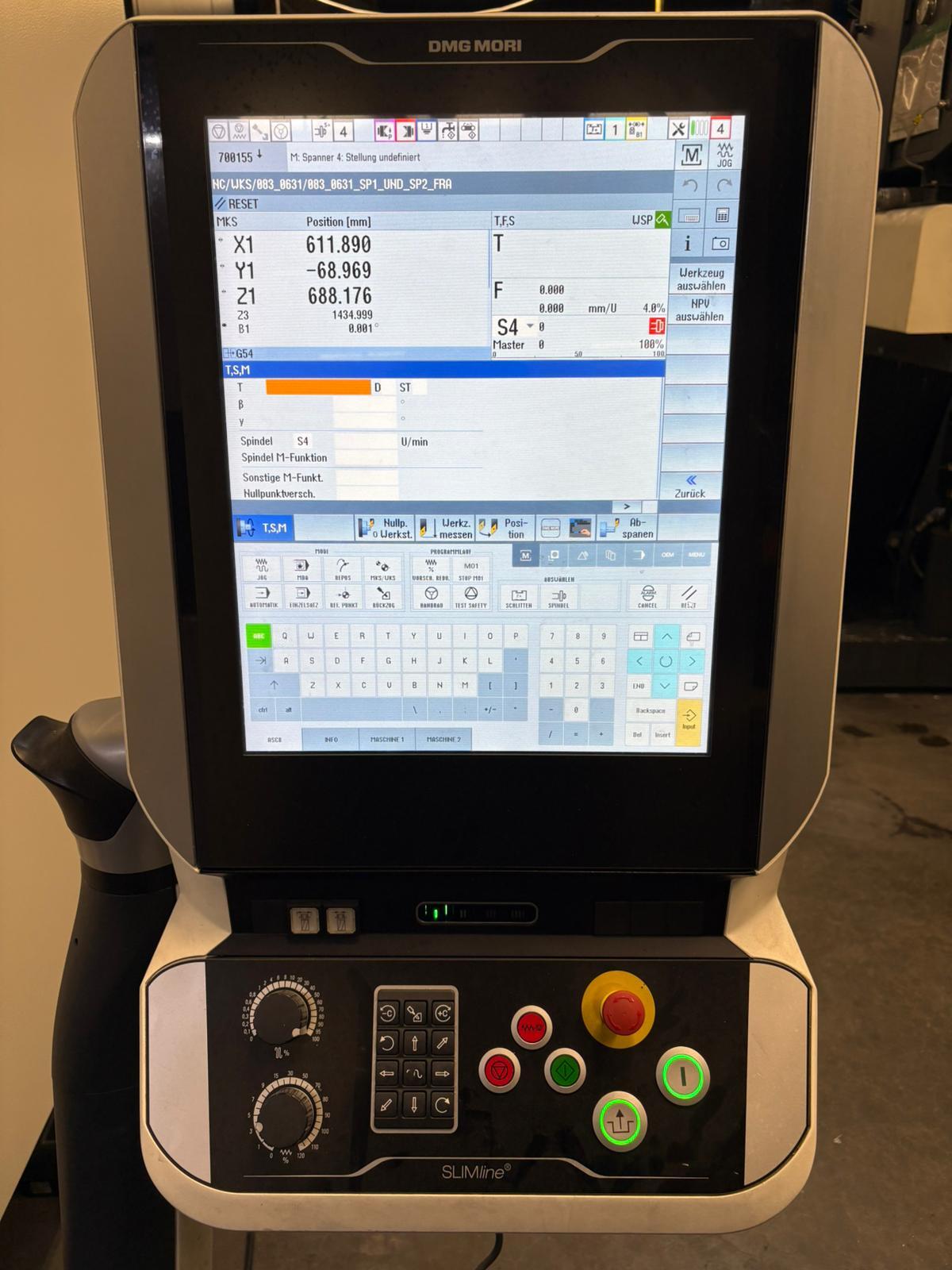

| Control: | Siemens 840 D sl Operate Slimline |
| Year: | 2023 |
| SPECIFICATIONS: | |
| Max. turning length: [mm] | 1.100 |
| Turningdiameter: [mm] | 400 |
| Main Spindle | ISM 65 |
| Spindle speeds: [rpm] | 5.000 |
| Spindle power: [kW] | 14 / 17 |
| Torque: [Nm] | 275 / 345 |
| Spindle nose: | A2-8 |
| Bar capacity: [mm] | 67 |

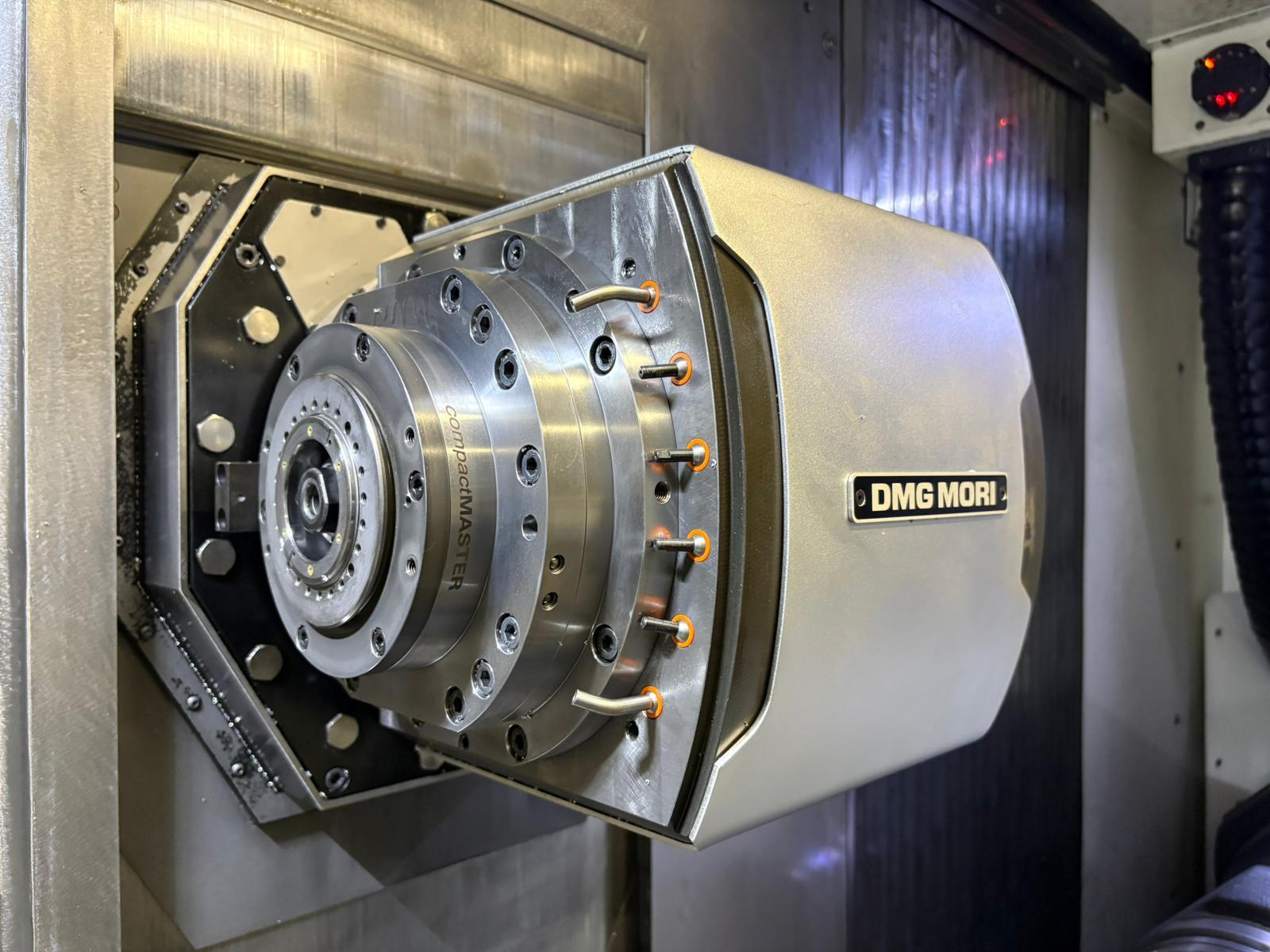

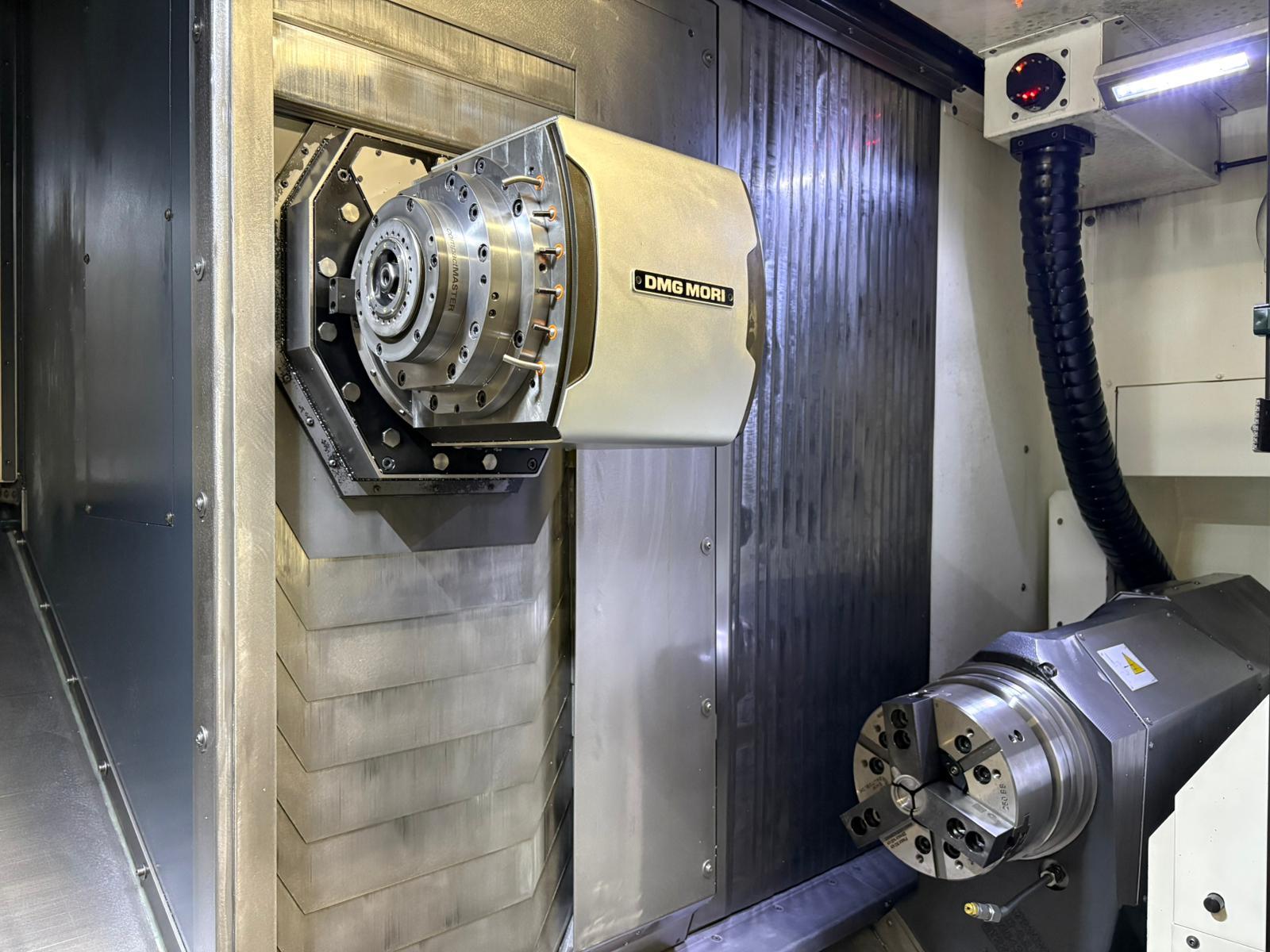

| C-Axis | |
| CNC-Spindle tilting for cutting and turningopertations | |
| Max. revolution: [rpm] | 12.000 |
| Spindle power: [kW] | 8,8 / 10,5 |
| Torque: [Nm] | 73 / 90 |
| Tool: | HSK 63 |
| Tool capacity: | 60 |
| Subspindle | ISM 65 |
| Spindle nose: | A2-8 |
| Max. revolution: [rpm] | 5.000 |
| Spindle power: [kW] | 14 / 17 |
| Torque: [Nm] | 275 / 345 |
| C-Axis | |
| X-Axis: [mm] | 750 |
| Y-Axis: [+/- mm] | 100 |
| Z-Axis: [mm] | 1.100 |
| B-Axes | +/- 120 mm |
| Equipment: | |

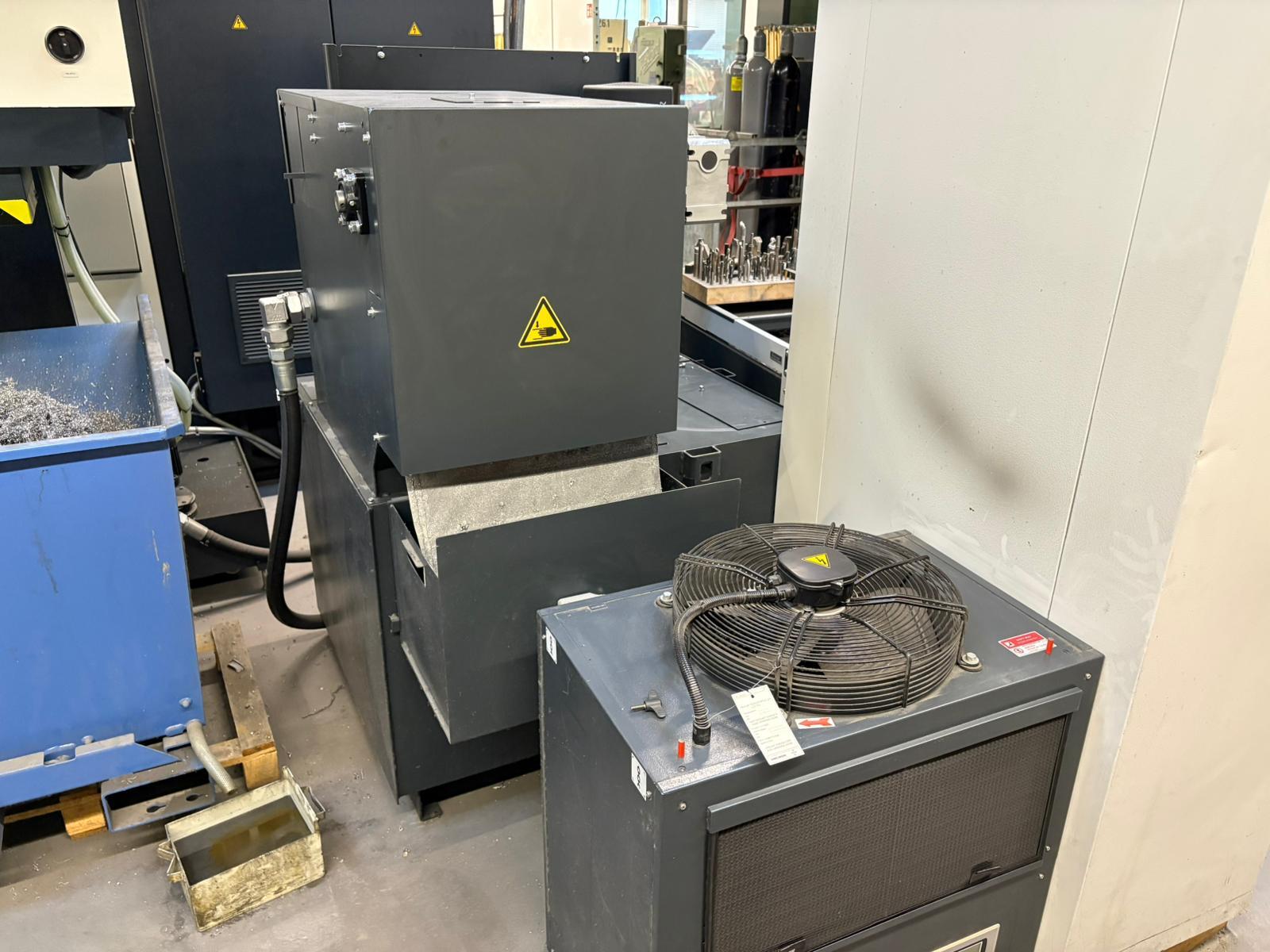

| Chip conveyor | |
| Direct linear scales | |
| Chip rinsing pistol | |

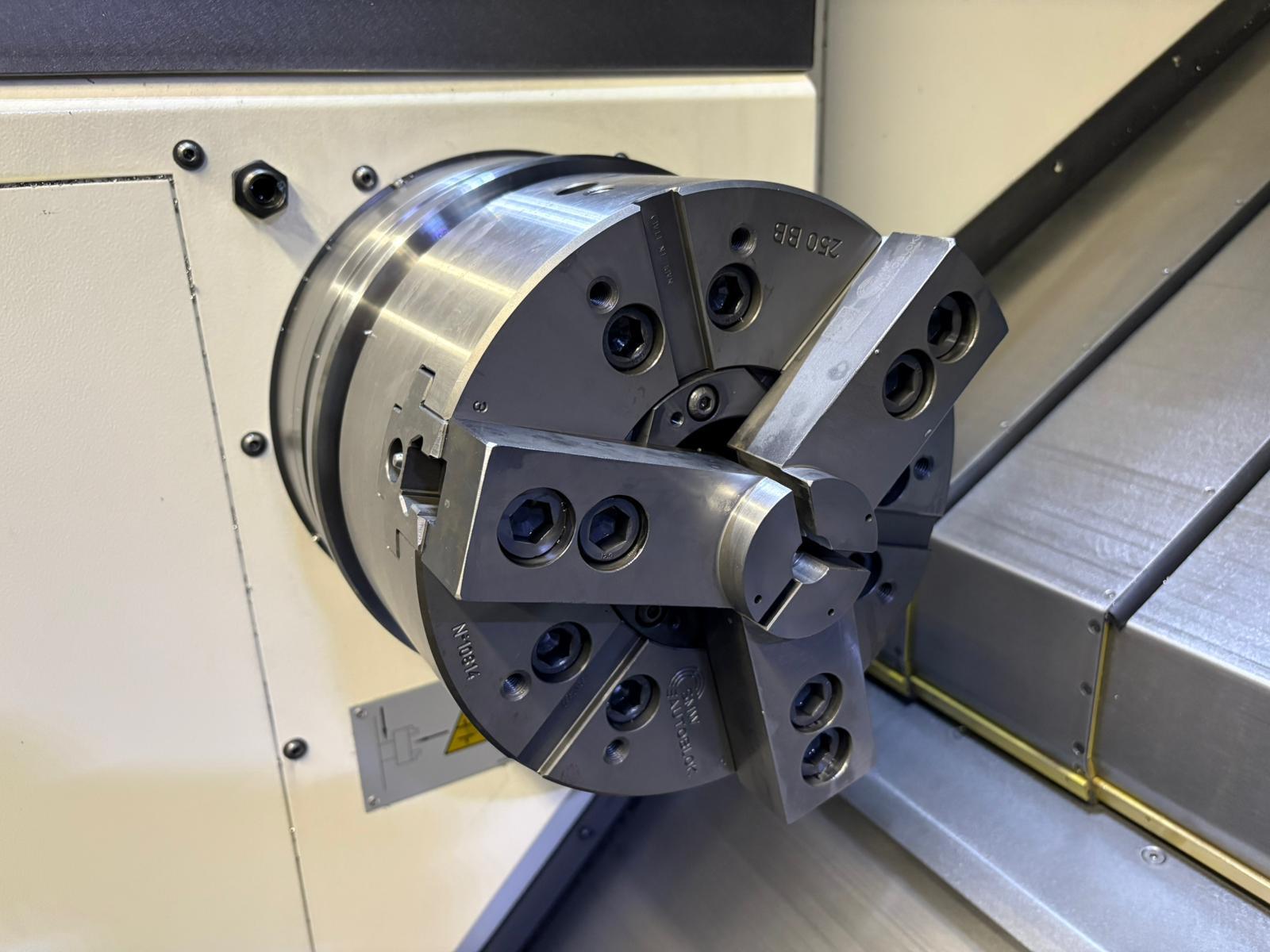

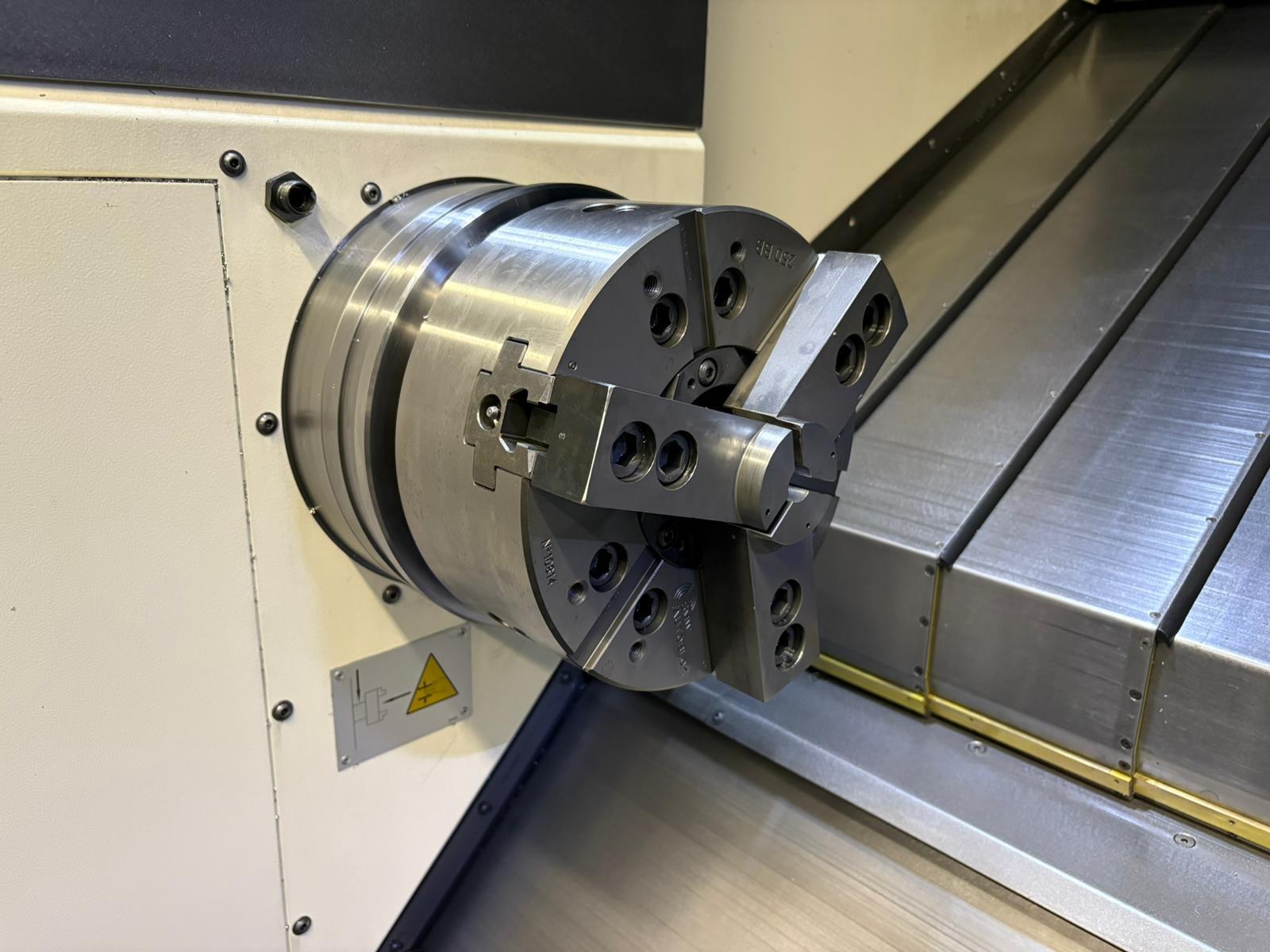

| 3-jaw chuck [mm] | SMW-Autoblok BBD 250/78 |
| 3-jaw chuck [mm] | SMW BBD 250/78 |
| Reitstockfunktion Gegenspindel | |
| High pressure pumps | 8 bar / 20 bar |
| Cooling tank: [l] | 600 |

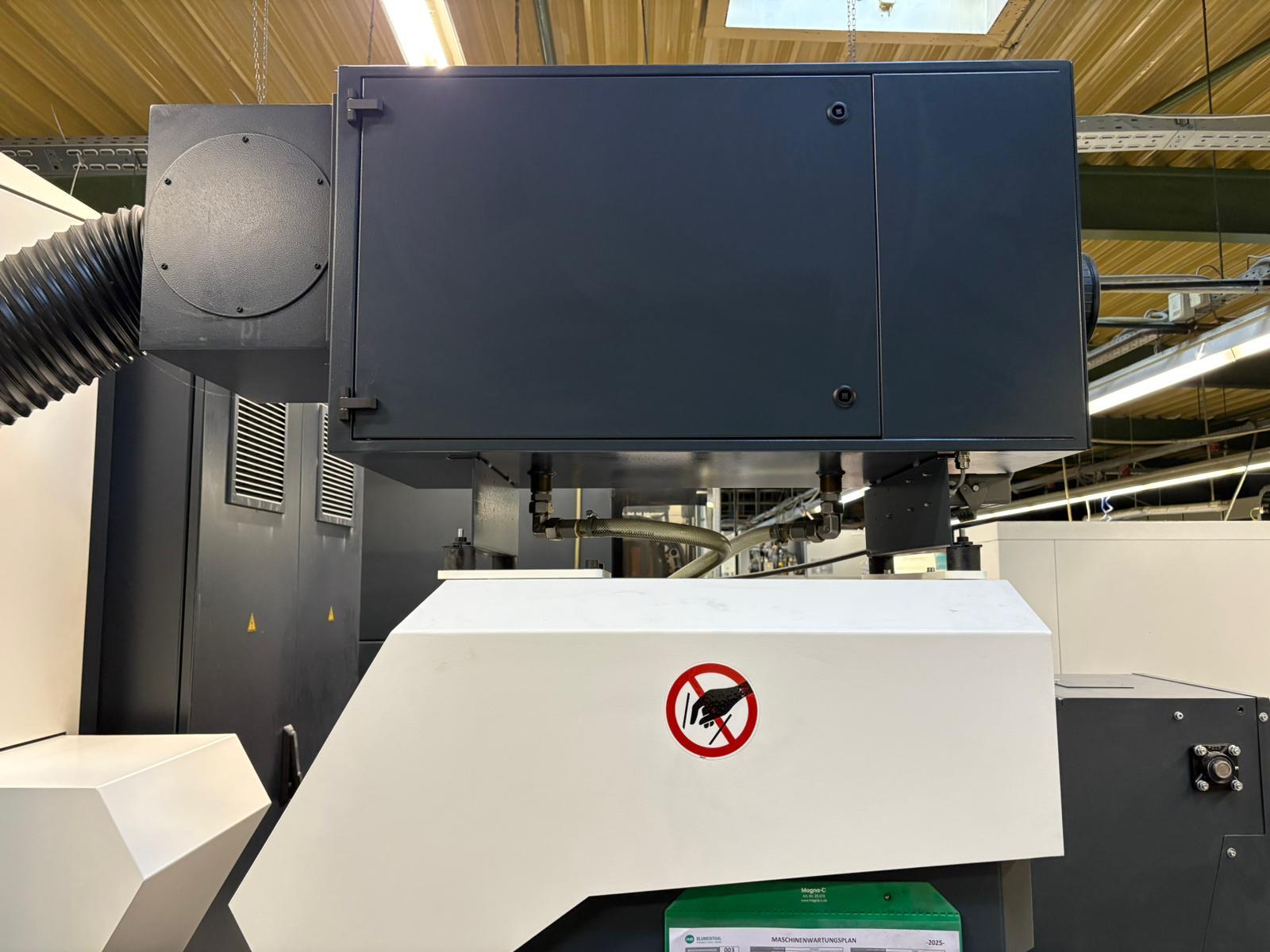

| Oil mist separator | |
| Caliper | Renishaw RMP 40 |
Used lathe DMG Mori CLX 450 TC
| CNC Milling / Turningcenter | |
| Machine type: | DMG Mori CLX 450 TC |
| Control: | Siemens 840 D sl Operate Slimline |
| Year: | 2023 |
| SPECIFICATIONS: | |
| Max. turning length: [mm] | 1.100 |
| Turningdiameter: [mm] | 400 |
| Main Spindle | ISM 65 |
| Spindle speeds: [rpm] | 5.000 |
| Spindle power: [kW] | 14 / 17 |
| Torque: [Nm] | 275 / 345 |
| Spindle nose: | A2-8 |
| Bar capacity: [mm] | 67 |
| C-Axis | |
| CNC-Spindle tilting for cutting and turningopertations | |
| Max. revolution: [rpm] | 12.000 |
| Spindle power: [kW] | 8,8 / 10,5 |
| Torque: [Nm] | 73 / 90 |
| Tool: | HSK 63 |
| Tool capacity: | 60 |
| Subspindle | ISM 65 |
| Spindle nose: | A2-8 |
| Max. revolution: [rpm] | 5.000 |
| Spindle power: [kW] | 14 / 17 |
| Torque: [Nm] | 275 / 345 |
| C-Axis | |
| X-Axis: [mm] | 750 |
| Y-Axis: [+/- mm] | 100 |
| Z-Axis: [mm] | 1.100 |
| B-Axes | +/- 120 mm |
| Equipment: | |
| Chip conveyor | |
| Direct linear scales | |
| Chip rinsing pistol | |
| 3-jaw chuck [mm] | SMW-Autoblok BBD 250/78 |
| 3-jaw chuck [mm] | SMW BBD 250/78 |
| Reitstockfunktion Gegenspindel | |
| High pressure pumps | 8 bar / 20 bar |
| Cooling tank: [l] | 600 |
| Oil mist separator | |
| Caliper | Renishaw RMP 40 |
Request price for DMG Mori CLX 450 TC:
DMG Mori CLX 450 TC – High-Performance Milling and Turning Center for Flexible Manufacturing
The DMG Mori CLX 450 TC is a high-performance CNC milling and turning center designed for highly precise milling and turning operations. Its combination of milling and turning units makes the machine ideal for producing complex workpieces with high accuracy requirements in short cycle times. The machine is controlled via the proven Siemens 840D sl Operate Slimline, ensuring convenient programming and reliable process control.
Technical Details of the DMG Mori CLX 450 TC
The machine features a working range with an X-travel of approximately 450 mm, Y-travel 400 mm, and Z-travel 600 mm, allowing medium-sized workpieces to be processed without difficulty. With a maximum turning power of 25 kW and spindle speeds of up to 6,000 rpm (depending on configuration), the CLX 450 TC provides sufficient power for demanding workpieces. The workpiece is clamped via the standard chuck, complemented by a precise turret for fast tool changes. The combined milling and turning unit allows simultaneous operations, significantly reducing setup times.
The machine is equipped with a stable base, thermally optimized guides, and a powerful drive, ensuring highly reliable and repeatable machining. This makes the CLX 450 TC especially suitable for small series, prototype production, and the manufacture of complex components requiring both milling and turning.
Key Features & Advantages
The CLX 450 TC features a compact design with high rigidity, improving both precision and dynamic stability. Thanks to the Siemens 840D sl Slimline control, programming is intuitive, and process data can be monitored efficiently. The machine is also suitable for use in automated production cells and can be easily integrated into existing production lines.
Applications & Industries
The DMG Mori CLX 450 TC is commonly used in:
- Automotive industry – prototypes, gearbox components, complex series parts
- Aerospace – components with high dimensional accuracy and surface quality requirements
- Mechanical engineering – components for assemblies and aggregates
- Medical technology – precision parts for instruments and implants
Used Machines – CLX 450 TC
This machine is a used model with approximately three years of operation and is in excellent condition. Equipped with Siemens 840D sl Operate Slimline, it provides state-of-the-art control technology and high process reliability. A used machine of this age is ideal for companies looking to expand production capacity quickly without compromising on high-quality technology.
Service & Maintenance
For further information on maintenance, service, and support for the CLX 450 TC, please visit our service page.
Alternatives
Other milling and turning centers from the DMG Mori portfolio may also be interesting depending on workpiece size and application, e.g.:
- DMG CLX 450 V4
- DMG CTX beta 1250 TC
- DMG GMX 300 linear
- DMG GMX 400 Linear
- DMG Gildemeister Twin 65 RG 2
- DMG MORI NLX2500Y
- DMG NEF 400
These machines cover different performance ranges and allow selection based on individual requirements for precision, workpiece size, and automation.
