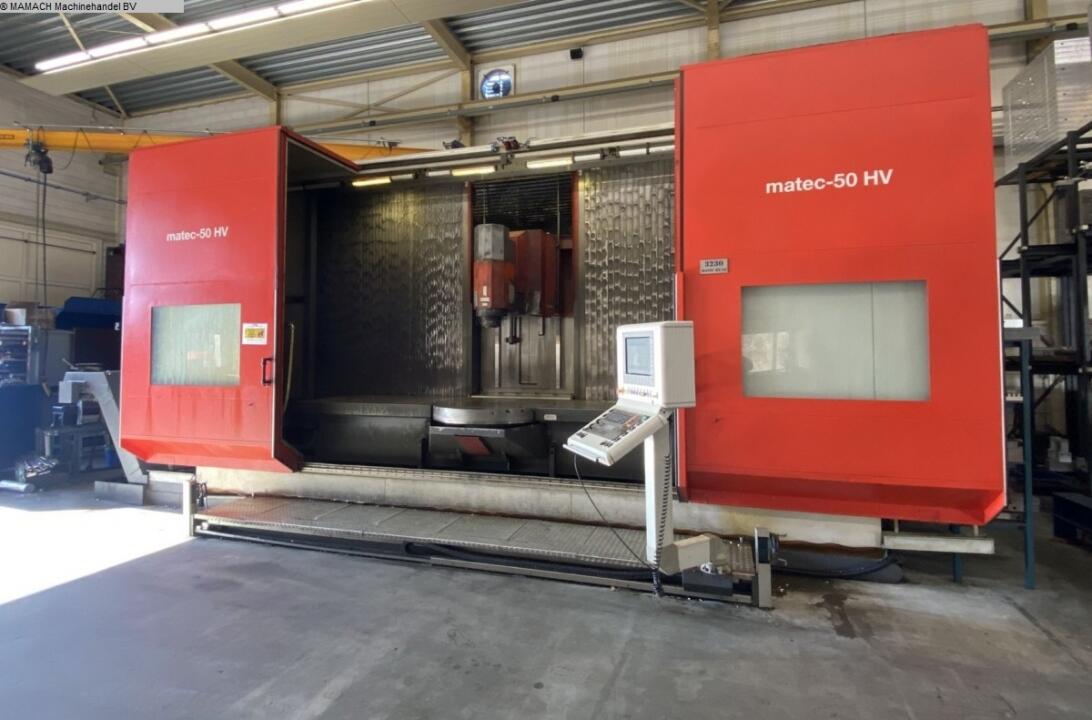

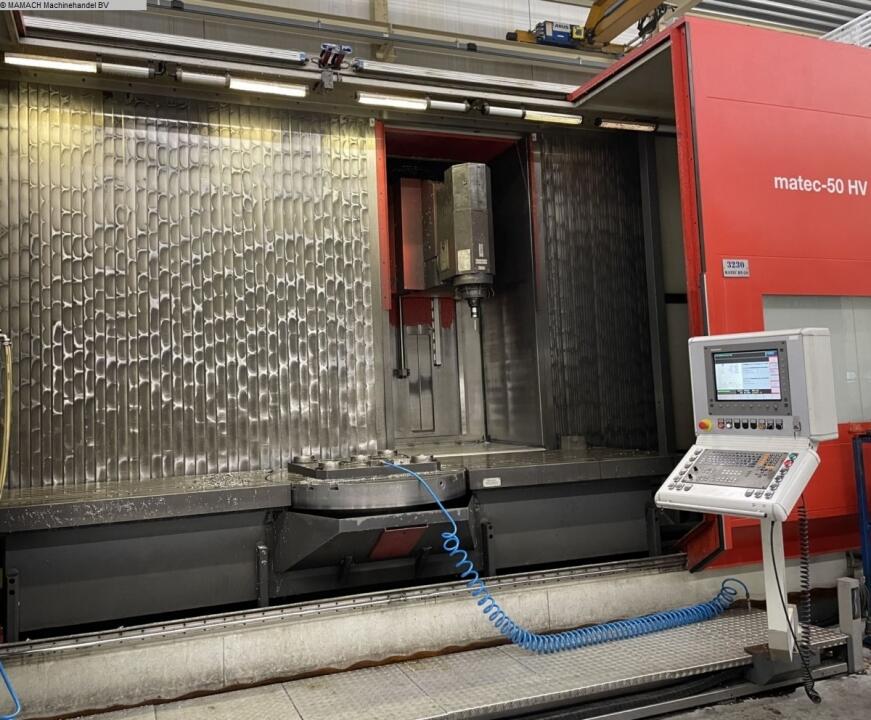

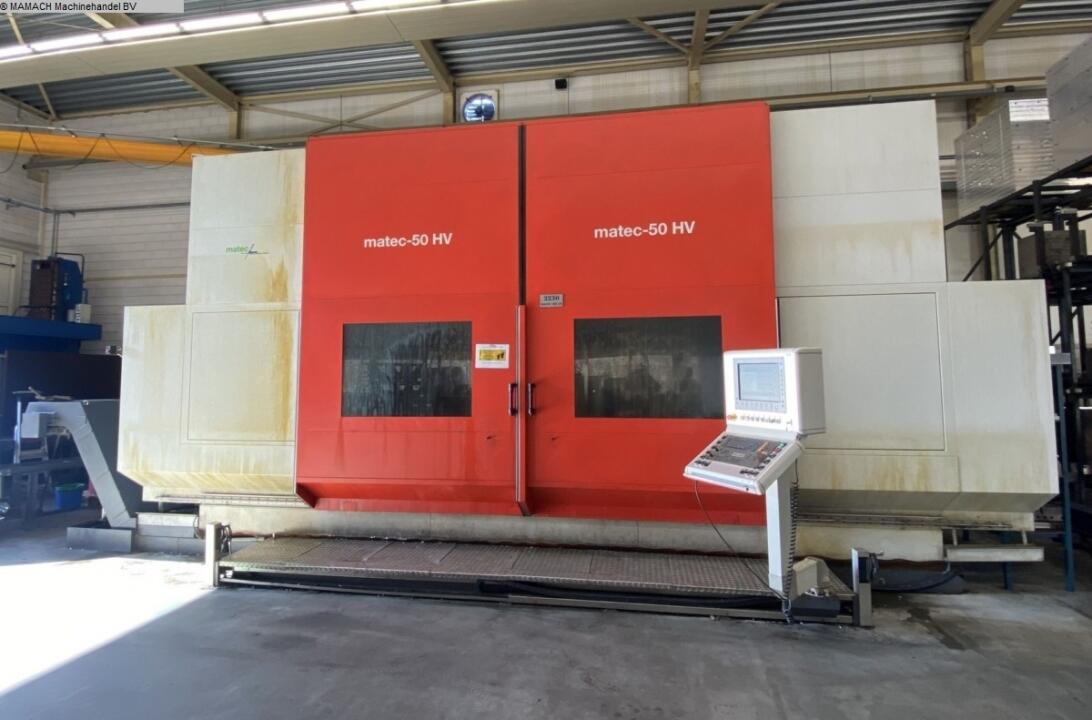

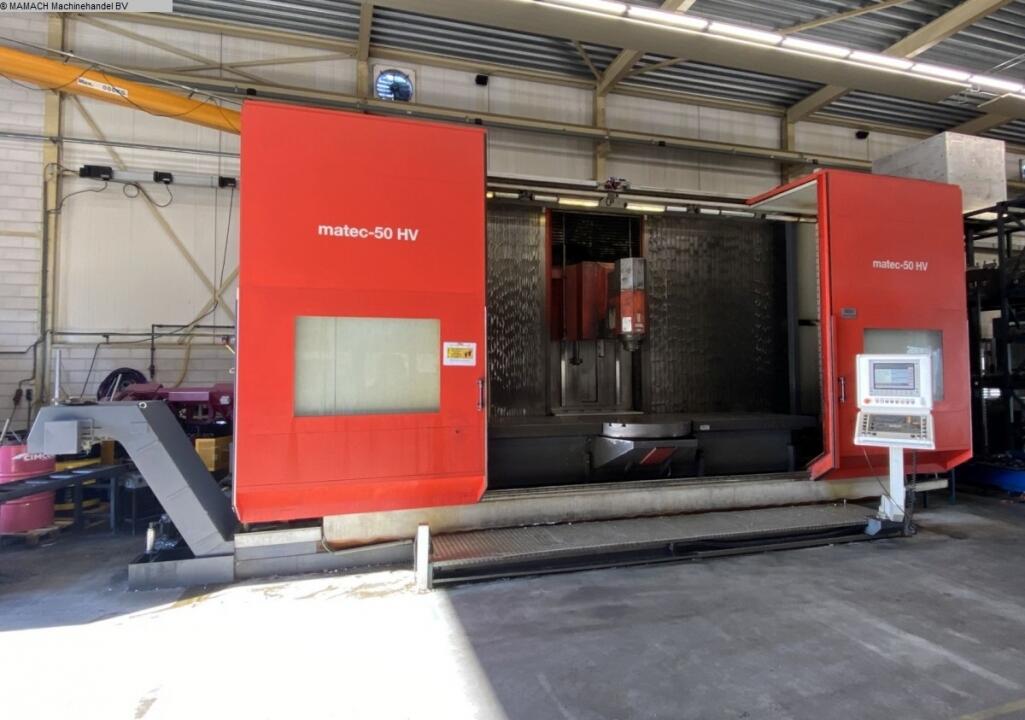

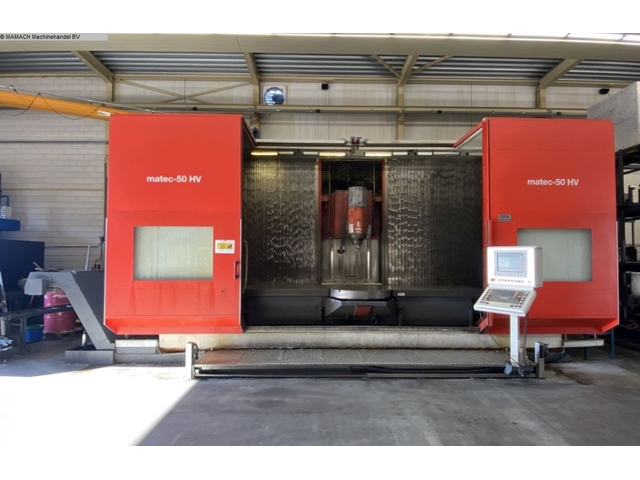

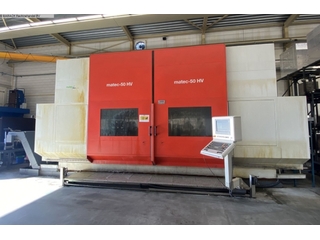

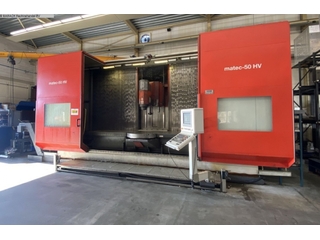

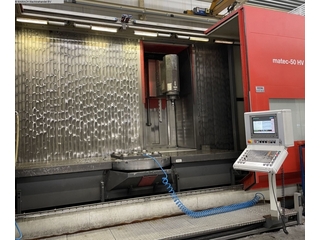

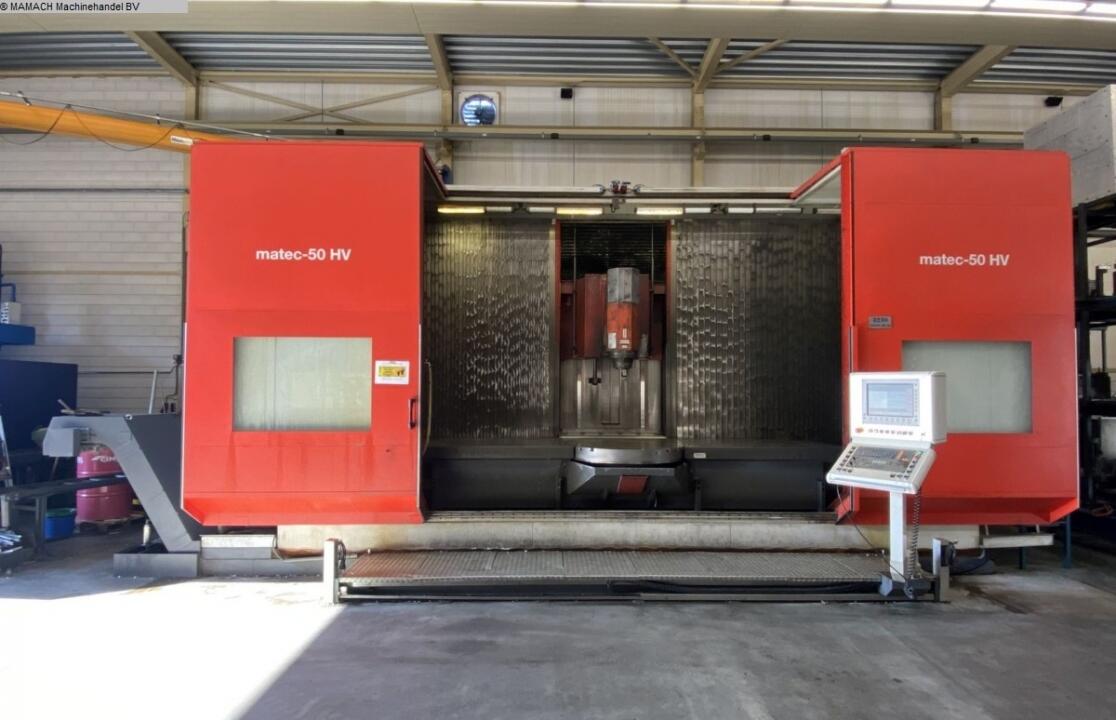

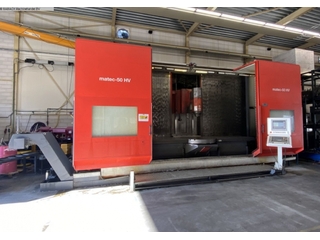

Druckansicht Matec 50 HV

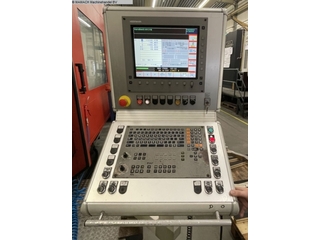

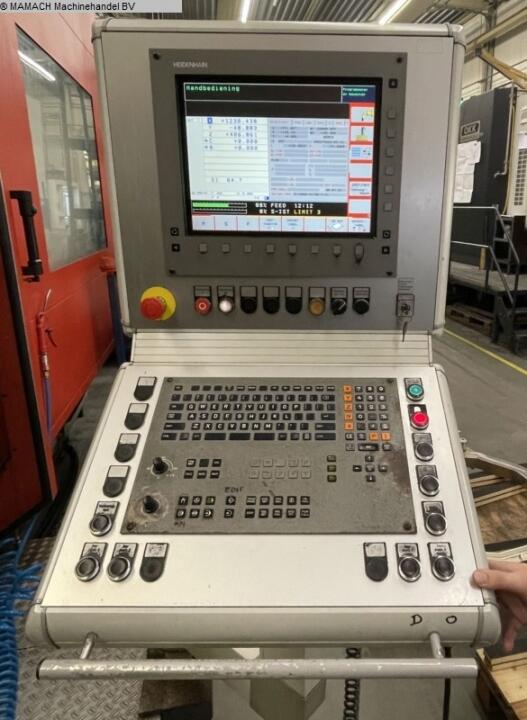

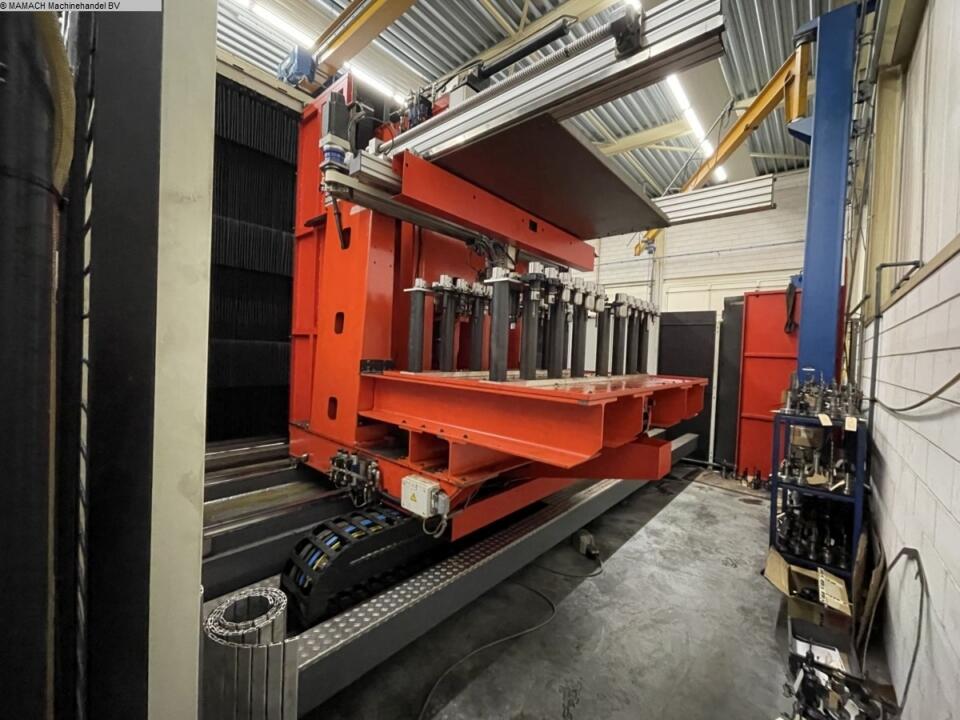

Universal Bearbeitungszentrum | |
Maschinentyp: | Matec 50 HV |
Steuerung: | Heidenhain iTNC 530 |
Baujahr: | 2007 |
Spindellaufstunden: [h] | 12.500 (Programmlauf) |
Id | 14648 |
Verfahrwege: | |
X-Achse: [mm] | 4.000 |
Y-Achse: [mm] | 1.000 |
Z-Achse: [mm] | 1.300 |
B-Achse | +/- 105° |
C-Achse | 360° |
Eilgang: (X/Y/Z) [m/min.] | 30 |
Anzahl gesteuerter Achsen: | 5 |
Drehzahlbereich: [1/min.] | 20 - 8.000 |
Antriebsleistung: [kW] | 68 |
Drehmoment: [Nm] | 460 |
Werkzeugaufnahme: | HSK 100-A (DIN 69893) |
Werkzeugwechsler | |
Werkzeugplätze: | 48 |
Werkzeugdurchmesser: [mm] | 120 / 200 |
Werkzeuglänge: [mm] | 460 |
Max. Werkzeuggewicht: [kg] | 25 |
NC-Rundtisch | 1.000 (im Tisch integriert) |
Tischgröße: [mm] | 4.500 x 1.035 |
Max. Tischlast: [kg] | 3.000 |
T-slot width: 18 mm | |
Number of T-slots: 9 | |
Anschlußwert: [KW] | 103 kVA |
Maschinengewicht: [kg] | 39.000 |
Platzbedarf (LxWxH): [m] | 9,800 x 5,500 x 4,260 |
Innenkühlung (IKZ): [bar] | 20, upgrade auf 40 |
Späneförderer | |
Internal coolant 20 bar with paperbeltfiltration, tank 450 ltr | |
Internal coolant upgrading to 40 barInternal coolant upgrading to 40 barInternal coolant upgrading to 40 bar | |
20 Bar coolant on external spindlecoolant | |
Kühlmitteltank: [l] | 450 |
Papierbandfilter | |
Trennwand | |
Heidenhain iTNC 530 with 3 Gb Hard disc for free use | |
Extended Z Axis to 1.300 mm | |

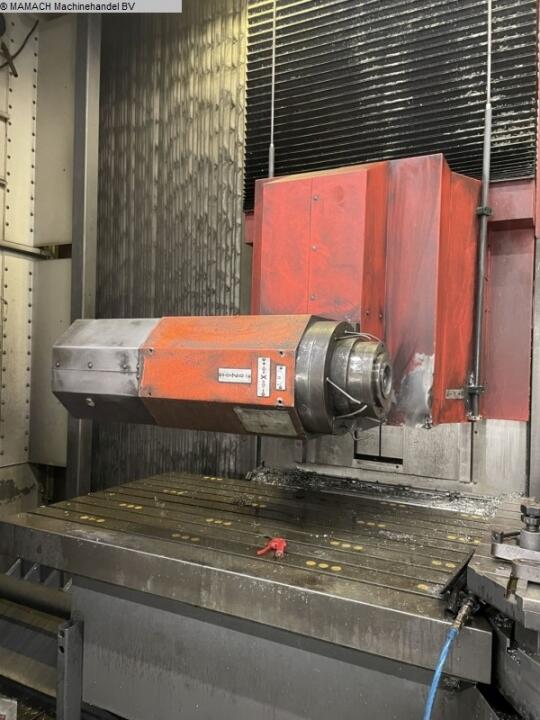

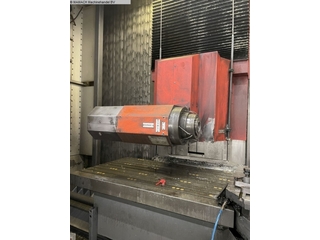

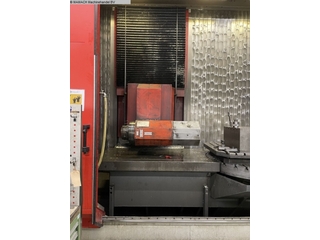

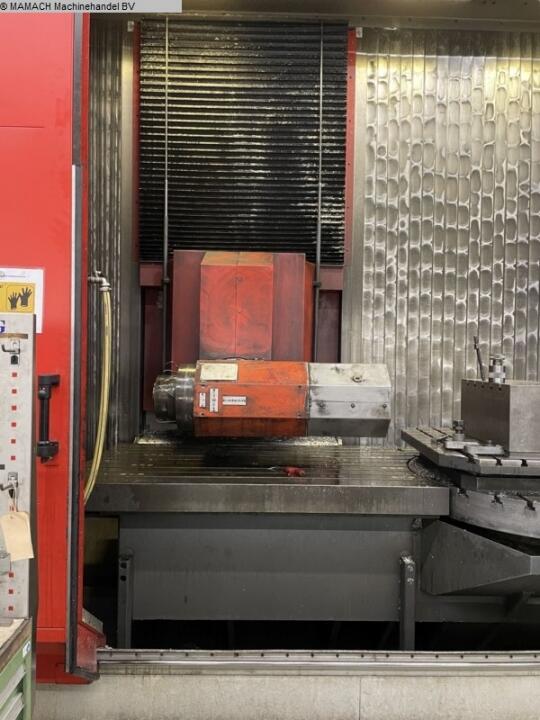

NC Rotary head stepless +/- 105°, as CNC axis for horizontal and vertical work | |

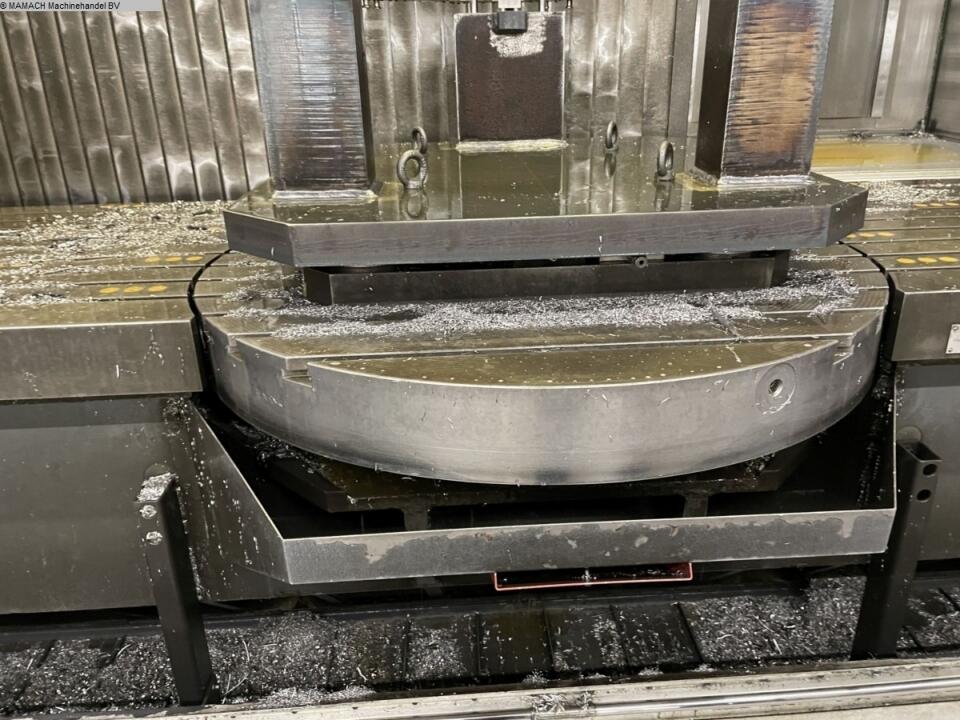

NC-Roundtable SKH-NC 8/1000 (integrated in the machine table) | |
Manual puls generator | |
Air through spindle | |
Bellows with stellammelle | |
Automatic protective doors | |
Direktes Wegemesssystem | |
Messtaster | 3D |
