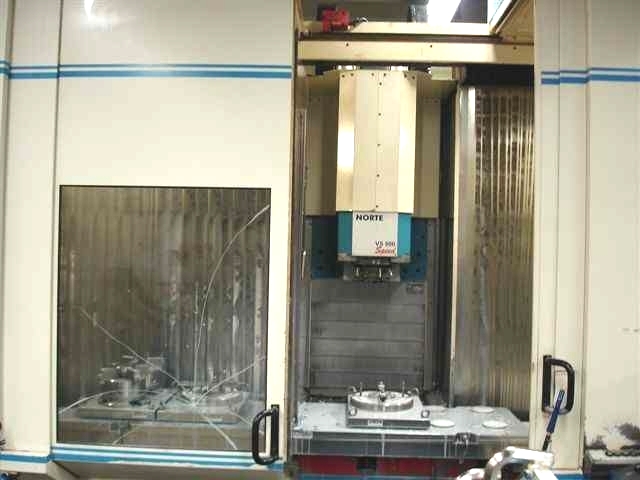

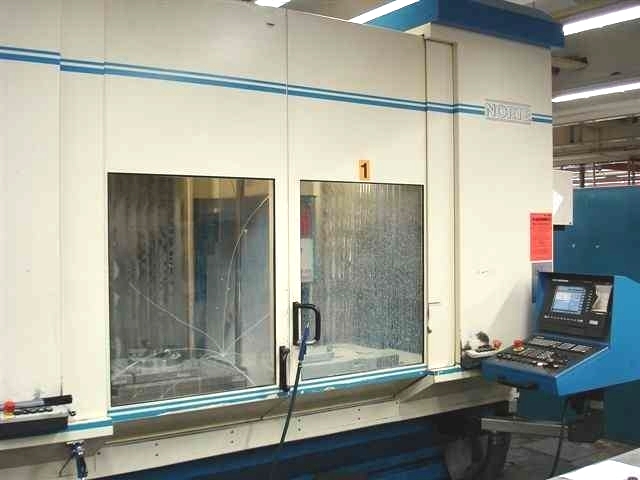

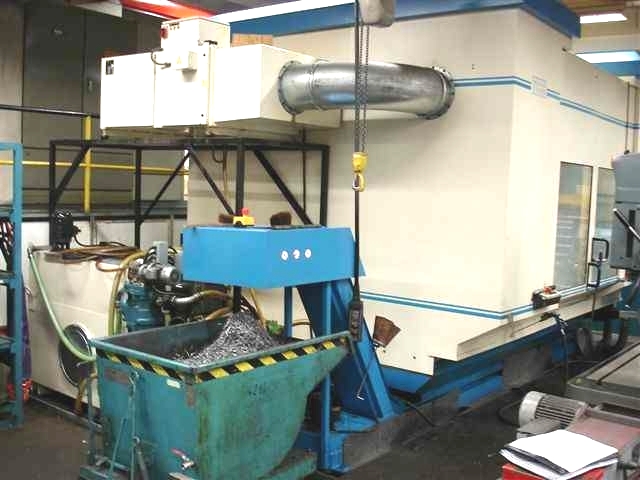

used Vertical machining center

Norte VS 500 Speed

Click to enlarge picture

Vertical machining center
Type de machine :	Norte VS 500 Speed
Control:	Siemens 840 D
Year:	1997 / 2005
Available after:	sofort / now

SPECIFICATIONS:
Travel:
X-Axis: [mm]	2000
Y-Axis: [mm]	500
Z-Axes: [mm]	600
Feed: (X/Y/Z) [m/min.]	0,001 - 8
Rapid motion: (X/Z) [m/min]	40 / 20

Rotational speed: [rpm]	0 - 16.000
Spindle motor: [kW]	20

Tool:	HSK 63 A
Tool capacity:	40
Tool diameter: [mm]	63 / 126
Tool lenght: [mm]	250
Tool weight: [kg]	4

Table size: [mm]	2.120 x 550
Max. Table Load: [kg]	2.000

Power consumption: [KW]	55 kVA
Machine weight: [kg]	12.000
Req. space (LxBxH): [m]	5,33 x 3,1 x 3,1

Equipment:
Internal cooling: [bar]	70
cooling system
	Pendelbearbeitung (2 x 775 mm)
	Tisch mit Nullpunktspannsystem, Spannhydraulik, Absaugung
	digitales Steuerungs- und Antriebskonzept

Please call us for further questions.
