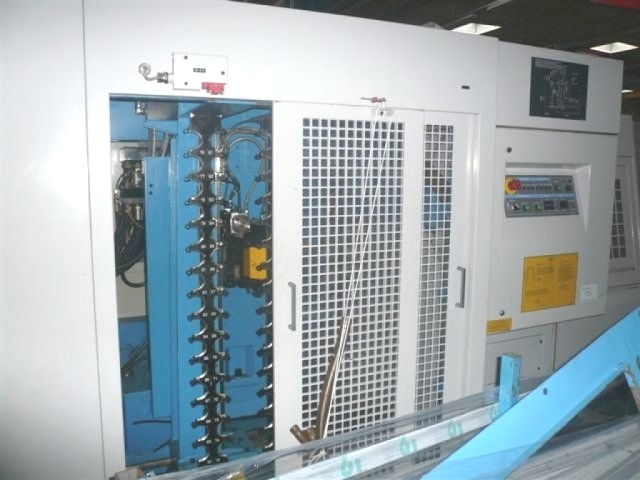

used Horizontal machining center

Matsuura MAM 500 HF

Click to enlarge picture

Horizontal machining center
Type de machine :	Matsuura MAM 500 HF

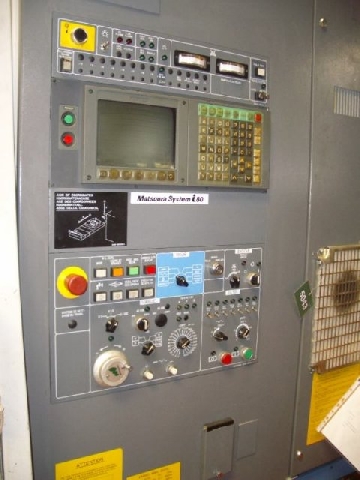

Control:	Yasnac l80
Year:	1995

SPECIFICATIONS:
Travel:
X-Axis: [mm]	500
Y-Axis: [mm]	470
Z-Axes: [mm]	450
4. Axis	0,001°

Rotational speed: [rpm]	15.000
Spindle motor: [kW]	15

Tool:	BT 40

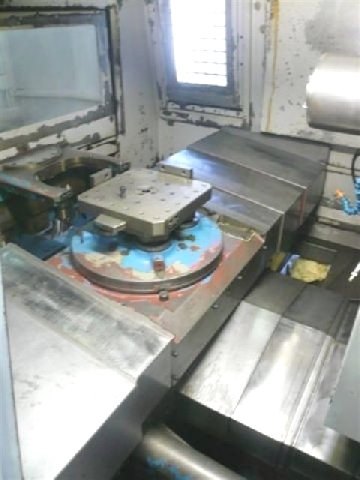

Palett system
Palett size: [mm]	300 x 300


Req. space (LxBxH): [m]	4,4 x 5,3 x 2,7
Machine weight: [kg]	6.000

Equipment:
Internal cooling: [bar]	20

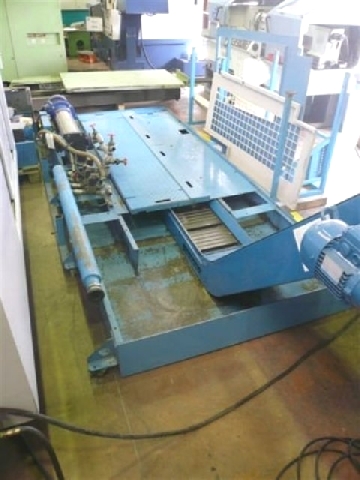

Chip conveyor

Please call us for further questions.
