used Vertical machining center

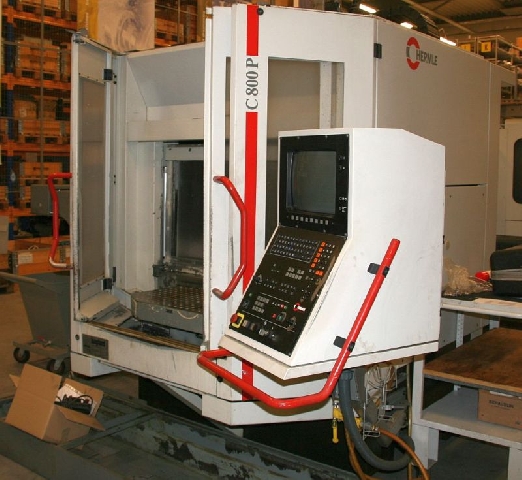

Hermle C 800 P

Click to enlarge picture

Vertical machining center
Type de machine :	Hermle C 800 P

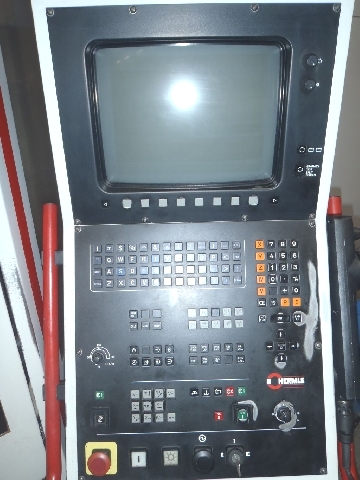

Control:	Heidenhain TNC 430
Year:	1996

SPECIFICATIONS:
Travel:
X-Axis: [mm]	800
Y-Axis: [mm]	500
Z-Axes: [mm]	500
Feed: (X/Y/Z) [m/min.]	0,001 - 30
Rapid motion: (X/Y/Z) [m/min.]	35

Distance table surface - spindle nose: [mm]	100 - 600
Rotational speed: [rpm]	20 - 15.000
Torque: [Nm]	130
Input power: [kW]	19 / 15

Tool:	BT 40
Tool capacity:	30
Time for tool change: [s]	3,2 (tool to tool); 6 (chip to chip)
Tool diameter: [mm]	80
Tool lenght: [mm]	300
Max. tool weight: [kg]	8

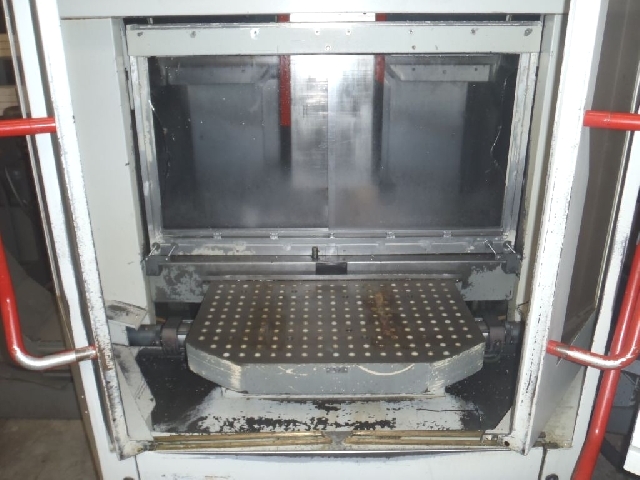

Amount of paletts:	2
Palett size: [mm]	800 x 500
Palett change time: [s]	4
Max. Table Load: [kg]	250

Req. space (LxBxH): [m]	3,26 x 2,21 x 2,93
Machine weight: [kg]	8.000

Equipment:

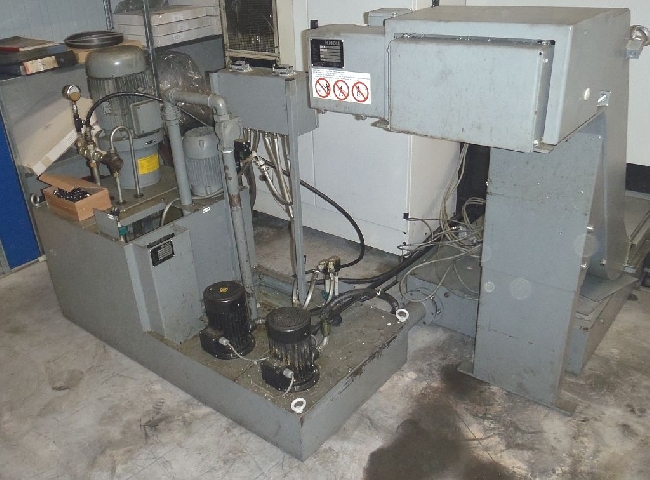

Internal cooling: [bar]	40
	Filtermist F 14 Dust exhauser
	Manual pulse generator (Heidenhain HR 410)
	Covercooling
	Water cleaning gun
	Warmt compensation

Please call us for further questions.
