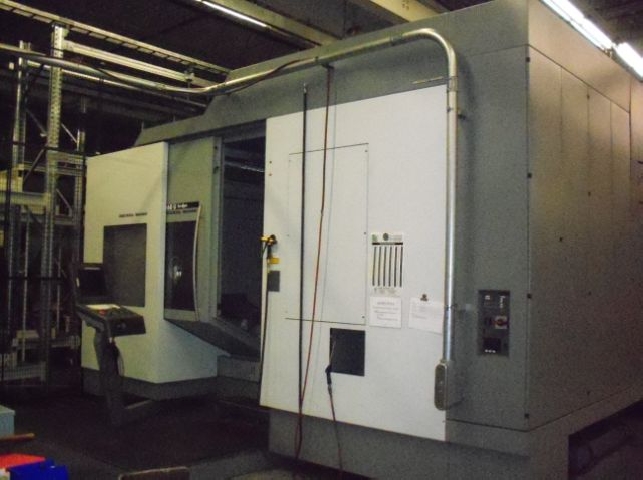

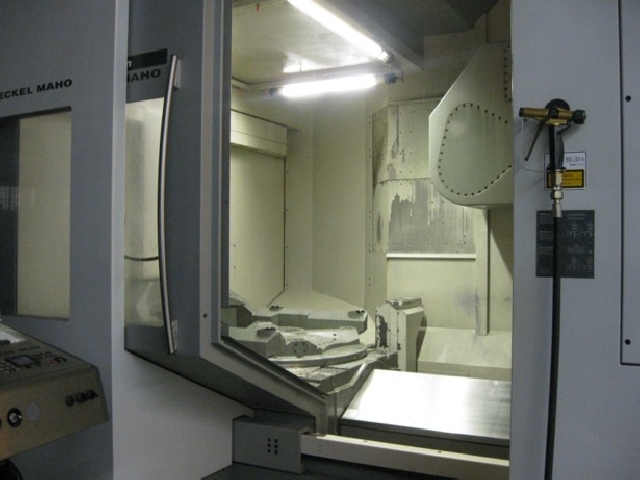

used CNC - 5 - Axes - Maschine

DMG DMC 160 U duoBlock, 2x

Click to enlarge picture

CNC - 5 - Axes - Maschine
Type de machine :	DMG DMC 160 U duoBlock, 2x
Control:	Heidenhain Mill Plus
Year:	2002

SPECIFICATIONS:
Travel:
X-Axis: [mm]	1.600
Y-Axis: [mm]	1.250
Z-Axes: [mm]	1.000
Feed: (X/Y/Z) [m/min.]	15/15/15
Rapid motion: (X/Y/Z) [m/min.]	60/60/60

Panning head
B-Axes	210°
Rotational speed: [rpm]	20-10.000
Input power: [kW]	32/44
Torque: [Nm]	288
Tool:	ISO 50
Tool capacity:	240
Tool diameter: [mm]	250
Tool lenght: [mm]	650
Tool weight: [kg]	30

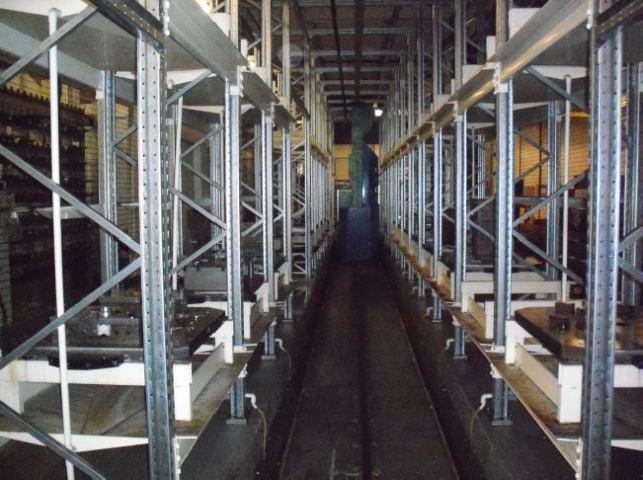

Palett system	Fastems FMS, 32x
Amount of paletts:	20
Palett size: [mm]	1.000 x 1.250
Max. Table Load: [kg]	3.000

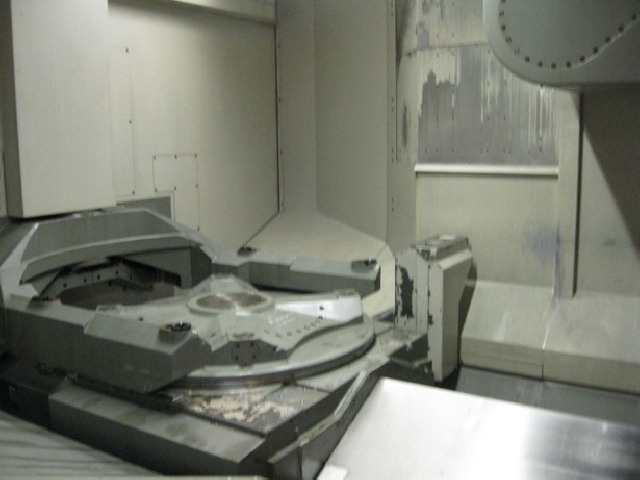

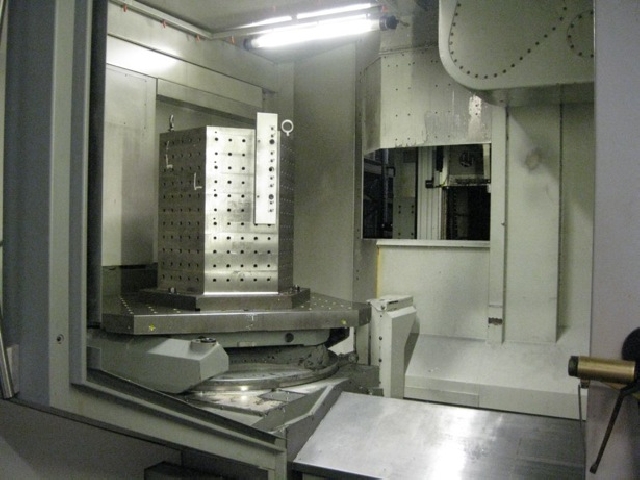

NC rotary table
C-Axis	0,001°

Equipment:
Internal cooling: [bar]	40
Renishaw Spindle caliper
Tool setter	Blum

Please call us for further questions.
