used CNC Milling / Turningcenter

WFL M30G

Click to enlarge picture

CNC Milling / Turningcenter
Type de machine :	WFL M30G

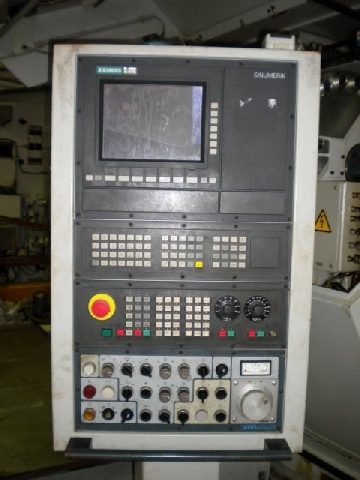

Control:	Siemens Sinumerik 840C
Year:	1996

SPECIFICATIONS:
Max. turning length: [mm]	1.050
Max. swing over bed: [mm]	500
Turningdiameter: [mm]	300
Rotational speed: [rpm]	10 - 5.000
Input power: [kW]	22
Spindle nose:	A2-6
C-Axis	0,001° (2x)
Bar capacity: [mm]	77

Subspindle
W-axes: [mm]	1.054

Travel:
X-Axis: [mm]	X1:420 X2:185
Y-Axis: [+/- mm]	80
Z-Axes: [mm]	Z1:1.120 Z2:940

CNC-Spindle tilting for cutting and turningopertations
Angular range:	+/-90°
Rotational speed: [rpm]	0 - 4.000
Input power: [kW]	9
Tool:	Capto

Amount of turrets:	1
Tool capacity:	12
Driven Tools	12

Machine weight: [kg]	9.500

Equipment:
Chip conveyor
High pressure pumps	80 bar

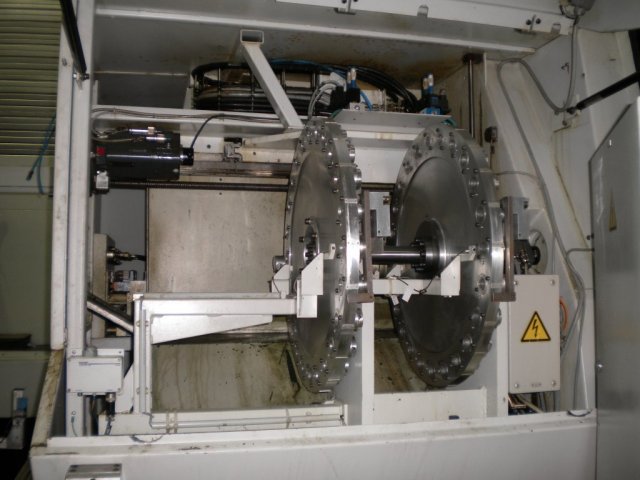

Collets	Ø 250mm (2x)
Oil mist seperator

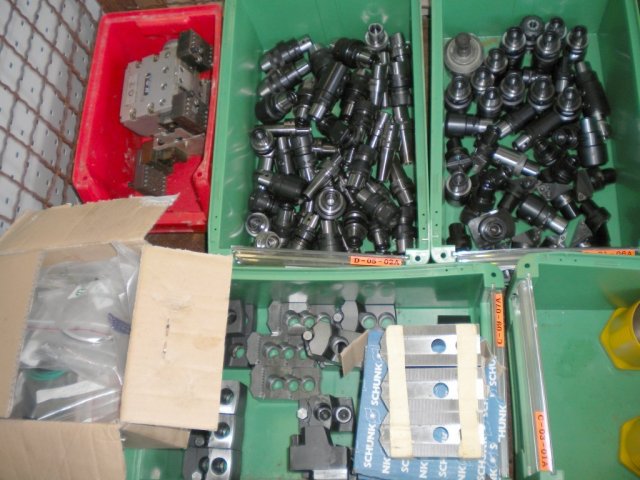

Tool holders

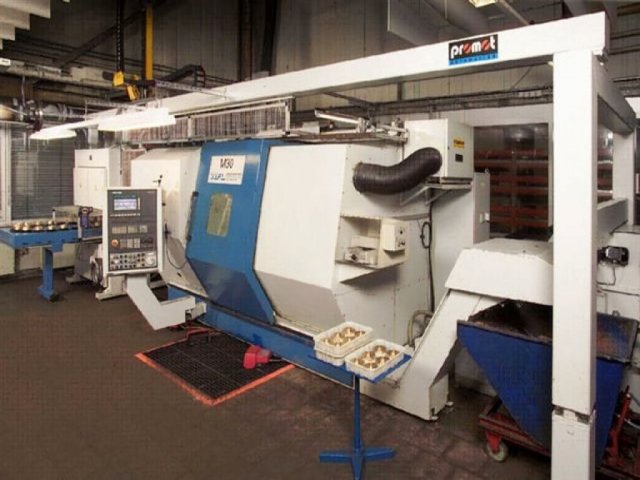

Gantry loader	Promot S200

Please call us for further questions.
