used CNC Turning / Millingcenter

Traub TNA 300

Click to enlarge picture

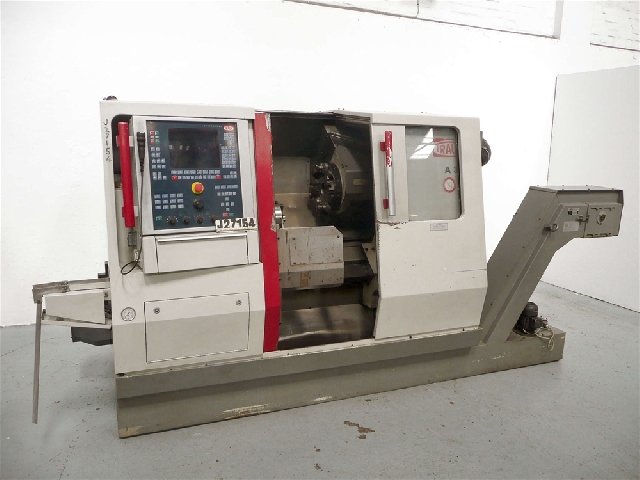

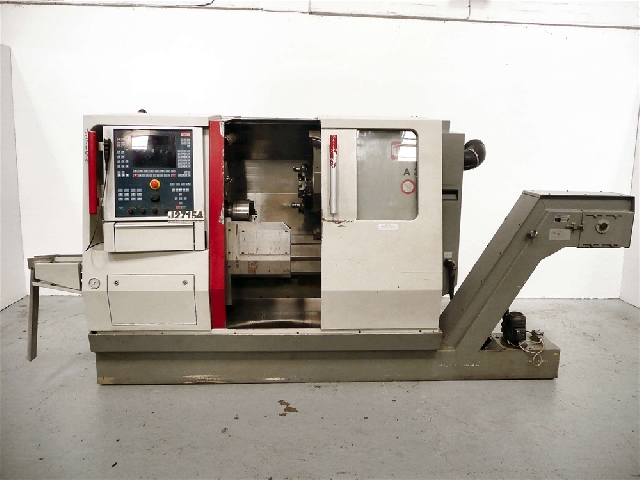

CNC Turning / Millingcenter
Type de machine :	Traub TNA 300

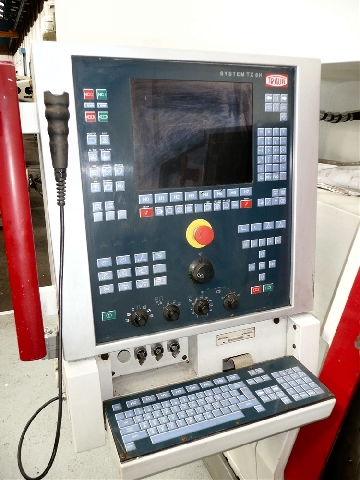

Control:	Traub System TX8H
Year:	1996

SPECIFICATIONS:
Max. turning length: [mm]	450
Max. swing over bed: [mm]	520
Max. swing over slide: [mm]	395
Turningdiameter: [mm]	275
Bar capacity: [mm]	65
Max. revolution: [rpm]	4.000

Tailstock
quill range: [mm]	60

Travel:
X-Axis: [mm]	210
Z-Axes: [mm]	450
Rapid motion: (X/Z) [m/min]	15/18

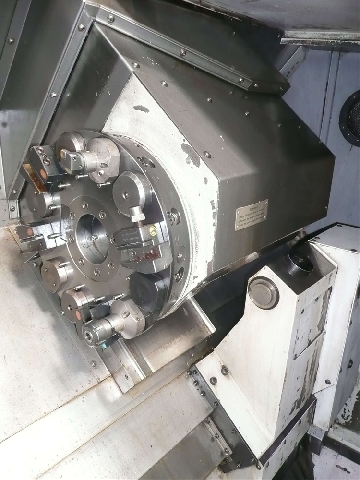

Amount of turrets:	1
Tool capacity:	12
Driven Tools	12

Req. space (LxBxH): [m]	2,9 x 1,88 x 1,88
Machine weight: [kg]	4.572

Equipment:
Chip conveyor
Tool holders	angetr. / driven

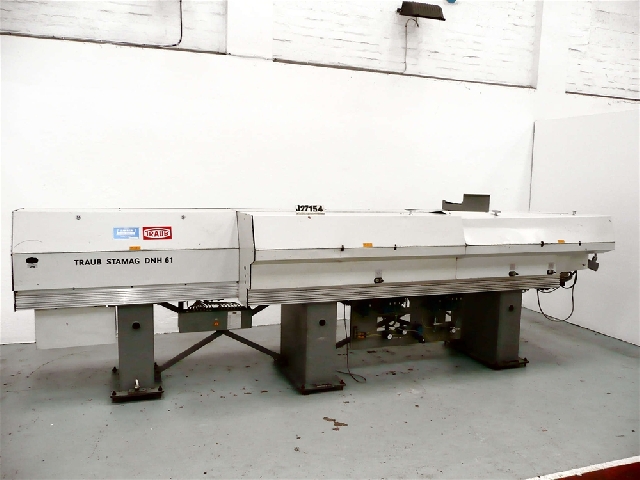

Barfeeder	Traub Stamag DNH61 3,2m
3-jaw chuck	230mm
Spindle running time: [h]	7.084 v.17.01.2012

Please call us for further questions.

Stenzel Verwaltungs GmbH Idsteiner Str. 29 65193 Wiesbaden Deutschland
Tel: +49 611 5101990 Fax: +49 611 51019917 E-Mail: info@stenzel.de
