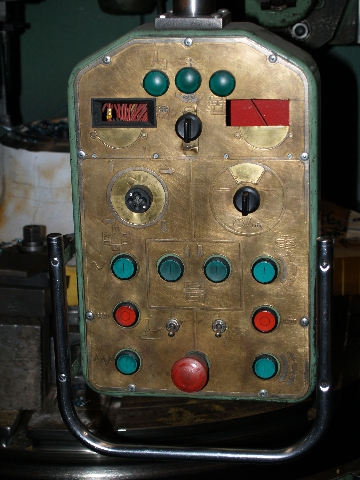

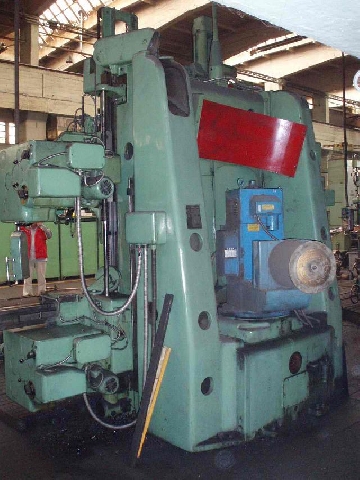

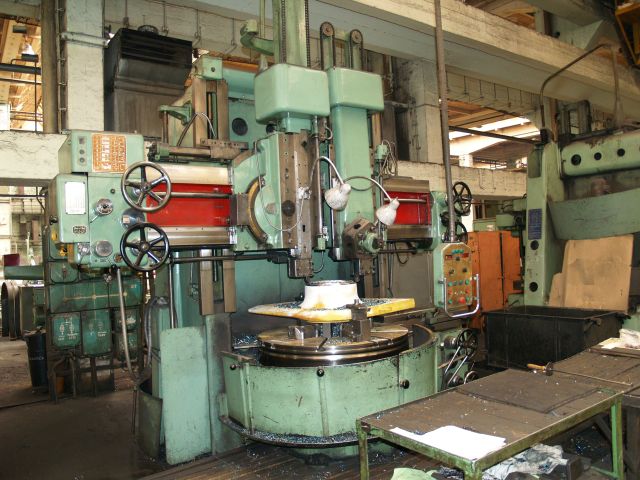

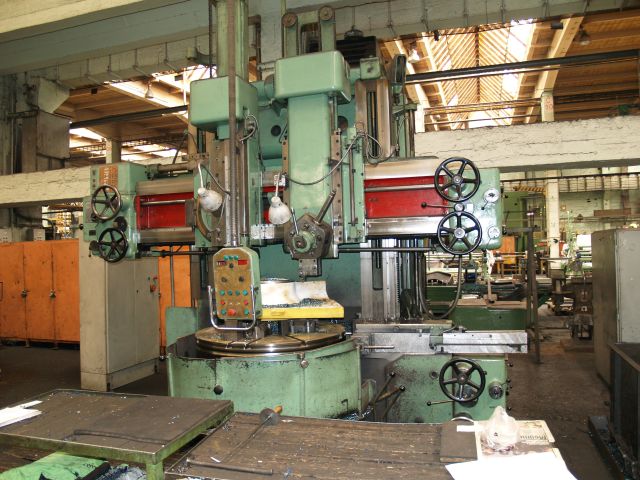

used Vertical CNC-Lathe

TOS SK 12

Click to enlarge picture

Vertical CNC-Lathe	Karusseldrehmaschine
Type de machine :	TOS SK 12
Control:	konventionell
Year:	1965
Expertly rebuilt:	2005

SPECIFICATIONS:
Turningdiameter: [mm]	1.250
turning height [mm]:	1.000
Rotational speed: [rpm]	5,3 - 220
Input power: [kW]	37
face plate	Ø 1.200mm

Travel:
X-Axis: [mm]	500
Z-Axes: [mm]	Z1:710 Z2: 850

Max. workpiece weight: [kg]	4.000

Power consumption: [KW]	37
Req. space (LxBxH): [m]	3,850 x 3,940 x 4,260
Machine weight: [kg]	16.600

Equipment:

Please call us for further questions.
