used CNC Turning / Millingcenter

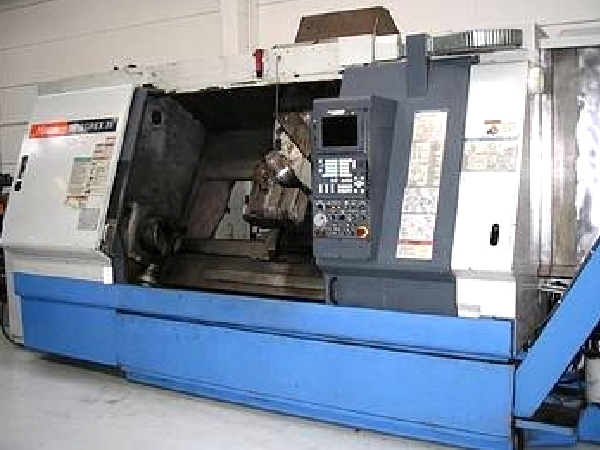

Mazak Integrex 35

Click to enlarge picture

CNC Turning / Millingcenter
Type de machine :	Mazak Integrex 35

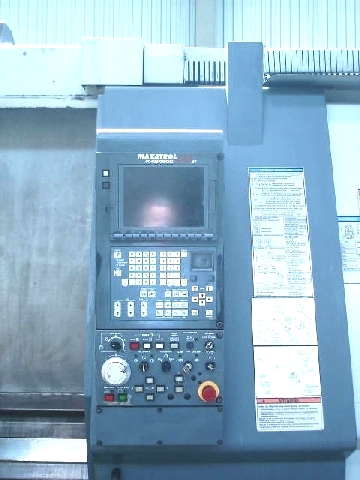

Control:	Fusion 640 MT
Year:	1999
Working hours: [h]	40.000
Available after:	sofort / now

SPECIFICATIONS:
Max. turning length: [mm]	1.527
Turningdiameter: [mm]	575
Max. swing over bed: [mm]	470
Center height: [mm]	305
C-Axis

Rotational speed: [rpm]	35 - 3.300
Input power: [kW]	22

Travel:
Y-Axis: [mm]
Rapid motion: [m/min.]	12 / 18
Feeds: (X/Z) [m/min.]	0,001 - 10
C-Axis

Tool:	Fräsen: SK 40 / Drehen: MK 63
Toolchanger	40 fach
drive power driven tools [kW]:	2,2
Rotational speed: [rpm]	2 - 6.000

Max. workpiece weight: [kg]	1.000

Power consumption: [KW]	44 kVA
Machine weight: [kg]	9.800
Req. space (LxBxH): [m]	6,1 x 3,2 x 2,6

Equipment:
Tailstock
Chip conveyor

Please call us for further questions.
