used CNC Turning / Millingcenter

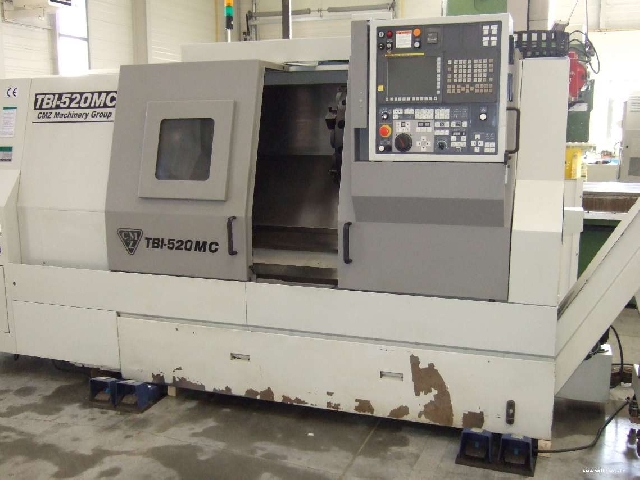

CMZ TBI 520B MC

Click to enlarge picture

CNC Turning / Millingcenter
Type de machine :	CMZ TBI 520B MC

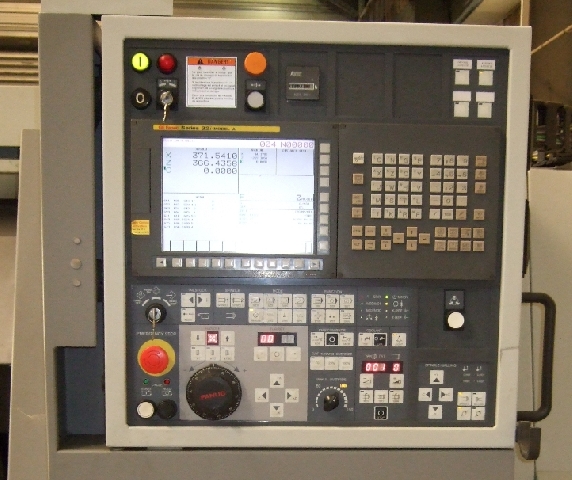

Control:	Fanuc 32iA
Year:	2007
Working hours: [h]	7.371

SPECIFICATIONS:
Max. turning length: [mm]	1.100
Turningdiameter: [mm]	420
Input power: [kW]	22
Rotational speed: [rpm]	3000
C-Axis	0,001 Grad
Spindle nose:	A2-8

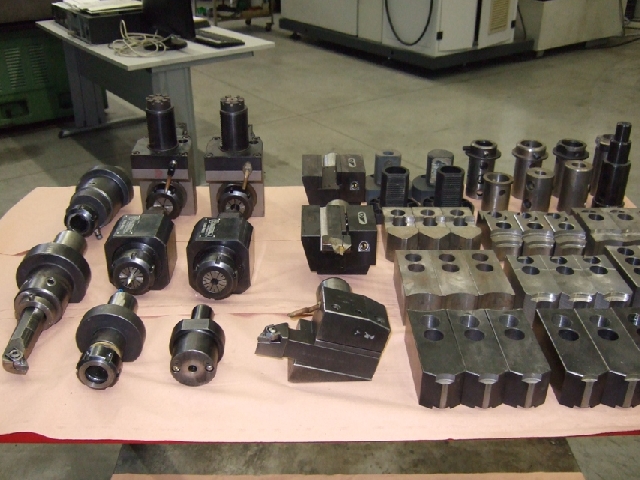

Tool:	VDI 40
Driven Tools	12
Bar capacity: [mm]	82

Equipment:

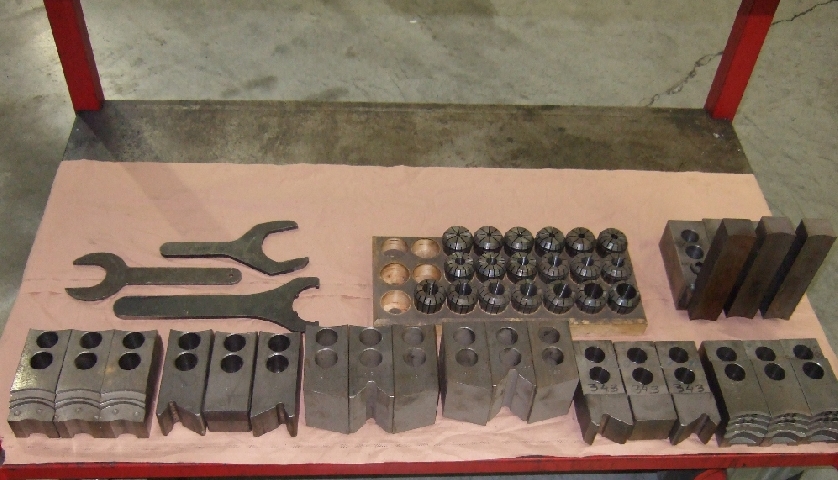

3-jaw chuck	SMW autoblock ø 315
Tool kit
Chip conveyor
Machine weight: [kg]	6.500
Dimensions	3750 x 1740 x 1920 mm

Please call us for further questions.

Stenzel Verwaltungs GmbH Idsteiner Str. 29 65193 Wiesbaden Deutschland
Tel: +49 611 5101990 Fax: +49 611 51019917 E-Mail: info@stenzel.de
