new Kitagawa Chucks B

Kitagawa B 18

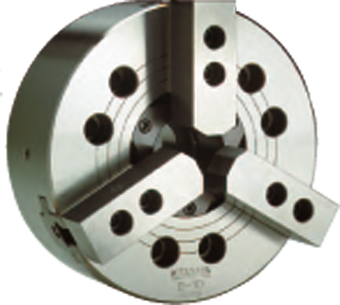

Kitagawa B 18
Click to enlarge picture

Collets B 18
Outer Diameter: [mm] 450
Through Hole: [mm] 117,5
Max. revolution: [rpm] 2000

SPECIFICATIONS:
Thru - Hole [mm] 117,5
Gripping range [mm] (Max. / Min.] 450/30
Jaw Stroke (dia.) [mm] 10.6
Plunger Stroke [mm] 23
Max. Draw Bar Pull Force [kN] 71 (7240)
Max. Gripping Force [kN] 180 (18355)
Max. Speed [1/min.] 2000
Net Weight with Soft top jaws [kg] 164
Moment of inerta [kg m^2] 4,451
Matching Cylinder F2511H
Max. Pressure MPA [kgf/cm^2] 2,3 (23,5)
Matching Hard top jaw HB15A1
Matching Soft top jaw SB15C1

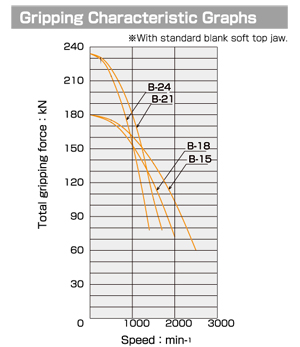

Product image 3

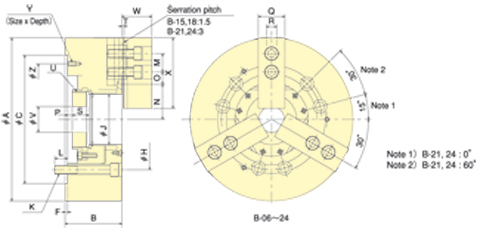

Dimensions
A B C (H6) F H J K L M N max. N min. O max. O min. P max. P min. Q R S T U max. V W X Y Z
450 133 380 6 235,0 117,5 6-M20 30 43 82 76,7 78,25 18,25 11 -12 62 22 39 5 M130*2.0 60 70 165 M10*20 320

Product image 2



Please call us for further questions.

Stenzel Verwaltungs GmbH Idsteiner Str. 29 65193 Wiesbaden Deutschland
Tel: +49 611 5101990 Fax: +49 611 51019917 E-Mail: info@stenzel.de
