used CNC Turning / Millingcenter

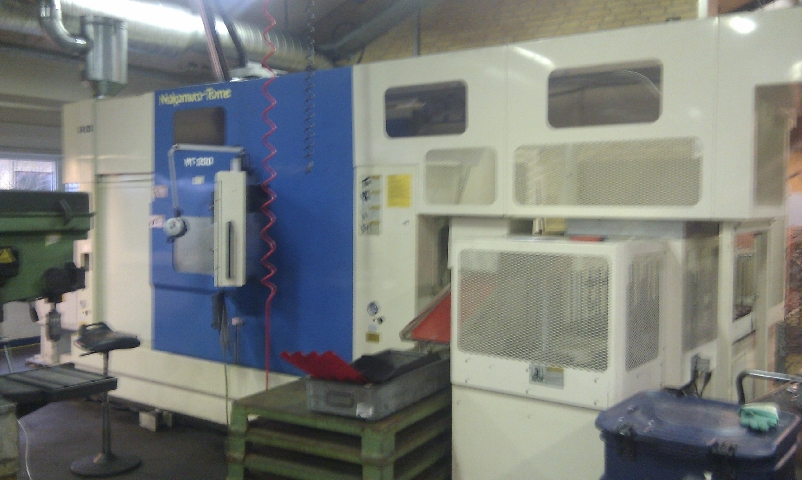

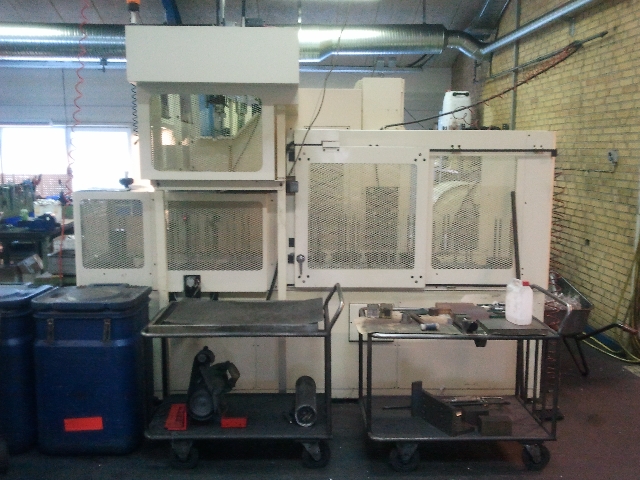

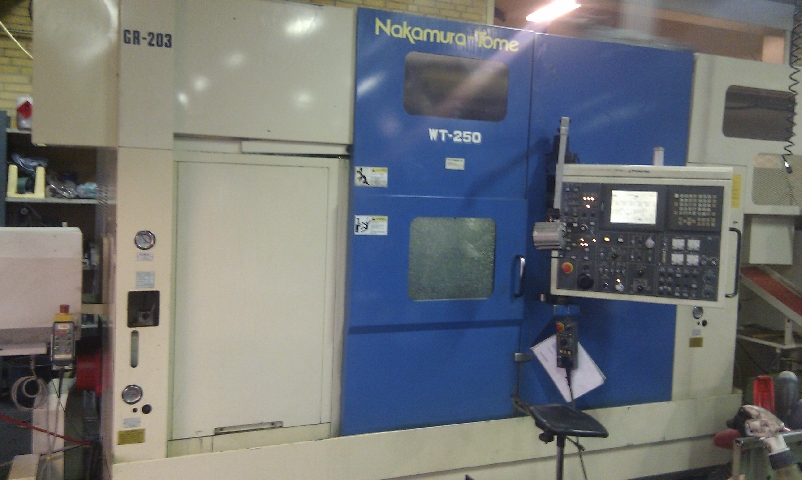

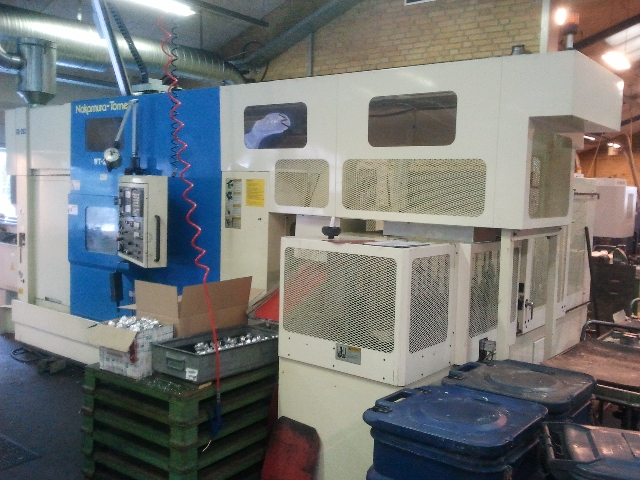

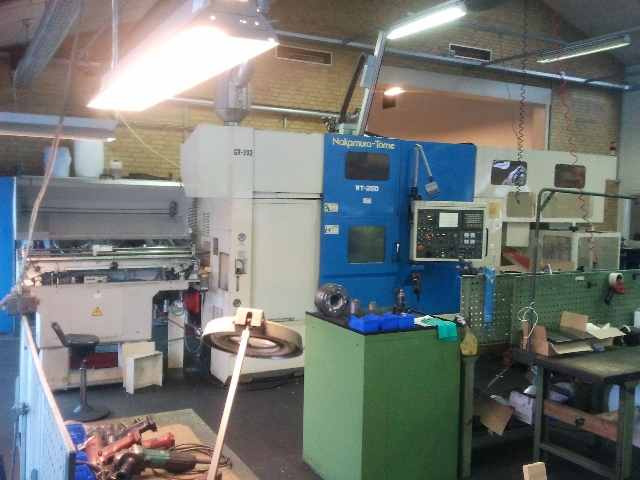

Nakamura WT 250 MM Portal/gentry

Click to enlarge picture

CNC Turning / Millingcenter
Type de machine :	Nakamura WT 250 MM Portal/gentry
Control:	Fanuc 1
Year:	1998
Spindle running time: [h]

SPECIFICATIONS:
Max. turning length: [mm]	600
Max. swing over bed: [mm]	600
Turningdiameter: [mm]	240
Max. revolution: [rpm]	4.500
Input power: [kW]	18,5/11
Bar capacity: [mm]	65
Amount of controlled axes:	6

Subspindle
Input power: [kW]	7,5/5,5

Travel:
Z-Axes: [mm]	600

Amount of turrets:	2
Tool capacity:	12+12
Driven Tools	12+12

Machine weight: [kg]	5.600
Req. space (LxBxH): [m]	3,5 x 1,8 x 1,86

Equipment:
Gantry loader	Nakamura GR 203 rechts/right
Palett system	hub für Stapel/lift for stack
Amount of paletts:	20 max. D 200 mm x H 300 mm
Bar loader magazine	FMB SL65 1m
Electical handwheel
Chip conveyor
Tool kit	2 x 90°, 2 x 0°, 20 stk std

Please call us for further questions.

Stenzel Verwaltungs GmbH Idsteiner Str. 29 65193 Wiesbaden Deutschland
Tel: +49 611 5101990 Fax: +49 611 51019917 E-Mail: info@stenzel.de
