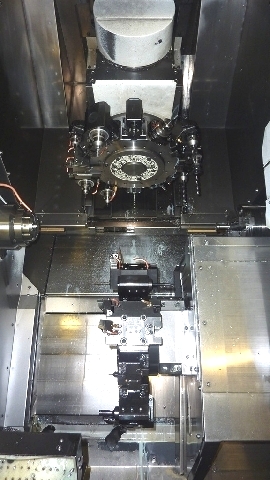

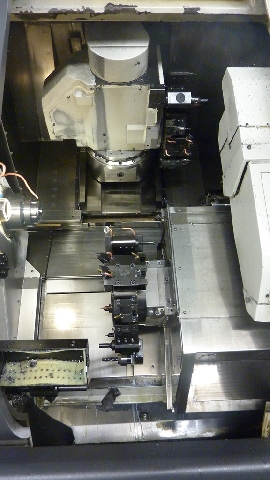

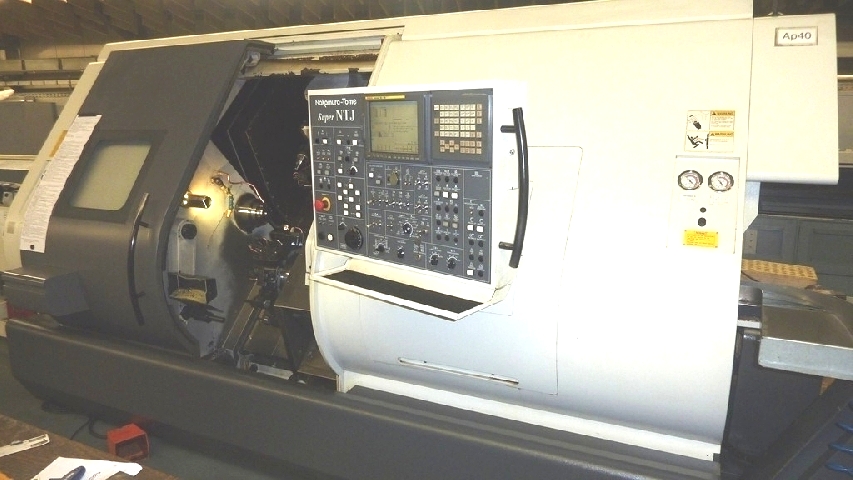

used CNC Turning / Millingcenter

Nakamura Super NTJ

Click to enlarge picture

CNC Turning / Millingcenter
Type de machine :	Nakamura Super NTJ
Control:	Fanuc 18i-TB
Year:	2006
Working hours: [h]	13.250

SPECIFICATIONS:
Max. turning length: [mm]	620
Max. swing over slide: [mm]	190
Turningdiameter: [mm]	190

Main Spindle
Rotational speed: [rpm]	4.500
Input power: [kW]	15/11
Bar capacity: [mm]	65
Spindle bore: [mm]	80
Spindle nose:	A2-6
Collets	165mm
C-Axis	0,001°

Subspindle
Bar capacity: [mm]	65
C-Axis	0,001°

Travel:
Slide 1
B-Axes	+/- 91° / 0,001°
X-Axis: [mm]	345
Y-Axis: [+/- mm]	45
Z-Axes: [mm]	1.240
Rapid motion: (X/Z) [m/min]	16/40

Slide 2
X-Axis: [mm]	167,5
Z-Axes: [mm]	685
Rapid motion: (X/Z) [m/min]	16 / 40

Amount of turrets:	2
Tool capacity:	24 + 24
Driven Tools	12+12
drive power driven tools [kW]:	5,5 / 3,7
revolution driven tools	60 - 6.000

Machine weight: [kg]	12.500
Power consumption: [KW]	68,6 kVA

Equipment:
Chip conveyor
cooling system	190
Cooling tank: [l]	1000
Zyklon filter system
High pressure pumps	2 Stück; 10/35/70 bar

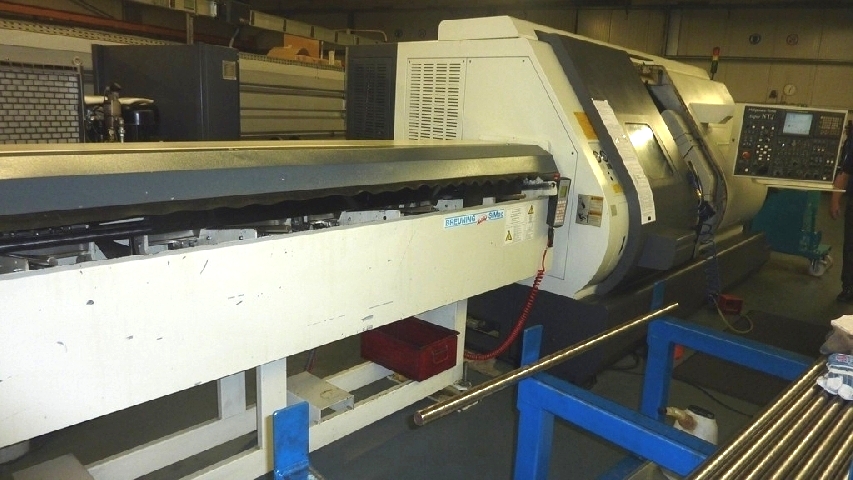

Bar loader magazine	IRCO Typ Simag; Stangenlänge 3.200mm
Tool holders	diverse
	Werkstück-Abholeinrichtung

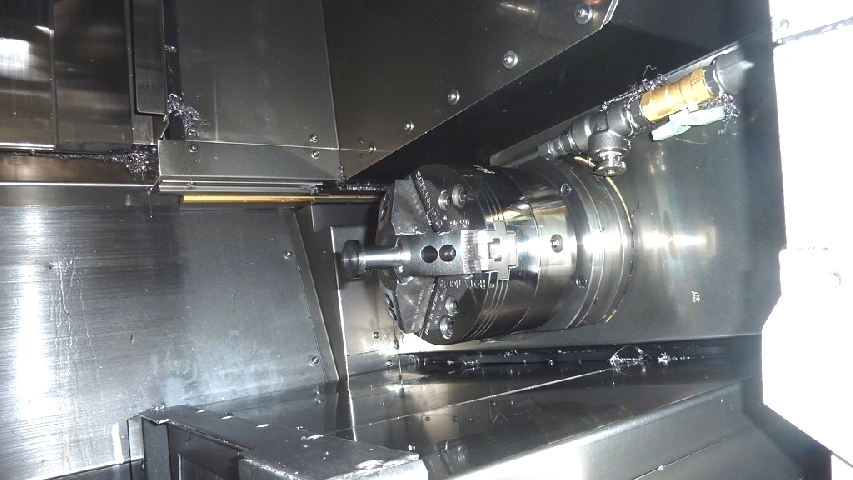

	Teilhohlspannzylinder 65 (rechts); Hainbuch Spanntop Ø65
	Hohlspannzylinder hydr . 70 (links); Hainbuch Spanntop Ø65

Please call us for further questions.

Stenzel Verwaltungs GmbH Idsteiner Str. 29 65193 Wiesbaden Deutschland
Tel: +49 611 5101990 Fax: +49 611 51019917 E-Mail: info@stenzel.de
