used CNC Turning / Millingcenter

Nakamura SC-300M / BFT

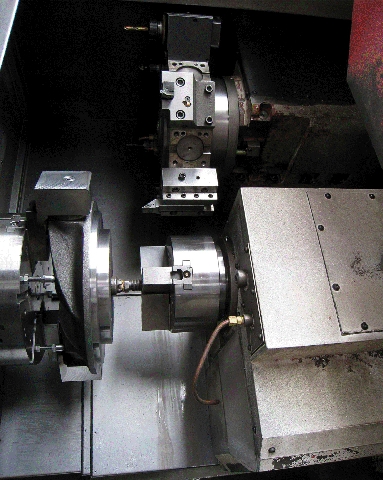

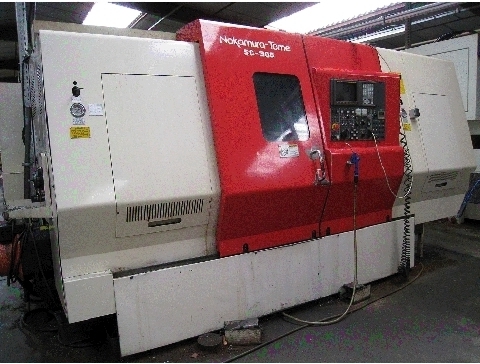

Click to enlarge picture

CNC Turning / Millingcenter
Type de machine :	Nakamura SC-300M / BFT
Control:	Fanuc 21 TB
Year:	1998

SPECIFICATIONS:
Turningdiameter: [mm]	350
Max. swing over bed: [mm]	560
Max. swing over slide: [mm]	450
Max. turning length: [mm]	600
Bar capacity: [mm]	64

Main Spindle
Rotational speed: [rpm]	35 - 3.500
Input power: [kW]	18,5 / 22
Spindle nose:	A-1-8

Subspindle
Input power: [kW]	7,5 / 11
Spindle nose:	A-2-5

Travel:
X-Axis: [mm]	222,5
Z-Axes: [mm]	635
Rapid motion: (X/Z) [m/min]	16 / 20

Tool capacity:	12
Tool diameter: [mm]	40
Driven Tools	12
revolution driven tools	30 - 3.600
Input power: [kW]	3,7

Power consumption: [KW]	36
Req. space (LxBxH): [m]	3,250 x 1,735 x 2,020

Equipment:

Please call us for further questions.
