used Bed milling machine

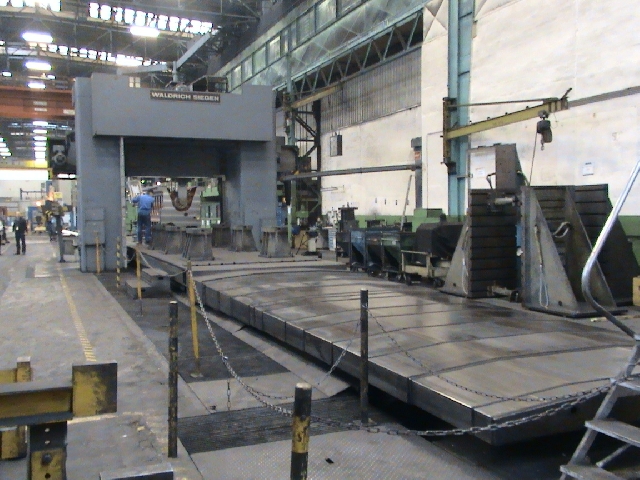

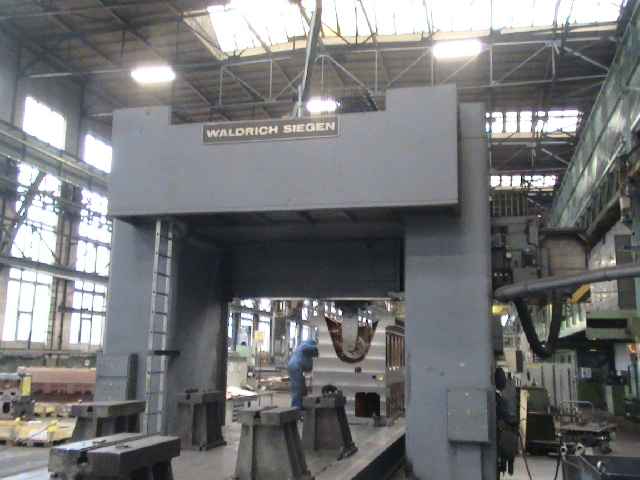

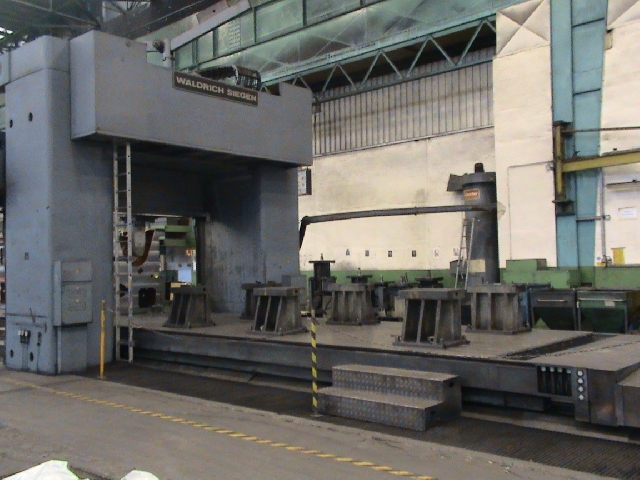

Waldrich Siegen PF-H 100

Click to enlarge picture

Bed milling machine	Portalfräsmaschine
Type de machine :	Waldrich Siegen PF-H 100
Year:	1971

SPECIFICATIONS:
Travel:
X-Axis: [mm]	Einzeltisch: 8.000 Doppeltisch: 16.000
Y-Axis: [mm]	5.000
Z-Axes: [mm]	2.450

Tool:	SK 60
Rotational speed: [rpm]	6-199 / 199-600
Input power: [kW]	90

Quill diameter: [mm]	320
quill range: [mm]	400

Table size: [mm]	2Stk.: 3.000 x 7.500 gekoppelt: 3.000 x 15.700
Max. Table Load: [kg]	150.000
distace between colums (mm)	3.250

Req. space (LxBxH): [m]	34 x 10 x 6
Machine weight: [kg]	250.000

Equipment:
milling head	10 Stk.
Chip conveyor

Please call us for further questions.

Stenzel Verwaltungs GmbH Idsteiner Str. 29 65193 Wiesbaden Deutschland
Tel: +49 611 5101990 Fax: +49 611 51019917 E-Mail: info@stenzel.de
