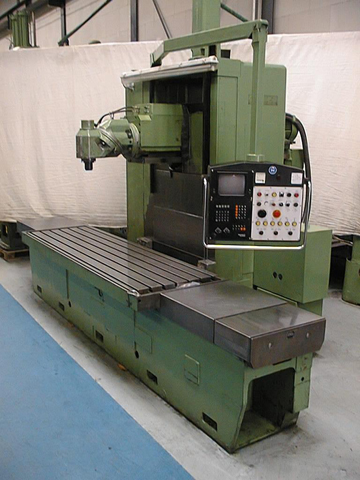

used Bed milling machine
Correa A 20/25
|
|
|
|
| Bed milling machine |
|
| Type de machine : |
Correa A 20-25 |

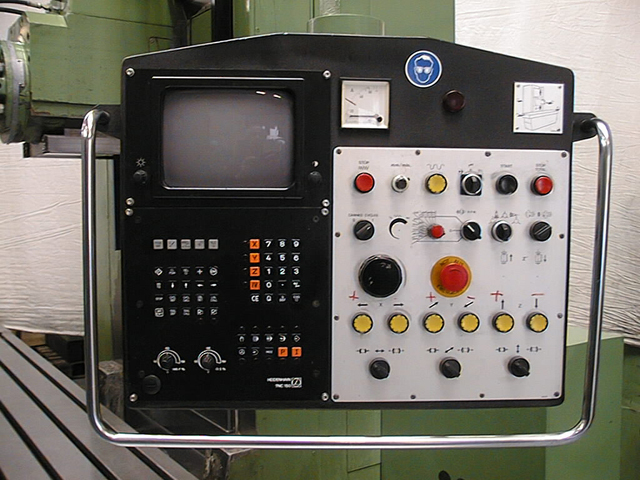

| Control: |
Heidenhain TNC 150 B |
| Year: |
1984 |
| Â |
|
| SPECIFICATIONS: |
|
| Travel: |
|
| X-Axis: [mm] |
2.300 |
| Y-Axis: [mm] |
1.000 |
| Z-Axes: [mm] |
1.000 |
| Feed: (X/Y/Z) [m/min.] |
5 |
| Rapid motion: (X/Y/Z) [m/min.] |
8 / 10 |
| Â |
|
| Rotational speed: [rpm] |
10 - 2.000 |
| Input power: [kW] |
15 |
| Tool: |
ISO 50 |
| Â |
|
| Table size: [mm] |
2.500 x 800 |
| Max. Table Load: [kg] |
5.000 |
| Â |
|
| Req. space (LxBxH): [m] |
4,2 x 2,1 x 3,2 |
| Power consumption: [KW] |
26 |
| Machine weight: [kg] |
11.000 |
Please call us for further questions.
Stenzel Verwaltungs GmbH Idsteiner Str. 29 65193 Wiesbaden Deutschland
Tel: +49 611 5101990 Fax: +49 611 51019917 E-Mail: info@stenzel.de
|
|
|
